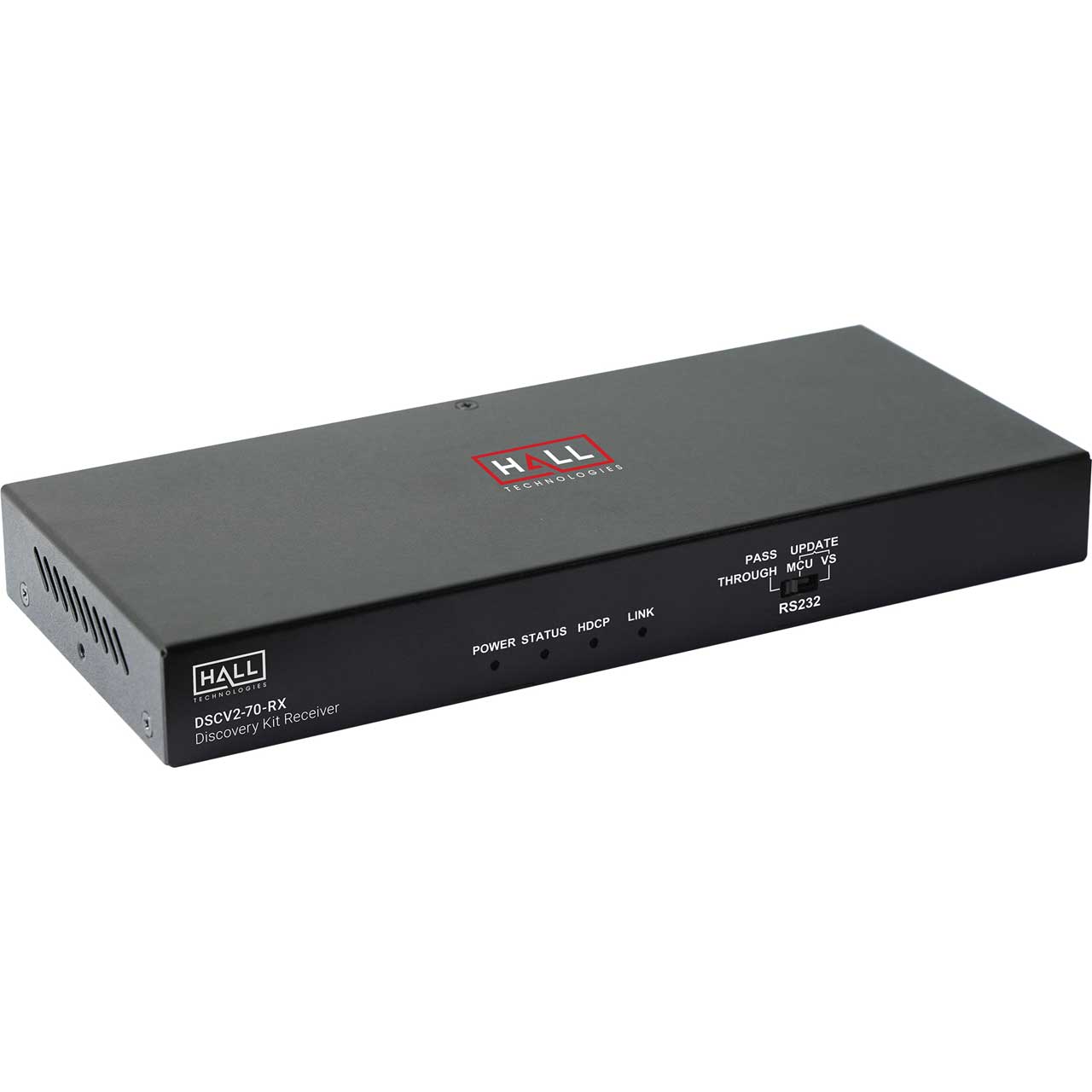

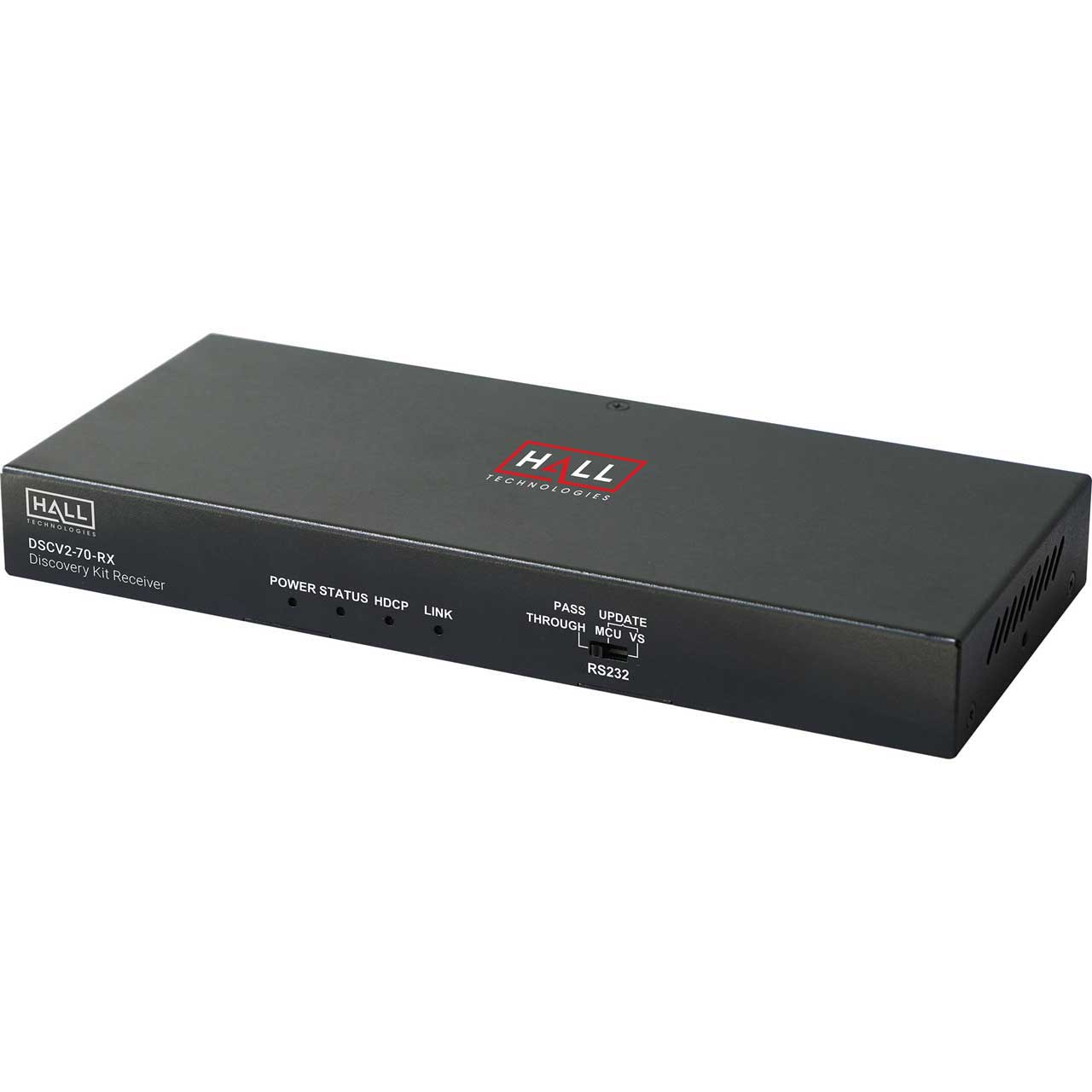

Hall Technologies DSCV-70-RX Discovery Kit HDBaseT 2.0 Receiver with USB and Audio De-embedding

DSCV-70-RX - Overview

• Features:

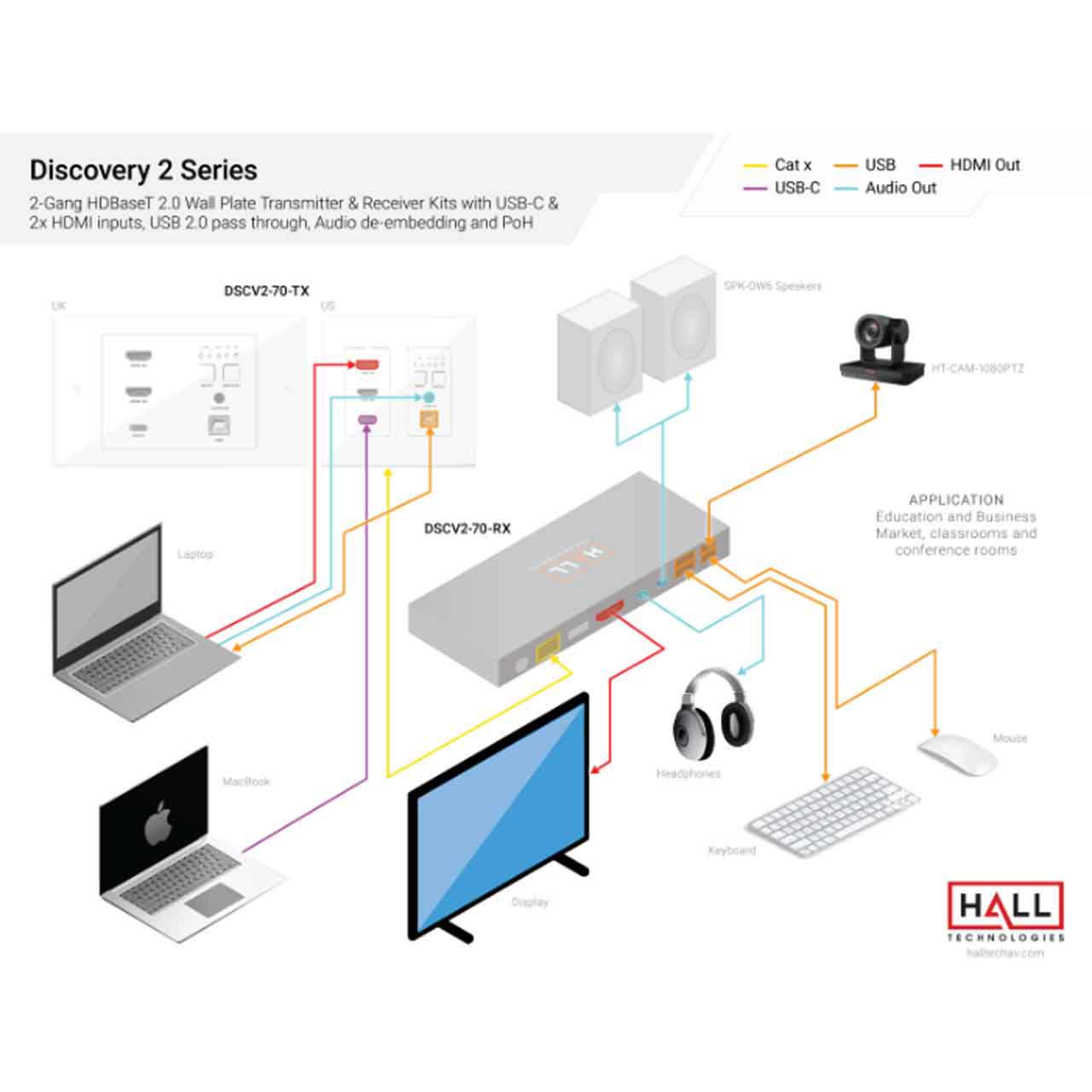

  • Simple and cost-effective HDBT 2.0 Receiver for HDBT Wallplate Transmitter (sold separately).
  • HDMI 1.4 with 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDCP 2.2 compliant.
  • Transmits 4K@60Hz (YUV 4:2:0) signal up to 40m/131ft and 1080P@60Hz signal up to 70m/230ft via a Cat 6a/7 cable.
  • Transmits 4K@60Hz (YUV 4:2:0) signal up to 35m/115ft and 1080P@60Hz signal up to 60m/197ft via a Cat 5e/6 cable.
  • Supports analog audio pass-through from transmitter to receiver.
  • Supports analog audio de-embedding for HDMI output.
  • High-speed USB 2.0 pass-through over HDBT.
  • Provide two high-current USB device ports to connect high-power USB device.
  • Supports bi-directional RS232 serial communication to control a wall plate transmitter when paired with the wall-plate transmitter.
  • Supports firmware upgrade through the RS232 port.
  • Built-in PSE to power remote HDBT Wall plate transmitter with PD module.


• Specifications:

  • Technical

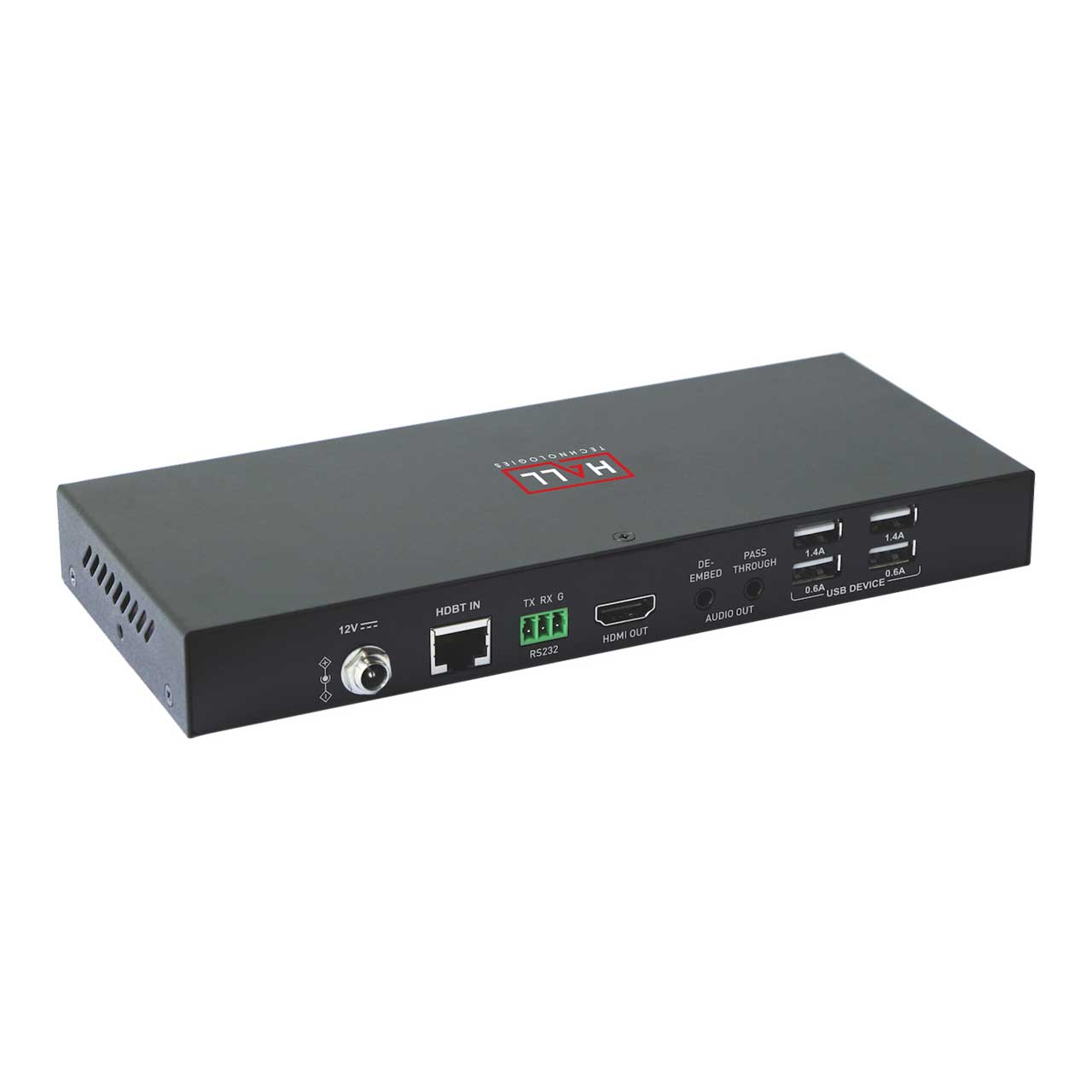

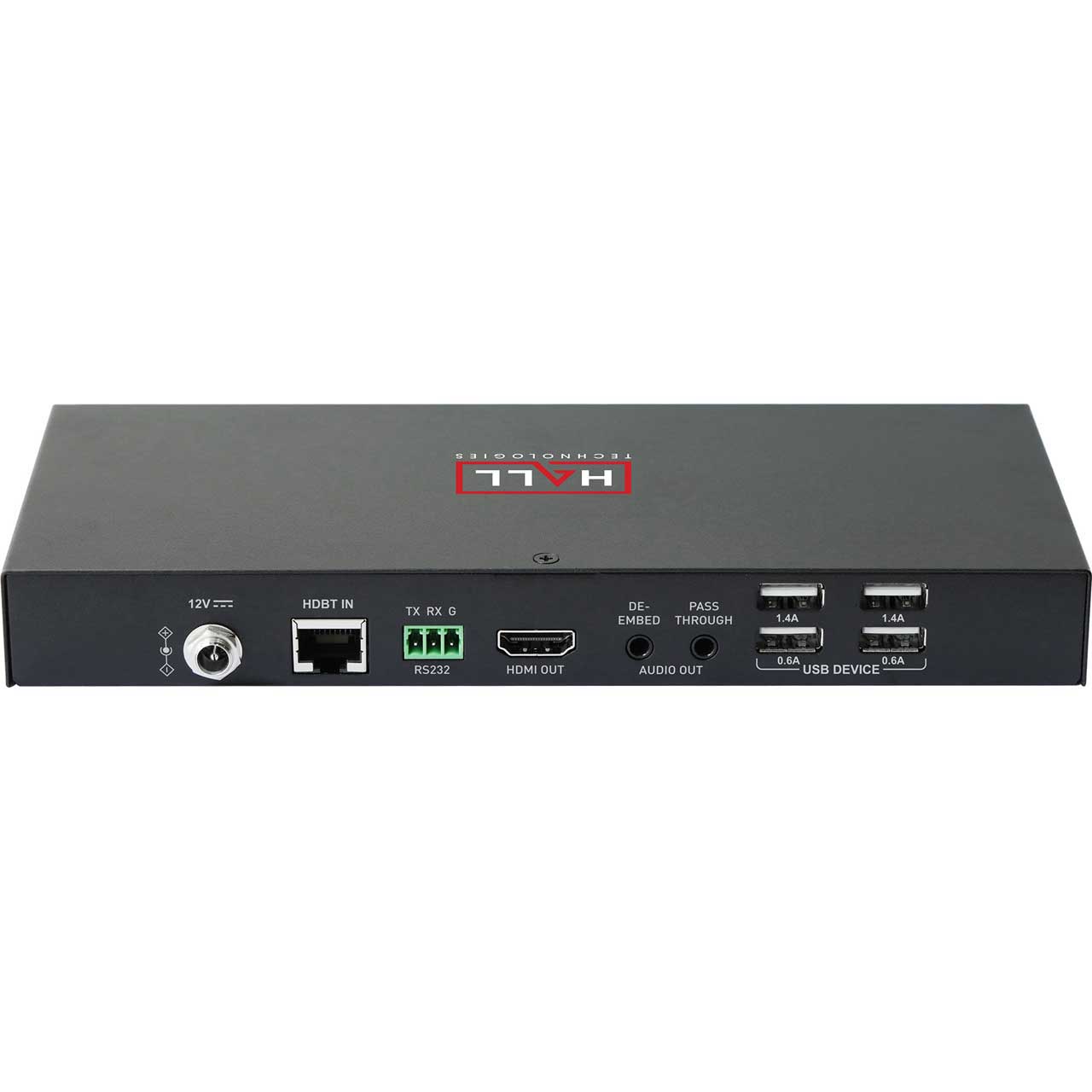

  • Input/Output Port:
    1x HDBT IN
    1x HDMI OUT
    1x RS232
    2x AUDIO OUT One for De-embed and another one for Pass-through)
    4x USB DEVICE
    1x DC 12V IN
  • Input Signal Type: HDBT 2.0
  • Output Signal Type: HDMI with 4K@60Hz 4:2:0 8 bit, HDCP 2.2
  • Input/Output Resolution Supported:
    VESA: 800x6008, 1024x7688, 1280x7688, 1280x8008, 1360x7688, 1366x7688, 1440x9008, 1600x9008, 1600x12008, 1680x10508, 1920x12008
    SMPTE: 1280x720P, 1920x1080I, 1920x1080P, 3840x2160, 4096x2160
    NOTE: 4096x2160/3840x2160@50Hz/60Hz is based on chroma subsampling 4:2:0 8-bit only.
  • Maximum Pixel Clock: 340MHz
  • Audio Format:
    HDMI OUT: Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
    AUDIO OUT: Stereo

    General
  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 10% to 90%, non-condensing
  • ESD Protection:
    Human-body Model
    ±8kV (Air-gap discharge)
    ±4kV (Contact discharge)
  • Power Supply: DC 12V 3A
  • Power Consumption (Max): 8W (Without USB)
  • Device Dimension (WxHxD): 8.27 x 0.98 x 3.55" (210 x 25 x 90.2mm)
  • Product Weight: 0.46kg/1.01lbs
