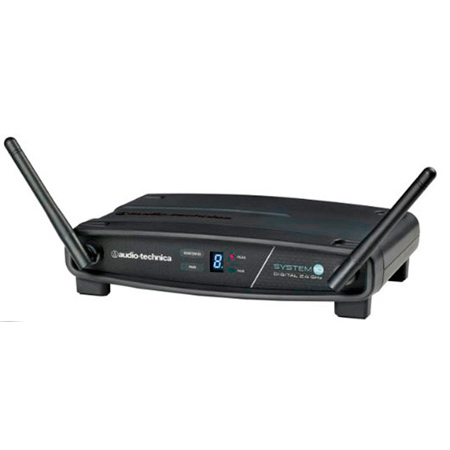

Audio-Technica ATW-R1100 Single-channel Receiver

ITEM #: ATW-R1100 MFG #: ATW-R1100

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$179.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ATW-R1100 - Overview

    Single-channel receiver for System 10.

    Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

    System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

    Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

    Features:
    Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

    2.4 GHz range - completely free from TV interference

    Three levels of diversity assurance: frequency, time, & space

    Automatic frequency selection for seamless, interference-free operation

    Extremely easy operation with instantaneous channel selection, sync, and set-up

    State-of-the-art digital receiver for reliable performance

    Balanced XLR and unbalanced 1/4" output jacks with level control

    • Features:

      • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
      • 2.4GHz range - completely free from TV interference
      • Three levels of diversity assurance: frequency, time, & space
      • Automatic frequency selection for seamless, interference-free operation
      • Extremely easy operation with instantaneous channel selection, sync, and set-up
      • State-of-the-art digital receiver for reliable performance
      • Balanced XLR and unbalanced 1/4" output jacks with level control

    • Specifications:

      • Overall System Specifications
      • Operating Frequencies: 2.4GHz ISM band (2400 - 2483.5MHz)
      • Dynamic Range: >109dB (A-weighted), typical
      • Total Harmonic Distortion: <0.05% typical
      • Operating Range: 100ft typical, Open range environment with no interfering signals
      • Operating Temperature Range: 32°F - 104°F, Battery performance may be reduced at very low temperatures
      • Frequency Response: 20Hz - 20kHz, Depending on microphone type
      • Maximum Simultaneous Use (Recommended): 200ft minimum

        Receiver Specifications
      • Receiving System: Diversity (frequency/time/space)
      • Maximum Output Level: XLR, balanced: 0dBV; 1/4", unbalanced: +6dBV
      • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC .5A (center positive) switched mode external power supply
      • Operating Temperature Range: 40°F - 110°F
      • Dimensions (HxWxD): 1.82" x 7.48" x 5.06"
      • Net Weight: 10.2oz

    • Item Includes:

      • Power supply

    • Warranty:

      • 2 Year Limited End-User

    • GTIN:

      0042005178025
