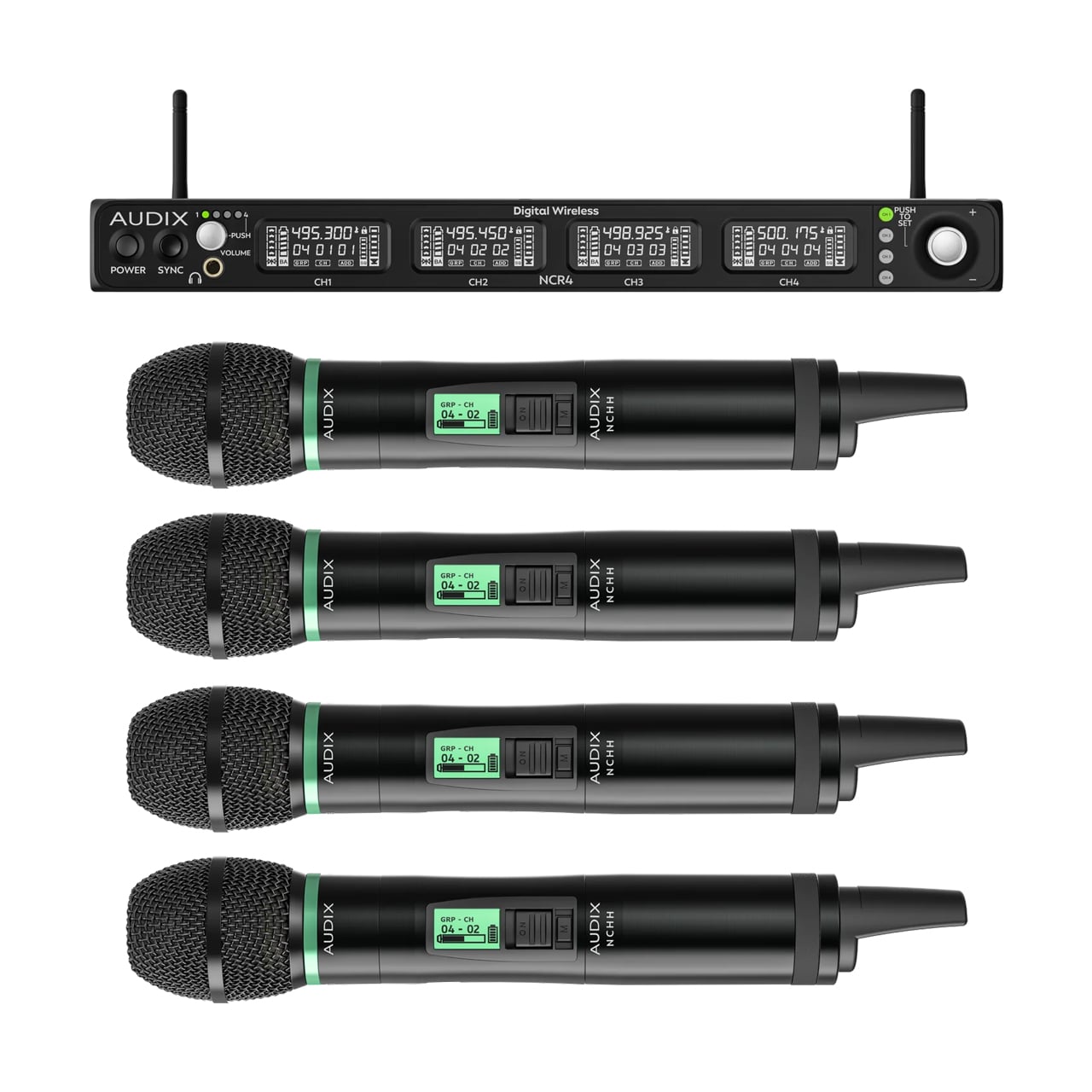

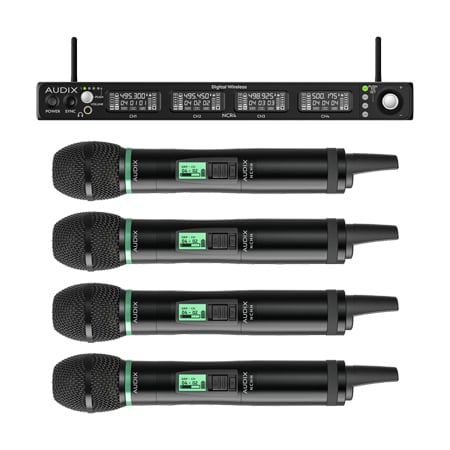

Audix NC4HEC Quad-Channel Handheld Wireless System w/ 4x NCEC Extended Cardioid Capsule & 4x NCHH Handheld Transmitters

ITEM #: AUD-NC4HEC MFG #: NC4HEC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,376.00

Our Price:

$3,646.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


NC4HEC - Overview

Complete Novacore digital wireless handheld system designed for vocalists and presenters - ready to go out of the box!

The Audix NC4HEC is a complete quad-channel Novacore digital wireless system for vocalists and presenters - everything needed to go from box to stage in a single purchase. It pairs the NCR4 Quad-Channel Digital Receiver with 4x NCHH Digital Handheld Transmitters and 4x NCEC Extended Cardioid Wireless Capsule, delivering the natural vocal clarity and transient response AUDIX microphones are known for on a professional AES-256 encrypted UHF digital wireless platform.

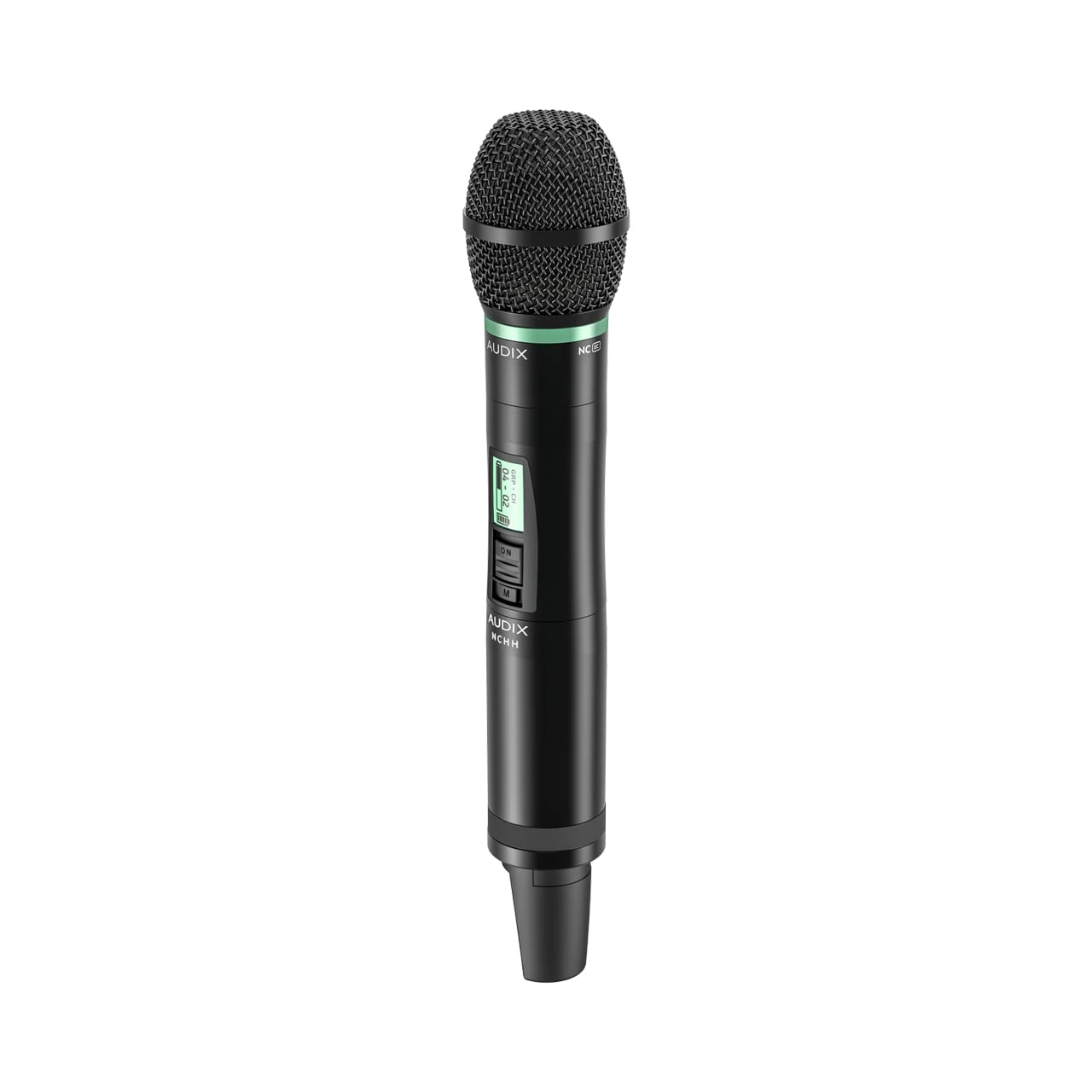

The NCEC extended cardioid capsule provides balanced, even-sounding vocal coverage across a wide dynamic range - ideal for lead vocalists, worship leaders, and presenters who move during performance. The NCHH transmitter and NCR4 receiver are pre-matched on the Novacore RF platform and pair via one-touch IR sync.

The system operates across a 48MHz UHF tuning range with less than 3 ms latency and 9+ hours of transmitter battery life on 2x AA alkaline or 1x NCLB rechargeable lithium-ion. USB-C charging is built into the NCHH transmitter body. The NCEC capsule is interchangeable - upgrade or swap to an NCTH Tight Hypercardioid at any time using the same "S" thread mount with no tools required. The system is fully expandable within the Novacore ecosystem by adding channels, transmitters, or receivers as needs grow.

  • Features:

    • Complete quad-channel digital wireless system - receiver, transmitter, and capsule included, ready to perform out of the box
    • NCEC extended cardioid capsule - balanced vocal clarity voiced from the AUDIX OMX series with natural transient response
    • AES-256 encryption with one-touch IR sync; 48MHz tuning range (494MHz - 542MHz); <3 ms latency
    • Standard "S" thread capsule mount - swap to NCTH Tight Hypercardioid at any time, no tools required
    • Fully expandable - add channels, transmitters, and receivers within the Novacore ecosystem as your system grows

  • Specifications:

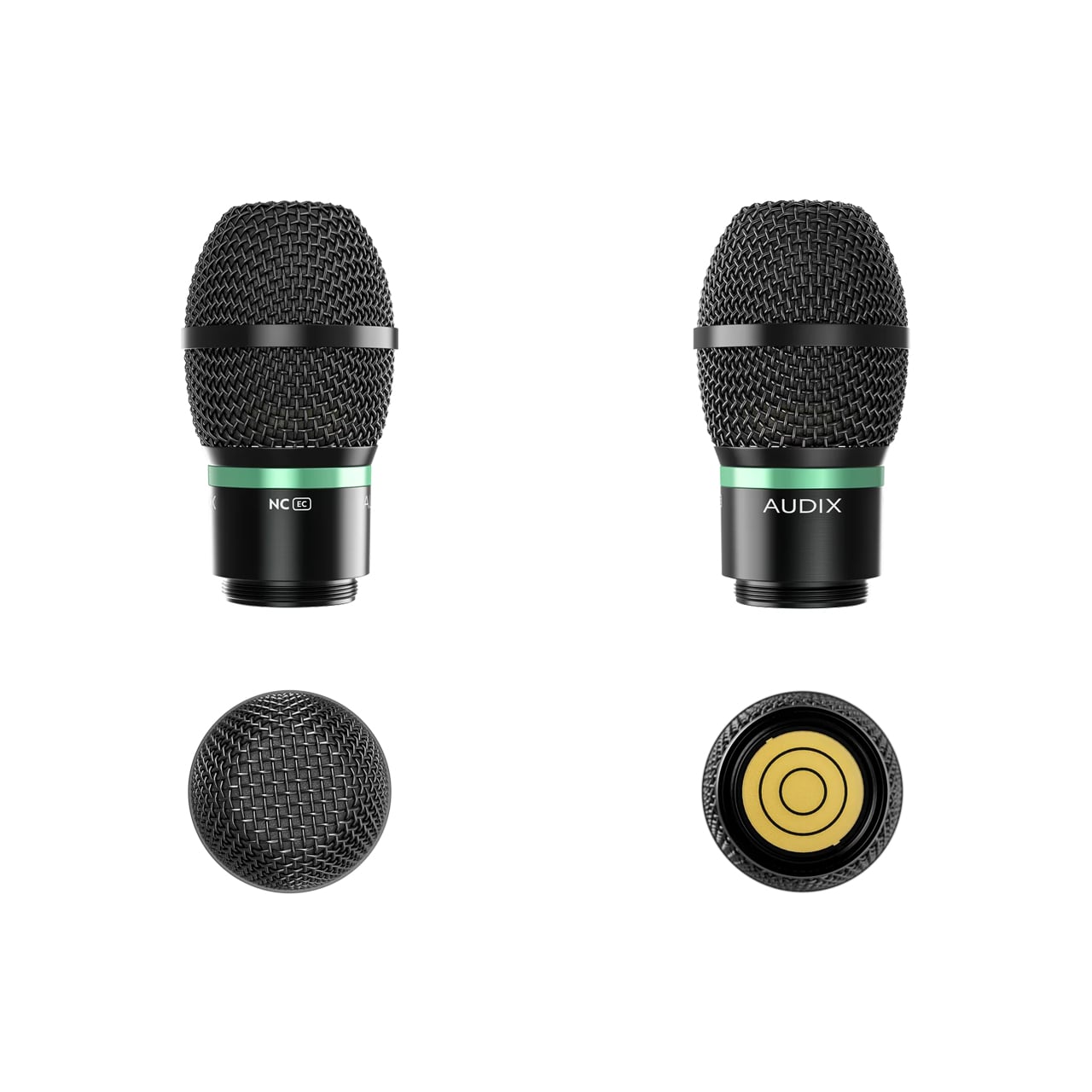

      NCEC Wireless Capsule
    • Transducer Type: Dynamic
    • Frequency Response (-6dB): 50Hz - 14kHz
    • Polar Pattern: Cardioid
    • Capsule Impedance: 280Ω
    • Sensitivity: 1.5mVrms/Pa @ 1kHz/@ 0.25m
    • Capsule Technology: VLM
    • Off-Axis Rejection: > 25dB
    • Maximum SPL: 144dB SPL
    • Connector: 1-1/4"-28 UN thread pitch, S-Type
    • Polarity: Positive pressure on diaphragm produces positive voltage on center ring pad relative to outer ring pad
    • Materials/Finish: Aluminum/Black Finish
    • Weight: 0.41lbs (188g)
    • Height: 3.48" (88.5mm)

      NCR2 Digital Receiver
    • RF Frequency Range: UHF 494MHz - 542MHz (country dependent)
    • RF Bandwidth: 48MHz
    • Display: LCD
    • Control Interface: Power button, Sync button, Jog Dial, Channel Select Buttons, Headphone Monitoring Control
    • Encryption: AES 256-bit
    • Frequency Response: 20Hz - 20kHz (< -2dB)
    • Latency: < 3 ms
    • Audio Processing: 44.1kHz/24-bit digital sampling
    • Dynamic Range: > 110dBA
    • Receiving Mode: Digital Diversity
    • RF Input:
      - Spurious Rejection: > 80dB
      - Antenna Type: 1/4-wave; adjustable
      - Connector Type: Detachable; 50Ω BNC female connector provides bias for antenna systems
      - Sensitivity: -85dBm
    • Audio Output:
      - Level Switch: -6dB, 0dB, +16dB
      - Switch: Ground/Lift
      - Connector: XLR; Balanced (1 = ground, 2 = audio +, 3 = audio -)
      - Impedance: XLR Line Level: 600Ω
      - Output: +18dBV
      - Dante/AES67 via RJ45
    • Networking:
      - 2x RJ11 for PC software control
      - Recommended Connection Distance: < 328ft (100m)
    • Power Requirements: 12VDC @ 300mA (supplied by external power supply - tip positive)
    • Chassis: 1U (19")
    • Materials/Finish: Steel/Black Finish
    • Weight: Approx. 4.5lbs (2kg)(without antennas)
    • Dimensions (WxHxD): 16.5" x 1.73" x 8.5" (419mm x 44mm x 216mm)

  • Item Includes:

    • 1x NCR4 - Novacore Quad-Channel Digital Receiver
    • 4x NCHH - Novacore UHF Digital Handheld Transmitter Body
    • 4x NCEC - Novacore Extended Cardioid Wireless Capsule
    • 2x BNC Detachable Antennas
    • 1x PS12V - 12 VDC External Power Supply (100V - 240VAC/50/60Hz universal)
    • 1x NCCC - 20" Charging Cable, USB-A to USB-C

  • Warranty:

    • 1 Year Warranty
