AURA-DXW-2-B - Overview

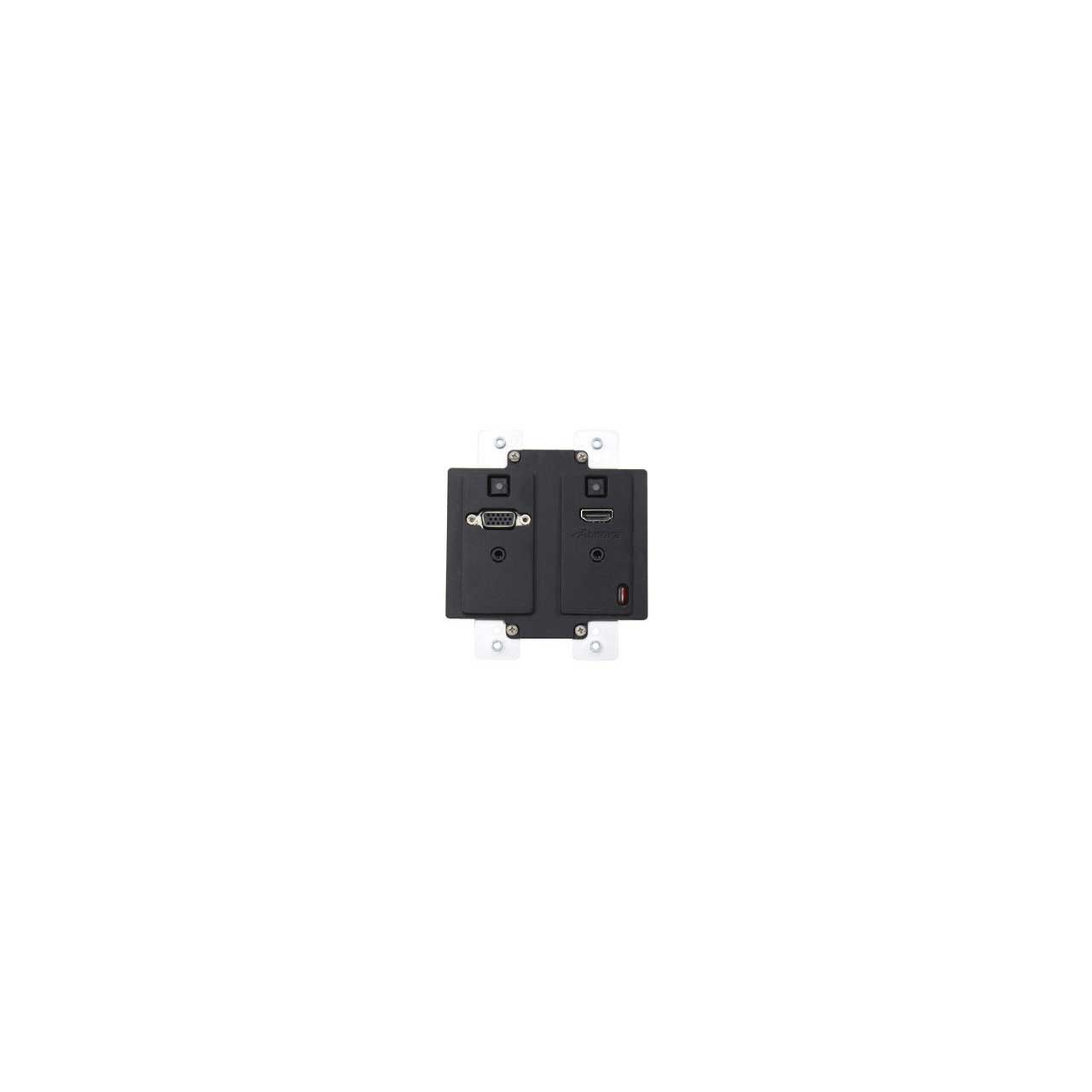

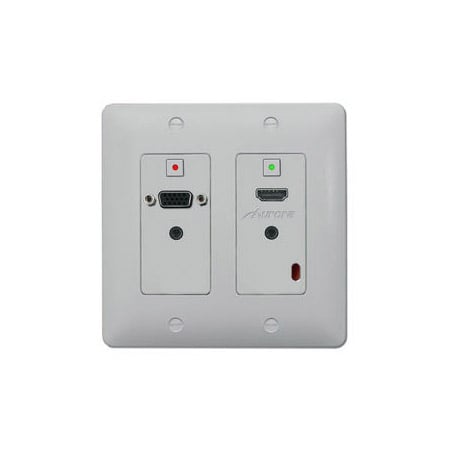

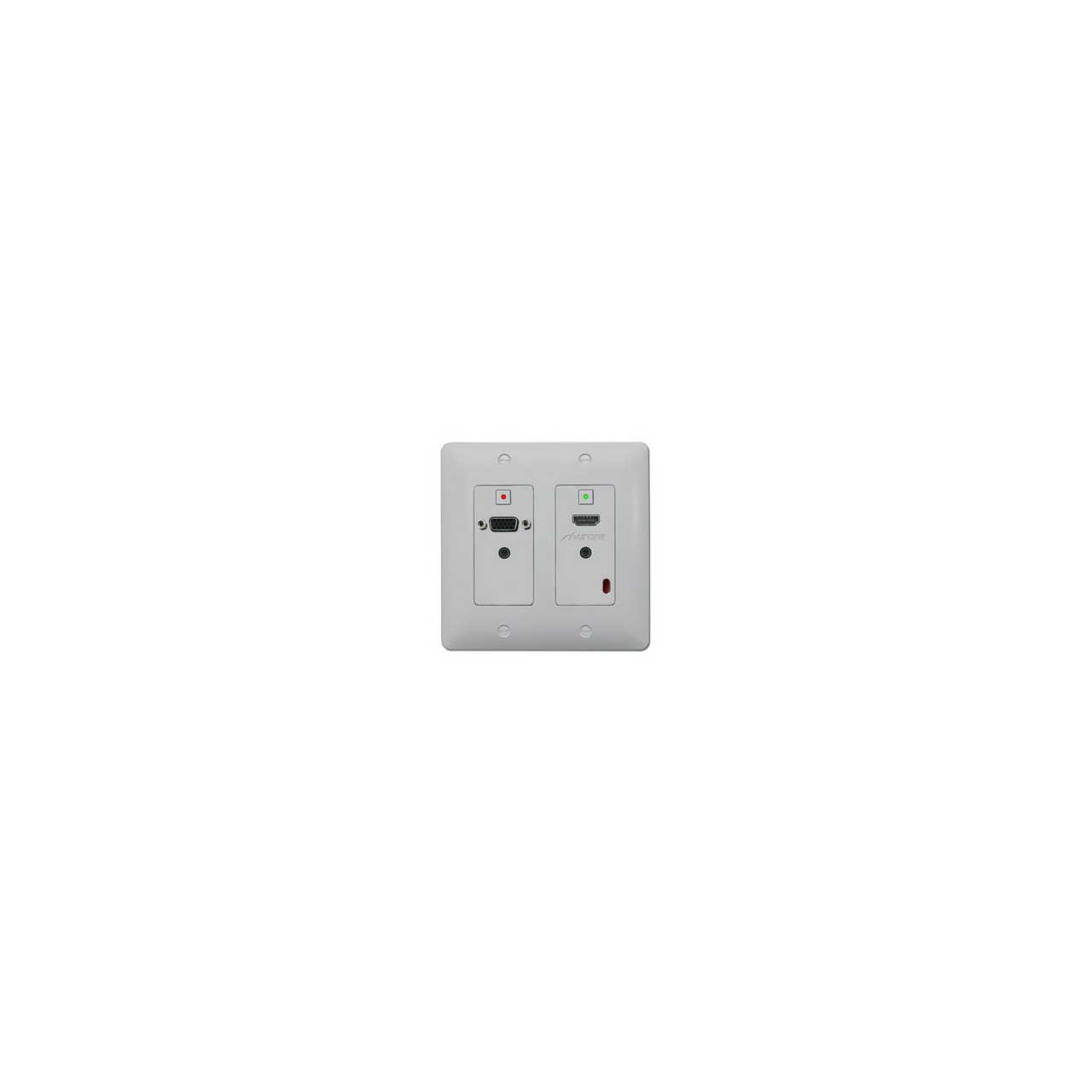

The DXW-2 is a 2 gang multi-input Decora style wall plate with HDBaseT CAT extension. Its ability to convert VGA (YPbPr, S-Video, Video) with audio to HDMI locally and transmit the signal up to 600ft sets this unit apart from the competition. The sources are selectable with the buttons on the wall plate, or remotely via RS-232 commands sent through the matching receiver device (DXE-CAT-RX, DXM Matrixes, etc).

The DXW-2 can be remotely powered by the receiver device and also has the ability to receive IR signals via the sensor window on the front of the unit and pass them to the receiver unit for remote control of IR controllable devices. Overall, the DXW-2 saves money and simplifies an installation by combining the functionality of a switcher, converter, and extender into one neat package.

  • Features:

    • 1 HDMI Input with Audio for DVI
    • 1 VGA with Audio Converted to HDMI
    • VGA can Accept YPbPr, S-Video, & Video
    • HDBaseT 600ft Extension
    • 1 IR Receiver (40ft Range)
    • Auto Sense, Buttons, RS-232 for Source Select
    • Buttons Backlight (Red, Green, Blue)
    • HDCP Compliant
    • Remotely or Locally Powered
    • Fits in Standard 2 Gang Outlet Box with Decora style wall plate
    • Low depth for floor and table boxes
  • Specifications:

    • Video
    • HDMI Compliance HDMI 3D
    • HDCP Compliant Yes
    • Distance 330ft over one CAT 5e/6/7 cable (1080p 60Hz 48bit)
    • 500ft over one CAT 6 cable (1080p 60Hz 24bit)
    • 600ft over one CAT 6a cable (1080p 60Hz 24bit)
    • Max Resolution 4K x 2K
    • Color Depth 48bit

    • Connectors
    • Digital Video (1) HDMI in with 3.5mm TRS audio for DVI
    • Analog Video (1) VGA in with 3.5mm TRS audio for DVI
    • Can be used for YPbPr/S-Video/Composite with optional break out cables

    • Control
    • IR IR pass through for controlling remote devices
    • Serial Capable of being controlled remotely through compatible receiver
