DXW-2-S1-W - Overview

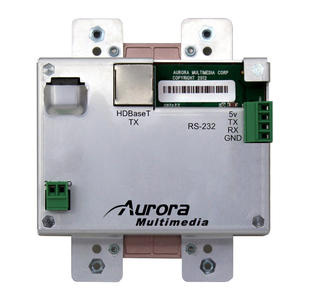

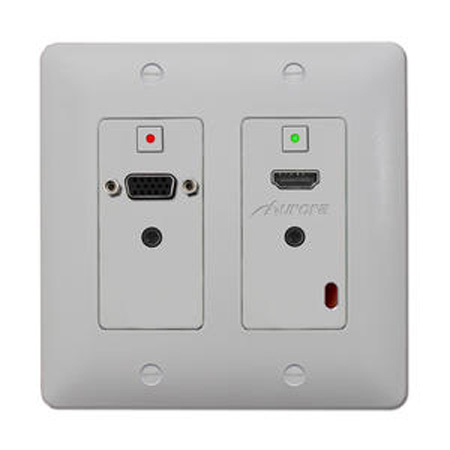

The DXW-2 is a 2 gang multi-input DecoraT style wall plate with HDBaseT CAT extension. Its ability to convert VGA (YPbPr, S-Video, Video) with audio to HDMI locally and transmit the signal up to 600ft sets this unit apart from the competition. The sources are selectable with the buttons on the wall plate, or remotely via RS-232 commands sent through the matching receiver device (DXE-CAT-RX, DXM Matrixes, etc).

The DXW-2 can be remotely powered by the receiver device and also has the ability to receive IR signals via the sensor window on the front of the unit and pass them to the receiver unit for remote control of IR controllable devices. Overall, the DXW-2 saves money and simplifies an installation by combining the functionality of a switcher, converter, and extender into one neat package.

  • Features:

    • 2 Input HDBaseT Wall Plate (VGA & HDMI) - 230'' CAT Extender
    • 2-gang Wall Plate & Receiver w/ 1-HDMI/DVI input and 1-VGA/YPbPr input each with its own analog audio
    • input. Inputs are selectable via the front plate, auto-detect or via RS232 and passed over a single CAT cable up
    • to 230ft
    • Supports RS232 and IR extension
    • Includes DXW-2 Wall Plate (White)
    • DXE-CATRX1 receiver and Power Supply.
  • Specifications:

    • HDMI Compliance HDMI 3D
    • HDCP Compliant Yes
    • Distance 330ft over one CAT 5e/6/7 cable (1080p 60Hz 48bit)
    • 500ft over one CAT 6 cable (1080p 60Hz 24bit)
    • 600ft over one CAT 6a cable (1080p 60Hz 24bit)
    • Max Resolution 4K x 2K
    • Color Depth 48bit
    • Connectors
    • Digital Video (1) HDMI in with 3.5mm TRS audio for DVI
    • Analog Video (1) VGA in with 3.5mm TRS audio for DVI
    • Can be used for YPbPr/S-Video/Composite with optional break out cables
    • IR IR pass through for controlling remote devices
    • Serial Capable of being controlled remotely through compatible receiver
  • Item Includes:

    • Wall-Plate Transmitter, Receiver and Power Supply
