Aurora IP-24POEPLUS 24 Port PoEplus/PoHplus Injector - 750 Watts


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    IP-24POE+ - Overview

    The Aurora IP-24PoE+ is the first ever 24 port PoE+/PoH+ injector to deliver power on a 10G connection. It is compatible with any standard 1G or 10G network switch and will deliver up to 30 watts of power per port.

    This allows for a clean installation of any 1G or 10G PD capable device, alleviating the need for local power supply. Aurora designed the IP-24PoE+ for its IPX Series SDVoE AV over IP product line as it currently is the only 10G AV over IP with PoE. The IP- 24PoE+ can also supply power to HDBaseT™ PoH products providing remote powering as well.

    In the case of an under powered PoE network switch, the IP-24PoE+ will provide the additional power to the ports requiring or to simply add PoE+ to ports lacking.

    Taking up only 1RU of rack space the, IP-24PoE+ is the only 10G PoE+ solution for a clean installation.

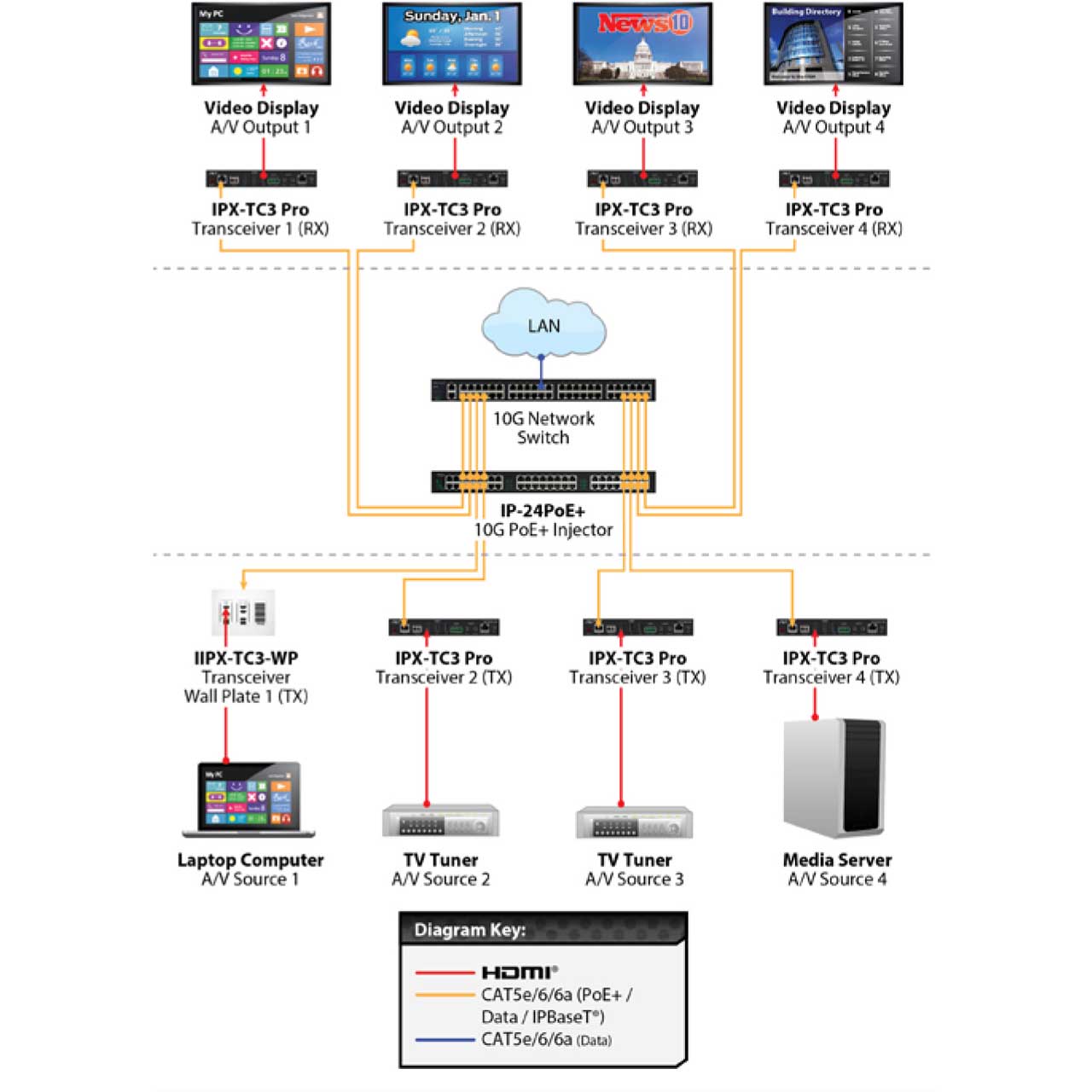

    SDVoE™ AV over IP PoE+ Application Example:
    SDVoE is a 10G AV over IP solution available in copper or fiber. Aurora's IPX Series of 10G copper SDVoE solution is PoE+ capable making the IP-24PoE+ a perfect fit. Without the PoE on the 10G every drop point would require an external power supply making it more difficult to install in some locations as it would require an electrical outlet nearby.

    Depending on the switch brand and model required it may not have PoE available. The IP24PoE+ will quickly and easily add PoE+ to any brand switch including ones that only have enough power for half of the ports like the Netgear™ SDVoE compliant M4300-96X Series switch. While it is a very powerful, low cost switch, the power budget is only for 48 of the 96 ports. Using two IP-24PoE+ units will allow the distribution of PoE+ on the remaining 48 ports keeping the system free of any external power supplies.

    • Features:

      • 24 RJ-45 ports
      • 1G and 10G
      • 30 Watts per port PoE+/PoH+
      • LED PoE active indicators
      • 750 Watts Total Power
      • IEEE 802.3af, IEEE 802.3at
      • 1RU Rack Size
    • Specifications:

      • Technical
      • RJ-45 Ports: 24
      • Power Pin Assignments: 4/5 (+), 7/8(-)
      • PoE Power: 30 Watts Per RJ-45 Port
      • PoE Standard: IEEE802.3af, IEEE802.3at
      • Data Rates: 10Gbps, 1Gbps, 100Mbps, 10Mbps
      • LED Indicators: System Power, Per Port Power Active
      • PoH Capable: Yes

      • Housing: Metal enclosure
      • Dimensions [L x W x H]: 17.32" x 9.25" x 1.693" / 44cm x 23.5cm x 4.3cm
      • Weight: 3.94kg (8.69 lbs.)
      • Mounting: 1RU
      • Power supply :100-16/240VAC, 50/60Hz
      • Power consumption: 750 Watts Max
      • Operation temperature: 0~40°C [32~104°F]
      • Storage temperature: -10~70°C [14~158°F]
      • Relative humidity: 20~85% RH [no condensation]
    • Item Includes:

      • 1x IP-24PoE+
      • 1x 3 Prong AC Cable
