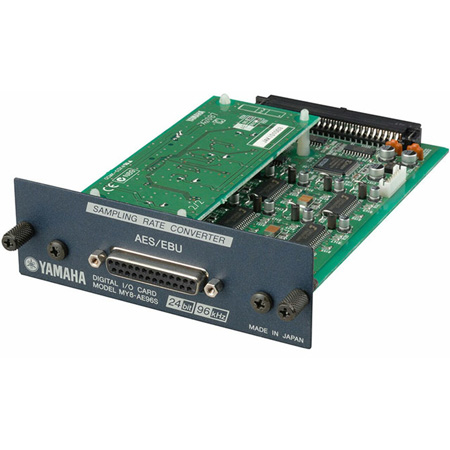

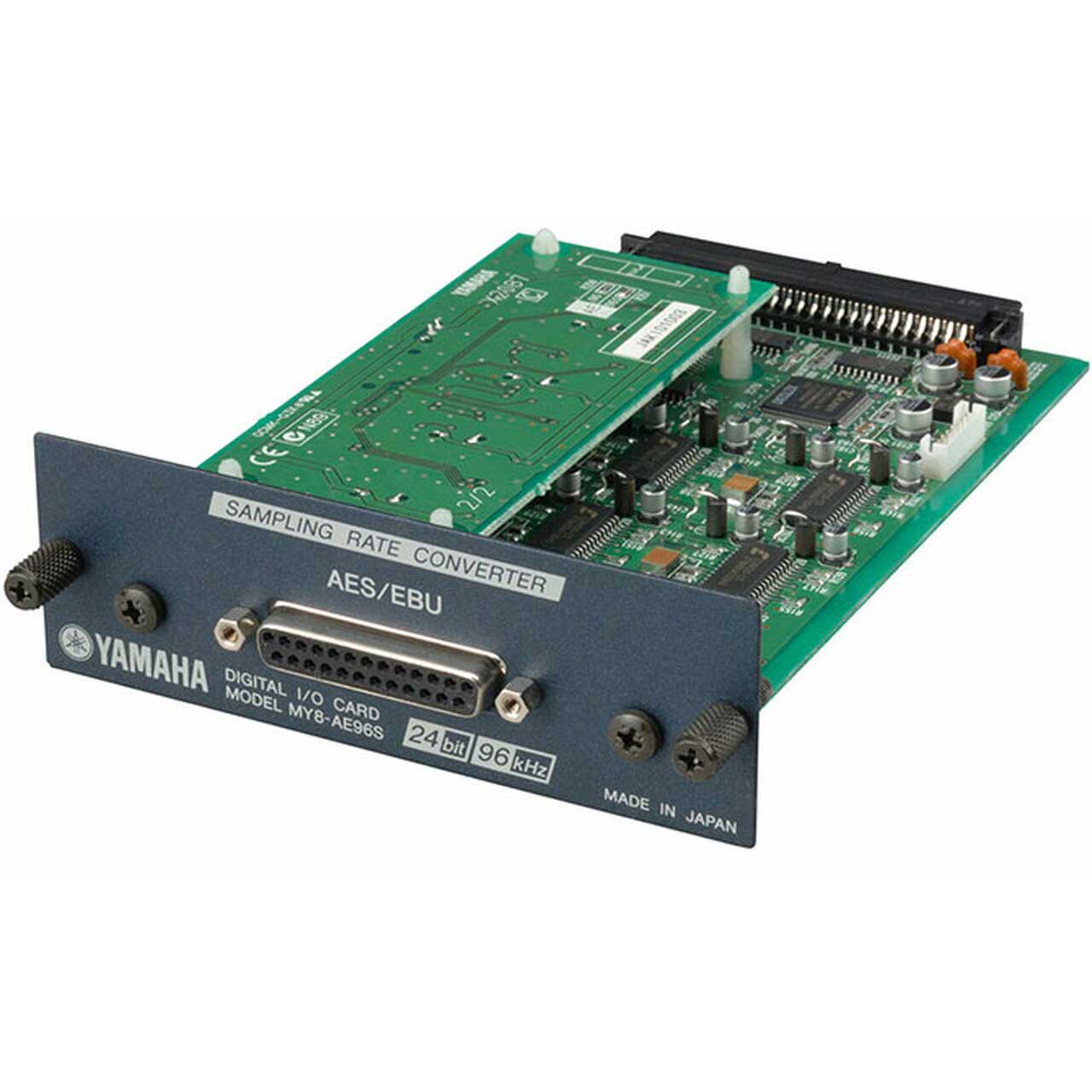

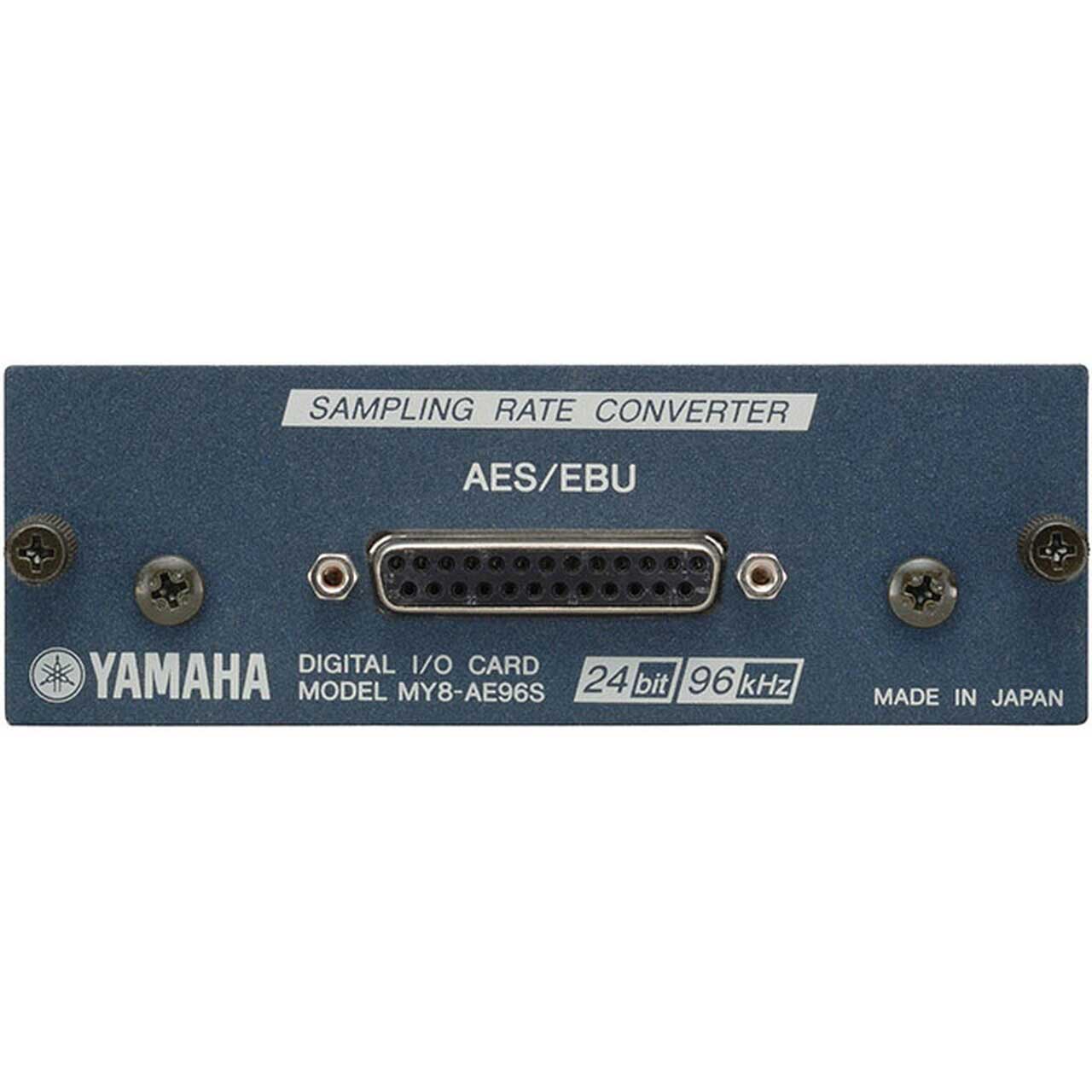

Yamaha MY8AE96S 8-Channel - 96kHz AES/EBU I/O Card with Sample Rate Conversion

ITEM #: YMH-MY8AE96S MFG #: MY8AE96S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$831.00

Our Price:

$737.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MY8AE96S - Overview

    Yamaha MY8AE96S is an optional digital I/O card for compatible Yamaha digital mixing consoles and signal processors. It provide eight inputs and eight outputs for 24-bit, 44.1/48/88.2/96 kHz uncompressed AES/EBU compliant digital audio. Built-in sample rate conversion is provided on all inputs.

    • Features:

      • 24bit resolution, 96kHz compaible 8-in/8-out AES/EBU interface
      • 1 x D-sub 25 pin connector
      • Equipped with a sampling rate converter at the input
      • Dimensions: 120mm x 40mm x 176mm (4.7" x 1.6" x 6.9")

    • Specifications:

      • Channel Count: 96kHz compatible 8IN / 8OUT
      • Format: AES/EBU
      • Sampling Frequency: 44.1/48/88.2/96kHz
      • Resolution: 24bit
      • Connector: 1 x D-sub 25 pin connector

    • Item Includes:

      • 1x Yamaha MY8AE96S 8-Channel - 96kHz AES/EBU I/O Card with Sample Rate Conversion

    • GTIN:

      0086792637914
