Yamaha MY8AE 8-channel Digital I/O Option for 01V- AW4416 and AW2816


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

MY8AE - Overview

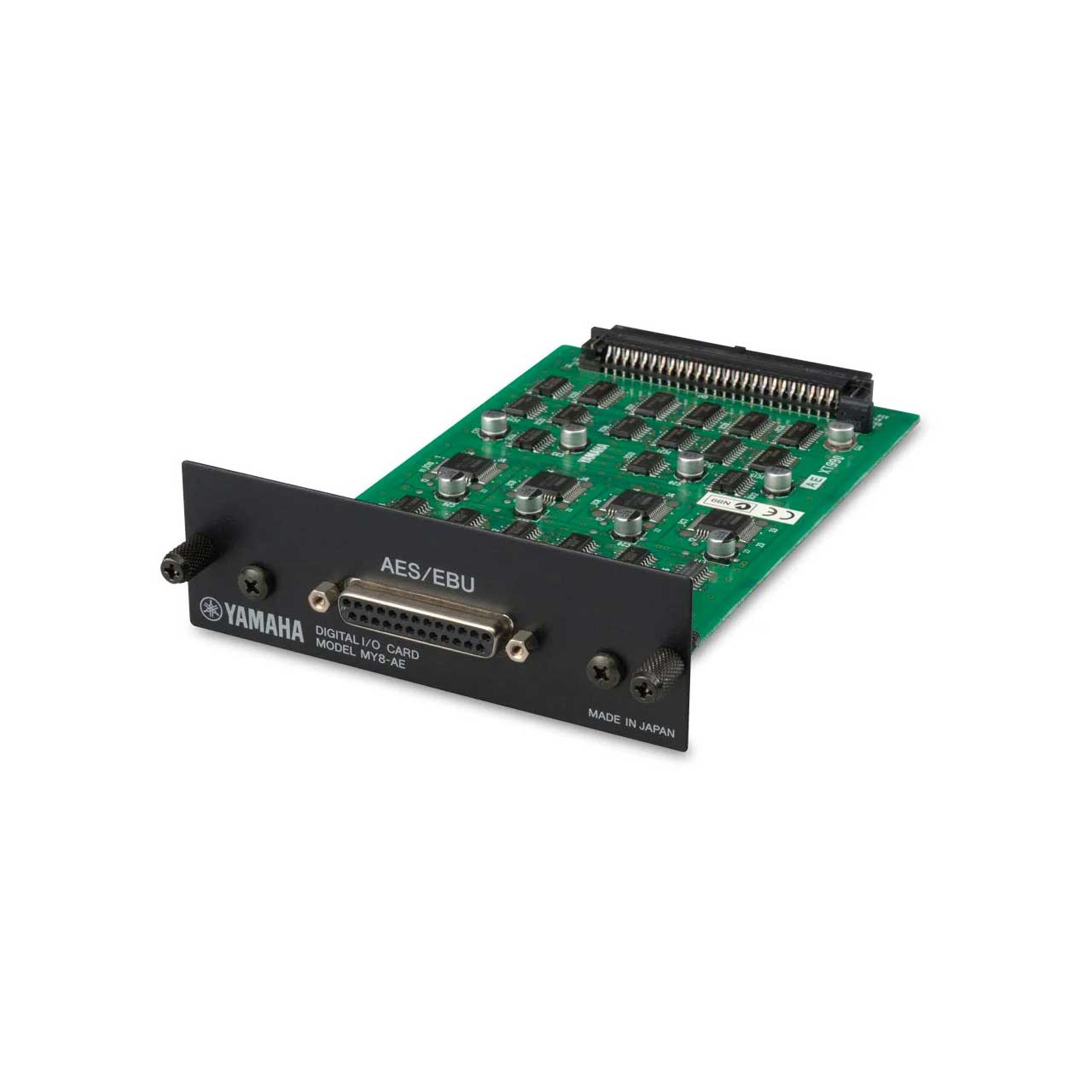

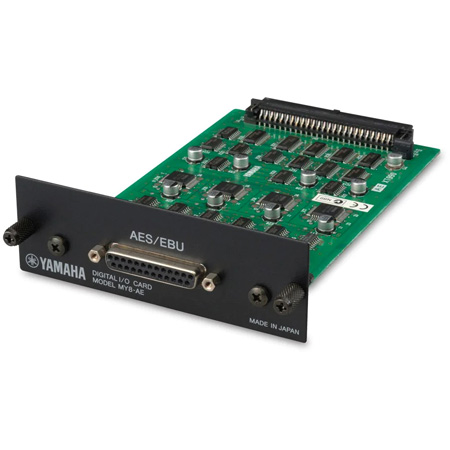

The Yamaha MY8-AE is an optional digital I/O card for compatible Yamaha digital mixing consoles and signal processors. It provide eight inputs and eight outputs for 24-bit, 44.1/48 kHz uncompressed AES/EBU compliant digital audio.

  • Features:

    • 24bit resolution, 8-in/8-out AES/EBU interface (4-in/4-out at 96kHz)
    • 1x D-sub 25 pin connector
  • Specifications:

    • Channel Count: 8IN / 8OUT
    • Format: AES/EBU
    • Sampling Frequency: 44.1/48kHz
    • Resolution: 24bit
    • Connector: 1 x D-sub 25 pin connector
    • Dimensions (WxHxD): 4.7 x 1.6 x 6.9"
  • GTIN:


MY8AE - Required Accessories
