Avipas AV-3207 IP & Serial Joystick PTZ Camera Controller with PoE

ITEM #: AV-3207 MFG #: AV-3207

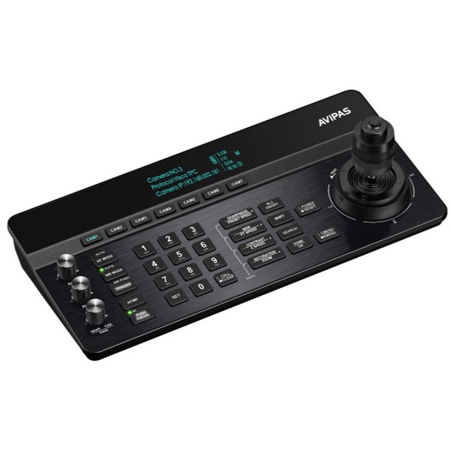

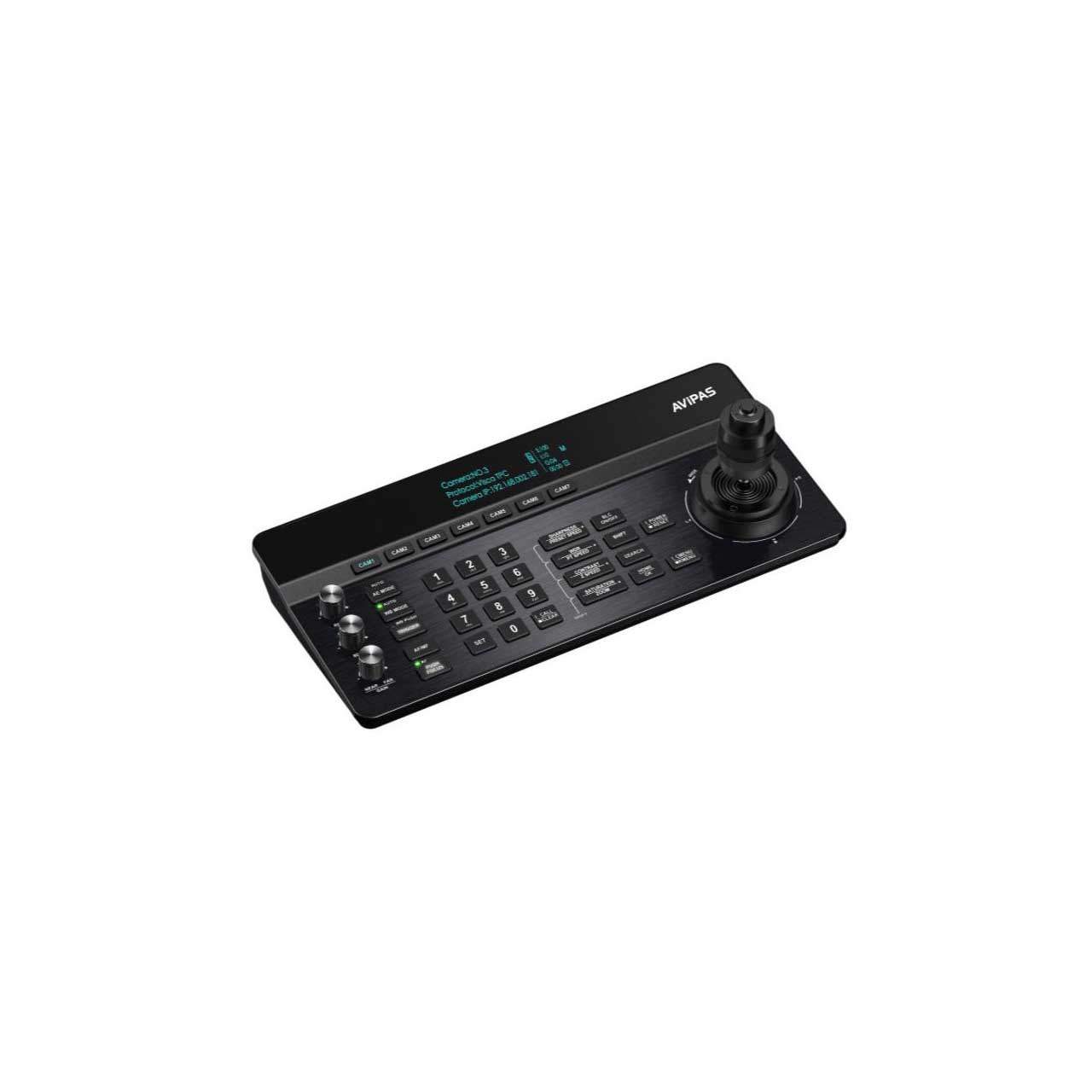

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$580.00

Our Price:

$560.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AV-3207 - Overview

    AViPAS AV-3207 is a PTZ camera joystick controller for any camera supports VISCA, PELCO D/P, VISCA over IP, UDP, TCP and ONVIF protocols. Supports control over IP(RJ45) and via RS232/RS485/RS422 Serial communications. With joystick/buttons/Knobs combination, it allows the operator easily to control pan, tilt, zoom and focus of the camera, and in also control the settings of the camera, such as iris, red & blue gains, white balance, image color adjustments, presets, P/T/Z speed and many other ways to operate your camera. It has 7 quick camera selection buttons that makes it easy to switch and control between 7 cameras. With the 3.12" large OLED screen with backlight, it is convenient to see the current settings and do configurations in any lighting conditions. This controller can control up to 255 cameras.

    • Features:

      • IP & Serial control simultaneously
      • Precise P/T/Z control with adjustable speed
      • Adjustable speed for calling presets
      • Advance focus, iris, red gain, blue gain control with joystick/buttons/knobs
      • 4D joystick offers simultaneous pan, tilt, zoom, and lock(unlock PTZ functions)
      • Control up to 255 units

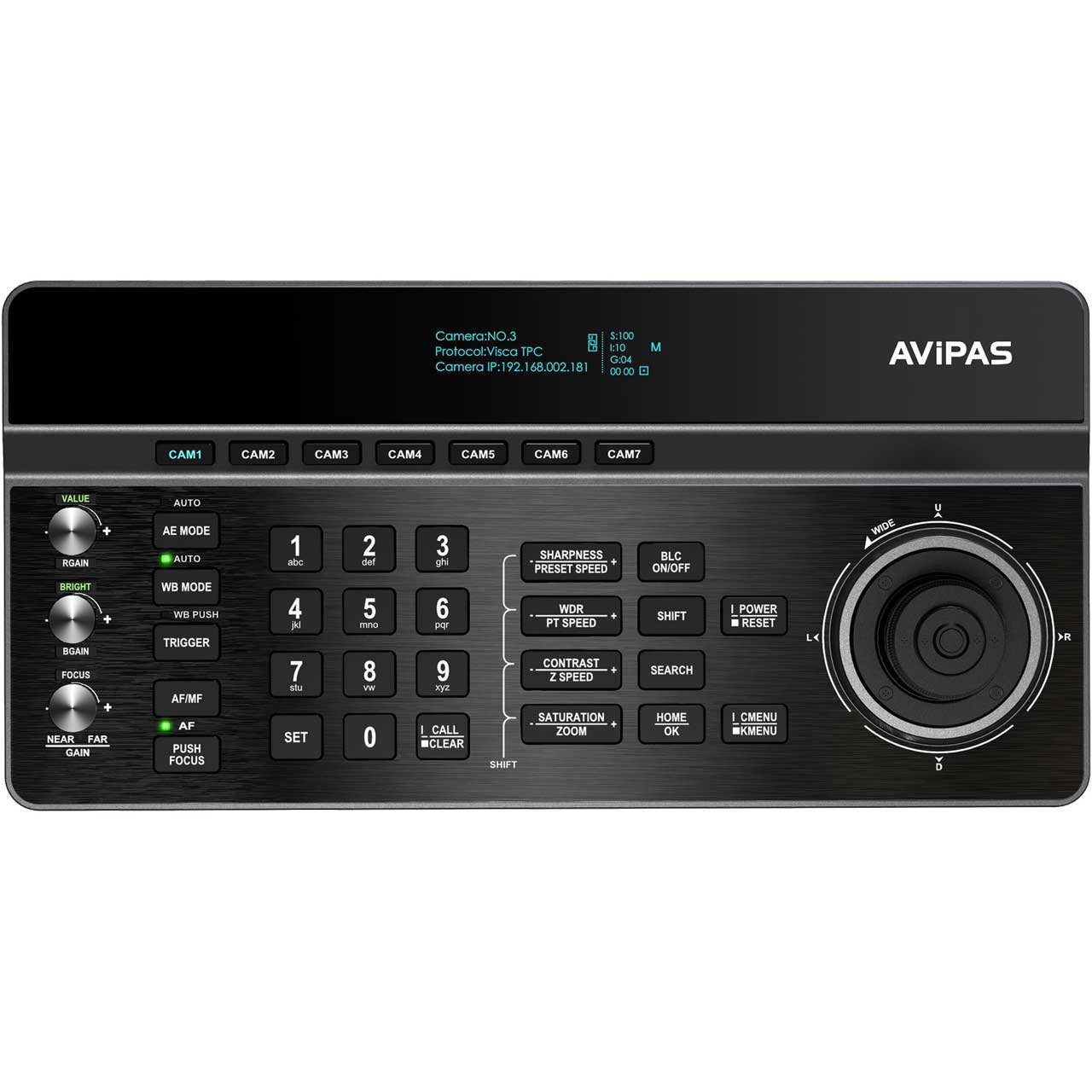

      • 7 quick camera selection buttons
      • 3.12" OLED display status and menu
      • Supports PELCO-D/P, VISCA, VISCA-over-IP, TCP, UDP and ONVIF protocols
      • 5 control modes: 2 IP control modes via RJ45(IP VISCA & ONVIF); 3 serial control modes(RS422/S485 & RS232)
      • PoE supported: IEEE (802.3af)
      • 1x USB-C port for updates

    • Specifications:

      • Support protocols: VISCA-Over-IP, VISCA, Pelco-D, Pelco-P, TCP, UDP and ONVIF

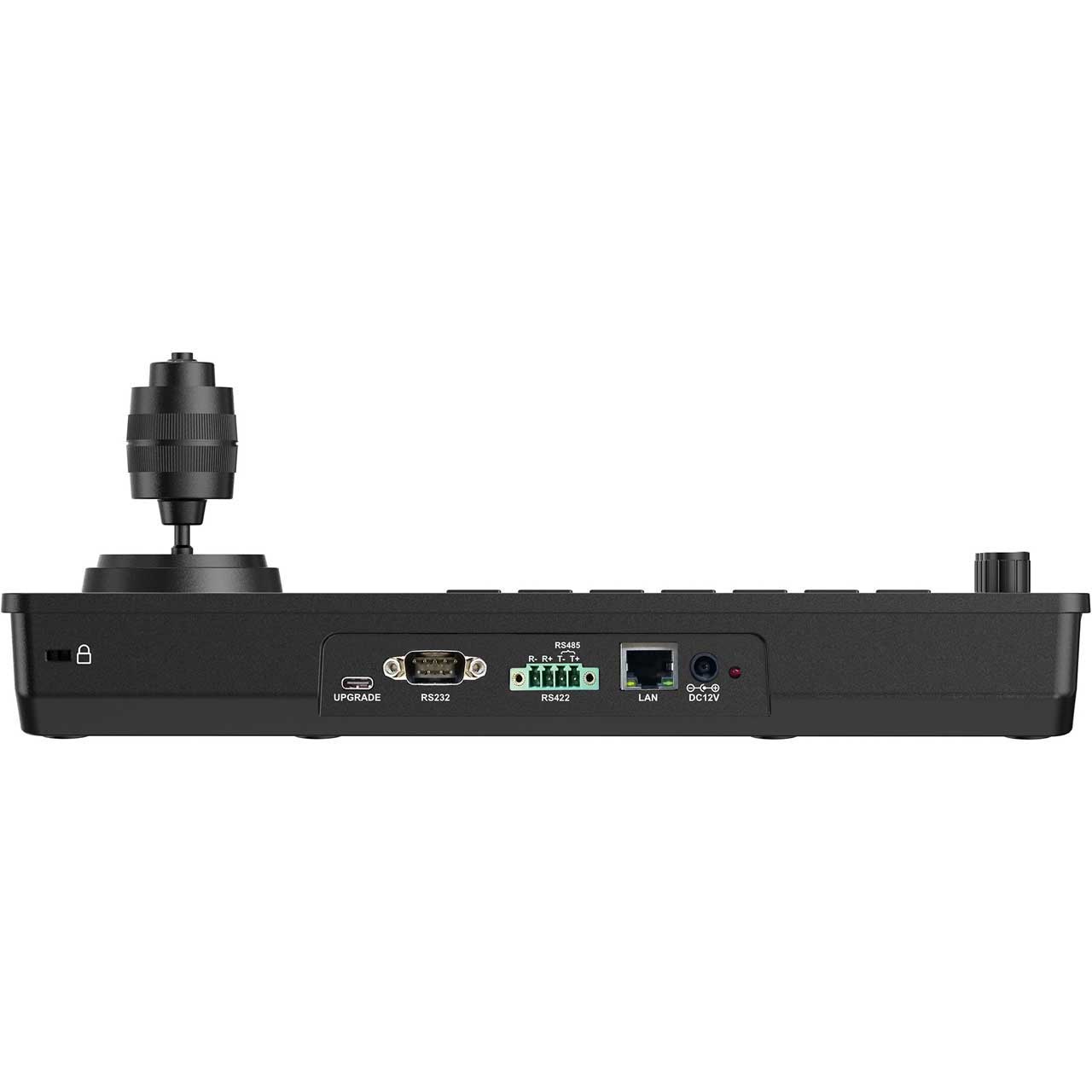

      • Communication Interface: 4- position terminal RS-422 full-duplex/RS-485 semiduplex, RS232 full-duplex(DB9 Male) and RJ45 port
      • Baud rate: 1200/ 2400/ 4800/ 9600/115200 bps
      • Power supply: DC 12V 1A±10%
      • Power Consumption: 5W
      • Operating Temperature: -10C°- 50°C(14°F- 122°F)
      • Storage Temperature: -20C°- 60°C(-4°F- 140°F)
      • Working Humility: ≤80%
      • Storage Humility: ≤90%
      • Dimensions: 12.6 x 6.1 x 4.6 inch (320 x 156 x 118mm)
      • Weight: 2.3 LB(1.05Kg)

    • Item Includes:

      • 1x AV-3207 joystick controller
      • 1x RS232 cable(DB9 Female to Mini Din-8 Male)
      • 1x 12V US Standard power supply
      • 1x User Manual

    • Warranty:

      • 2 Year Warranty

    • GTIN:

      0858738005770
