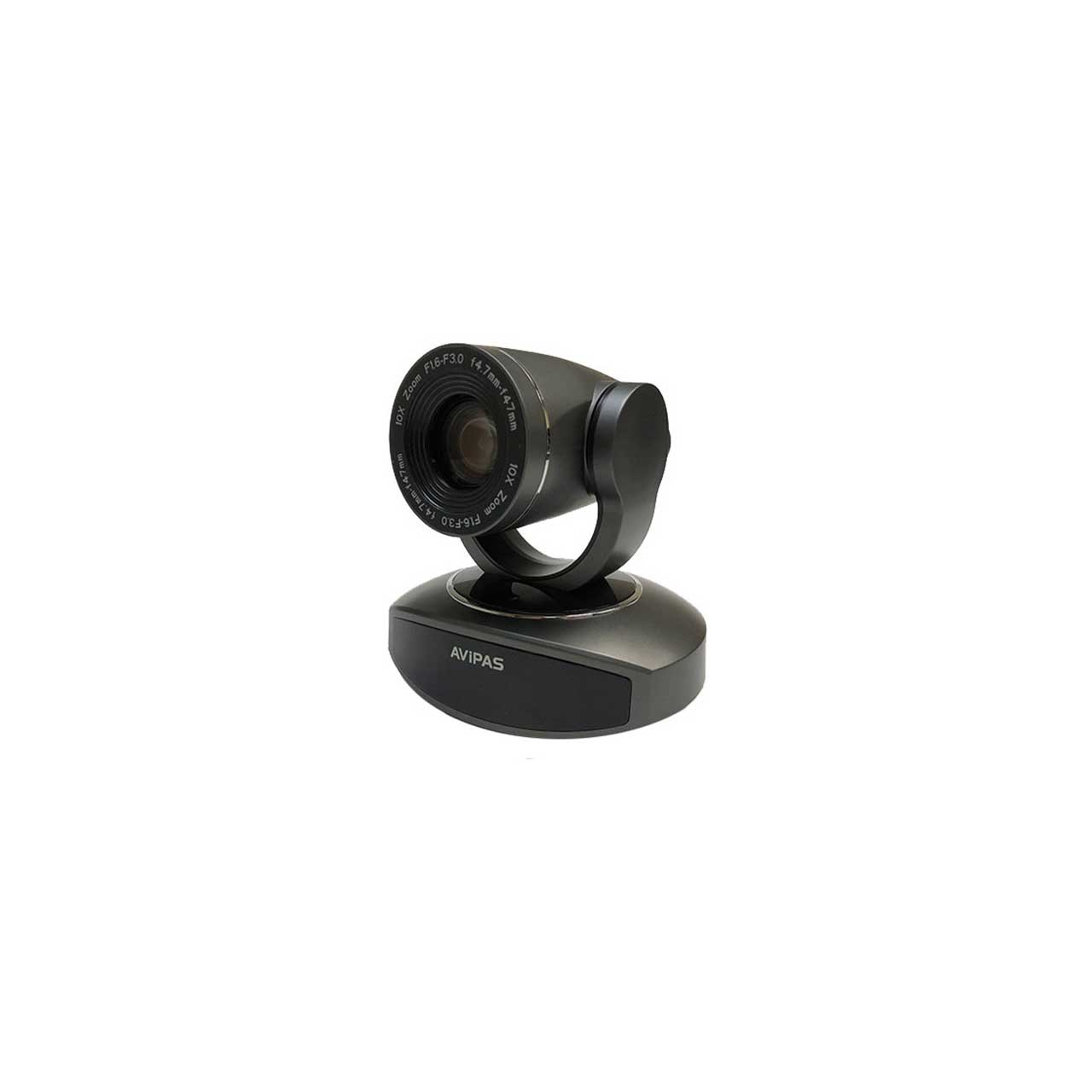

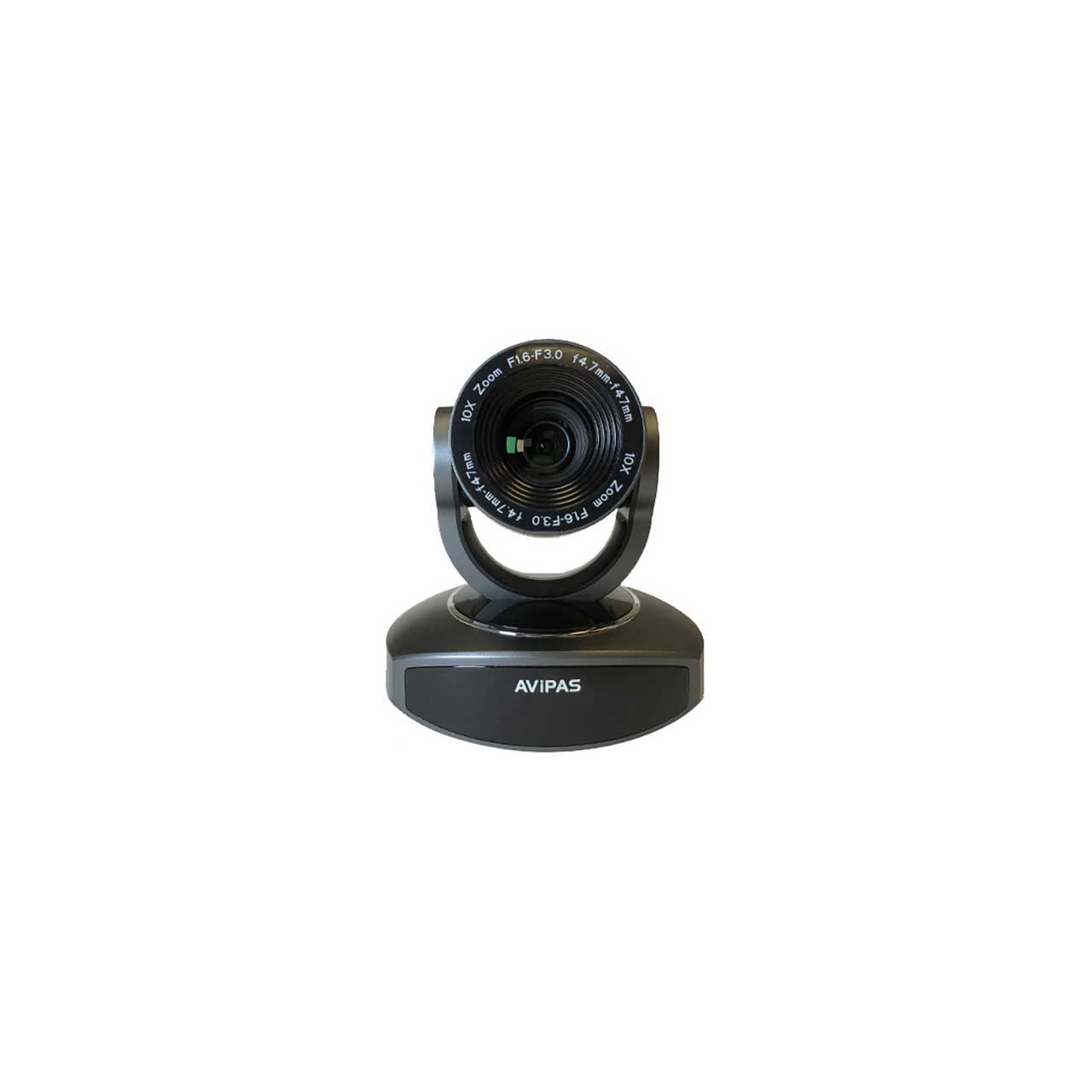

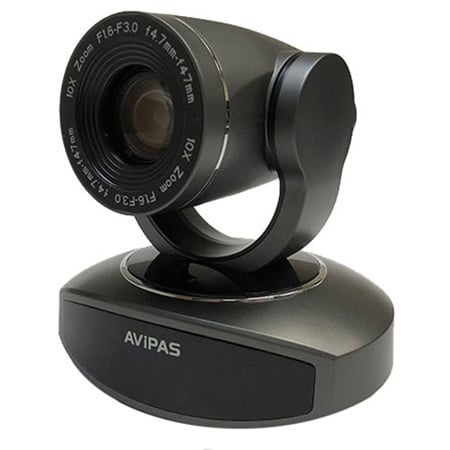

AViPAS AV-1281G 10x Full-HD 1080p HDMI PTZ Camera with IP Live Streaming and HDMI outputs and PoE Support - Dark Gray

ITEM #: AV-1281G MFG #: AV-1281G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    AV-1281G - Overview

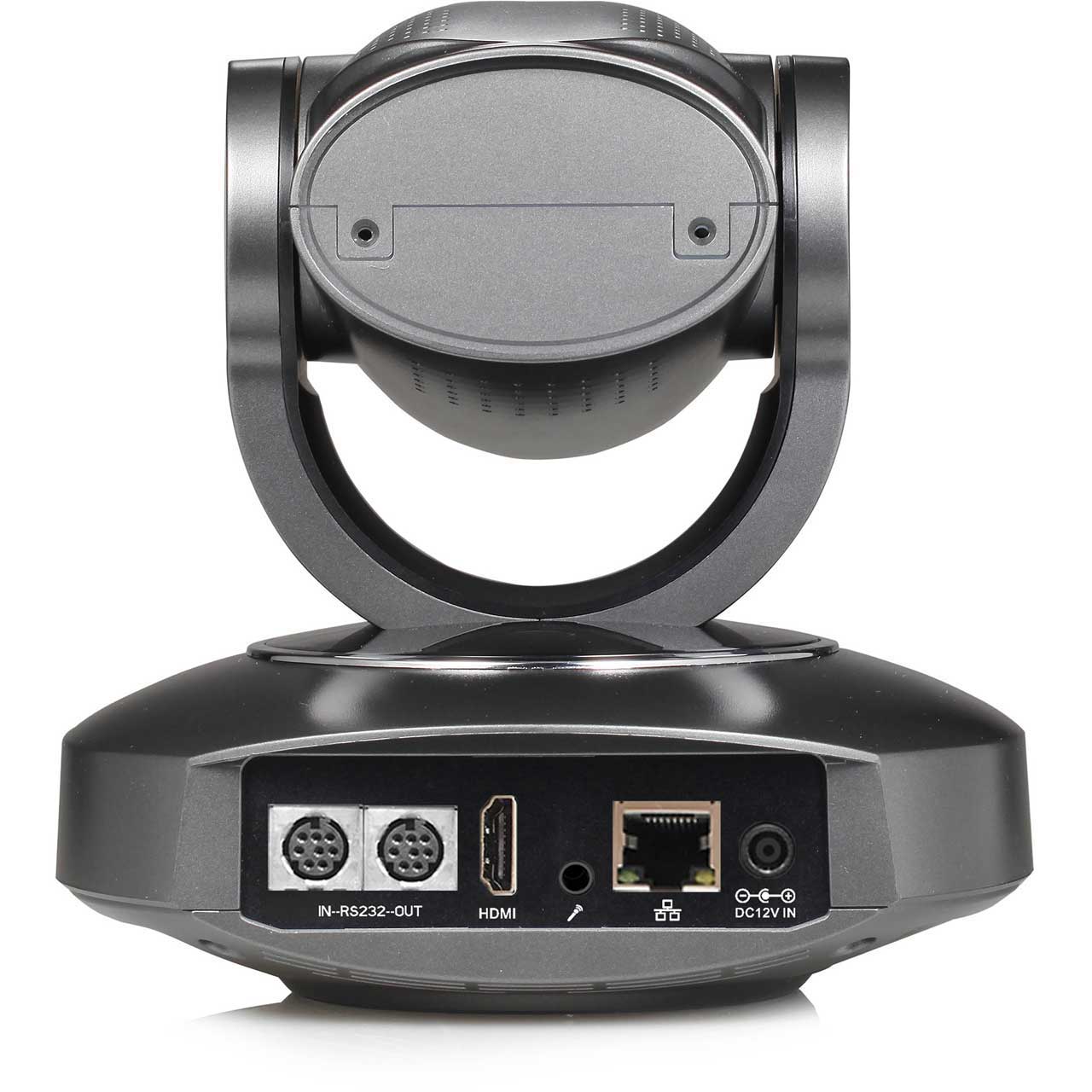

    The AViPAS AV-1281G is a compact, full HD 1080p HDMI streaming camera with 10X optical zoom & 5X digital zoom, suitable for video conferencing, education and houses of worship. It has 2 outputs: HDMI and LAN. It has a 1/2.8", 2.07 million effective pixel high-quality CMOS sensor to capture video images. Its f4.7mm~47mm, F1.6~3.0 lens and a minimum illumination of 0.5 Lux is prefect for low-light conditions. AV-1281W features a Power over Ethernet (PoE) which delivers power, IP control and video over a single Cat5/6 cable. You can stream H.264/H.265 content as well as monitor uncompressed video via the camera's HDMI output. It also supports dual streaming outputs in different resolutions. The camera has RS232 in and out ports for communication, easy to cascade. AV-1281W also has a 3.5mm audio input. AV-1281W can be controlled by IR remote control, RJ45 over network or RS232 using serial commands.

    • Features:

      • Elegant, compact design
      • Super quiet and smooth pan/tilt mechanism
      • 1920 x 1080 high resolution output with a frame rate up to 60fps
      • 60.9 degree high-quality lens
      • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
      • H.264/H.265 video compression
      • Low-power sleep function, lower than 0.4W
      • IP streaming & HDMI output
      • RS-232 (VISCA/ Pelco-D/ Pelco-P), VISCA over IP and IR remote control
      • PoE supported
    • Specifications:

      • Image Sensor: 1/2.8" Panasonic CMOS sensor, 2.07MP
      • Shutter Speed: 1/30s ~ 1/10000s
      • Minimum Illumination: 0.5Lux @ (F1.8, AGC on)
      • Gain: Auto, Manual
      • SNR: >=55dB
      • White Balance: Manual, Auto, Indoor, Outdoor, One Push 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
      • Image Flip: H&V On/Off
      • Pan Rotation: ±170°; Tilt Rotation: -30°~+90°
      • PoE: Support
      • Focus System: Auto One-push, Manual
      • Focal Length: 4.7 - 47mm
      • Zoom Ratio: 10x (Optical) 5x (Digital)
      • View Angle: 6.43° ~60.9°
      • Power Requirements: DC 12V
      • Power Consumption: 12W
      • Operating Temperature: 20°F~80°F(-10°C~50°C)
      • Storage Temperature: 20°F~95°F (-10°C~60°C)
      • Dimensions: 6"x6"x5" (1151.2mmX152.5mmX126.7mm)
      • Weight: 3LB (1.4kg)
    • Item Includes:

      • 1 x AV-1281G
      • 1 x AC power adaptor
      • 1 x Power cord
      • 1 x 6.5ft RS232 cable (9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
      • 1 x IR remote control
      • 1 x User manual
