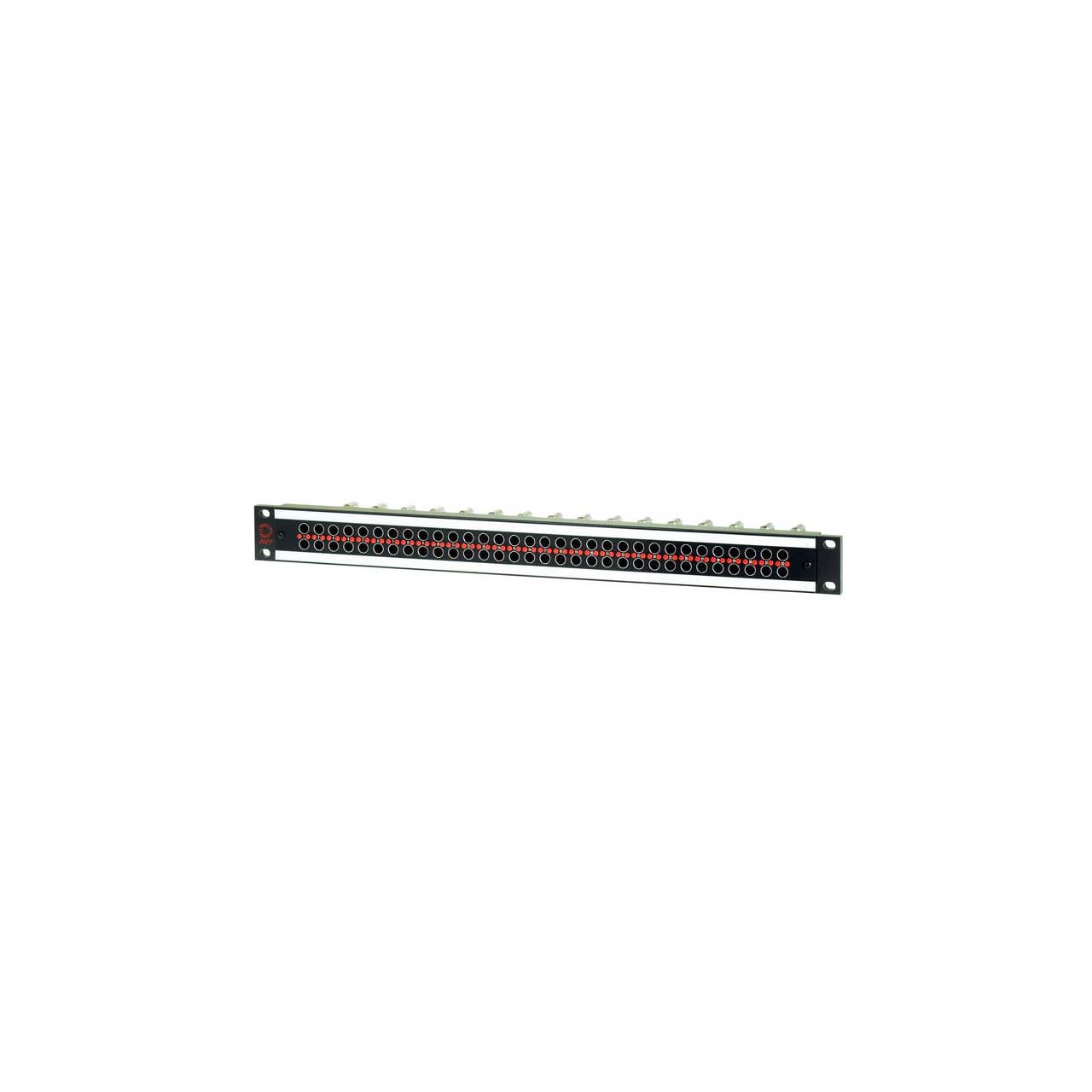

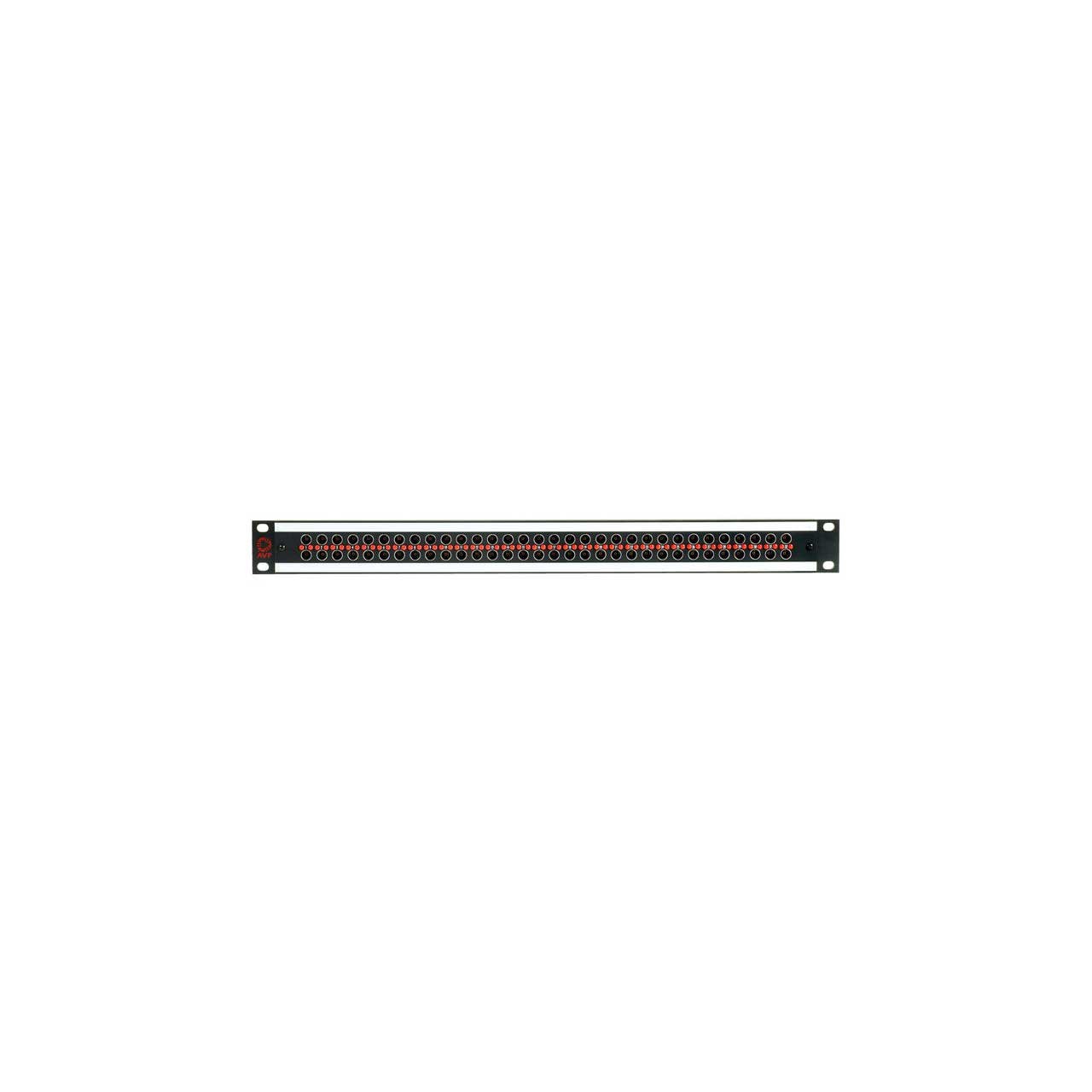

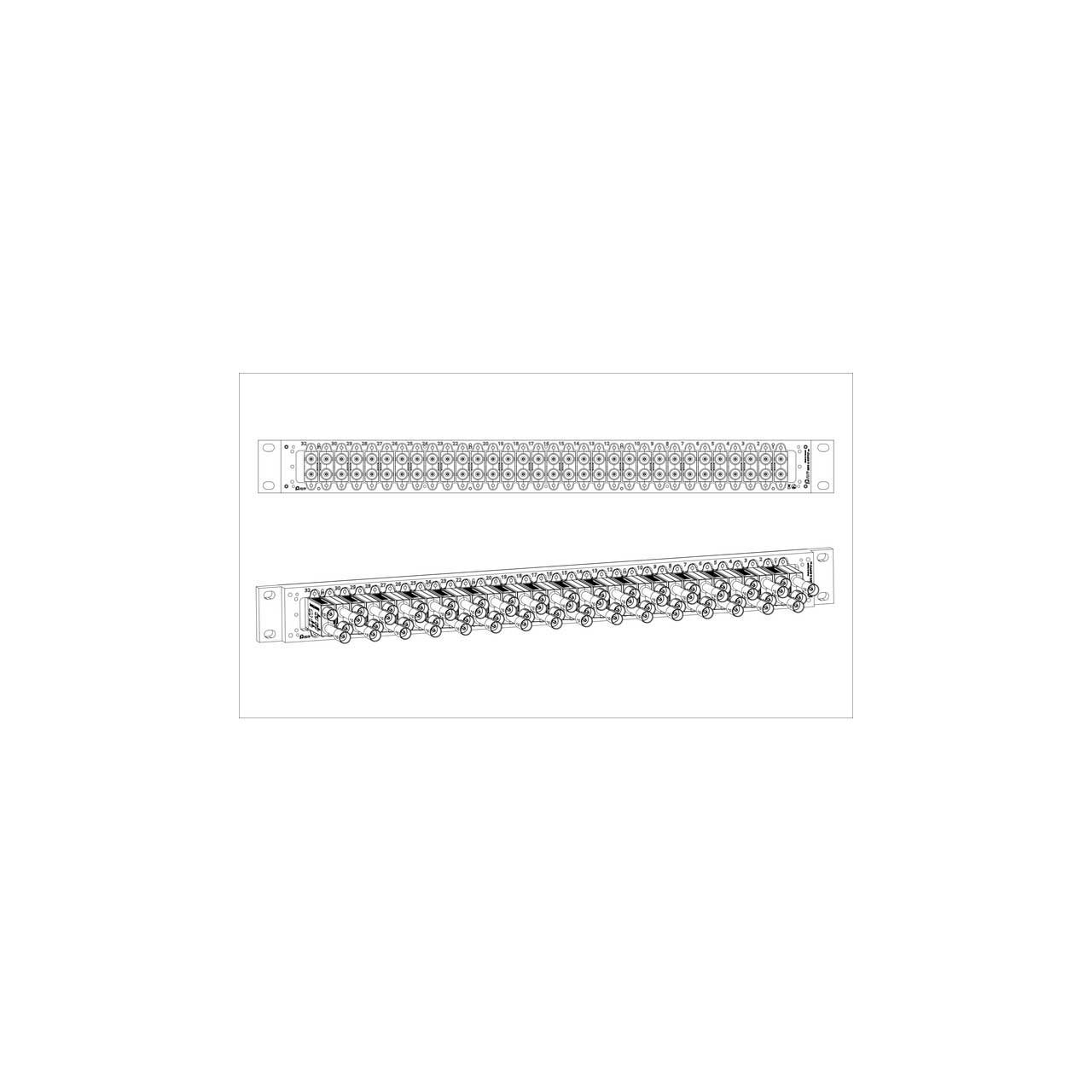

AVP AV-D232E1-AMN75-BZ 1 RU Midsize (Mini-WECO) Video Patch Panel - 2 x 32 - Normaled - Terminating

ITEM #: AV-D232E1-AMN75 MFG #: AV-D232E1-AMN75-BZ

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,919.00

Our Price:

$1,727.10

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AV-D232E1-AMN75-BZ - Overview

    AVP's Midsize (Mini-WECO) patchbays are available in 32 and 36 jacks per row in 1RU, 1.5RU or 2 RU panels. Numbering, color-coding and front mount jacks offer maximum layout flexibility. All are designed for exceptional performance in high-bandwidth applications such as 3-D, HDTV, SDI, AES and high-resolution computer graphics, as well as in conventional analog applications such as monitor routing, primary routing, re-routing, router backup and video distribution.

    • Features:

      • SuperHD+ 3.0GHz - 3Gb/s Midsize jacks
      • Jacks meet SMPTE 424M-2006 HDTV specifications
      • Life Cycle rating of 30,000
      • Made & assembled in Canada/USA
      • Front-mount jacks simplify system re-design & maintenance
      • Numbered jack positions for quick and accurate installation, system troubleshooting & operational ease
      • Patented designation design maximizes viewable area
      • CIS (Circuit Identification System), allows color-coding of every circuit
      • Also suitable for L Band

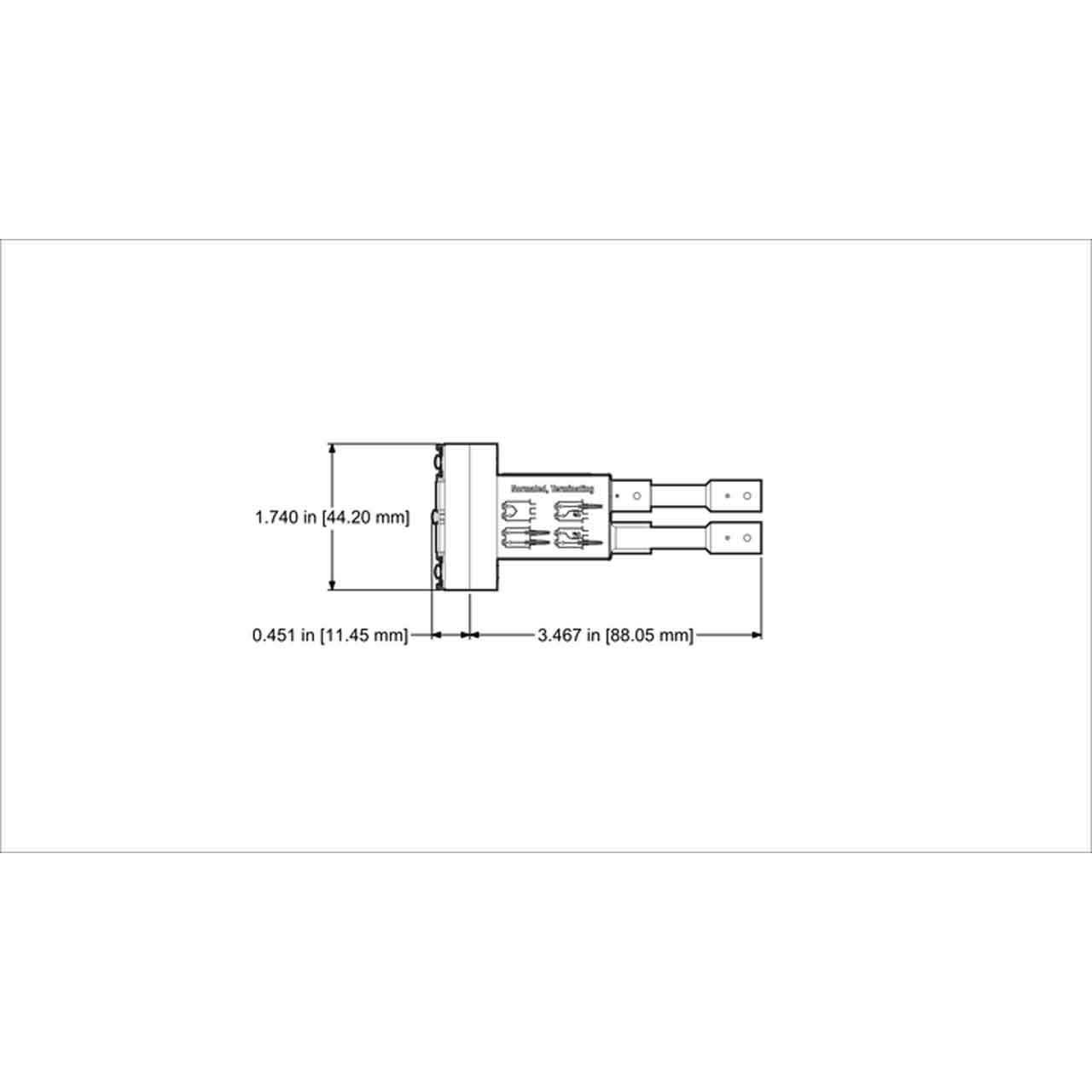

    • Specifications:

      • Electrical:
      • Rated Bandwidth: 3.0GHz - 3Gb/s: meets HDTV SMPTE 424M-2006 Specification
      • Characteristic Impedance: 75 Ohms
      • Contact Resistance: Less than 50 milliohms
      • Termination Resistance: 75 Ohms +/- 1%
      • Center Conductor: Accepts 0.048” pin diameter

        Environmental:
      • Operating Temperature: -40°C to 65°C
      • Storage Temperature: -40°C to 65°C
      • Thermal Shock: Per MIL-STD-202, Method 107
      • Moisture and Humidity: Per MIL-STD-202, Method 106
      • RoHS: Compliant

        Mechanical:
      • Mechanical Shock: Per MIL-STD-202, Method 213, Test condition 1
      • Vibration: Per MIL-STD-202, Method 201
      • Insertion Force: 7 lbs. maximum
      • Withdrawal Force: 3 lb. minimum
      • Life Cycle: 30,000 minimum

        Material:
      • Housing Zinc: alloy, nickel plated
      • Center Contacts: Copper alloy, gold plated
      • Switching Contacts: Copper alloy, gold plated
      • Grounding Contacts: Copper alloy, gold plated
      • Actuators: Thermoplastic, UL 94V-0 rated
      • BNC Insulators: Teflon

    • Item Includes:

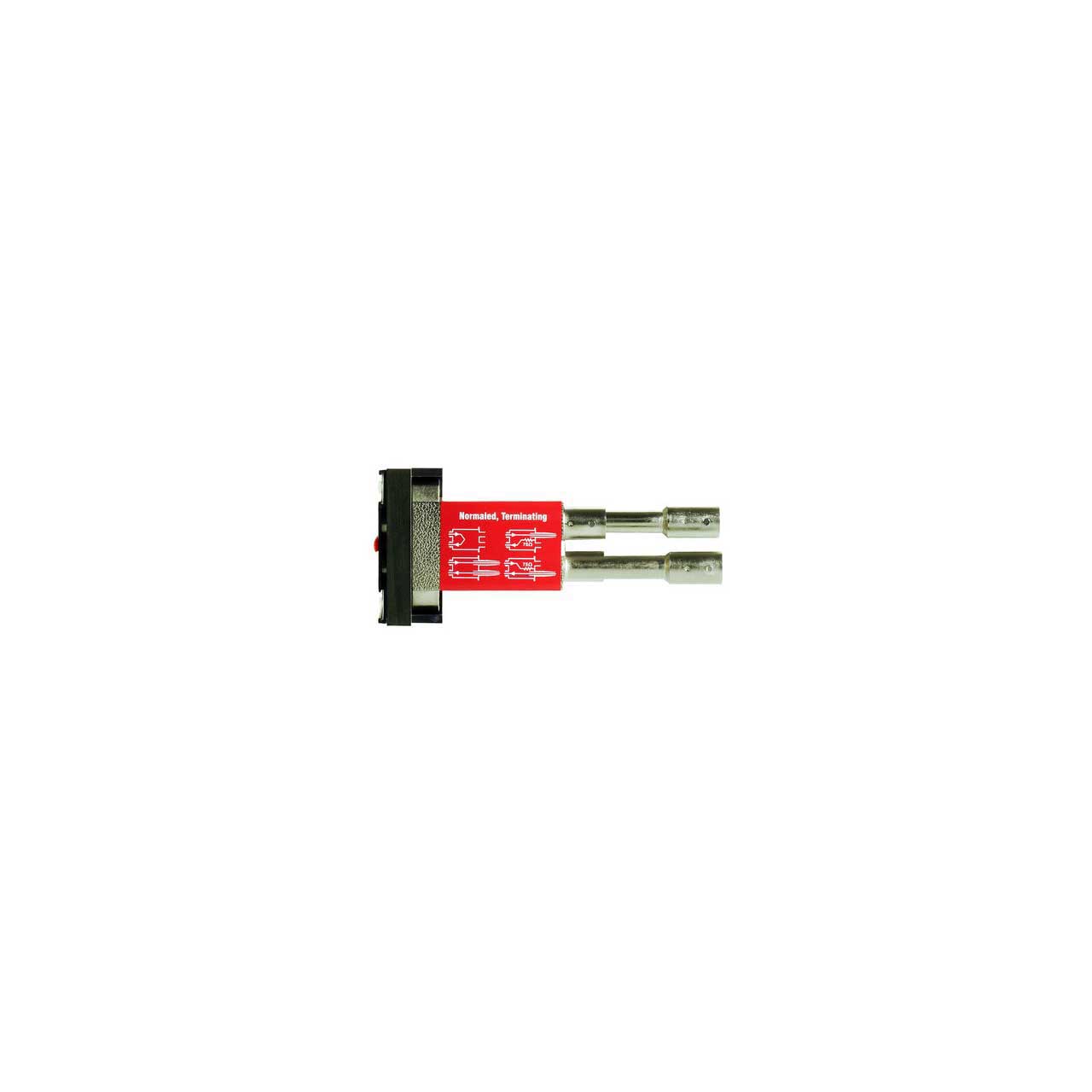

      • 1x 1 RU Panel - 32 AVP-AMN75 Normaled - Terminating Jacks

    • Warranty:

      • Lifetime Warranty on Jacks
      • 5 Year Warranty on Panel
