Inday AV4X-R 4x1 Stereo Audio & Composite Video Switcher With IR Remote

Manufacturer: Inday

Item #: AV4X-R   •   MFG #: AV4X-R



List Price:$129.00
Our Price:$119.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

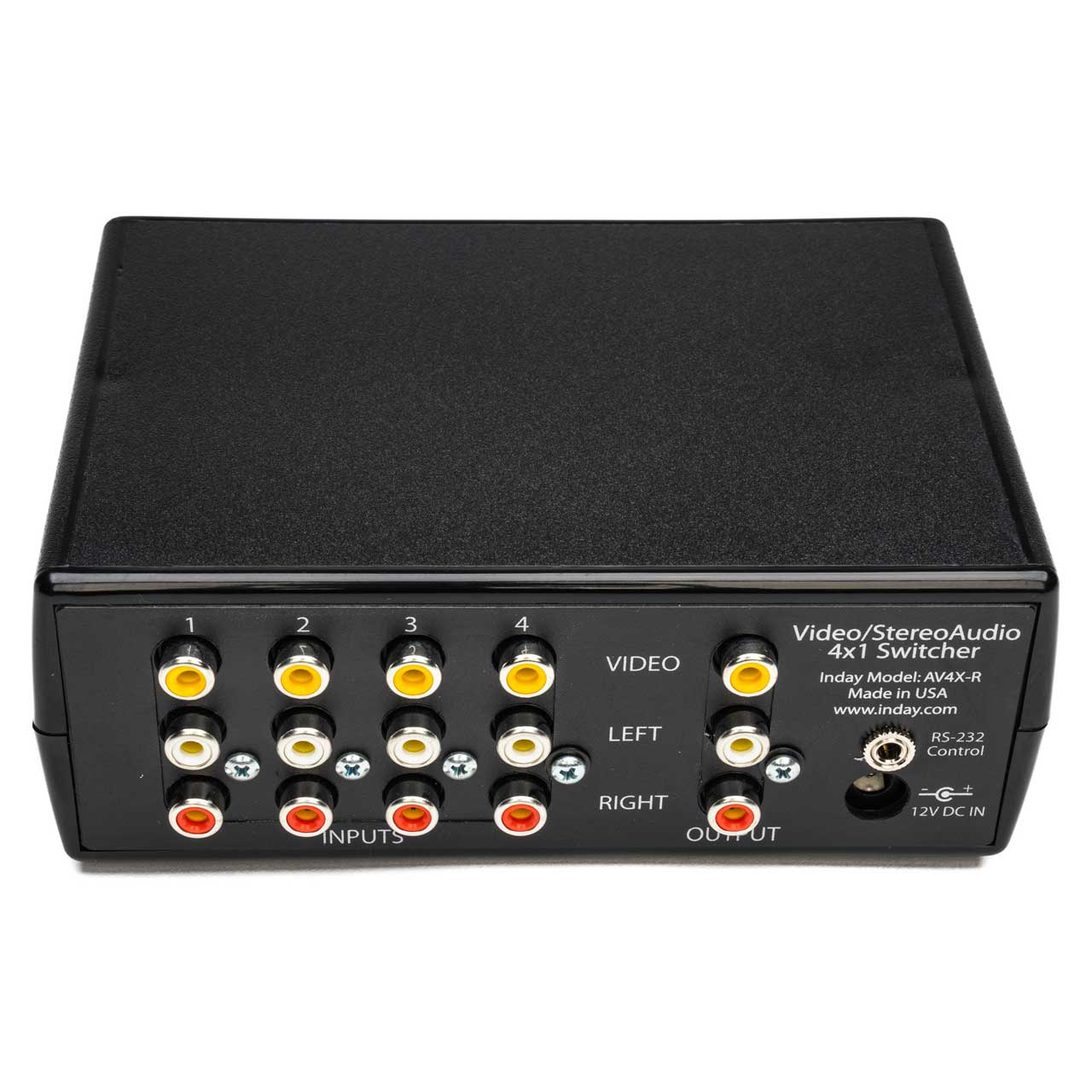

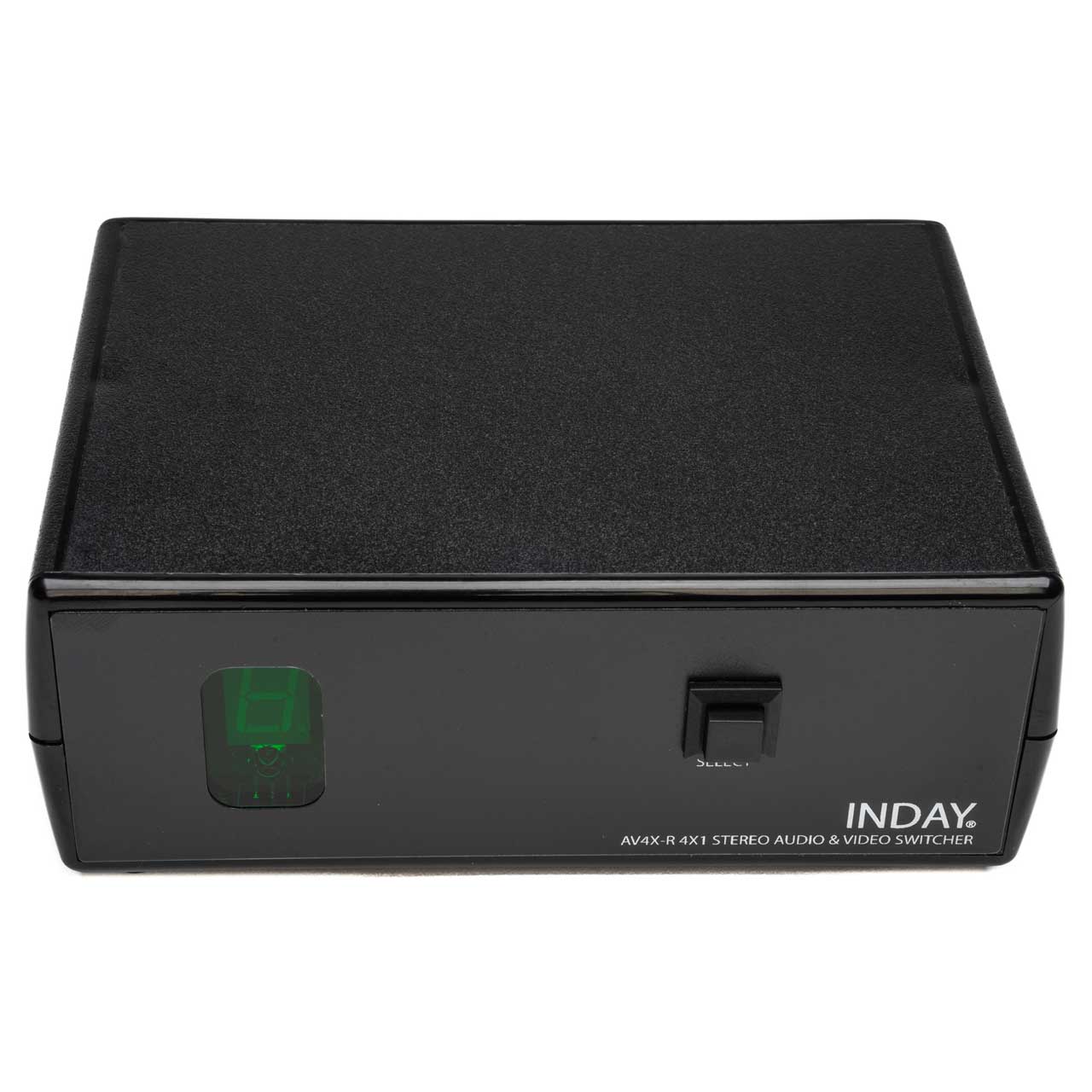

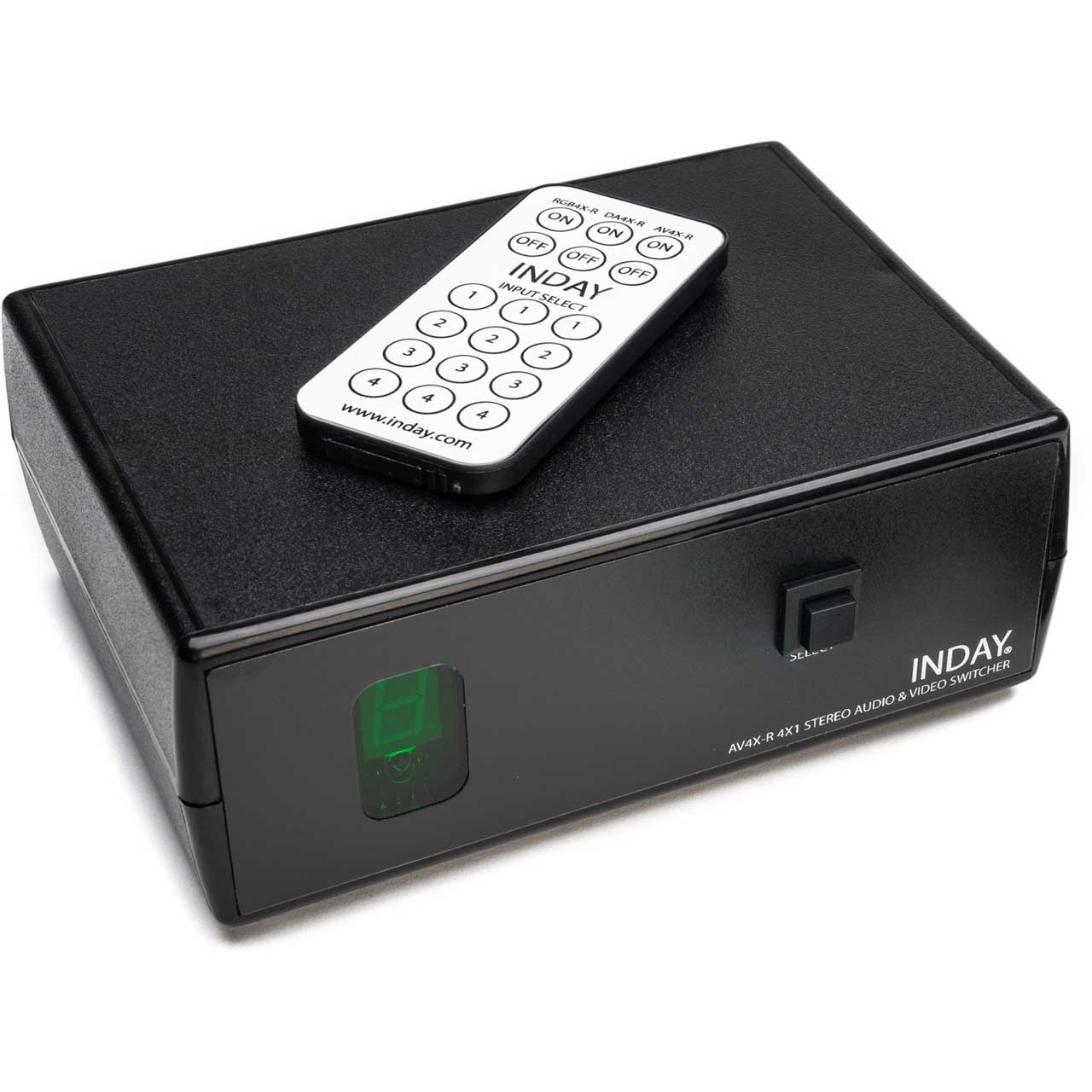

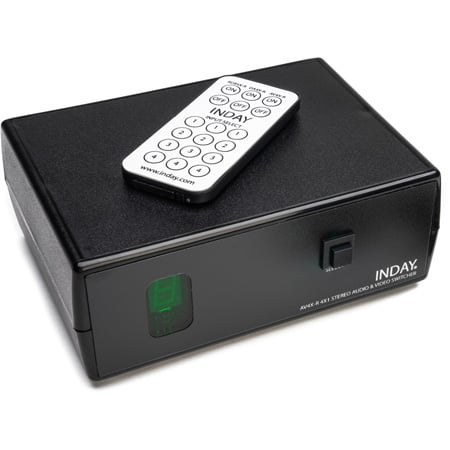

    The Inday AV4X-R is a 4-Input to 1-Output, 3 channel switcher. Two channels for Stereo Analog Audio and the third channel for Video or Coax Digital Audio.

    The circuitry inside the AV4X-R uses only the best components for ZERO degradation of audio and video signals. The IC's used for each signal path are specifically designed for the type is signal being switched. The result is a very low noise/distortion and flat frequency response output for both Audio and Video.

    Typical applications include combining 4 different A/V sources such as VCR's, DVD's and Camcorders to one common output.


    • Features

      • One Wide-band Video Channel. Guaranteed 120 MHz bandwidth.
        Two Stereo Analog Audio Channels.
        Very low noise/distortion specifications.
        Video Channel can be used for switching COAX Digital Audio (PCM/DTS/AC3).

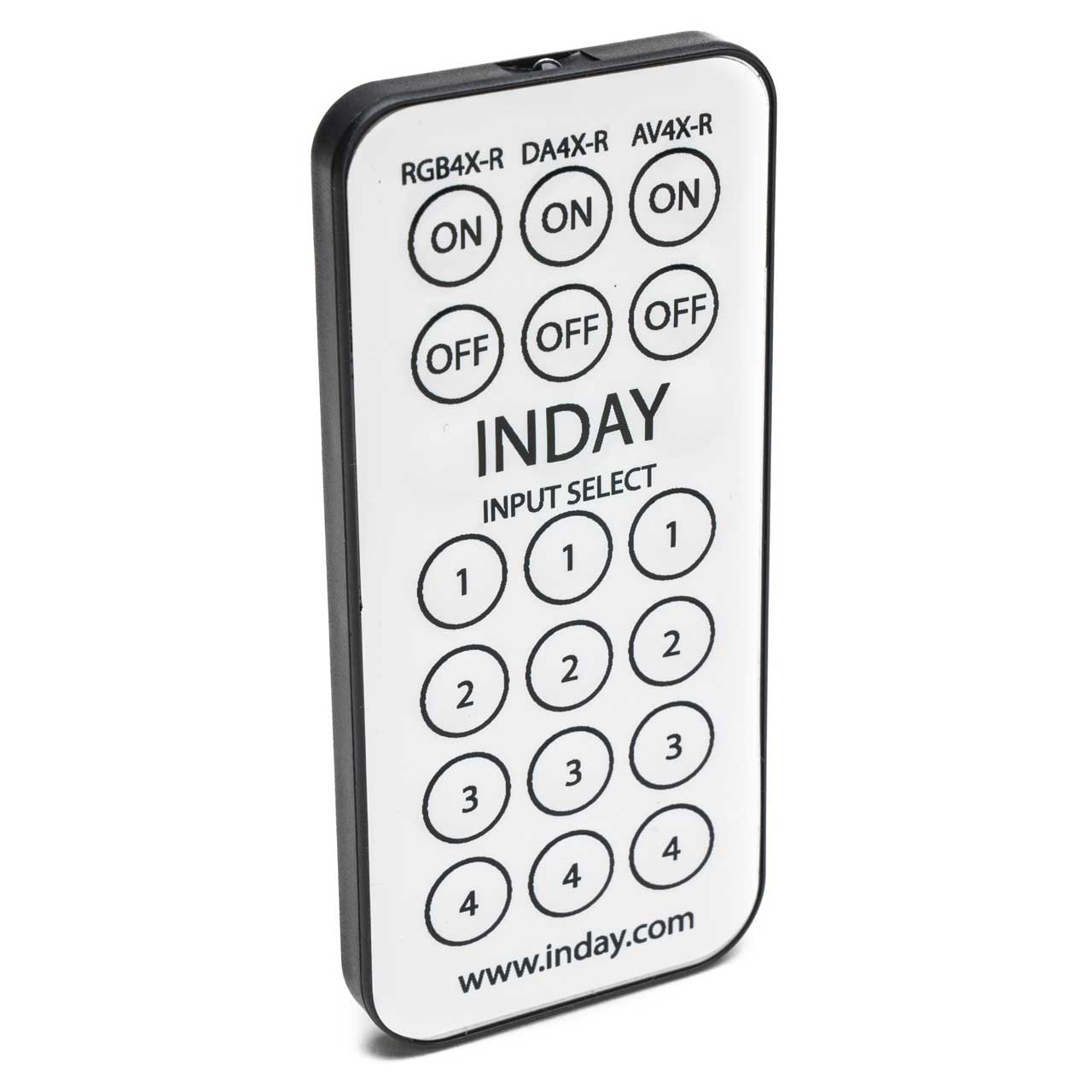

        Remote Controllable! Discrete IR Codes. Remote Control Included.
        RS-232 Serial option for direct computer control. Interface Cable Included.
        Small Size, 2x6x4". Actually made in the USA!!!
        Easily integrated with other **4X series components

    • Specifications

      • Audio Specifications
      • Color Coded: White, Red
      • Unbalanced Stereo Audio
      • Distortion: 0.01%
      • Noise: -88dB
      • Nominal Signal: -10dB
      • Clipping: +12dB

        Video Specifications
      • Color Coded: Yellow
      • Impedance: 75 ohms
      • Noise: > 60dB below 1Vp-p
      • Frequency Response: DC-140 Mhz ±3dB

        RS-232 Serial Interface
      • 3.5mm Stereo Jack
      • Tip: Tx
      • Ring: Rx
      • Sleeve: Gnd

        Power
      • 12VDC-Unregulated (18VDCMax)
      • @ 150ma Maximum
      • Wall Transformer supplied

        General
      • Dimension (WxLxH): 4 x 6 x 2"
      • Temperature: 32° to 122°F (0° to 50°C)
      • Humidity: 0 to 90% (non-condensing)
