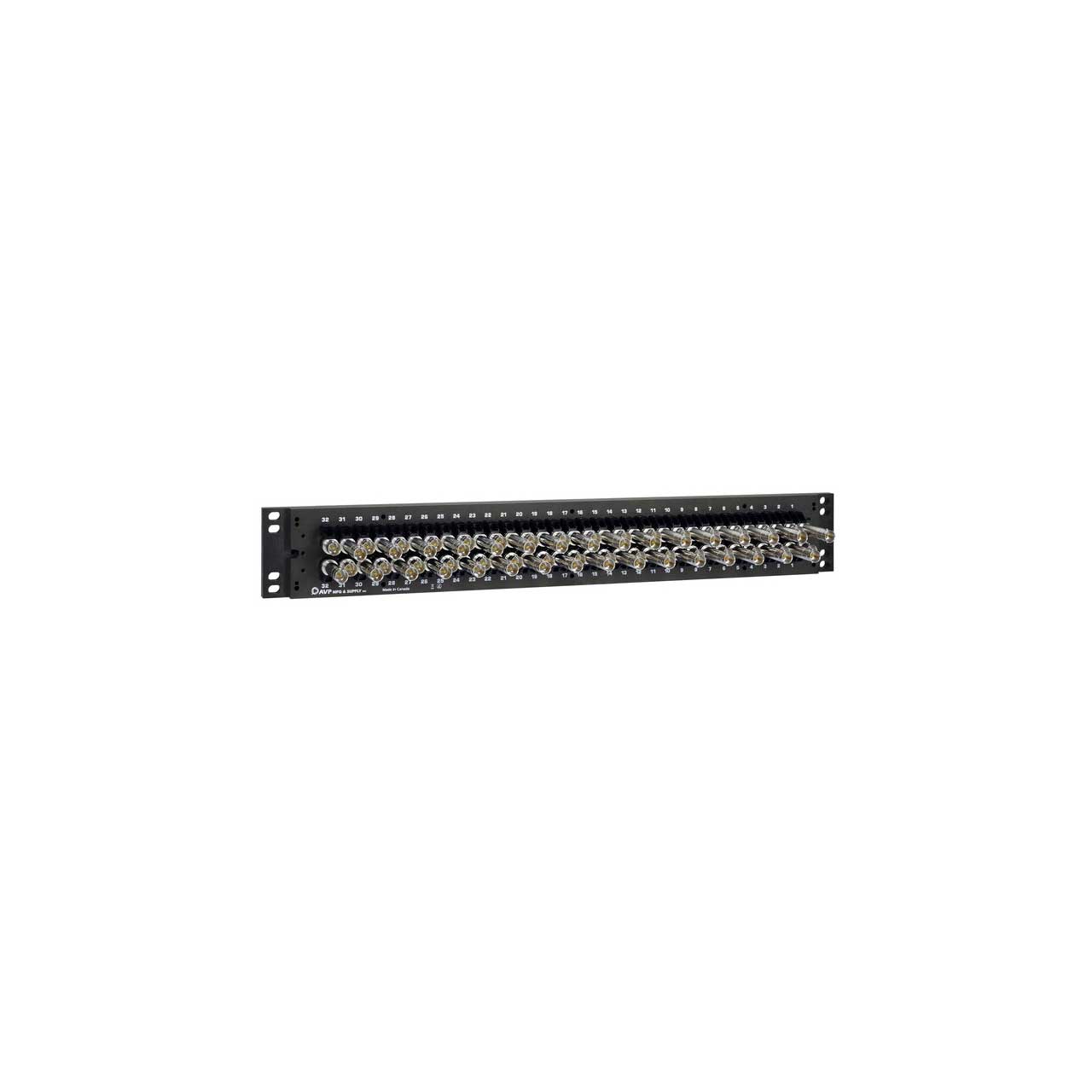

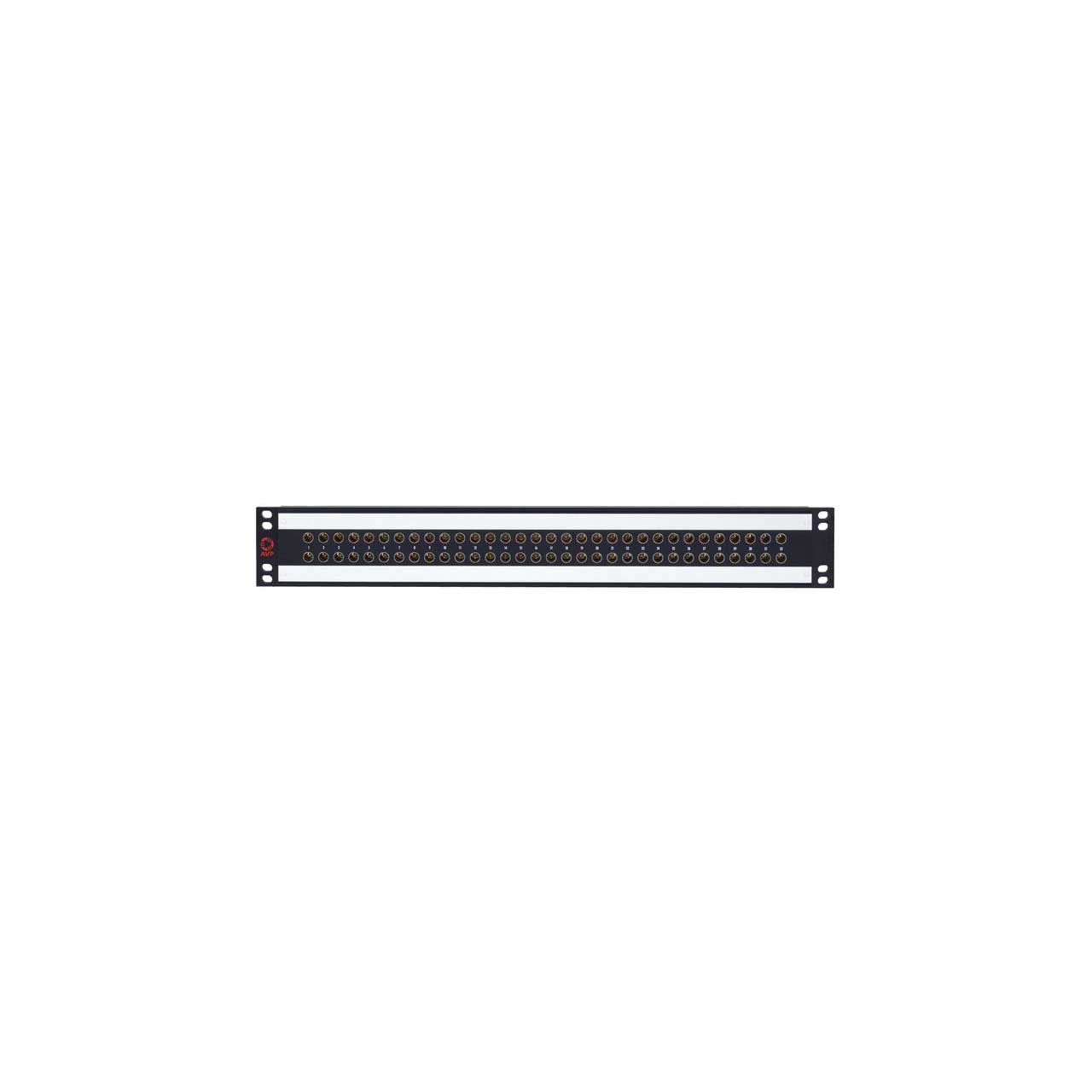

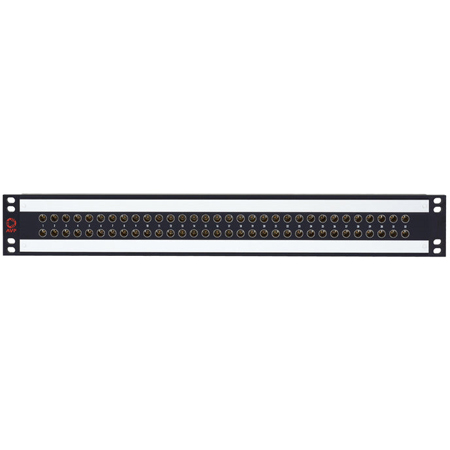

AVP AV-G224E15-AE8KS-BZ 1.5 RU UHD 4K/8K E Series 20GHz Video Patch Panel - 2 x 24 - Non-Normaled - Non-Terminating

ITEM #: AVG224E15AE8KSBZ MFG #: AV-G224E15-AE8KS-BZ

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$965.00

Our Price:

$841.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    AV-G224E15-AE8KS-BZ - Overview

    The AVP E series is a high performance 4K/8K video patching system. Rated for 20GHz, high bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K & 8K video applications, in all patch states.

    • Features:

      • 24GHz, high bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K & 8K video applications
      • Compliant with SMPTE 292M, 424M, ST2081-1
      • Meets and exceeds SMPTE ST2082-1:2015 (Society of Motion Picture and Television Engineers® 12 Gb/s Signal/Data Serial Interface - Electrical)
      • Also suitable for L Band

    • Specifications:

      • Contact Resistance: Inner Conductor =5mΩ Outer Conductor ≥3mΩ
      • Insulation Resistance: ≥10GΩ
      • Voltage: 1KVef/60Hz
      • Impedance (BNC): 75Ω
      • Return Loss: >20dB/3GHz+ >0.3dB/3GHz
      • Mating Cycles: ≥2500
      • Force to Engage: Looping Plug 15 N Straight Plug 10 N
      • Thermal & Climatic Characteristics:
        *(DIN IEC 68-1 40/155/21)
        Storage & Operating Temperature: -40° to 149°F (-40° to 65°C)
        Moisture resistance according to MIL Spec. 202

    • Item Includes:

      • 1x AV-G224E15-AE8KS-BZ 1.5 RU Video Patch Panel - 2 x 24 - Non-Normaled - Non-Terminating

    • Warranty:

      • 5 Year Warranty
