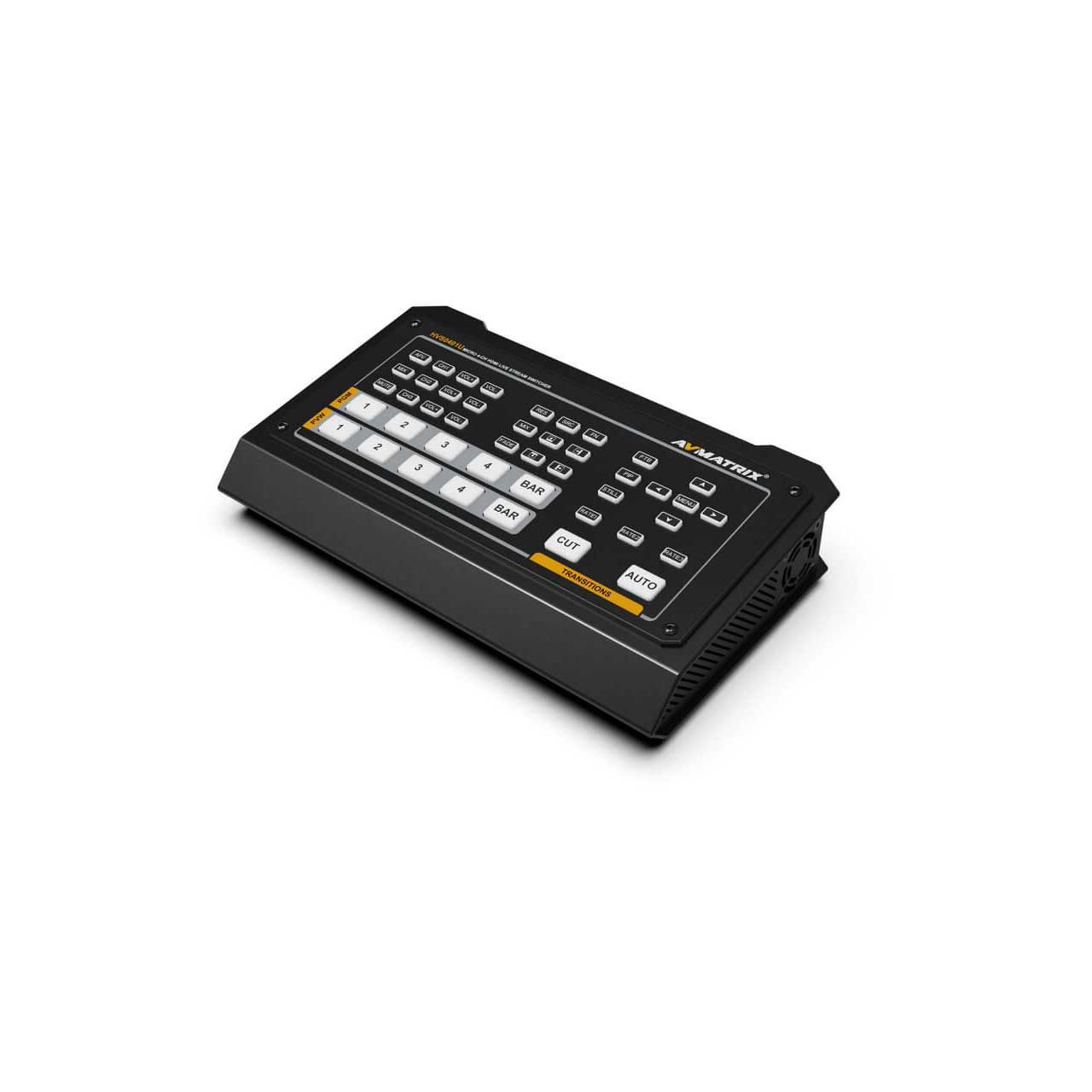

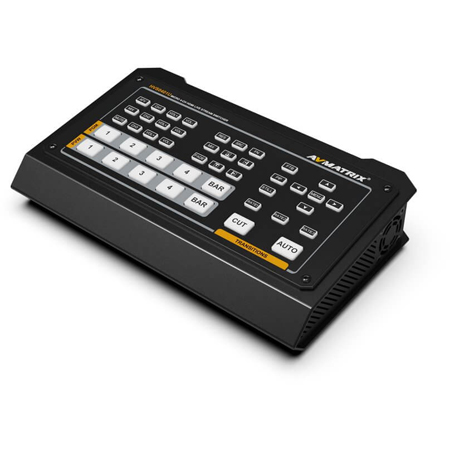

AVMATRIX HVS0401U Micro 4 Channel HDMI/ DP Video Stream Switcher

HVS0401U - Overview

• Features:

  • Inputs 1~3: HDMI, Input 4: HDMI/DP
  • Outputs: HDMI PGMx2, HDMI multiviewx1, USB type-Cx1, LANx1
  • USB Type-C for video capturing (UVC)
  • PIP function, adjustable size and position
  • Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
  • AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • GPIO interface for live tally system
  • FTB for emergency situation


• Specifications:

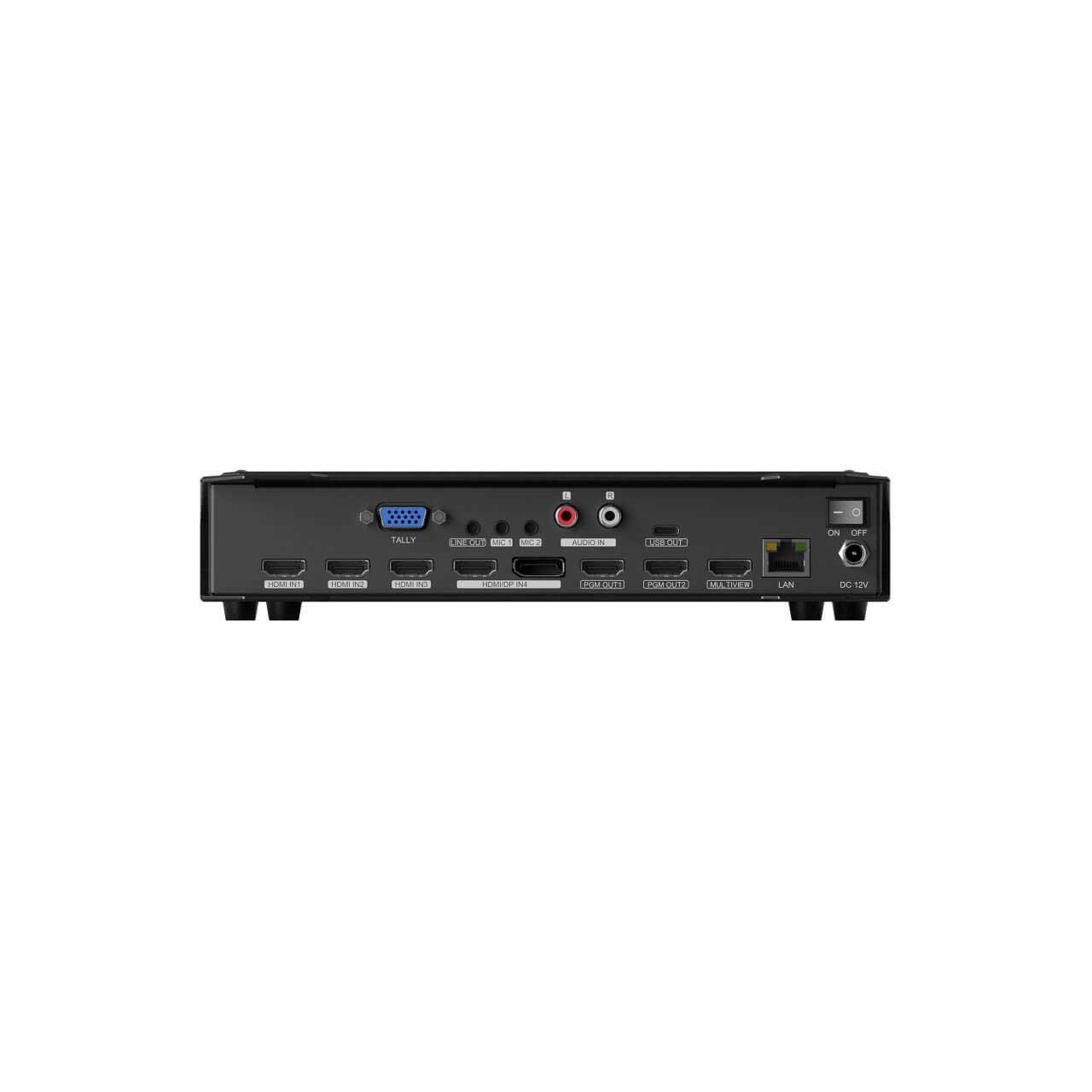

  • Connection
  • Video In: IN1~IN3: HDMI type-A x3; IN4: HDMI type-A/ Display Port x1

    Video Out
  • PGM: HDMI type-Ax2
  • Multiview: HDMI type-Ax1
  • USB Capture: USB type-C x1

    Audio In
  • MIC/ Line: x2 (3.5mm audio)
  • RCA(L/R): x1 (stereo audio)
  • Tally: Port DB-15 x1
  • Power In: DC 12V IN x1

    Functions
  • Functions Image: Still/ Transitioin Speed/ MUTE/ Audio follows Video/ Audio Mixer
  • Transitions: AUTO/ CUT
  • Effects: WIPE/ MIX/ FADE/ FTB
  • Layouts: PIP, Multiview

    Standards
  • HDMI In Format Support
  • 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/23.976
  • 1080i 50/ 59.94/ 60
  • 720p 60/ 59.94 /50/ 30/ 25/ 24
  • 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
  • PC HDMI/DP Input Format Support
  • 2560x1600, 2048x1152, 1920x1080,1680x1050, 1600x1200, 1600x900, 1400x1050, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600, 640x480
  • HDMI PGM Out
  • 1080p 60/ 50/ 30/ 25/ 24
  • 1080i 60/ 50
  • HDMI Multiview Out: 1080p60
  • HDMI Color Space: RGB/ YCbCr
  • USB Capture Out: MJPG , Up to 1080p60

    Others
  • Power: 12V, 1.5A, 18W
  • Dimension (LxWxD): 9.4 x 5.5 x 1.71" (238.5 x 140.4 x 43.5mm)
  • Weight: Net: 1.73Lbs (785g) Gross: 3.30Lbs (1500g)
  • Operating Temperature: 14° to 140°F
  • Storage Temperature: -22° to 155°F


• Item Includes:

  • 1x Power supply (12V 2A)
  • 1x USB cable (type A-C)
  • 1x Tally connector (DB-15)


• GTIN:

  6971118001941
