Blackmagic Design ATEM 2 M/E Constellation 4K Ultra HD Live Production Switcher - 20x 12G-SDI Input/12x 12G-SDI Outputs


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    SWATEMSCN2/2ME2/4K - Overview

    The Blackmagic Design ATEM 2 M/E Constellation 4K is a powerful 2 M/E Ultra HD live production switcher. It features 20 standards converted 12G-SDI inputs, 12x 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, media players, USB webcam output and a SuperSource for a total of 6 DVEs. You even get built in talkback and a professional 48 channel Fairlight audio mixer with EQ and dynamics!

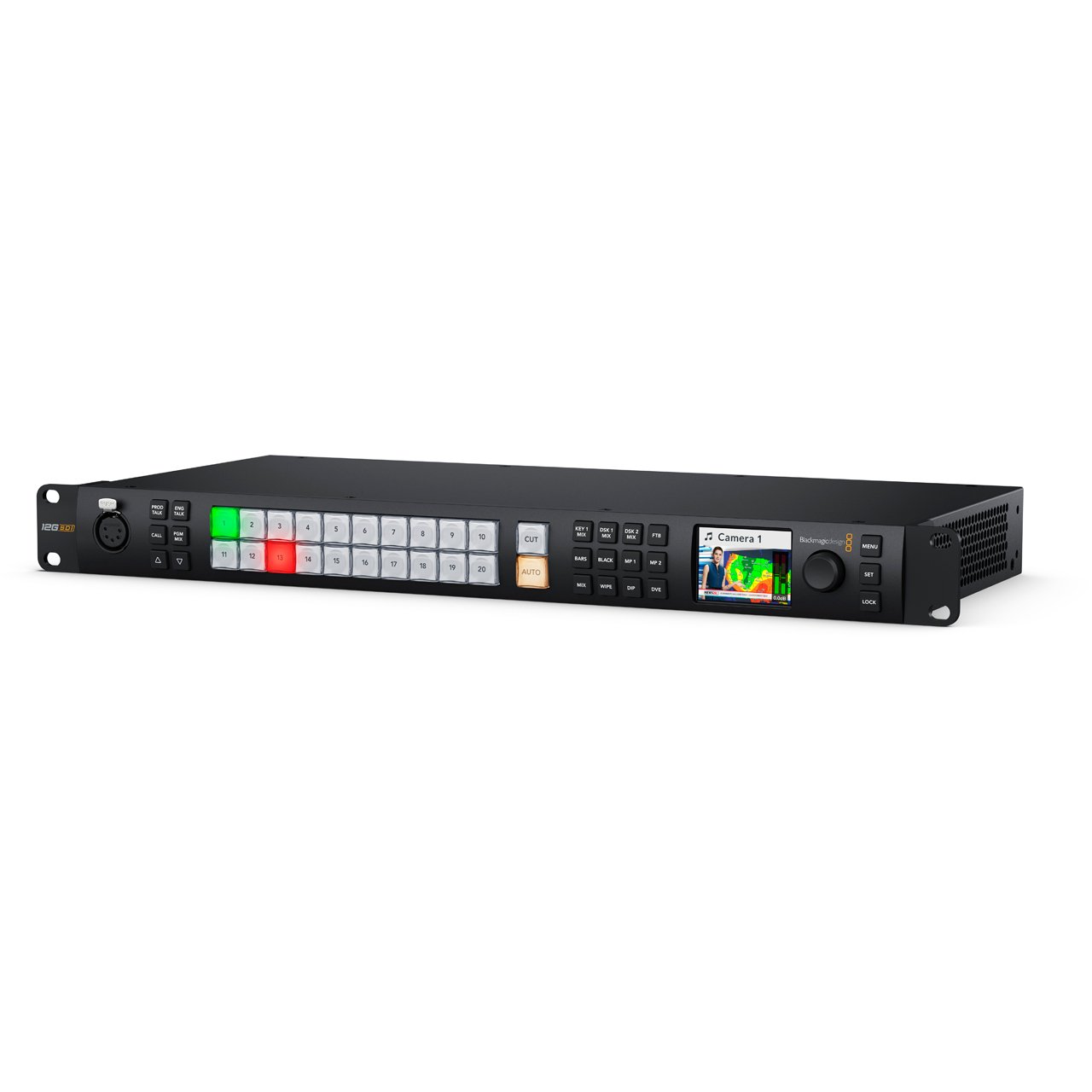

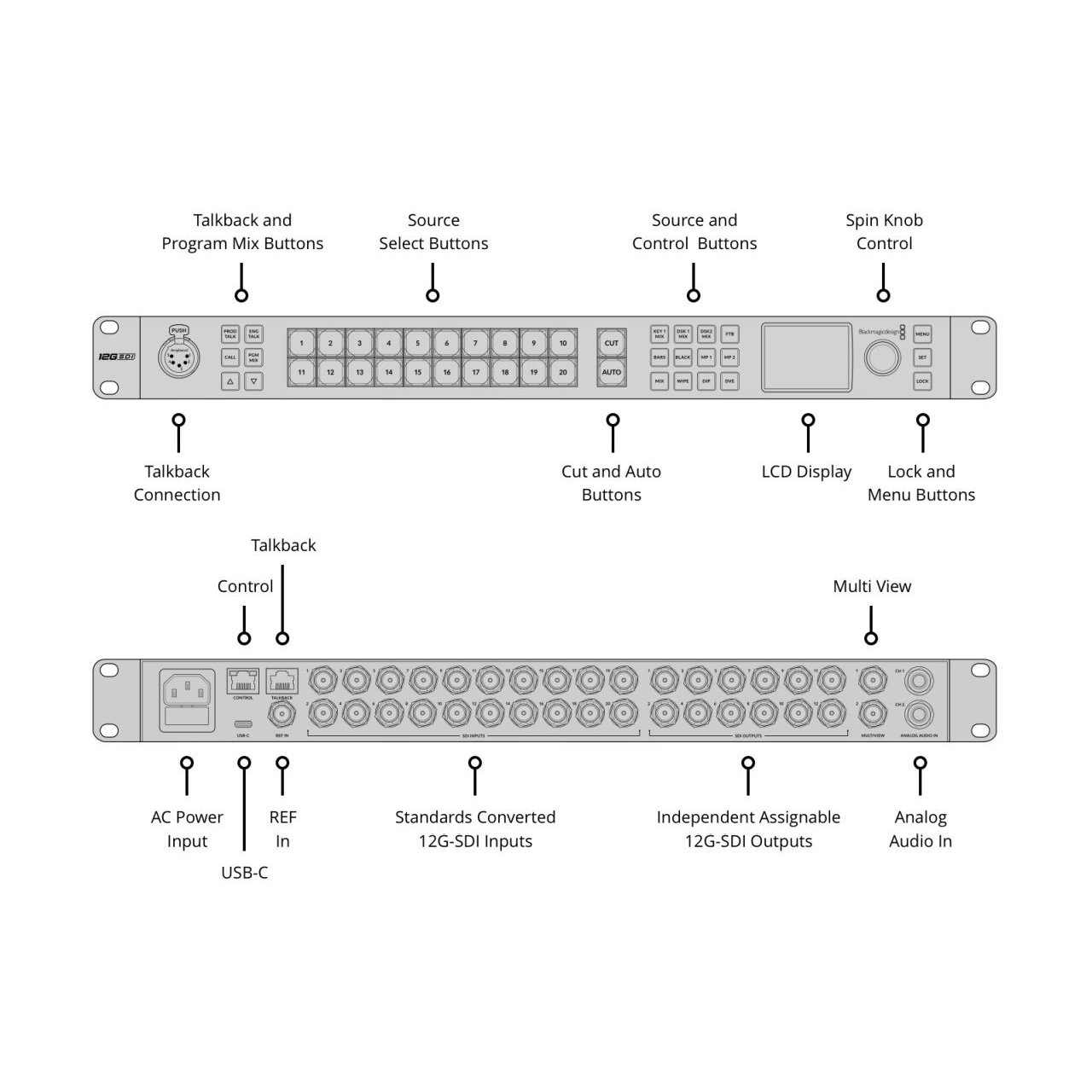

    ATEM Constellation switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so customers can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control.

    The ATEM Constellation family has a massive number of fully independent outputs. These SDI outputs are very powerful because customers can independently route any SDI input or any internal source to each SDI output. That's perfect for running independent feeds to stage screens, master recorders and streaming processors. Or use the SDI outputs for ISO recorders, where each deck will get a resynchronized switcher input with matching timecode. All SDI outputs contain program audio, RP-188 timecode, SDI camera control, tally and talkback.

    For live streaming, the USB-C connection on ATEM Constellation operates as a webcam source. The software is tricked into thinking the ATEM Constellation is a common webcam, but it's really a live production switcher! That guarantees full compatibility with any video software in full resolution 1080HD quality.

    • Features:

      • Advanced design with built in front panel controls.
      • Up to 20 standards converted 12G-SDI inputs.
      • Up to 12 customizable 12G-SDI outputs.
      • USB output operates as a webcam and supports all video software.
      • Includes up to 2 independent multiviews with multiple layout options.
      • Includes DVE and stinger transitions.
      • Includes up to 2 independent DVEs.
      • Professional talkback compatible with ClearCom and RTS.
      • Internal media for stills and motion graphics.
      • Includes ATEM Advanced Chroma Key.
      • Multi rate 12G-SDI for all HD and Ultra HD television standards up to 2160p60
    • Specifications:

      • Connections
      • Total Video Inputs: 20
      • Total Video Outputs: 12
      • SDI Rates: 1.5G, 3G, 6G, 12G
      • Total Audio Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback
      • Total Audio Outputs: 1 x 5 pin XLR Talkback
      • SDI Audio Inputs: 16 Ch embedded audio on all SDI inputs
      • SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs
      • Timecode Connections: None
      • Reference Input: Tri-Sync or Black Burst
      • Video Input Re-Sync: On all 20 inputs
      • Frame Rate and Format Converters: On all 20 inputs
      • SDI Aux Outputs: Any of the 12 SDI outputs
      • SDI Preview Outputs: Any of the 12 SDI outputs
      • SDI Program Outputs: Any of the 12 SDI outputs
      • Down Converted SDI Program Output: 1
      • Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate
      • Total Multi Views: 2 x 12G-SDI
      • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
      • Internal Timecode Generator: Yes
      • Talkback: RJ45 for 3rd party talkback systems
      • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
      • Ethernet: Supports 10/100/1000 BASE-T
      • Computer Interface: 1 x USB-C supports USB 2.0

      • SD Video Standards: None
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,, 1080p50, 1080p59.94, 1080p60
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
      • Video Sampling: 4:2:2
      • Color Precision: 10-bit.
      • Color Space: REC 709, REC 2020
      • SDI Auto Switching: Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI

        Product Specifics
      • Upstream Keyers: 8
      • Downstream Keyers: 2
      • Advanced Chroma Keyers: 8
      • SuperSource: 1
      • DVEs: 2
      • Linear/Luma Keyers: 11
      • Transition Keyer (Stinger/DVE): 2 Stinger, 2 DVE
      • Total Number of Layers: 15
      • Pattern Generators: 11
      • Color Generators: 2
      • Control Panel: Front fascia emergency switching, software or optional hardware panel
      • Routable Windows: 32
      • Windows Source Labels: Yes
      • Tally: Red for program and green for preview indication
      • Talkback Support: Yes
      • Mix Minus Support: Yes

        Multi View Monitoring
      • Multi View Monitoring: 2x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters.
      • Multi View Video Standard: HD or Ultra HD

        Media Player
      • Media Players: 2
      • Channels: Fill and key for each media player
      • Media Pool Still Image Capacity: 40
      • Media Pool Clip Capacity: 2 x up to 2160p60
      • Media Player Clip Length in 720 HD: 3200 frames
      • Media Player Clip Length in 1080 HD: 1600 frames
      • Media Player Clip Length in 2160 UHD: 400 frames
      • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
      • Media Pool Video File Format: TGA Sequence
      • Media Pool Audio File Format: WAV, MP3 and AIFF

      • Front panel: Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

      • Control Panel Included: ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11
      • Software Updates: Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility
      • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis
    • Item Includes:

      • 1x ATEM 2 M/E Constellation 4K
      • 1x Welcome wallet with QR code for software download
    • GTIN:
