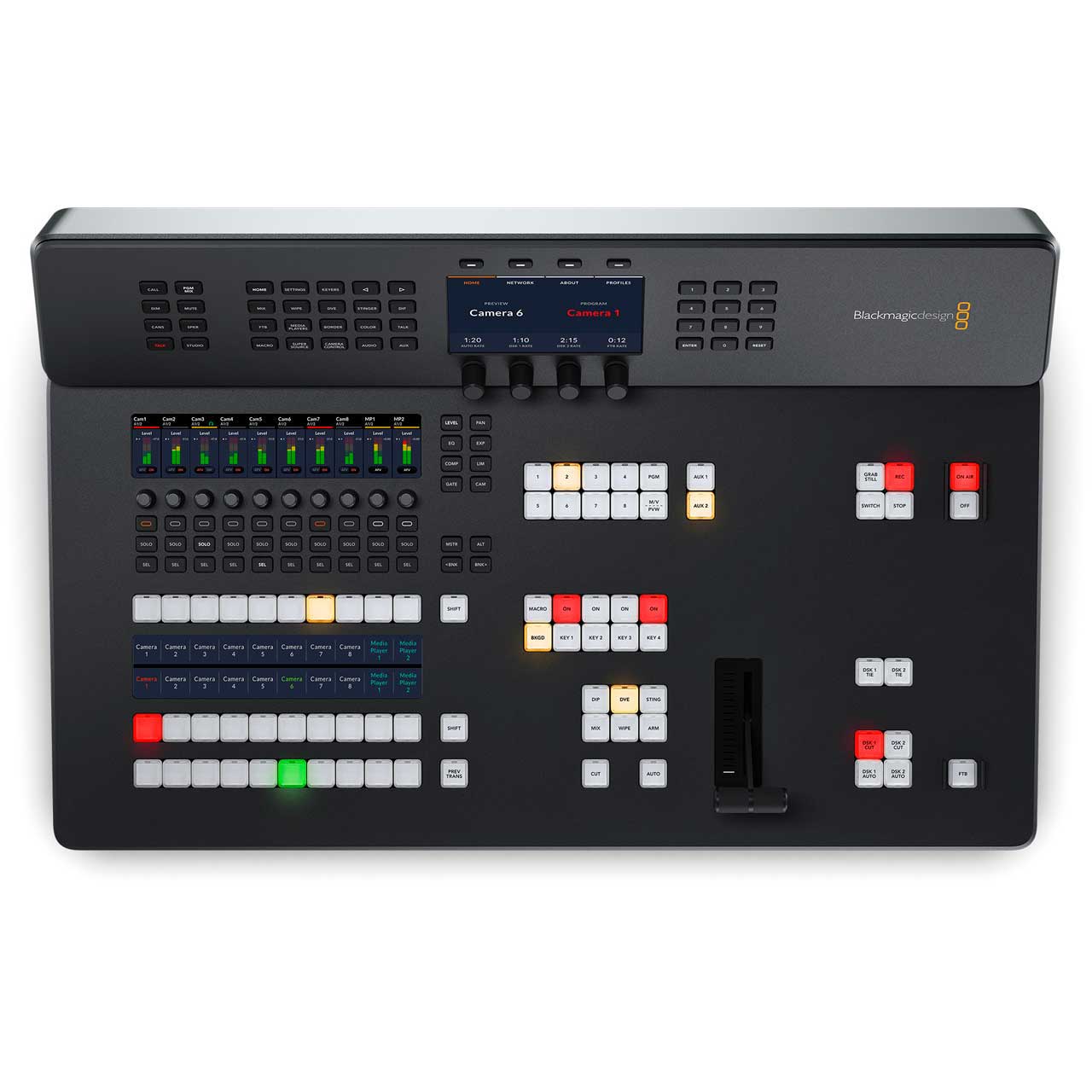

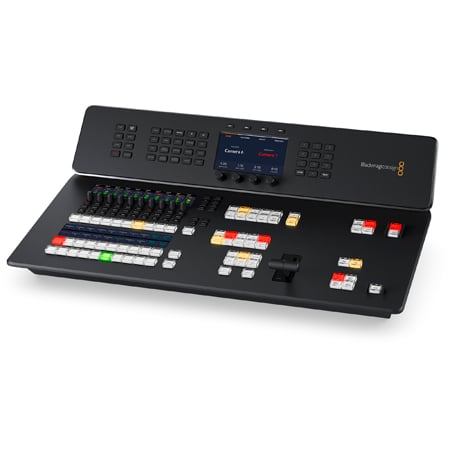

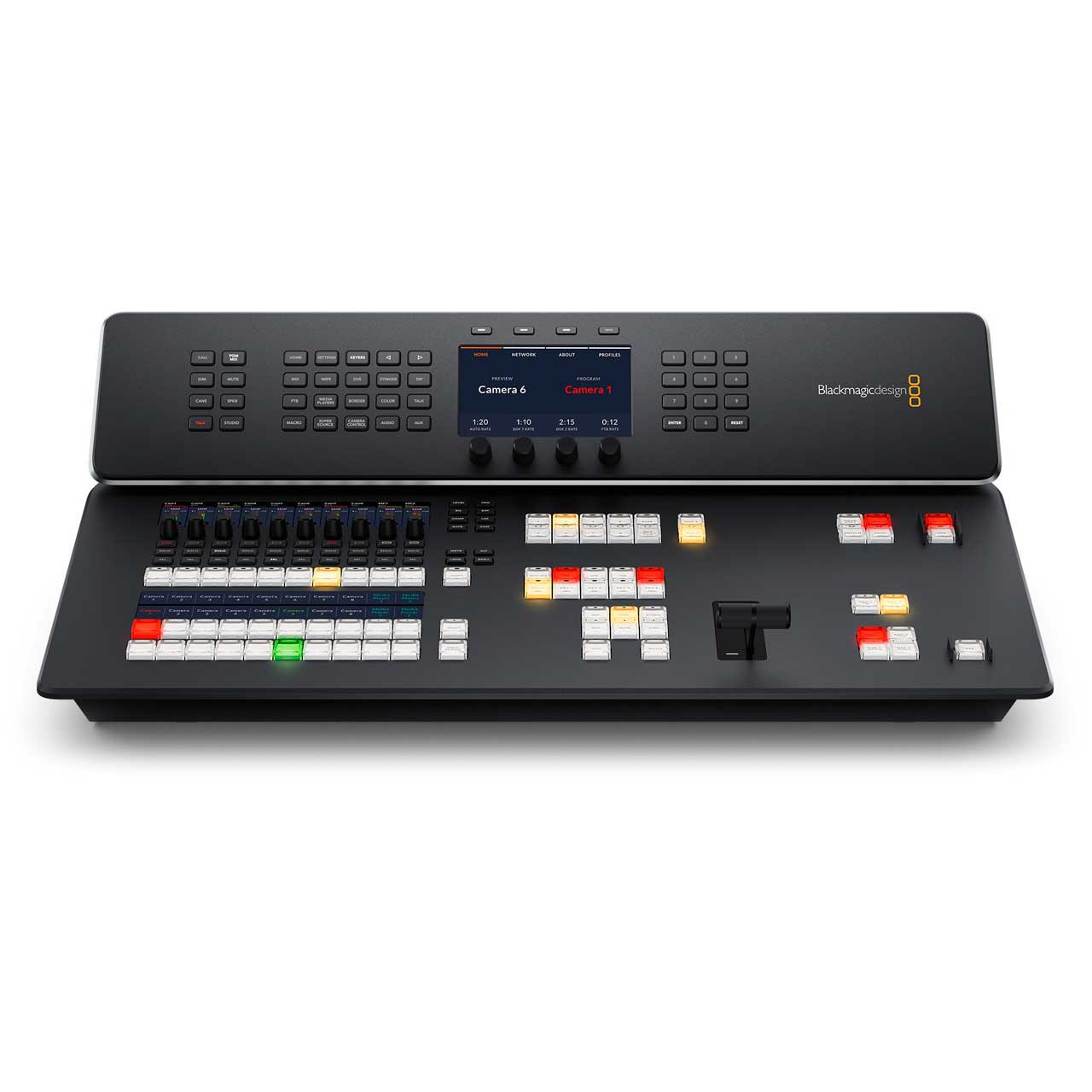

Blackmagic Design ATEM Television Studio HD8 ISO 3G-SDI Production Switcher with Built-in Control Panel & ISO Recording

ITEM #: BMD-ATEMSTUHD8IS MFG #: SWATEMTVSTC/HD08ISO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3,995.00

Availability: In Stock
iAvailability Description Popup


    SWATEMTVSTC/HD08ISO - Overview

    Blackmagic Design ATEM Television Studio HD8 ISO includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!

    Live Production
    You get an incredibly powerful 8 input switcher with both program and two aux outputs so you have everything you need for mobile production. That means you can connect up to 8 cameras! Plus you get professional camera control, talkback and audio mixing all designed into a familiar broadcast panel.

    Post Production
    The ISO model records all inputs into separate files so you can edit using any NLE that supports multi-cam! That's possible because all files have perfect timecode sync! Plus with built in network storage, you can edit while recording! Multiple users can even share media and collaborate!

    Distribution
    With a built in hardware streaming engine, you can live stream your event to a global audience! Recording to H.264 files with AAC audio means you get the correct format to upload to YouTube. Plus you share live broadcasts with your audience by using the aux outputs and large screens and projectors!

    • Specifications:

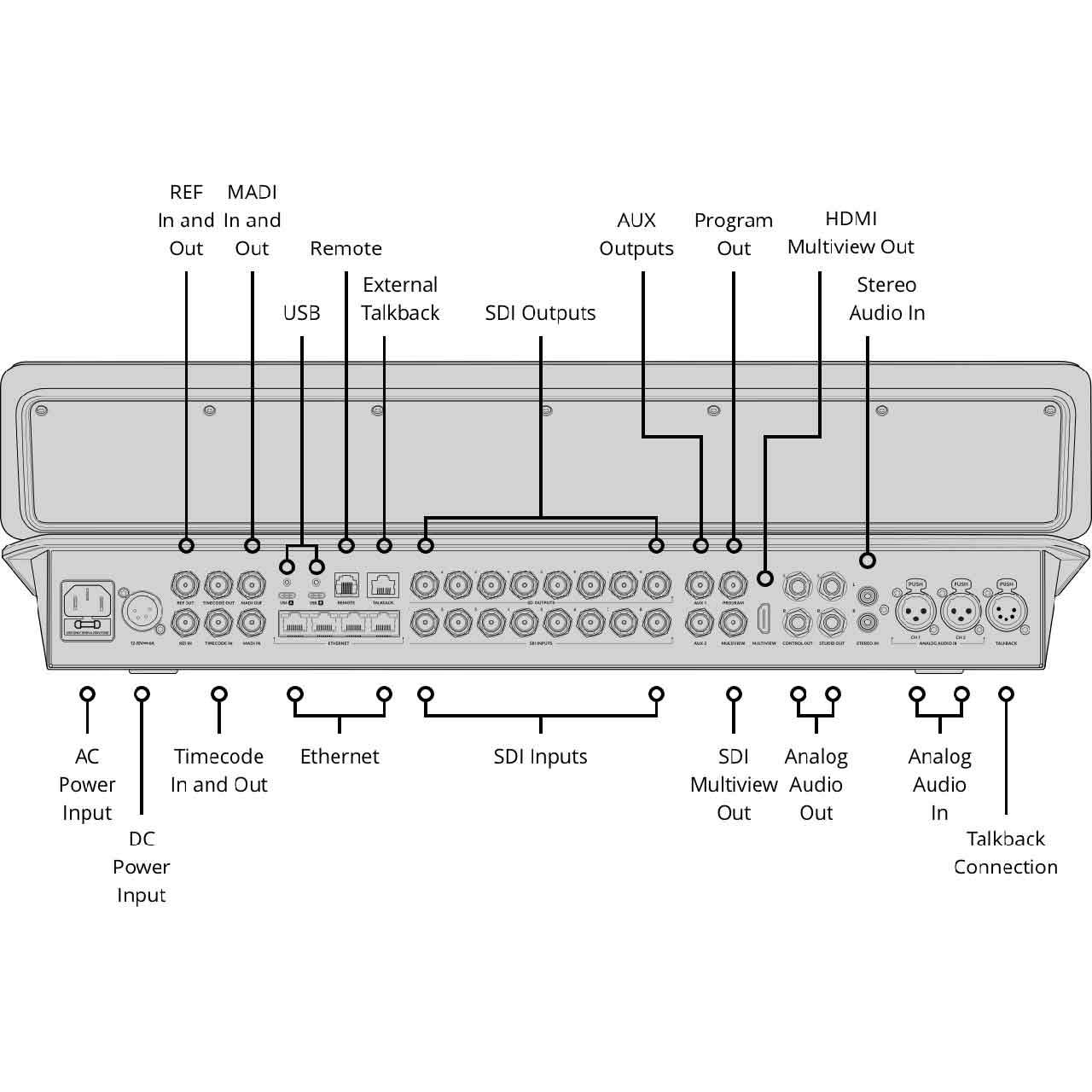

      • Connections
      • SDI Video Inputs: 8
      • SDI Video Outputs: 12
      • SDI Rates: 1.5G, 3G
      • HDMI Video Outputs: 1
      • Total Audio Inputs: 2x XLR balanced analog audio, 1x BNC 32 Ch MADI digital audio, 2x RCA stereo analog audio,, 1x 5 pin XLR Talkback
      • Total Audio Outputs: 4x 1/4 inch Jack analog audio, 1x BNC 64 Ch MADI digital audio, up to 50 active, 1x 5 pin XLR Talkback
      • SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs
      • SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs
      • Timecode Connections: 1x BNC In, 1x BNC Out
      • Reference Input: 1x BNC In, 1x BNC Out, Tri-Sync or Black Burst
      • Video Input Re-Sync: On all 8 inputs.
      • Frame Rate and Format Converters: On all 8 inputs
      • SDI Aux Outputs: 2
      • SDI Program Outputs: 1
      • Webcam Output: 2x USB-C supporting 720p or 1080p at PGM frame rate
      • Total Multi Views: 1x 3G-SDI, 1x HDMI
      • Remote: RJ12 supports RS-422
      • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network
      • Internal Timecode Generator: Y
      • Talkback: RJ45 for 3rd party talkback systems
      • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
      • Ethernet: 4x RJ45 with internet network switch. Supports 10/100/1000 BASE-T
      • Computer Interface: 2x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection

        Standards
      • SD Video Standards: None
      • HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
      • Video Sampling: 4:2:2
      • Color Precision: 10-bit
      • Color Space: REC 709
      • SDI Auto Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI

        Product Specifics
      • Upstream Keyers: 4
      • Downstream Keyers: 2
      • Advanced Chroma Keyers: 4
      • SuperSource: 1
      • Linear/Luma Keyers: 7
      • Transition Keyer (Stinger/DVE): 1 Stinger, 1 DVE
      • Total Number of Layers: 8
      • Pattern Generators: 7
      • Color Generators: 2
      • Control Panel: Integrated panel with full control of switching and settings
      • Routable Windows: 16
      • Windows Source Labels: Y
      • Tally: Red for program and green for preview indication
      • Talkback Support: Y
      • Mix Minus Support: Y

        Recording
      • Direct Recording Video and Audio: USB-C expansion port can record directly to external media.
      • Video Recording: Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio
      • Audio Recording: Audio inputs recorded as separate 24-bit 48KHz .wav files. Includes 8x SDI 2 channel embedded audio inputs, 4x analog audio inputs and up to 32 channels of MADI digital audio
      • Switching: Program switching recorded as a DaVinci Resolve project .drp file
      • Media: All media pool stills and clips saved to a separate media folder
      • Media Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac)

        Operating Systems
      • Mac 12.0 Monterey, Mac 13.0 Ventura or later
      • Windows 10 and 11

        Power Requirements
      • Power Supply: 1x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1x 4 pin XLR 12V DC In for external power supply or battery use
      • Power Usage: 100 W max

    • Item Includes:

      • 1x ATEM Television Studio HD8 ISO

    • Warranty:

      • 12 Months Limited

    • GTIN:

      9338716008050
