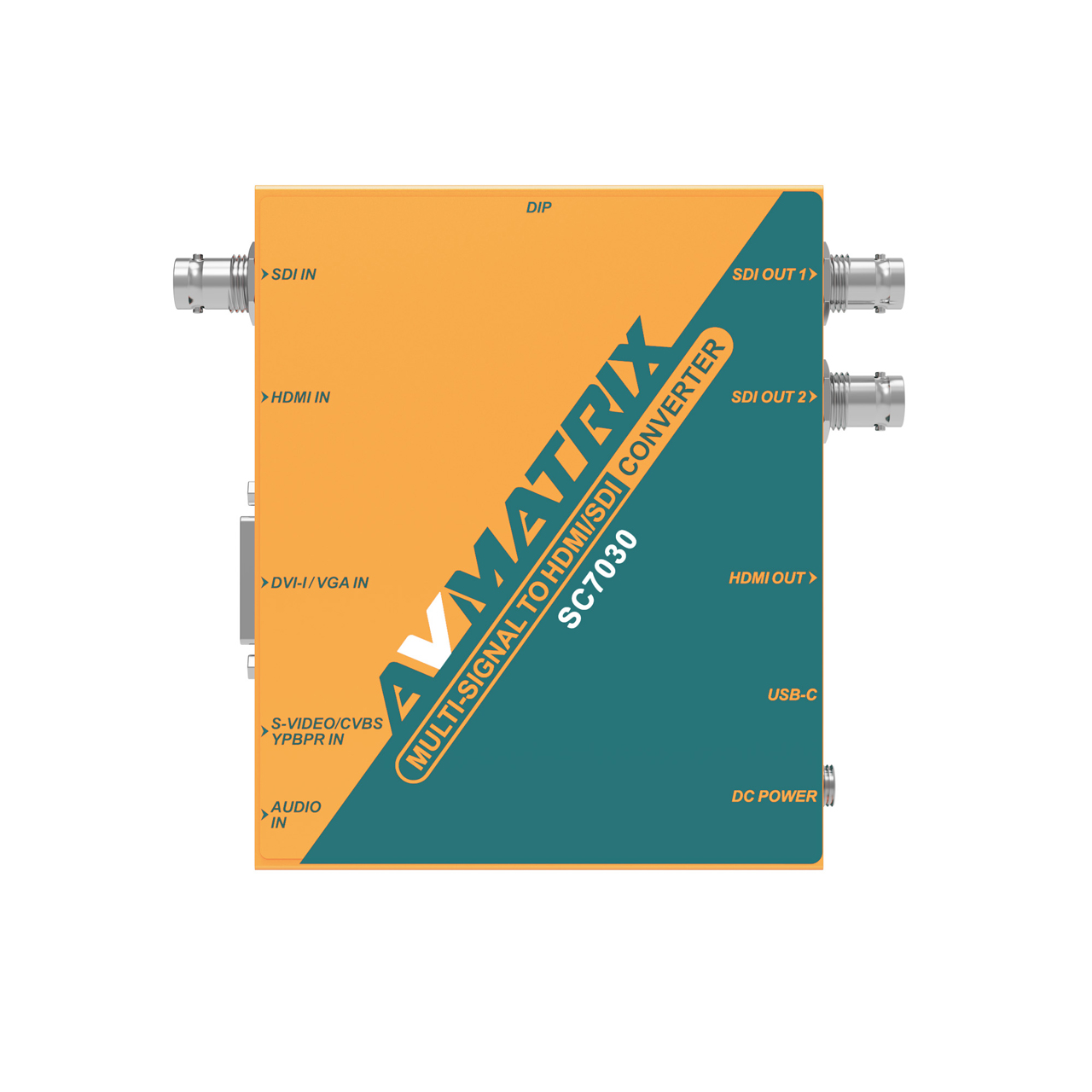

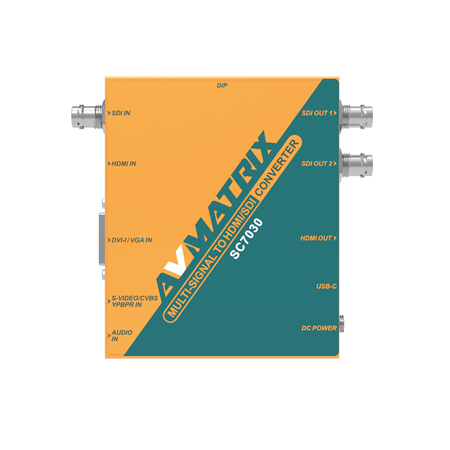

AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter up to 1080p60 with SDI/HDMI/DVI-I/VGA/CVBS/S-Video/YPbPr Inputs

ITEM #: AVMX-SC7030 MFG #: SC7030

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AVMATRIX
Free Shipping with $49 Minimum Order

Our Price:

$329.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SC7030 - Overview

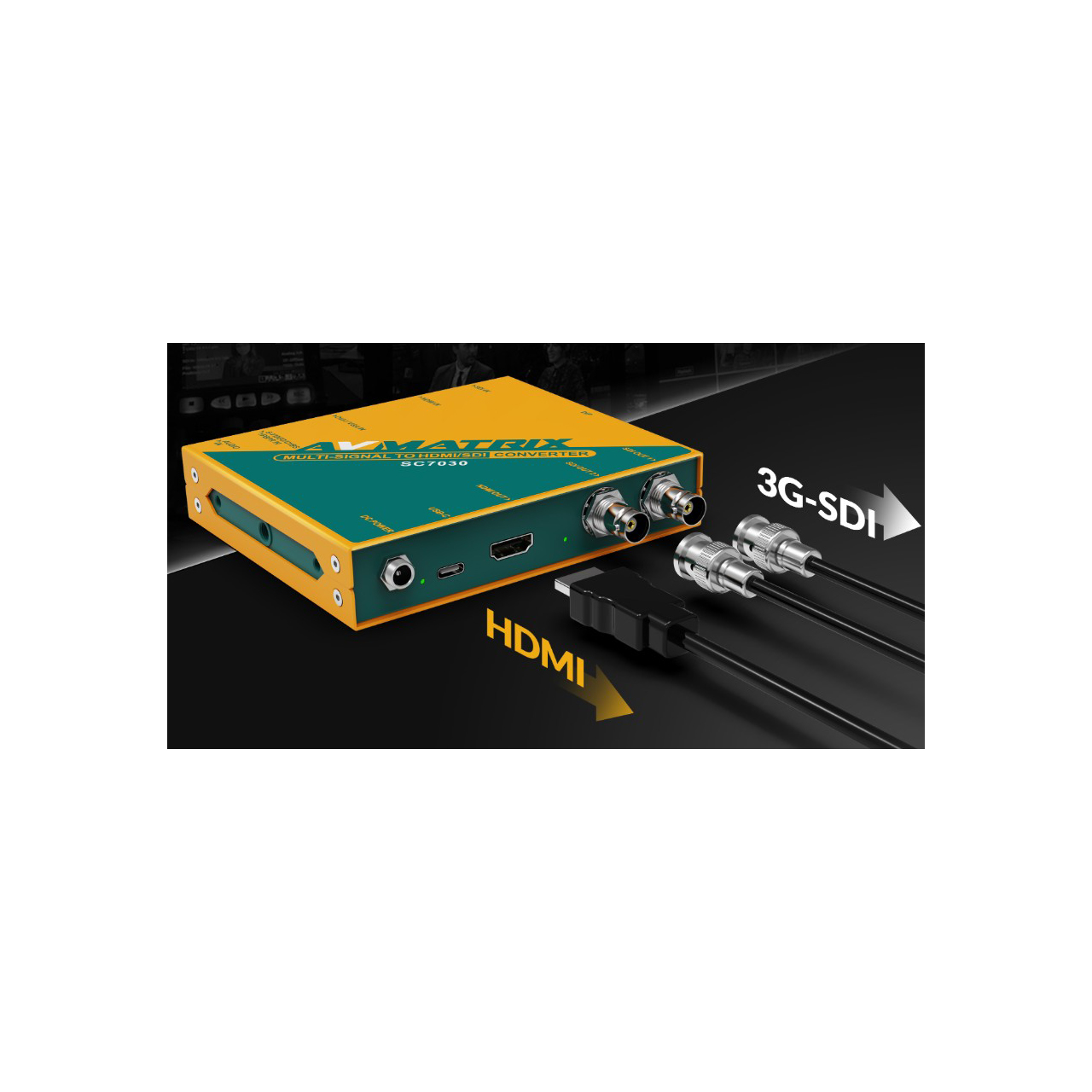

The AVMATRIX SC7030 is an exquisite and professional converter that converts SDI/HDMI/DVI-I/VGA/CVBS/S-Video/YPbPr signals to triple SDI and HDMI signals. The format of the output can realize up/down scaling, frame rate conversion. It also features analog audio embedding. All the functions can be easily set by a built-in DIP switches or PC via micro USB. SC7030 is your ideal choice for medical, broadcasting and AV post production applications.

  • Features:

    • SDI/HDMI/DVI-I/VGA/CVBS/S-video/YPbPr Inputs
    • Up/down scaling and frame rate conversion
    • Supports up to 1080p60 resolution
    • 4:3/16:9 aspect ratio conversion
    • Analog audio embedding
    • Video & power signal LED indicators
    • Threaded locking DC 12V or USB-C 5V power

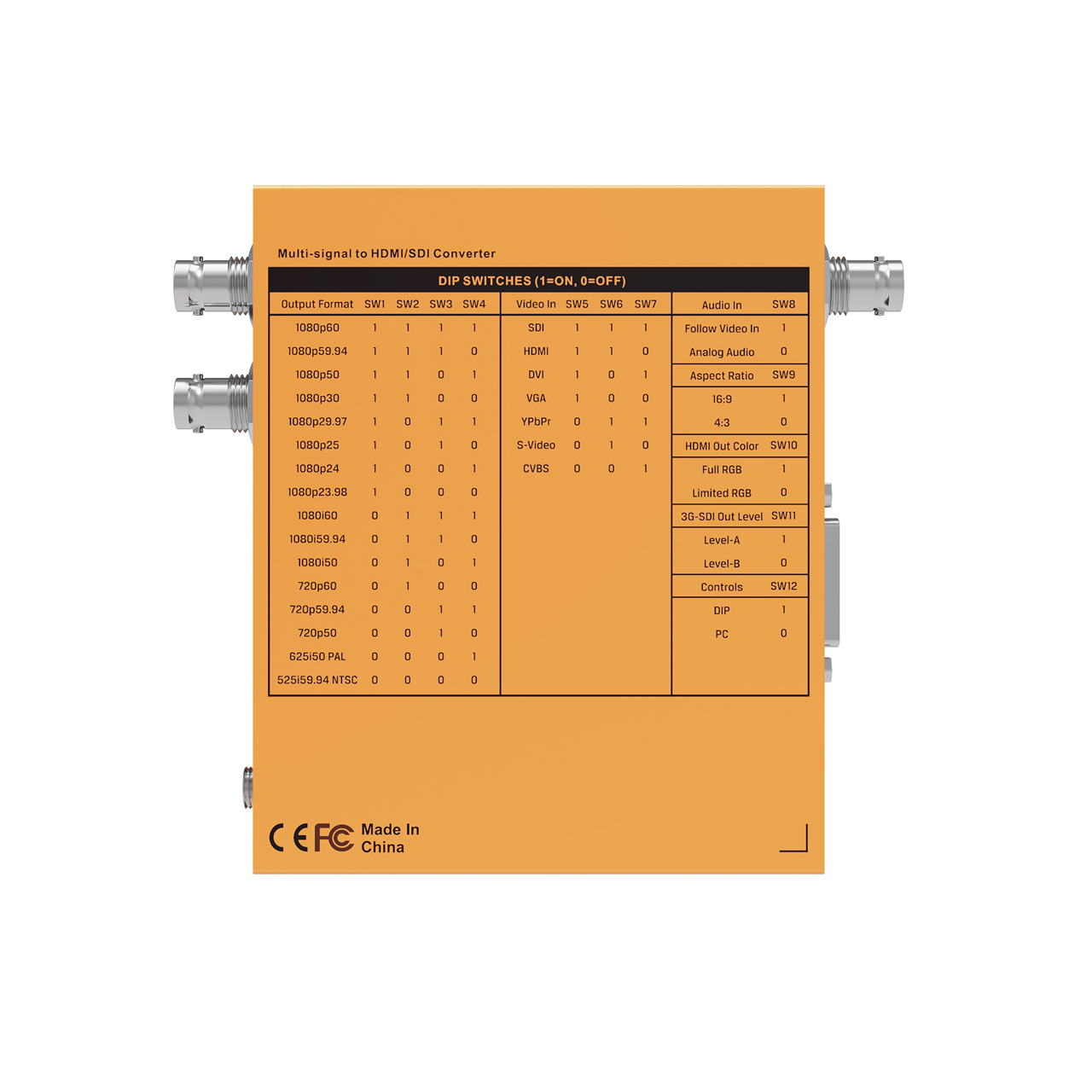

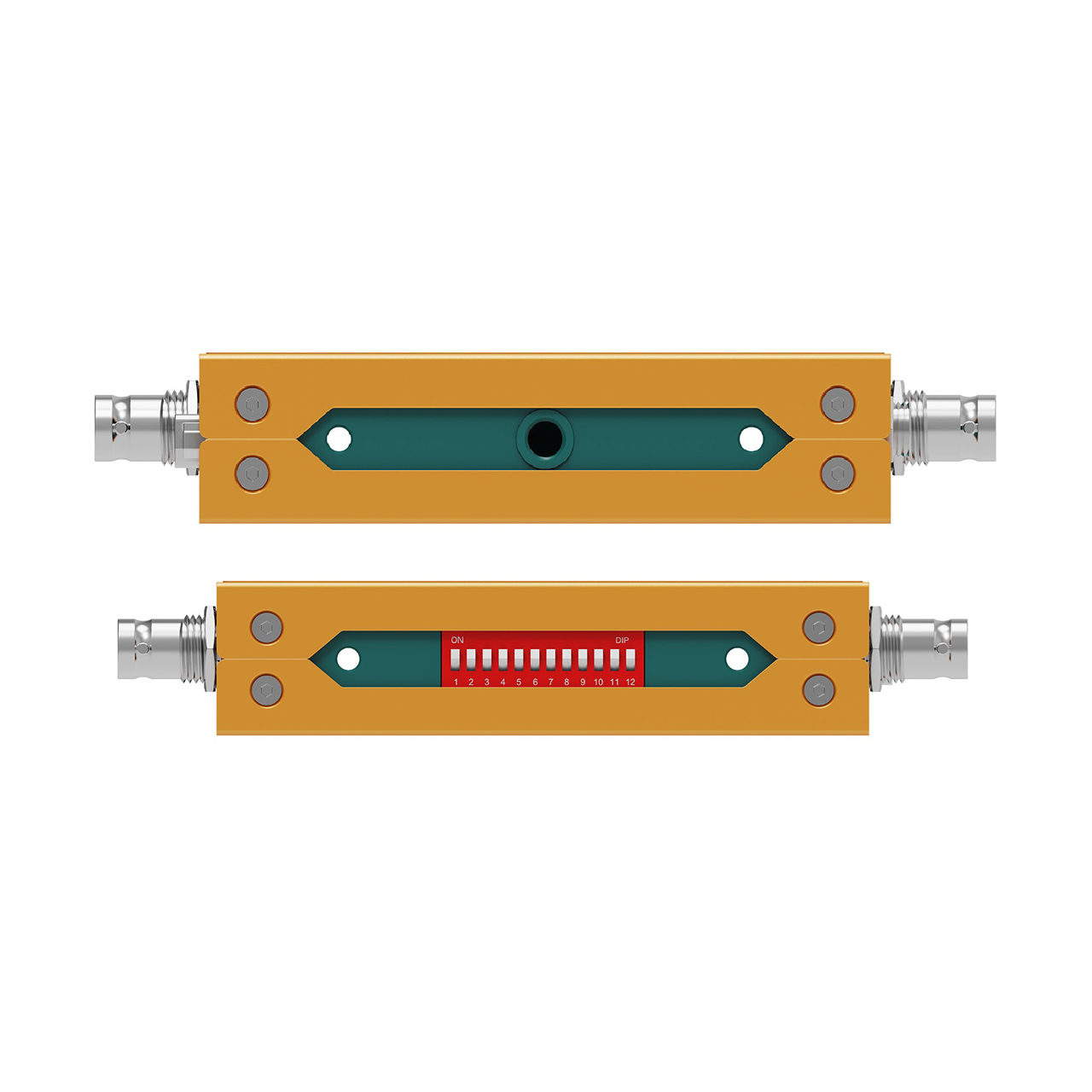

    • Control easily via the DIP switches and PC software
    • Detachable bracket for optional


  • Specifications:

      General
    • Dimensions (LxWxD): 4.1" x 5" x 1" (104mm x 125.5mm x 24.5mm)
    • Weight: 1.1lbs (496.1g)
    • Power Consumption: ≤5.5W
    • Operating Voltage: 12V (Voltage Range: DC 6-24V), USB 5V
    • Relative Humidity: 20% - 90% RH (no condensation)

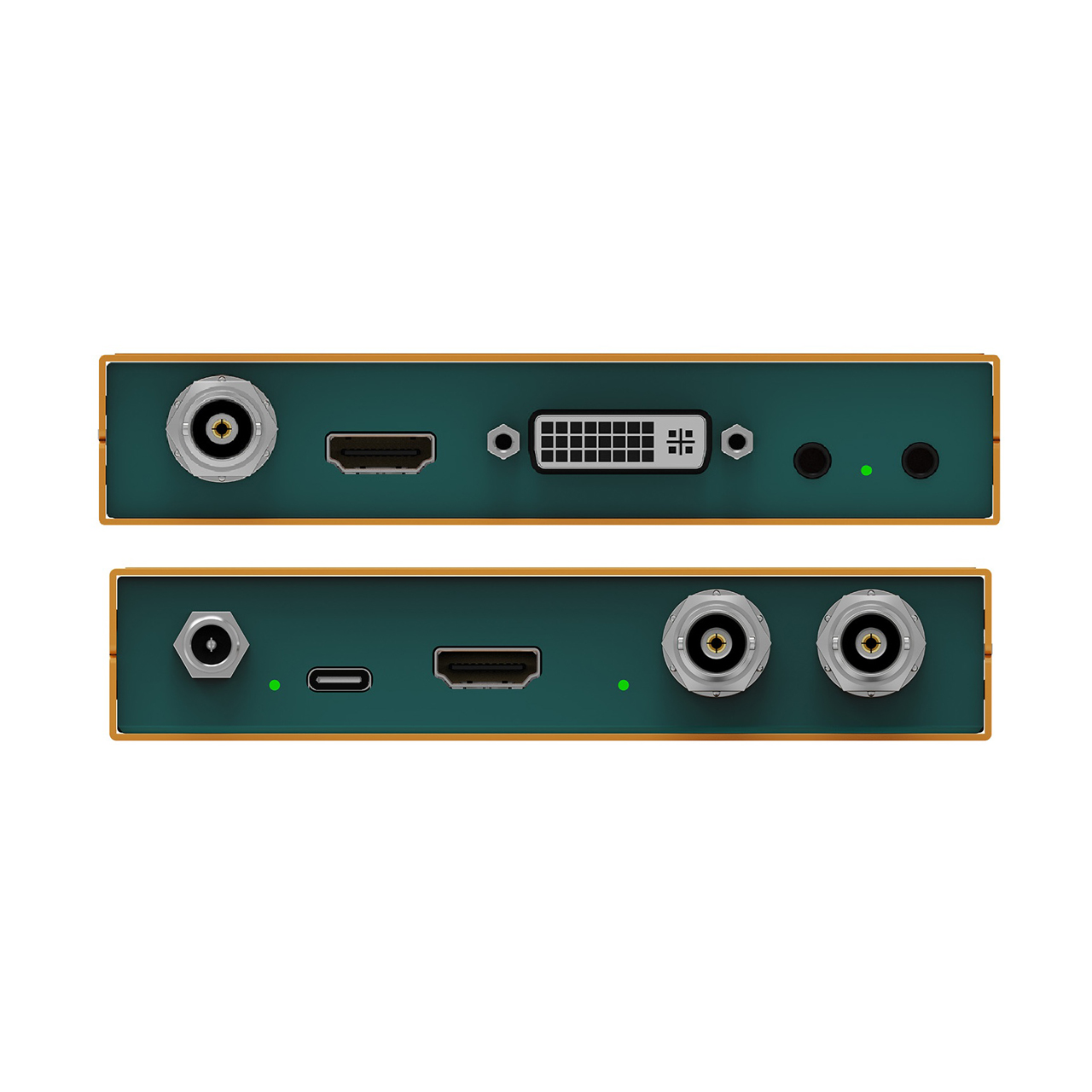

      Connections
    • Video Inputs:
      - 1x SD/HD/3G-SDI (75Ω BNC)
      - 1x HDMI Type A
      - 1x DVI-I/VGA
      - 1x S-VIDEO/CVBS/YPBPR
    • Analog Audio Input: 1x 1/8" (3.5mm)
    • Video Output:
      - 2x SD/HD/3G-SDI (75Ω BNC)
      - 1x HDMI Type A
    • Updates and Configuration: USB Type-C

      Format
    • SDI & HDMI Output Format:
      - 1080p 60/59.94/50, 3G-SDI Support Level-A and Level-B
      - 1080p 30/29.97/25/24/23.98
      - 1080i 60/59.94/50
      - 720p 60/59.94/50
      - 625i 50 PAL, 525i 59.94 NTC
    • SDI Input Format:
      - (3G level-A) 1920x1080p 60/59.94/50
      - (3G level-B) 1920x1080p 60/59.94/50
      - (HD) 1920x1080p 30/29.97/25/24/23.98
      - (HD) 1920x1080i 60/59.94/50
      - (HD) 1920x1080Psf 30/29.97/25/24/23.98
      - (HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
      - (SD) 525i 59.94, 625i 50
    • HDMI Input Format:
      - 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1920x1080i 60/59.94/50
      - 1280x768p 60
      - 1280x720p 60/59.94/50/30/29.97/25/24/23.98
    • DVI-I/VGA Input Format (Up to 60Hz):
      - 1920x1080
      - 1680x1050
      - 1600x900
      - 1400x1050
      - 1366x768
      - 1360x768
      - 1280x1024
      - 1280x960
      - 1280x800
      - 1280x768
      - 1280x720
      - 1280x600
      - 1152x864
      - 1024x768
      - 800x600
    • YPBPR Input Format:
      - 1080p
      - 1080i
      - 720p
      - 576p
      - 480p
      - 576i
      - 480i
    • S-Video/CVBS Input Format: Support NTSC, PAL and SECAM
    • SDI Color Space:
      - In: YUV 4:2:2 10bit
      - Out: YUV 4:2:2 10bit
    • HDMI Color Space:
      - In: RGB 4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:4:4 8/10/12bit
      - Out: RGB 4:4:4 8bit
    • Hardware Deinterlacing: Support 1080i hardware deinterlacing, clearer and more stable picture


  • Item Includes:

    • 1x SC7030 Multi-Signal to SDI/HDMI Cross Converter
    • 1x 12V 2A Locking Power Supply
    • 1x DVI to VGA Adapter
    • 1x 3-in-1 Multi-Interface Connector


  • Warranty:

    • 3 Year Limited Warranty
