    HDMI-TO-USB-CAP2 - Overview

    The Connectronics HDMI-TO-USB-CAP2 is a powerful and cost effective HDMI to USB tool in a pocket sized package. This simple plug-and-play device converts HDMI to USB 2.0 signals for input into your PC or Mac, supports 4K input with 1080p output and offers both HDMI looping out and 3.5mm Audio Insertion and Extraction.

    The HDMI-TO-USB-CAP2 is compatible with Zoom and similar video conferencing software for adding a secondary camera and is also great for injecting secondary video sources into online presentations. Universities, colleges, and all levels of public schools are flocking to the HDMI-TO-USB-CAP2 as a simple means to capture and enhance distance learning presentations.

    HDMI-TO-USB-CAP2 gives you an easy way to enhance presentations with its 3.5mm audio insertion feature. This will embed external audio sources from a microphone, smart phone, digital audio recorder or even a secondary PC into the USB stream. It also has both an HDMI looping output as well as a 3.5mm headphone output for monitoring purposes.

    It can also be used for video gaming capture to record from PS4, Wii and X-Box consoles. In addition, the HDMI-TO-USB-CAP2 works great to capture the output of cable boxes.

    The HDMI-TO-USB-CAP2 is powered directly off the USB buss so no additional power supplies are required. It is fully compatible with the free OBS (Open Broadcaster Software) Project software, available for Mac and PC, for video recording and live streaming. OBS paves the path for streaming to Twitch, Facebook and more.

    • Features:

      • Supports 4K HDMI Input
      • Supports 1080p Output
      • 3.5mm Audio Insertion/Embedding Input
      • 3.5mm Audio Monitoring Output
      • HDMI Looping Out
      • OBS (Open Broadcaster Software) Project software Compatible
      • VLC Software Compatible
      • Mac and PC Plug and Play
      • Zoom Compatible as Secondary Camera or Video Source
      • 8/10/12-Bit Deep Color Compatible
      • USB Buss Powered - No Power Supply Required
    • Specifications:

      • HDMI Resolution: Max 4K Input
      • Video Output Resolution: 1080p
      • Deep Color Support: 8/10/12 Bit
      • Video Output Format: YUV, JPEG
      • Audio Format: L-PCM
      • Input Cable Distance: 15 Meter HDMI
      • Max Working Current: 0.4A/5VDC
      • Dimensions: 2.3" x 2.25" x 0.75"

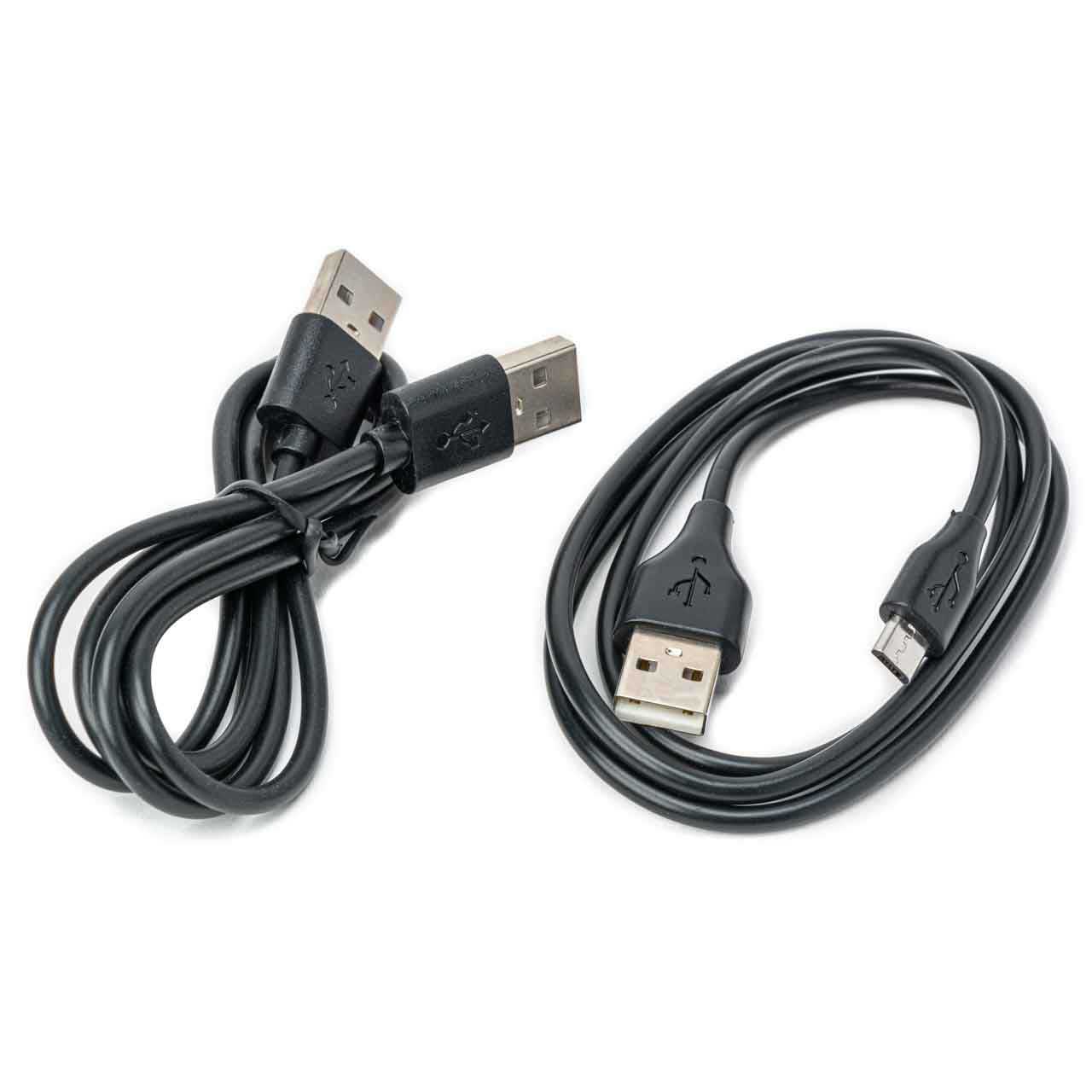

    • Item Includes:

      • HDM to USB Capture Device
      • USB-Micro to USB-A Power Cable
      • USB-A to USB-A Cable
