Intelix AVO-CLIP-F Balun Mounting Clip
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Intelix AVO-CLIP-F Balun Mounting Clip

    Manufacturer: Intelix

    Item #: AVO-CLIP-F   •   MFG #: AVO-CLIP-F


    List Price:$22.72
    Our Price:$14.41

    free ship
    Availability: In Stock
    Item is Available for immediate shipping from our warehouse.

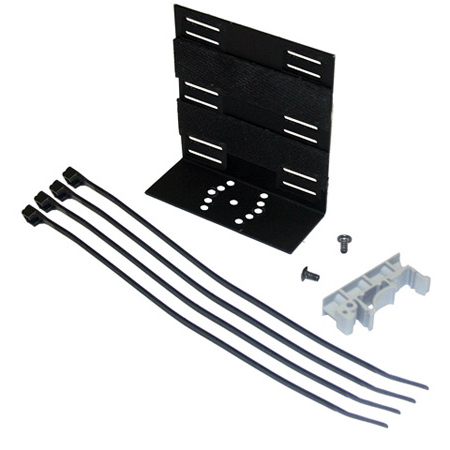

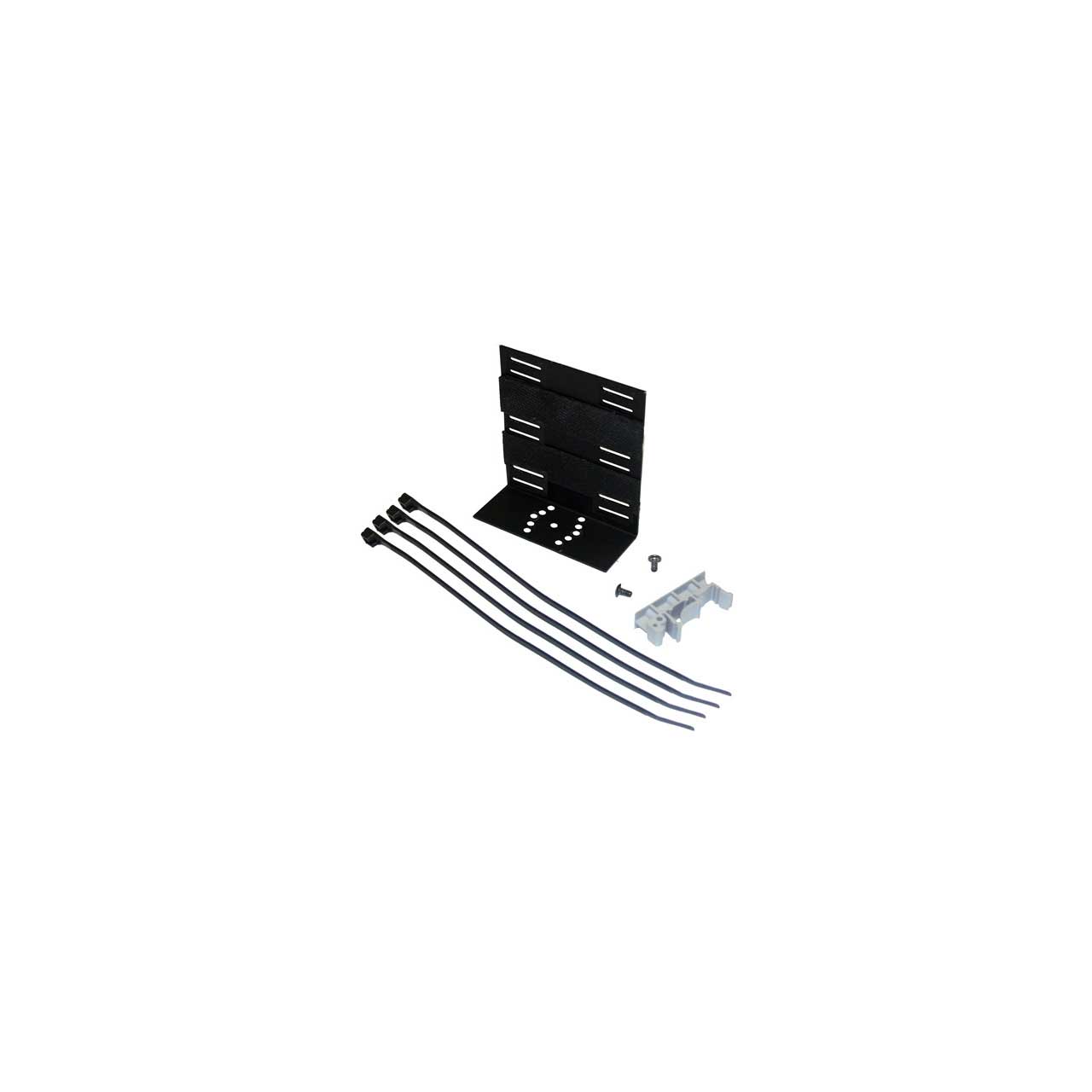

      The Intelix AVO-CLIP-F allows Intelix AvoCat Series and Classic Series baluns to be mounted on a 19" rack tray, standard 35 mm DIN rail, or any other screw-mountable surface. Each AVO-CLIP-F contains a universal mounting bracket, DIN rail converter clip, two mounting screws, and four fasteners.

      • Features

        • *DIGI-USB-F, DVI-F, HDMI-F, PS2-F, VGA-HR-F, VGA-UHR-F, VGA-SR-F, DIGI-DVIT2R-F, DIGI-DVIT4R-F and DIGI-HDMI-F are sold in pairs. One AVO-CLIP-F is required for the send unit and one AVO-CLIP-F is required for the receive unit.
      • Specifications

        • Bracket Dimensions 3.25" x 1.25" x 3.00"
        • Bracket Material Black aluminum
        • DIN Rail Clip Dimensions 1.75" x 0.75" x 0.40"
        • DIN Rail Clip Material Molded plastic
        • DIN Rail Compatibility 35 mm DIN rail
        • Tie Fastener Length 11"
        • Overall Mounted Height 4" (3U)
        • Intelix DIN-RACK-KIT Compatibilty The Intelix DIN-RACK-KIT supports up to 26 AVO-CLIPs.
        • Shipping Weight 0.5 lbs.
        • Warranty 2 years
          Intelix Balun Compatibility
        • (1) AVO-A2-F
        • (1) AVO-A4-F
        • (1) AVO-SVA2-F
        • (2) AVO-V1-F
        • (2) AVO-V1-ST-F
        • (1) AVO-V1A2-F
        • (1) AVO-V2A2-F
        • (1) AVO-V3AD-F
        • (1) AVO-V3PT-F
        • (1) AVO-V3HD-F
        • (2) RF-F
      • Item Includes

        • (1) Angle Mounting Bracket
        • (1) DIN Rail Clip
        • (2) DIN Rail Clip Mounting Screws
        • (4) Tie Fasteners
