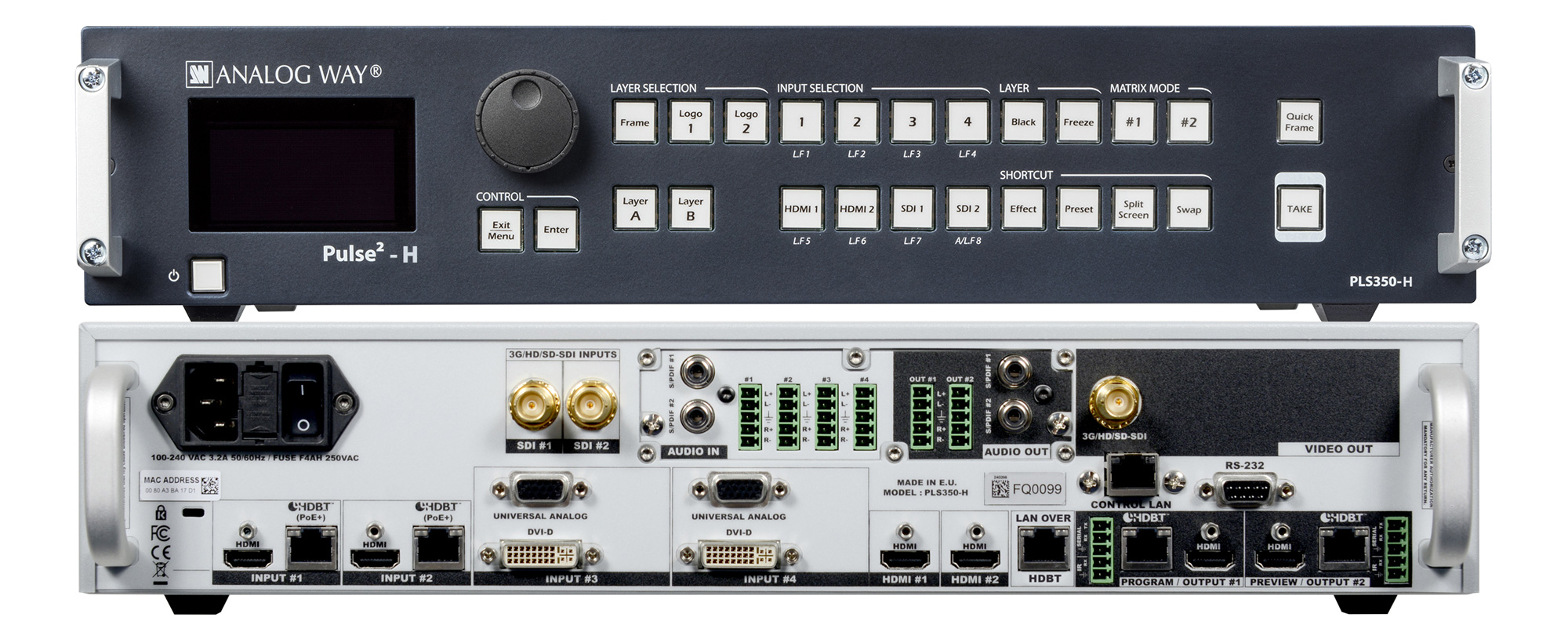

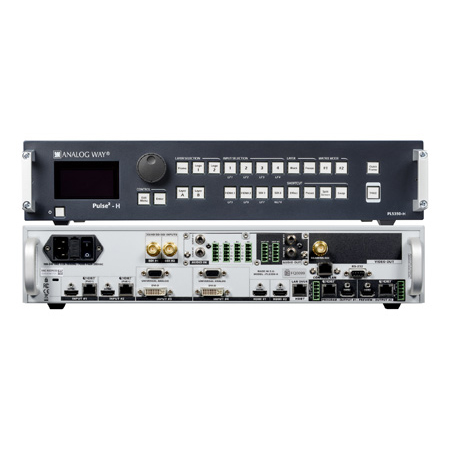

Analog Way PLS350-H 8-Input Hi-Res Mixer & Seamless Switcher with 2 HDBaseT Inputs and 2 Mirrored HDMI / HDBaseT Outputs

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Analog Way PLS350-H 8-Input Hi-Res Mixer & Seamless Switcher with 2 HDBaseT Inputs and 2 Mirrored HDMI / HDBaseT Outputs

    Manufacturer: Analog Way, Inc.

    Item #: AWA-PLS350-H   •   MFG #: PLS350-H




    Our Price:$7,850.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The Pulse2-H (PLS350-H) is a multi-layer, high-resolution mixer and seamless presentation switcher with two HDBastT inputs and two mirrored HDMI/HDBaseT ouputs.

      Flexibility and Versatile Connectivity

      The Pulse2-H is a powerful hi-resolution mixer and seamless presentation switcher featuring 8 seamless inputs and 12 input connectors (four HDMI, two DVI, two 3G-SDI, two HDBaseT™ and two universal analog). The Pulse2-H offers two outputs with mirrored HDMI and HDBaseT™ connectors that can be configured either as Preview & Program or as two independent program outputs (native matrix mode). It also supports advanced audio inputs and outputs functionalities and includes a 3G-SDI output useable as video output or Program clone.

      Quality without Compromise

      Based on the extremely reliable and cost-effective MIDRA™ platform, the Pulse2-H offers ultra-low latency image processing, uncompromising video quality, true seamless switching and advanced video effects for elegant AV presentations, which makes it an ideal solution for live events, fixed installations, houses of worship and educational facilities.

      Simplified Integration with direct HDBaseT™ Compatibility

      The Pulse2-H has been designed using HDBaseT™ Alliance specifications, ensuring interoperability with other HDBaseT™ certified products. It features two HDBaseT™ inputs with embedded audio, Ethernet and PoE+ support. The Pulse2-H also includes two HDBaseT™ outputs that can deliver digital video and embedded audio, with Ethernet pass through plus bidirectional RS?232 and IR signals up to 330 feet (100 meters) over a shielded CAT 5e/6 cable directly to HDBaseT™ enabled displays. This allows reducing installation cost and even greater flexibility for your integration requirements.

      Powerful and Flexible Control Options

      The Pulse2-H has been designed to be entirely operated from the easy-to-use front panel. Each MIDRA™ model can also be easily controlled using the intuitive drag & drop user software interface: the RCS2. The Pulse2-H offers IP (Ethernet) control via a standard TCP/IP socket connection and an RS-232 serial interface supported by all major third party control systems. Additionally, the Pulse2-H can be controlled by a comprehensive range of remote control panel options such as the RK-350 keypad or the Shot Box2.


      • Features

        • Based on the Midra™ platform
        • 2 operating modes: seamless switcher & native matrix
        • 8 seamless inputs: Capability to switch between any input plugs (12 input plugs available)
        • Heavy-duty design for incredible reliability
        • High performance video processing
        • HDBaseT™ inputs and outputs
        • Advanced audio management
        • User-friendly and intuitive graphic interface

      • Specifications

        • Inputs
        • 8 seamless inputs, 12 total input plugs
        • 2 x DVI-D up to [email protected]
        • 4 x HDMI up to [email protected]
        • 2 x Universal Analog up to [email protected]
        • 2 x 3G/HD/SD-SDI up to [email protected]
        • 2 x HDBaseT™ with PoE+ up to [email protected]

          Outputs
        • 2 outputs with 2 plugs per output
        • 2 x HDMI up to [email protected]
        • 2 x HDBaseT™ up to [email protected]
        • 1 x 3G-SDI up to [email protected], useable as video output or program clone

          Audio
        • 5-pin MCO connectors: 4 for analog audio inputs and 2 for analog audio outputs
        • 4 RCA connectors: 2 for S/PDIF audio inputs and 2 for S/PDIF audio outputs

          Audio Input
        • DVI (as HDMI) / HDMI / SDI Audio de-embedded
        • 4 x Audio stereo Analog (Balanced/Unbalanced)
        • 2 x S/PDIF (AES-3id compatible)

          Audio Output
        • HDMI / SDI Audio embedded
        • 2 x Audio stereo Analog (Balanced/Unbalanced)
        • 2 x S/PDIF (AES-3id compatible)

          Standards
        • SMPTE: ST 259:2008, ST 260:1999, ST 274:2008, ST 292-1:2012, ST 296:2012, ST 424:2012, ST 428-19:2010
        • VESA: GTF1.1, CVT 1.1, DMT1.0 rev.12

          Operating Modes
        • Mixer mode: Seamless switching with full preview with 1 layer; 1 Title on Live Background; 1 Layer on Live Background; Up to 2 Layers on Still Background
        • Matrix mode: Seamless switching; 1 Live Background

          Control
        • Full-featured Front Panel
        • RCS: Remote Control Software with intuitive GUI
        • Orchestra: Intuitive and ergonomic Controller
        • RK-350: Remote Keypad
        • SB80-2: Shot Box
        • AMX/Crestron drivers
