Blackmagic Design VHUB/WSC/PRO Videohub Smart Control Pro - 1RU

ITEM #: BMD-VHSC-PRO MFG #: VHUB/WSC/PRO

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$775.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    VHUB/WSC/PRO - Overview

    Broadcast grade routing that's easy to use!

    When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press! Videohub Smart Control Pro was designed to be easy to self install. You can program each button for a single router cross point and when pressed the route is made. You can also program multiple destinations and even a take button! Videohub Smart Control Pro uses standard Ethernet networking and simply plugs into your existing computer network.

    Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks,. Because Videohub Smart Control Pro has been designed to fit into creative post production facilities, it includes attractive crystal look buttons that are designed for high reliability. The button caps can be removed to allow labeling of buttons. For world's best illumination quality, all buttons are illuminated by RGB LEDs so that a wider range of rich and clean colors can be displayed. When used in dark rooms, all buttons can be backlit, so button labels can be clearly seen.

    Works with all Videohub models!

    • Features:

      • An incredible rack mount hardware control panel!
      • Ultra HD Quality, HD Compatibility!
      • Different formats, frame rates and resolutions simultaneously!
      • Custom Control
      • Free software developer kit!
      • Control routing via network on Mac and Windows!

    • Specifications:

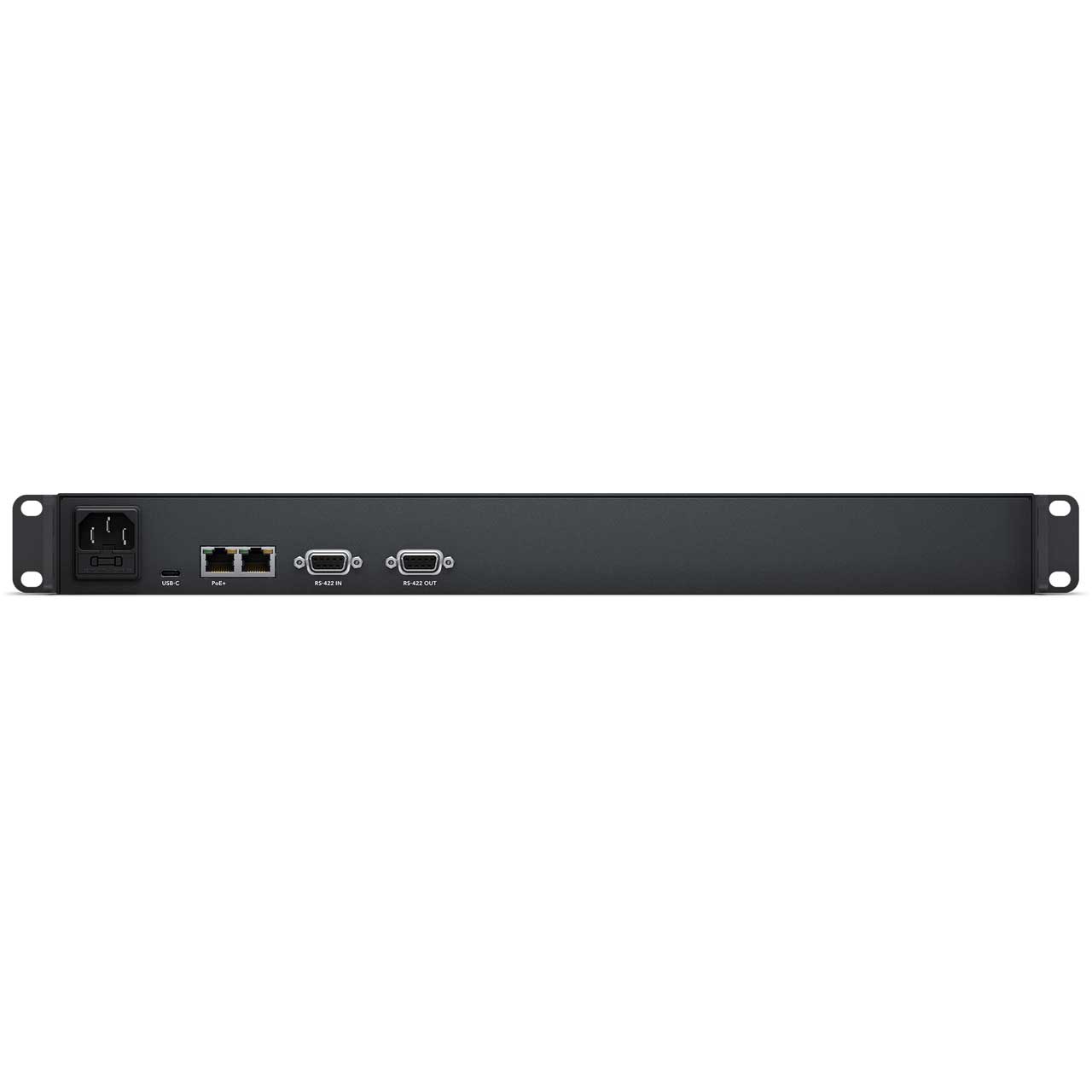

      • Connections
      • Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
      • RS-422: In and Out (for future implementation)
      • Computer Interface: USB-C for configuration and software updates.
      • Power: 100 - 240 AC

        Macro Capability
      • Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.

        Hardware Control
      • 48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.

        Software
      • Internal Software upgrade via included firmware updater application via USB.

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.

        Physical Installation
      • 1 rack unit size. Less than 3 inches deep.

        Button Configuration
      • Included free for Windows ™ and Mac ™via USB 2.0 high speed (480Mb/s) interface.

        Power Requirements
      • Power Fail Protection: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
      • Power Supply: Internal 100 - 240 V AC

        Environmental Specifications
      • Storage temperature: -20° to 45° C (-4° to 113° F)
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x Videohub Smart Control Pro

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.

    • GTIN:

      9338716006476
