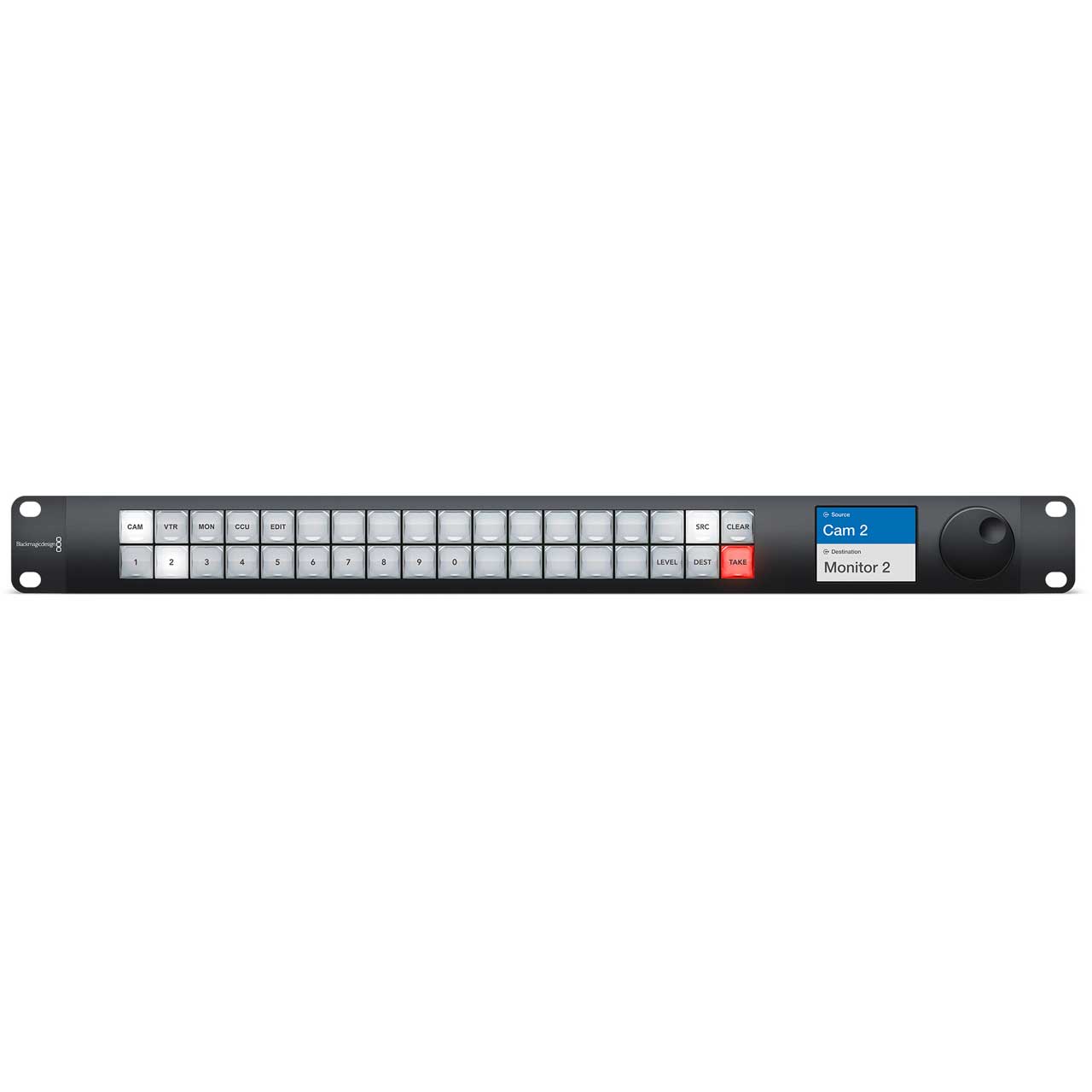

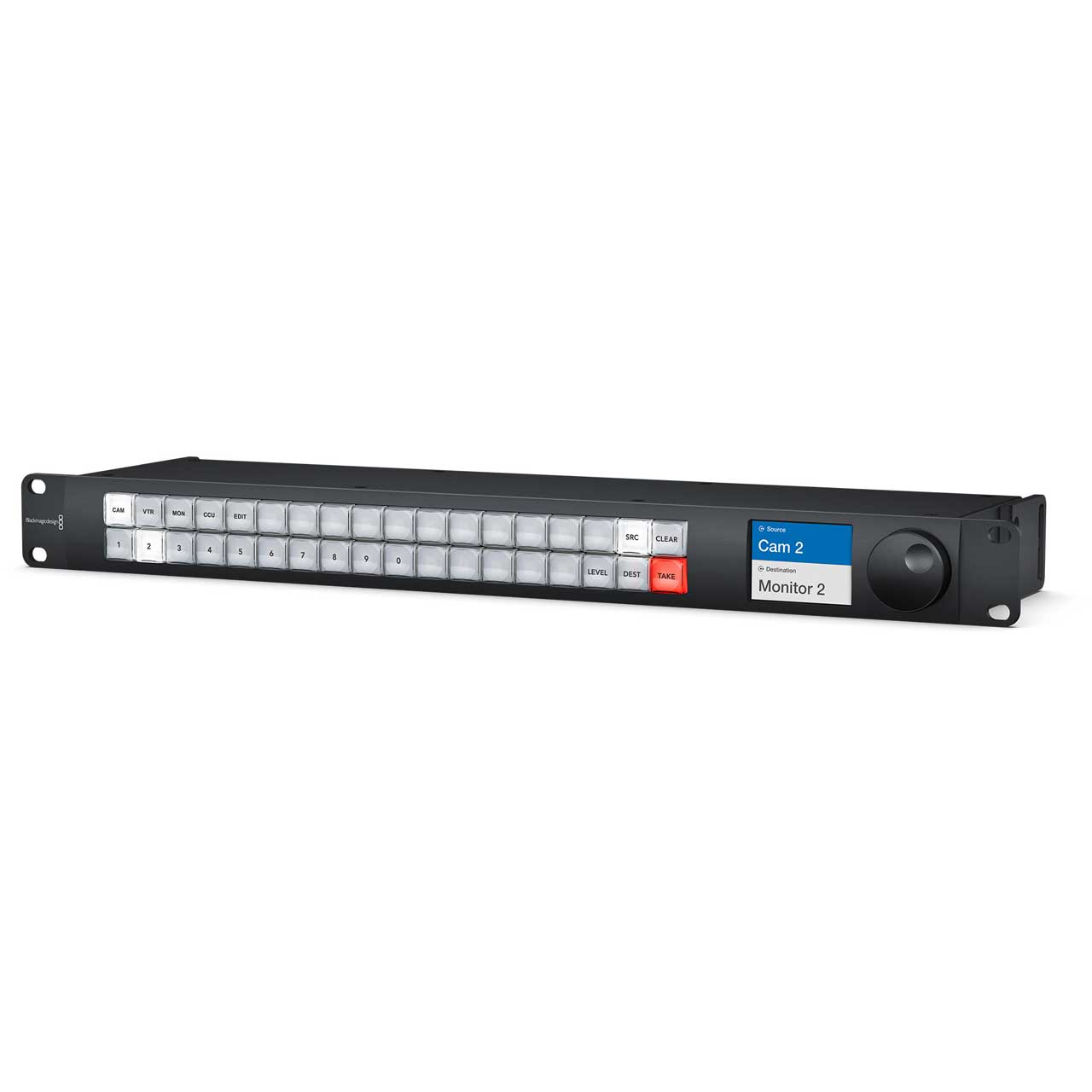

Blackmagic Design VHUB/WMSTRCRL/PRO Videohub Master Control Pro - 1RU

ITEM #: BMD-VHMC-PRO MFG #: VHUB/WMSTRCRL/PRO

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$755.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    VHUB/WMSTRCRL/PRO - Overview

    Add incredible rack mount hardware control panels to Videohub!

    When you need to access your whole Videohub router without sacrificing speed, then the Black Magic Videohub Master Control Pro is the answer. The Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or direct button entry. You can even see all routes on the beautiful LCD screen! The unit powers via DC or the Ethernet connection for adaptability. The Black Magic Smart and Universal Videohubs are the world's first Ultra HD mixed format routers with built in video monitoring and spin knob router control. Smart Videohub includes the latest 6G-SDI or 12G SDI technology depending on the model, so you can simultaneously connect and route any combination of SD, HD and Ultra HD video, all the way up to high frame rate 2160p60, all on the same router at the same time! You also get revolutionary new visual routing that lets you see your router connections as video on the built in LCD as you scroll the knob to select your routing. Now you can route your video simply by looking! Spin knob and direct entry control panel with LCD status. Supports ethernet.

    Works with all Videohub models!

    • Features:

      • Ethernet connection with Power over Ethernet and non powered loop through
      • 110-240V volt power connection included for use with not powered by Ethernet
      • Full access to every cross point on routers via direct entry or spin knob scrolling
      • Spin knob allows customers to scroll through router labels in alphabetical order
      • Direct button entry allows router labels to be typed in, or to limit to a scrolling list
      • Supports optional "take" button set via software configuration
      • Includes Mac and Windows software for control panel programming
      • Button caps can be removed for easy labeling
      • Buttons are illuminated by RGB LEDs for highest illumination quality
      • Compact 1 rack unit size, approximately three inches deep
      • Works with all Videohub models

    • Specifications:

        Connections
      • Ethernet: RJ45 Ethernet In and Out. Power over Ethernet supported on Ethernet In. No power over Ethernet on Ethernet Out
      • RS-422: In and Out (for future implementation)
      • Computer Interface: USB-C for configuration and software updates
      • Power: 100 - 240 AC

        Hardware Control
      • 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen

        Internal Software
      • Upgrade via included firmware updater application via USB or Ethernet

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.

        Physical Installation
      • 1 rack unit size. Less than 3 inches deep

        Button Configuration
      • Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface

        Power Requirements
      • Power Fail Requirements: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall
      • Power Supply: Internal 100 - 240 V AC

        General
      • Operating temperature: 0° to 40°C (32° to 104°F)
      • Storage temperature: -20° to 45°C (-4° to 113°F)
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x Videohub Master Control Pro

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      9338716006483
