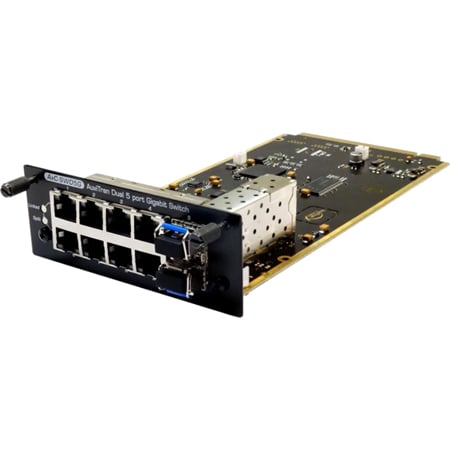

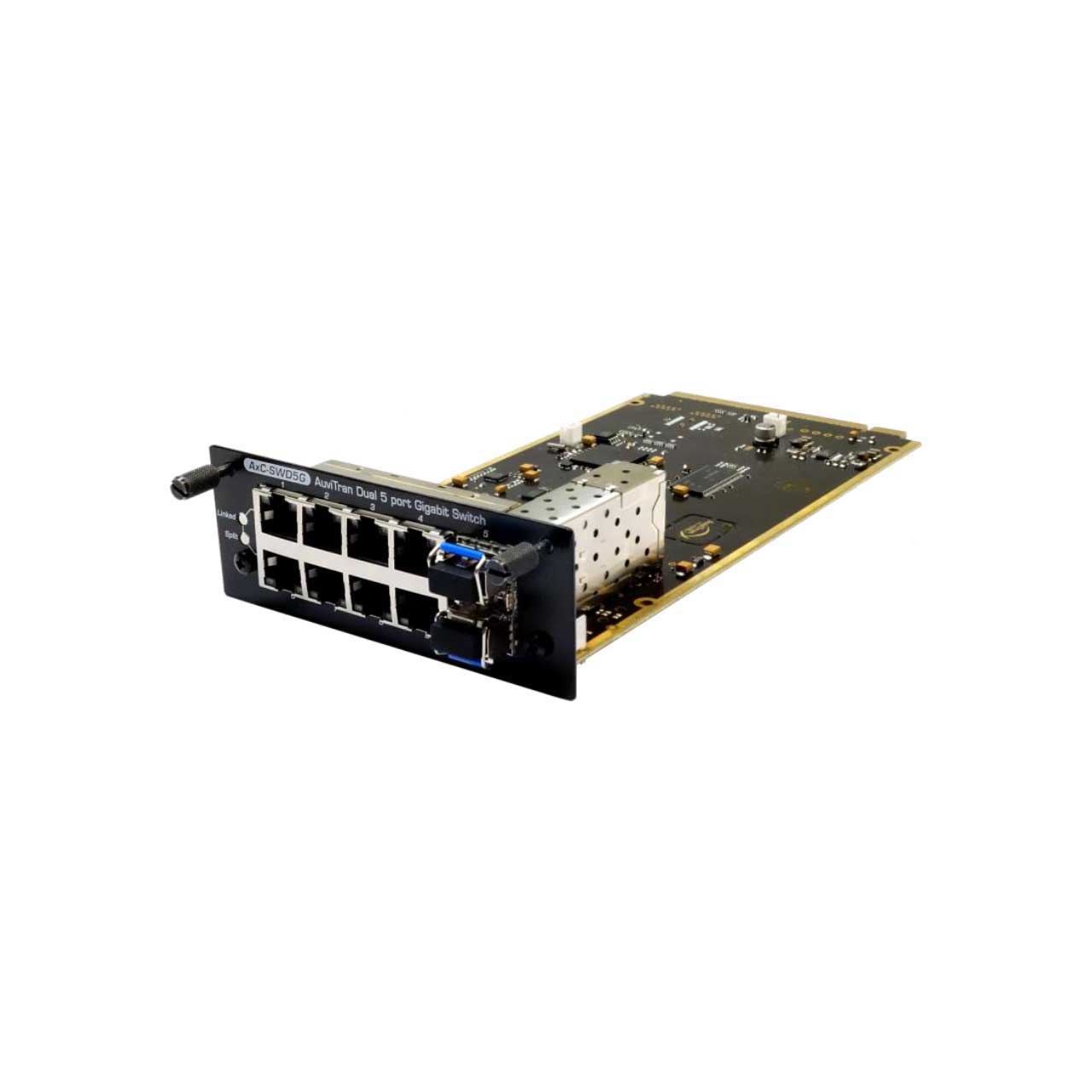

AuviTran AXC-SWD5G Dual Switch Card with 10 Gigabit Ports on 8x RJ45 and 2x SFP Cages

Name: AuviTran AXC-SWD5G Dual Switch Card with 10 Gigabit Ports on 8x RJ45 and 2x SFP Cages
Brand: AuviTran
SKU: AXC-SWD5G
Price: 1057.50 USD
Availability: PreSale

ITEM #: AXC-SWD5G MFG #: AXC-SWD5G

AuviTran

List Price:

$1,175.00

Our Price:

$1,057.50

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

AXC-SWD5G - Overview

Just like every AxC card within the Audio ToolBox range, the AuviTran AxC-SWD5G can equally be used in AVBx3 or AVBx7 platforms. The AxC-SWD5G interface, combined with an AuviTran Audio ToolBox AVBx3 or AVBx7 rack, constitutes the ideal solution to connect two 16 channel banks between a CobraNet device and other analog, digital or network devices.

Smart, expandable and sustainable:
Meet AuviTran's versatile and flexible platforms bringing convergence among network technologies and audio interfaces. With two 19" rack chassis, AVBx3 and AVBx7, both available in StageBox or Installation modes, plus fourteen interfaces cards, build the configuration you need.

The AxC-SWD5G provides eight RJ45 Gigabit Ethernet Port, plus two SFP (Small Form-Factor Pluggable) cages for direct optical fiber connection via optional monomode or multimode SFP also called mini-GBIC (Gigabit Interface Converter) modules.

The AxC-SWD5G can be configured as one unified Ethernet switch featuring ten gigabit ports, or two physically independent full speed Ethernet switches, each of them offering five gigabit ports for split redundancy network.

VLAN can be configured on any port to use multi-protol over the same optical fiber at the same time on the AxC-SWD5G.

Features:
- Using one Audio ToolBox slot for 10 gigabit Ethernet ports
- Two manageable linkable 5 ports full speed gigabit Ethernet switches
- Eight RJ45 Gigabit connectors
- Two SFP cages for two additional compact hot-pluggable SFP (mini-GBIC) transceivers available in many formats:
  - Monomode or Multimode Fiber Gigabit SFP transceiver
  - Single Fiber Bi-Directional Gigabit SFP Transceiver
  - Copper/Ethernet Cabling Gigabit SFP transceiver
- Split configuration for redundancy management with 2 individual switches
- Internal Link configuration for 10 ports switch
- Remote management with AVS Monitor software through the IP Network
- Dedicated control page on AVS-Monitor for monitoring and controlling all the card parameters (Link/Split double switch, Connections)
Specifications:
- General
- Dimensions: 7.87 x 3.94 x 1.57 In (200 x 100 x 40 mm) - AuviTran Audio ToolBox platform cards format
- Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
- Storage Temp/Humidity: 23°F to 158°F (- 5 °C to 70 °C) / 0% to 95% (non-condensing)
- Operating Temp/Humidity: 32°F to 122°F (0 °C to 50 °C / 5% to 90% (non-condensing)
- Connectors: 8x RJ45 connectors, 2x SFP/GBIC connectors

  Switch and CPU
- Processor: Dual Core ARM processor @ 204MHz, 192KB SRAM, 4MB flash, 8MB SDRAM
- Dedicated Switch memory: 2 x 128KB packet buffer size with a data bus of 256 bits wide
- Port Speed: Auto Neg. Or forced at 1 Gigabit/s, 100MBit/s, 10MBit/s Full/Half duplex mode
- Auto MDIX: Automatically adjusts for straight-through or crossover cables on all RJ45 ports
- VLAN Capability: Up to 32 independent configurable VLAN
- Performances:
  - 1000 MB latency < 2.9 µs (64-byte packets)
  - 100 Mb Latency < 4.9 µs (64-byte packets)
  - MAC address table size of 2 x 8192 entries

  Integration Environment
- Audio ToolBox Platform: AxC-SWD5G can be inserted in any slot of any AuviTran Audio ToolBox platform
- AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor a Dante or an EtherSound network and provides enhanced control pages to manage the AxC-SWD5G card specific parameters
- Supported OS: Windows 8/7/Vista/XP for 32 or 64 bit versions
