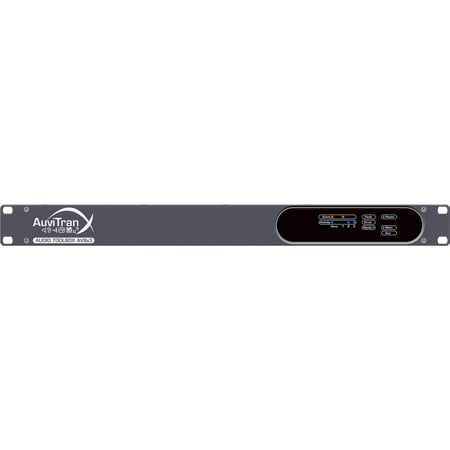

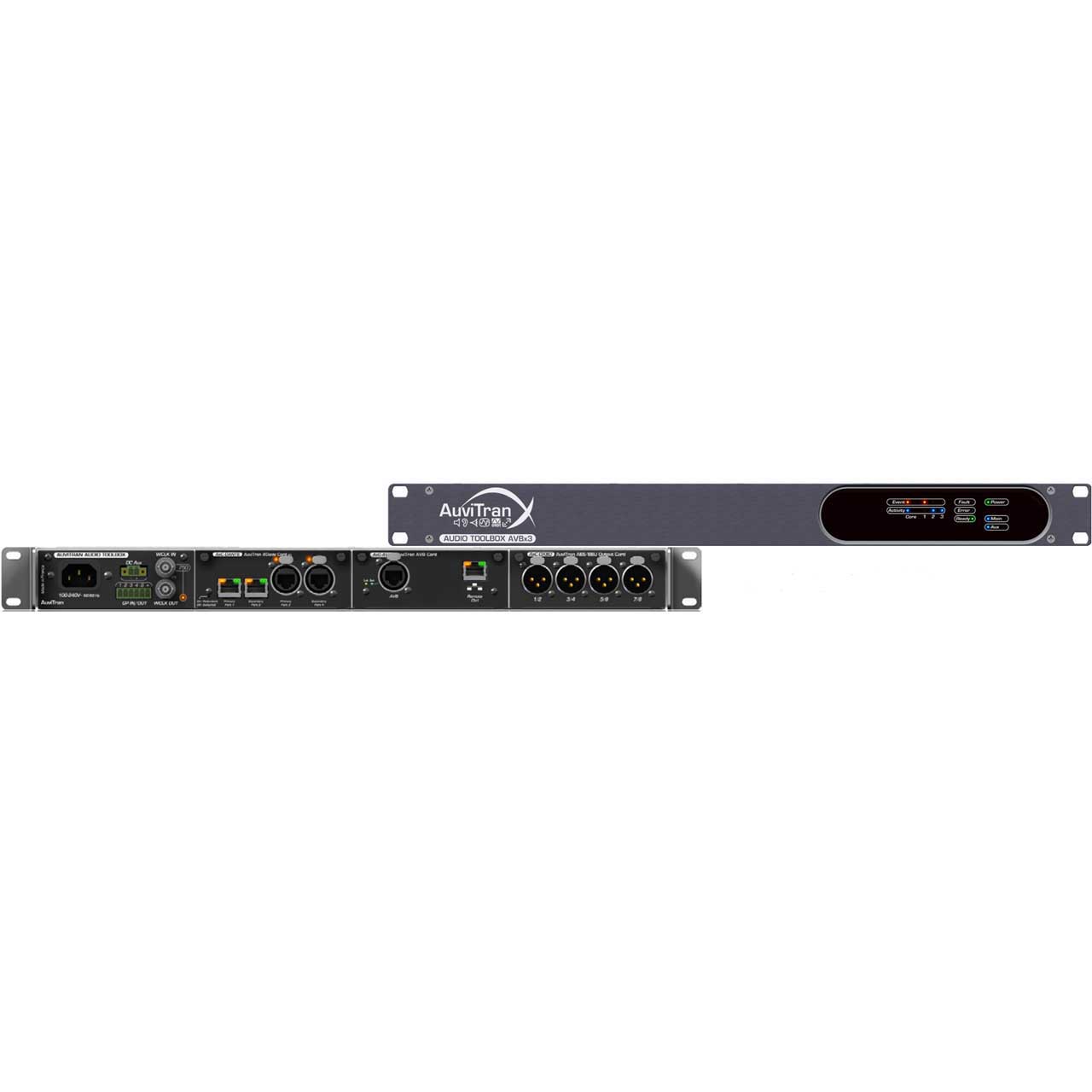

AuviTran AVBX3/ISM+R Audio ToolBox in Installation Version 19in x 1RU with 3 Card Slots + Internal Audio Matrix

AVBX3/ISM+R - Overview

• Features:

  • Convert AVB to Dante
  • Convert MADI to Dante
  • Matrix Digital Audio


• Specifications:

  • Size: 19.02 x 9.96 x 1.73 Inches (483 x 253 x 44 mm) - Standard 19" rack, 1U Height
  • Slots: 3 slots up to 2x64 channels for integration of any AxC interface card
  • Audio Matrix: Integrated full matrix of 192 x 192 channels to exchange input/output between any of 3 slots
  • Main Power Supply: 100-240 VAC - Maximum 50W
  • Aux Power Supply: External 12V Aux via connector on versions AVBx3/ISM+r and AVBx3/SBM+r
  • Storage Temp/Humidity: 23 °F to 158 °F (-5 °C to 70 °C) / 0% to 95% (non condensing)
  • Operating Temp/Humidity: 32 °F to 104 °F (0 °C to 40 °C) / 5% to 90% (non condensing)

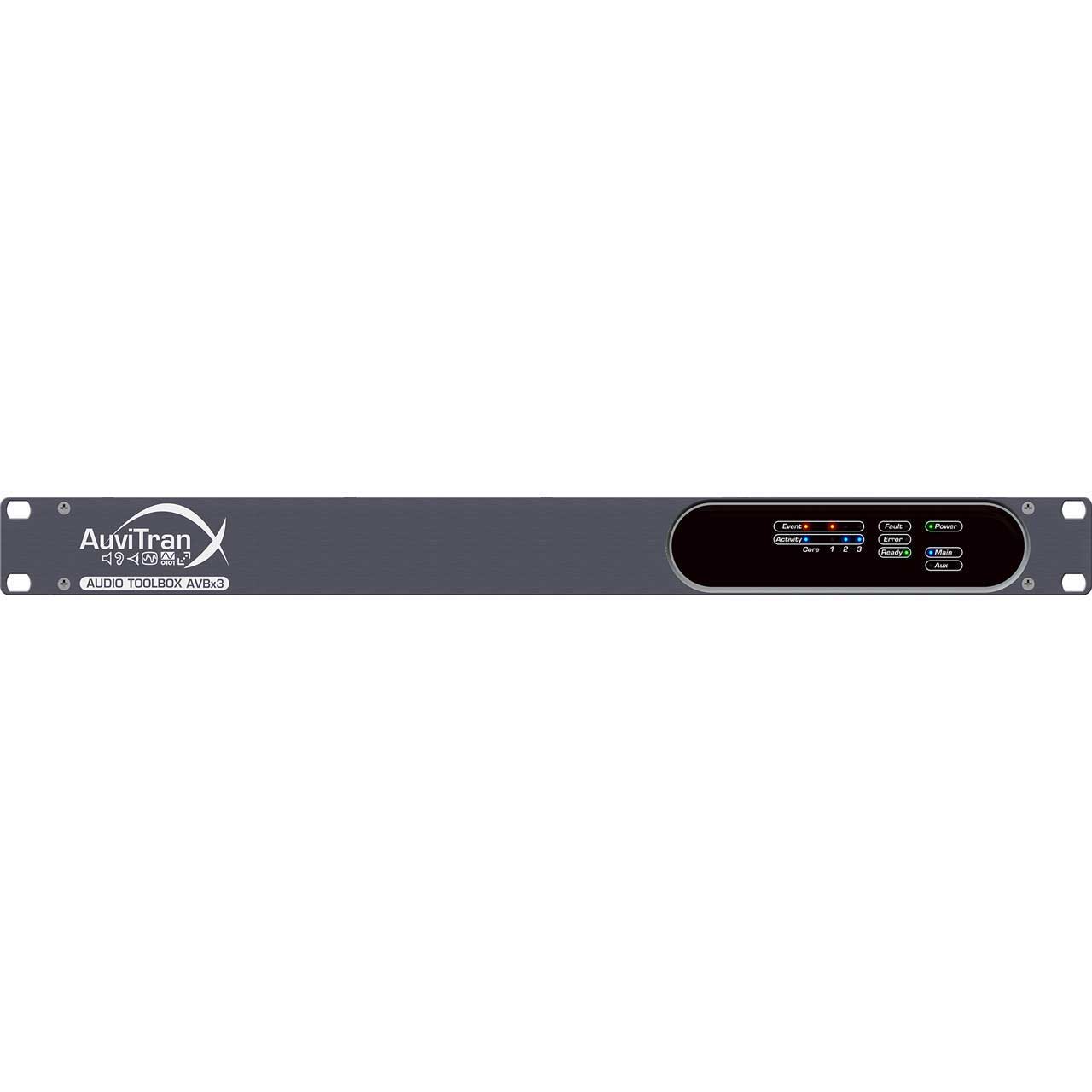

  • Display Panel: Power Main/Aux - Fault/Error/Ready - Networks and interface card Events/Activities

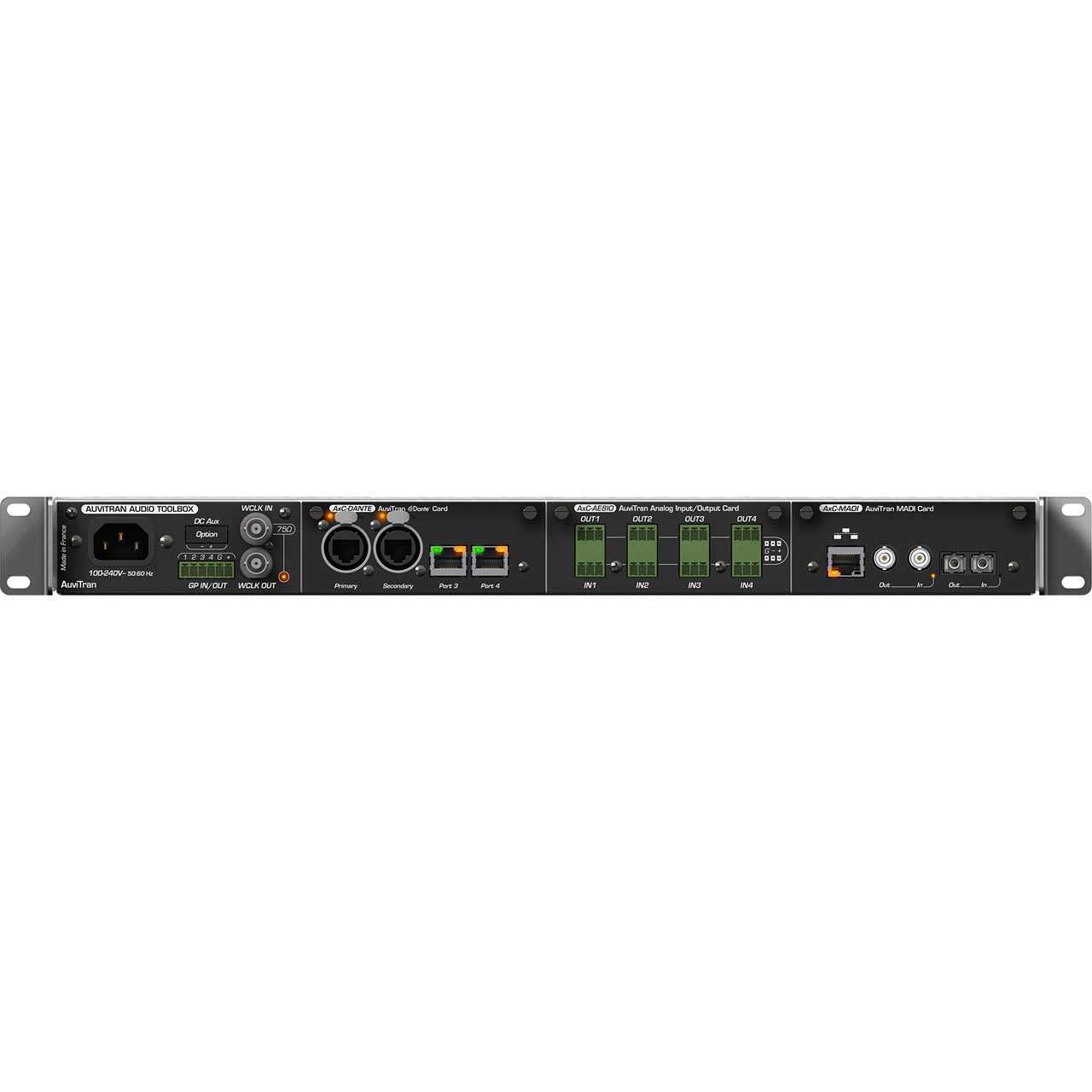

  • Connections:
    - 1x IEC power inlet for Main AC Power Supply
    - 1x 2 pole EuroBlock for external Aux 12v PSU
    - 2x BNC for Word Clock In and Out
    - 1x Euroblock 6 poles for GPIO
    - 3x Slots to insert up to 3x AxC cards
  • GPIO: 4 configurable GPIO, Can be set as 4x VCA (ADC 8 bits 0-12V level input) for fader control or level trigger actions
  • AVS_Monitor: Remote control and monitoring of Audio ToolBox and inserted cards over Dante, IP and EtherSound network


• Item Includes:

  • 1x Audio ToolBox Rack Unit
  • 1x Power Cord
