Axis T8120 Power Over Ethernet Midspan - 15 Watt - 1 Port

T8120 - Overview

• Features:

  • IEEE 802.3af
  • Reduced installation costs
  • Plug-and-play


• Specifications:

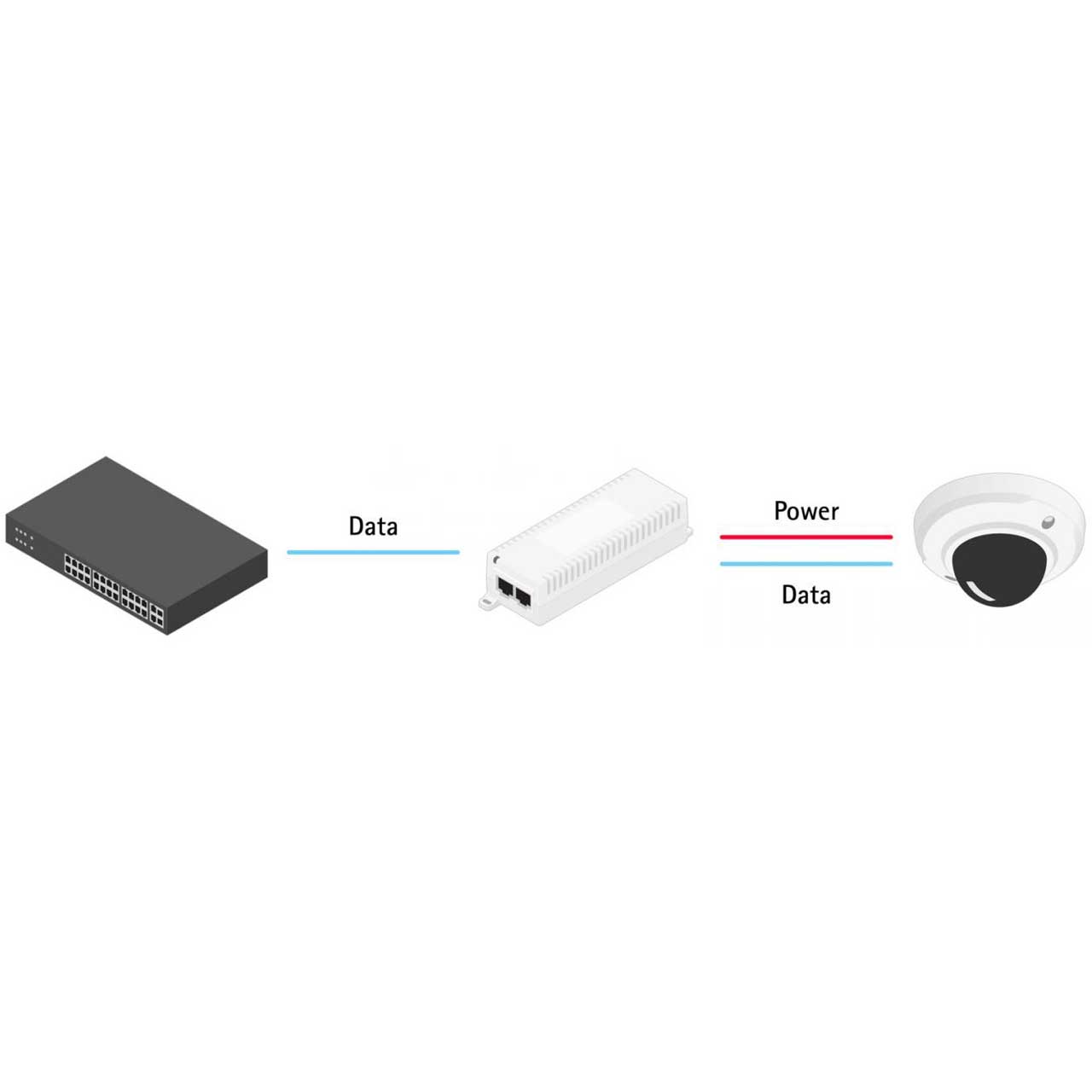

  • Function: Data and power are fed to a network video product through an Ethernet cable, use together with a PoE splitter for a network video product without built-in PoE support
  • Data rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A/568B
  • Network cables: Shielded category 5 (or higher) Ethernet
  • Wiring: Mode B; data provided over pairs 1/2 and 3/6, power over spare pairs 4/5 (+) and 7/8 (-)
  • Power: 48 V DC (max 15.4 W/port)
  • Input: AC input voltage - 100-240 V AC (50/60 Hz), AC frequency: 47-63 Hz, AC input current: maximum 0.5 A
  • Power consumption: No remote device connected: 2 W, 15.4 W remote device connected 18.9 W
  • Installation and management: Plug-and-play installation; midspans automatically detect all devices with support for PoE and supply inline power. Local LED management display.
  • Port autosensing: Standard IEEE 802.3af auto-sensing. Pre-standard backward compatibility algorithm
  • Display and indicators: All port interfaces are located on the front panel for easy access and real-time network monitoring. System: AC power, channel indicator - power and fault.
  • Compliance: IEEE 802.3 standard (when no inline power is supplied) and IEEE 802.3af, DTE Power via Media Dependent Interface (MDI)
  • Mounting: Wall or shelf mounting
  • Approvals: cUL/UL, TUV, CE, EN 62368-1, FCC Part 15 Class B, EN 55022,RMC AS/NZS CISPR 22 Class B, KCC KN32 Class A, KN35,, IS 13252
  • Operating conditions: 32 °F to 104 °F, Humidity 10-90% RH (non-condensing)
  • Dimensions: 1.3 x 2.1 x 5.5 in
  • Weight: 1 lb


• Item Includes:

  • 1x Axis T8120 Power Over Ethernet Midspan - 15 Watt - 1 Port


• Warranty:

  • 3-year warranty


• GTIN:

  7331021003408
