Azden 1201ABT UHF Body-Pack System with EX-503H Mic
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

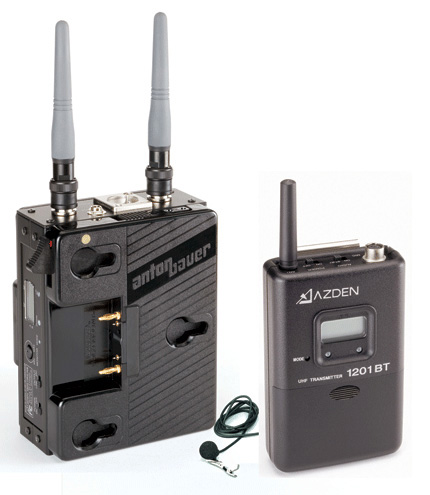

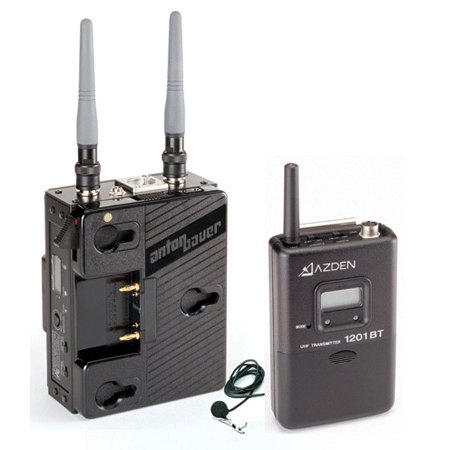

    Azden 1201ABT UHF Body-Pack System with EX-503H Mic

    Manufacturer: Azden Corporation

    Item #: AZ-1201ABT   •   MFG #: 1201ABT


    List Price:$1,500.00
    Our Price:$1,099.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    Whether you use a Panasonic® or Ikegami® camera with "slot-in" receiver capabilities, or use the Anton-Bauer® Gold Mount®, or a V-Mount battery, there's an Azden 1201 designed specifically for your use.

    • Specifications

      • RF Carrier Frequency Range: 188 steps ' 638.125 - 661.875 MHz
      • MicroComputer Controlled PLL Synth.
      • Noise Reduction: Expander (THAT)
      • Effective Operating Range: 200 - 300 ft ' 60 - 100m
      • Frequency Response: 50 - 15kHz (± 1.5dB)
      • RF Sensitivity: (12dB SINAD) 1.2uV
      • Adjacent Channel Selectivity: > 70dB (± 250kHz)
      • Image Rejection: > 93dB
      • IF Rejection: > 93dB
      • Audio THD: < 0.8%
      • Audio Output: 40dBm ± 40kHz Deviation
      • Output Impedance: 600O
      • Signal/Noise Ratio > 62dB (± 5kHz Deviation) "A" Weighted
      • Power Requirements 11 - 15V DC @ 220mA
      • Dimensions: 93W x 119H x 49D mm
      • Operating Temperature Range -50 - +122 F ' -10 - +50 C
      • Weight:15.87ounces ' 450g

      • Output Power: 30mW
      • Max Modulation Sensitivity: -4dBm
      • MIC Level / Imped.: -56dBm / 2.2kO (± 5kHz Deviation)
      • Power Requirements: 3V DC (2 "AA" Alkaline) @ < 150mA
      • Dimensions: 2.48 (W) x 3.86 (H) x 1.12 (D) inches
      • 63 (W) x 98 (H) x 28.5 (D) mm
      • Weight w/Battery: 6.35 ounces ' 180g
    • Item Includes

      • New compander circuit for more natural sound
      • New DTV-compatible (188) frequencies covering 4 UHF TV bands
      • True diversity system with 2 complete front-ends and high-gain antennas
      • Dielectric filters throughout, for improved image rejection and superior diversity isolation
      • High 5th-order filters for improved S/N ratio
      • Multi-function LCD shows channel, frequency, battery info, AF level, and diversity operation
        Also ships with the EX-503H omni lapel microphone.
