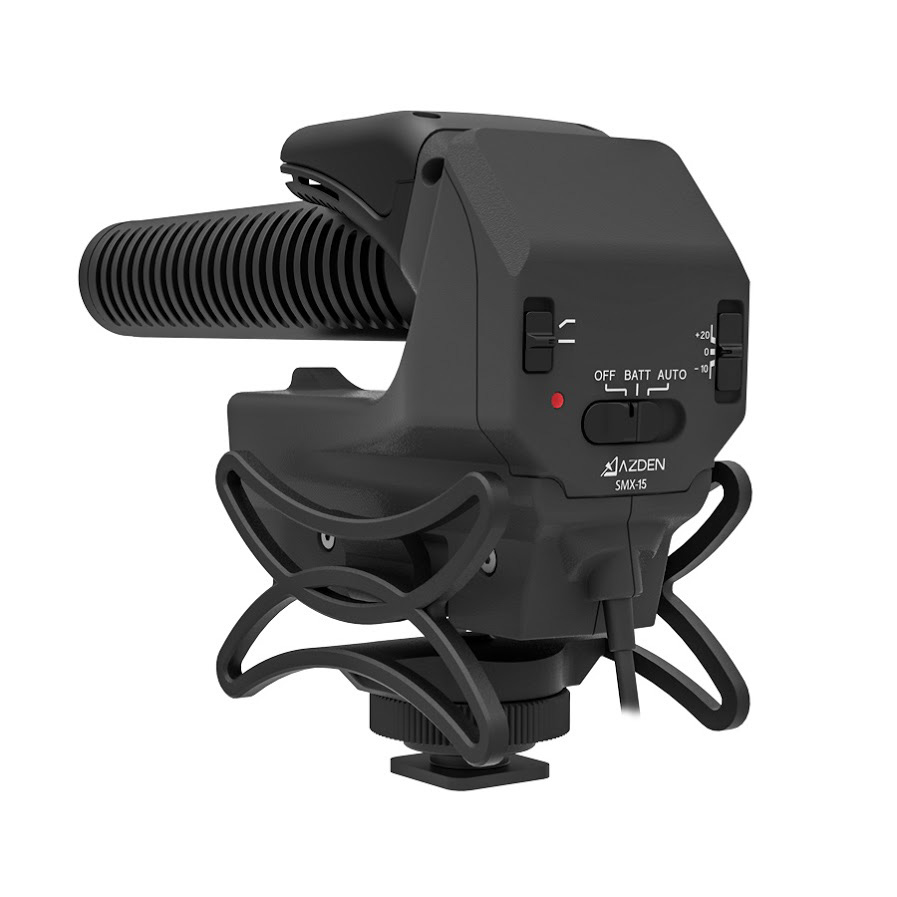

Azden SMX-15 Super-Cardioid Powered Camera Mount Shotgun Microphone

ITEM #: AZ-SMX15 MFG #: SMX-15

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-SMX15

SMX-15 - Overview

The Azden SMX-15 Powered Shotgun Video Microphone was engineered to produce excellent sound quality for video recorded by DSLR and other compact cameras. The microphone element is the same used by Azden's professional shotgun microphones, the SGM-250 an SGM-250P, and is capable of capturing broadcast quality sound. The acoustically tuned slots of the shotgun barrel give the SMX-15 its super-cardioid polar pattern which allows you to focus on sound in front of the camera, while reducing capture of extraneous noise from the rest of the environment.

The audio controls on DSLR cameras are limited, if they exist at all. And DSLRs are notoriously known to have low-quality microphone preamps that add noise to the video soundtrack when the gain is turned up. That's why Azden designed the SMX-15 with a +20dB gain booster; so you can get a strong, clean audio signal into your camera, minimizing the need to turn up the noisy preamp.

Also included is a -10dB pad to protect against distortion when recording in loud environments such as live concerts and motorsport events. The SMX-15 has a wide frequency response ranging from 40Hz to 20kHz, so the audio you capture will sound full and natural. Additionally, a low-cut filter switch is included for reducing the level of low frequencies below 120Hz, which is especially useful for mitigating noise caused by air conditioners, wind and traffic.

The SMX-15 is powered by two AA batteries for up to 24 hours of operation. The battery indicator LED light lets you know when it's time to change batteries with up to a 1 hour warning. Maximize battery life by using the unique "Auto" power setting. When set to Auto, the SMX-15 can detect when a camera is on and will automatically power on and off with the camera (requires a mic input that provides plug-in power). Integrated into the design of the SMX-15 is a custom made, shock absorbing shoe mount to isolate the microphone from camera motor and handling noise. The mount is designed to fit the standard camera shoe and comes with a ¬"-20 threads at the bottom for mounting to boom poles and other camera accessories.

  • Features:

    • Superior directionality and off-axis rejection
    • Level adjustment: -10dB, 0dB, +20dB
    • +20dB gain booster alleviates noise produced by low-quality camera preamps
    • -10dB pad for loud sound environments
    • Low-cut filter selectable at 120Hz, 3dB/octave
    • Operates on (2) AA batteries with no degradation of audio quality over battery life-span
    • Low noise, high sensitivity, wide frequency response

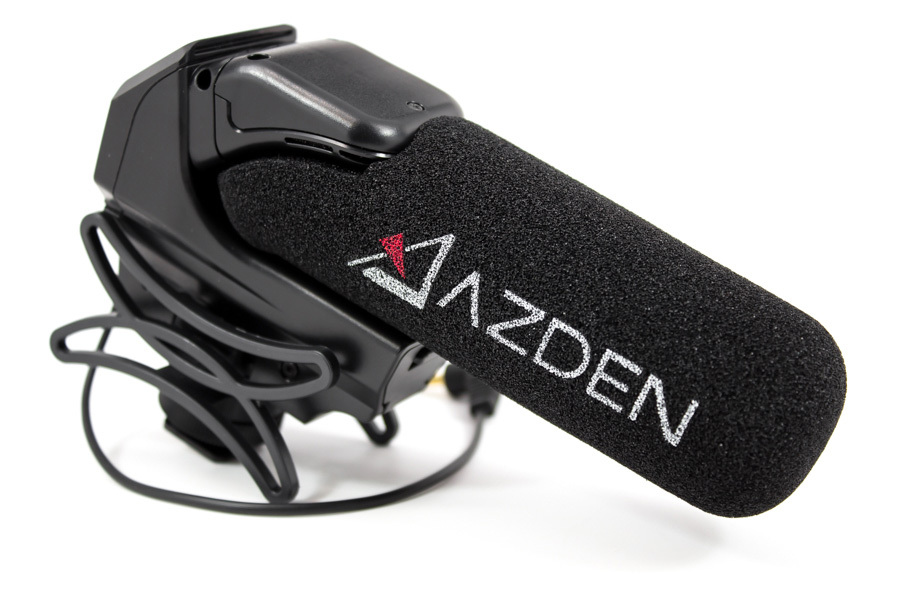

    • Custom, detachable foam windscreen
    • Integrated shock-absorbing shoe-mount with 1/4"-20 thread
    • Battery indicator LED light
    • 3.5mm stereo mini-jack output

  • Specifications:

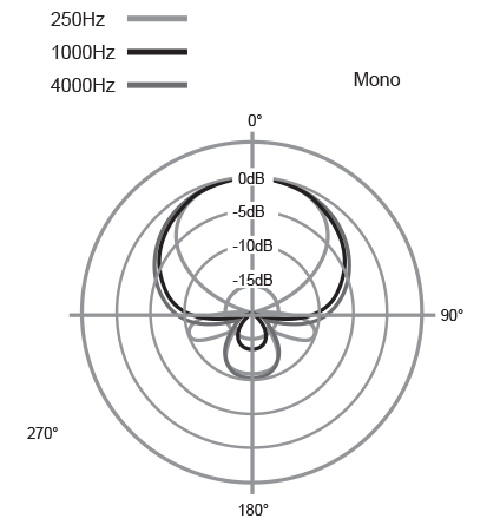

    • Polar Pattern: Super-Cardioid

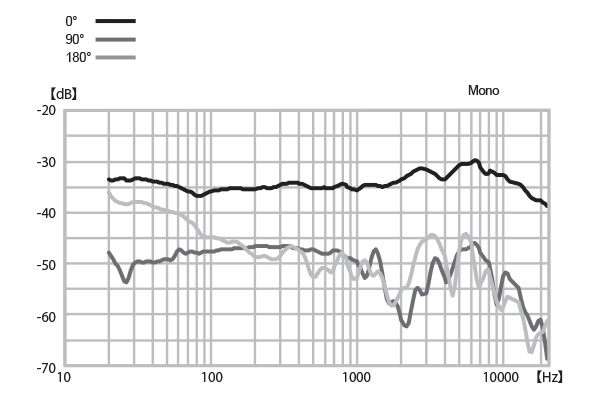

    • Frequency Response: 40Hz - 20kHz
    • Sensitivity: -36dB @ 1kHz
    • Dynamic Range: 118dB
    • S/N Ratio: 82dB, 1kHz@1Pa
    • Max Input Level: 128dB SPL (1kHz@ 1% T.H.D.)
    • Max Output Level: +6.2dBu
    • Output Impedance: 50Ω
    • Power Requirement: AA batteries x2
    • Output Connector: 3.5mm Stereo mini plug
    • Power Switch: Off, Battery, Auto
    • Gain Control: -10dB, 0dB, +20dB
    • LCF: 120Hz, 3dB/octave
    • Dimensions: 1.85" x 3.86" x 5.71" (47mm x 98mm x 145mm)
    • Weight: 4.76oz (135g)(approx.)

  • GTIN:

    0095528122242
