Bittree B48DC-FNIIS/E3 M2OU12L 2x24 Mono Spaced Full Normal Isolated Ground E3 Rear Interface - 1RU - Black
  • Bittree B48DC-FNIIS/E3 M2OU12L 2x24 Mono Spaced Full Normal Isolated Ground E3 Rear Interface - 1RU - Black
  • Bittree B48DC-FNIIS/E3 M2OU12L 2x24 Mono Spaced Full Normal Isolated Ground E3 Rear Interface - 1RU - Black
  • Bittree B48DC-FNIIS/E3 M2OU12L 2x24 Mono Spaced Full Normal Isolated Ground E3 Rear Interface - 1RU - Black
  • Bittree B48DC-FNIIS/E3 M2OU12L 2x24 Mono Spaced Full Normal Isolated Ground E3 Rear Interface - 1RU - Black


Bittree B48DC-FNIIS/E3 M2OU12L 2x24 Mono Spaced Full Normal Isolated Ground E3 Rear Interface - 1RU - Black

Manufacturer: Bittree

Item #: B48DC-FNIISE3M2O   •   MFG #: B48DC-FNIIS/E3 M2OU12L



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the B48DC-FNIISE3M2O

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

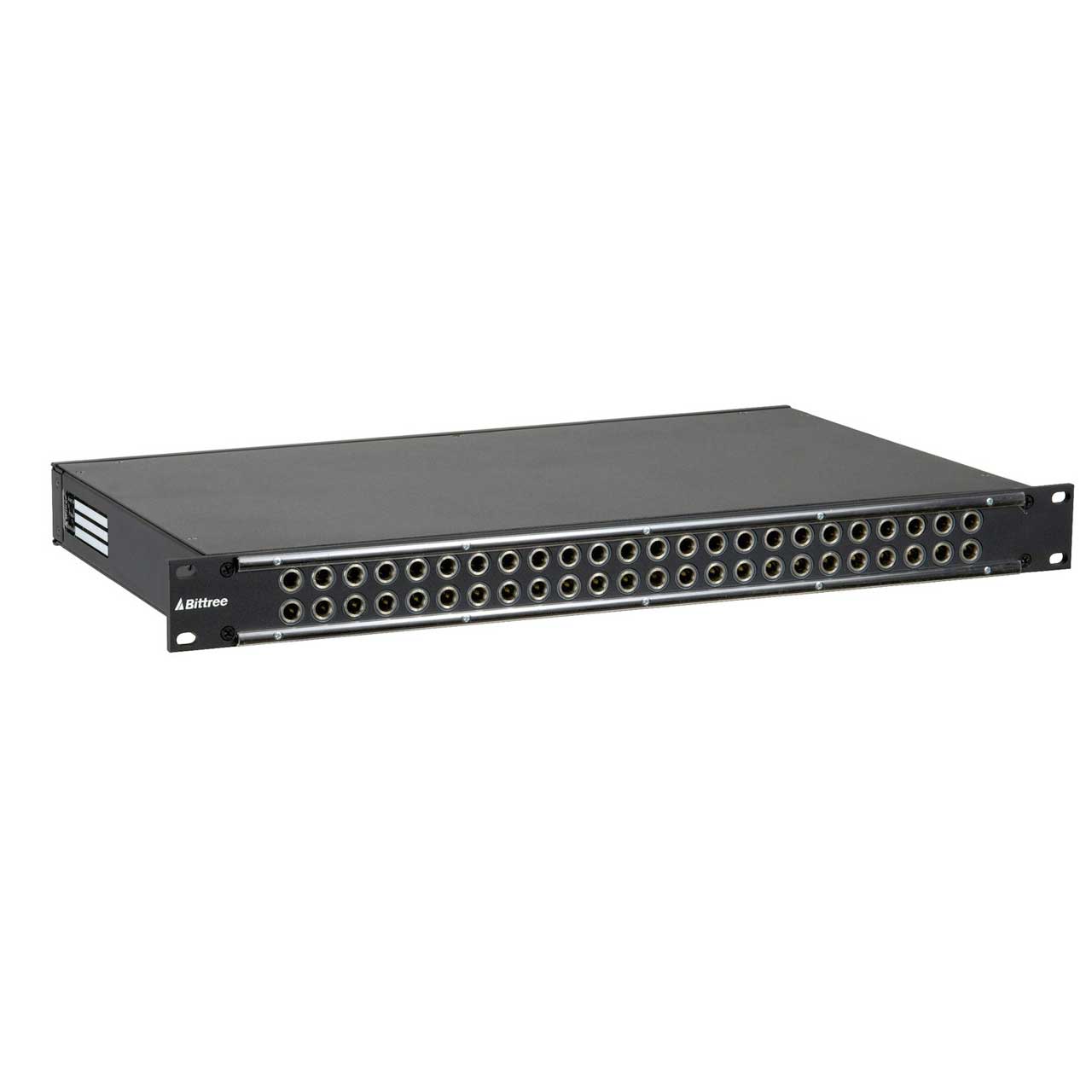

The Bittree B48DC-FNIIS/E3 M2OU12L is an internally programmable 1/4 Inch Long-Frame 488 series audio patchbay in a 1RU height with E3 rear interface. It has isolated groundingand a 12" deep chassis


  • Features

    • Spacious 2x24 jack configuration with mono (even) jack spacing
    • Ships preconfigured with your preferred Normalling and Grounding configuration
    • Circuits can be easily reprogrammed via shunts under the top dust cover
    • Digital AES wire used for internal wiring
    • 2 x DS800-10 designation strips, "Over/Under" orientation

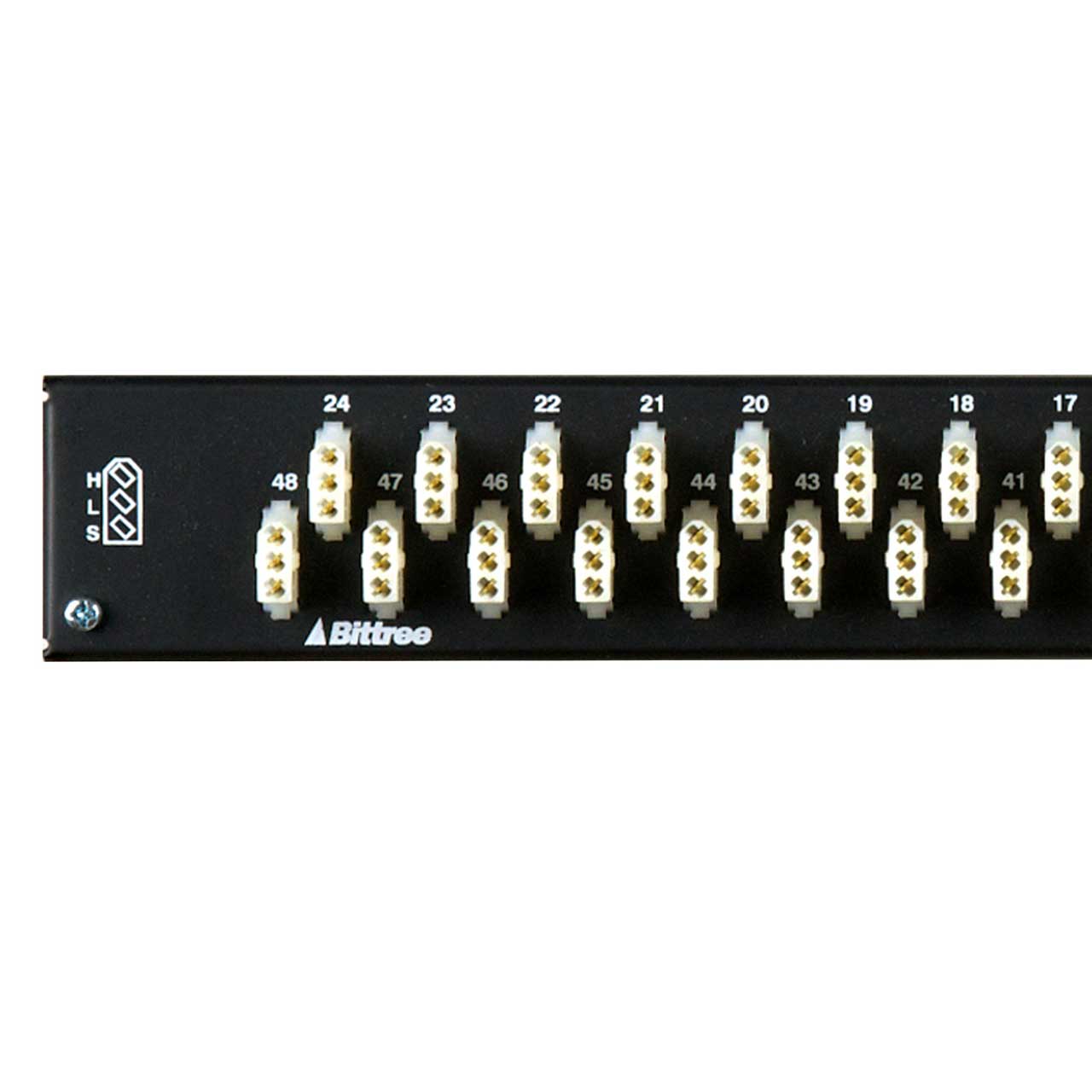

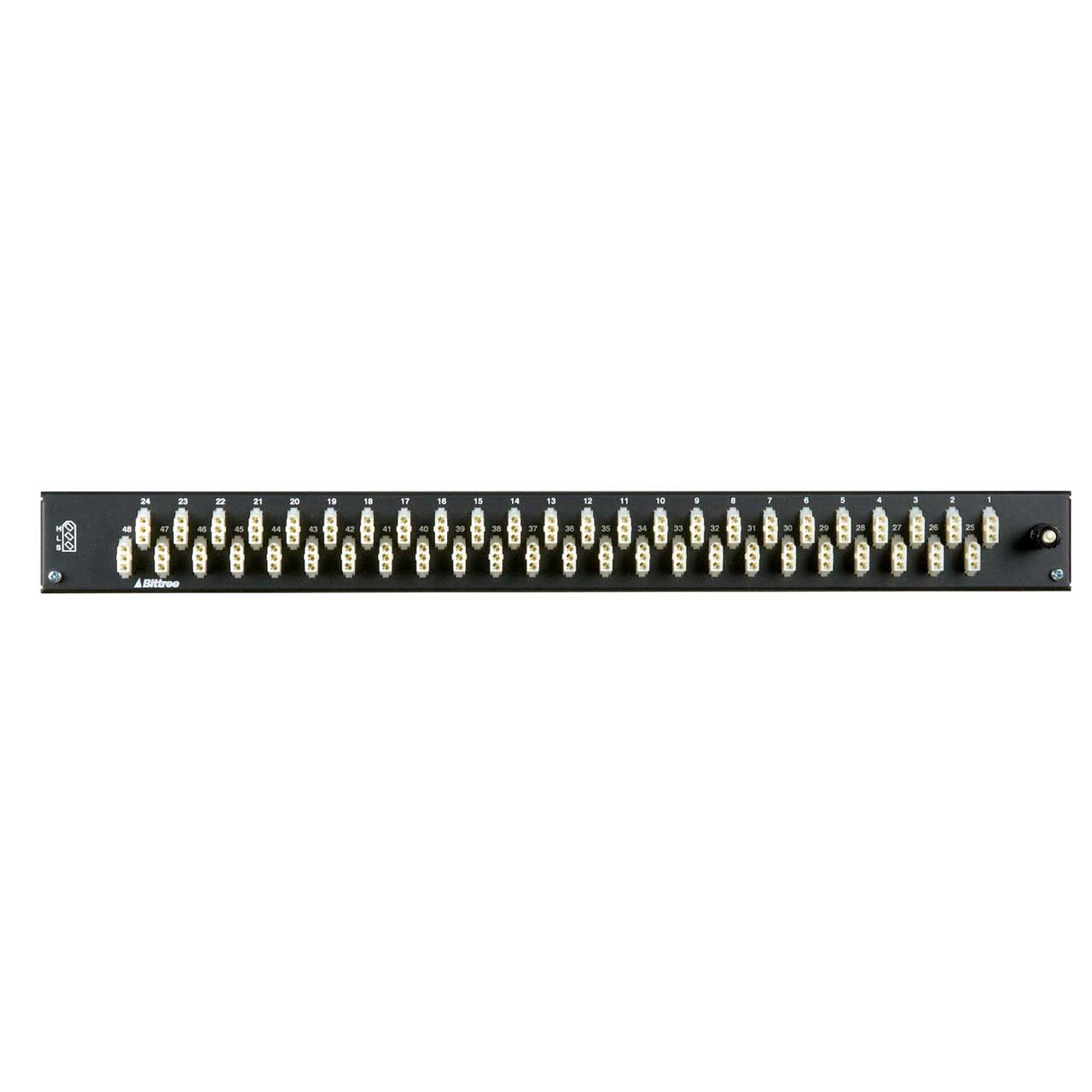

    • E3 rear interface with mating hardware included: 48 x E3M connector housings (3-pin male); 144 x EPIN crimp contacts (gold-plated)
    • 6" (15.24 cm) deep rear lacing bar included: Alternative 3" (7.62 cm) deep lacing bar available
