Bittree B48DC-NNPBT/E3 M2OU12L 2x24 2RU 1/4In Long-Frame Patchbay - Front Select TRS Audio Non-Normal - Bussed Grounds

ITEM #: B48DCNNPBTE3M2OU MFG #: B48DC-NNPBT/E3 M2OU12L

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Bittree
Free Shipping with $49 Minimum Order

Our Price:

$1,170.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    B48DC-NNPBT/E3 M2OU12L - Overview

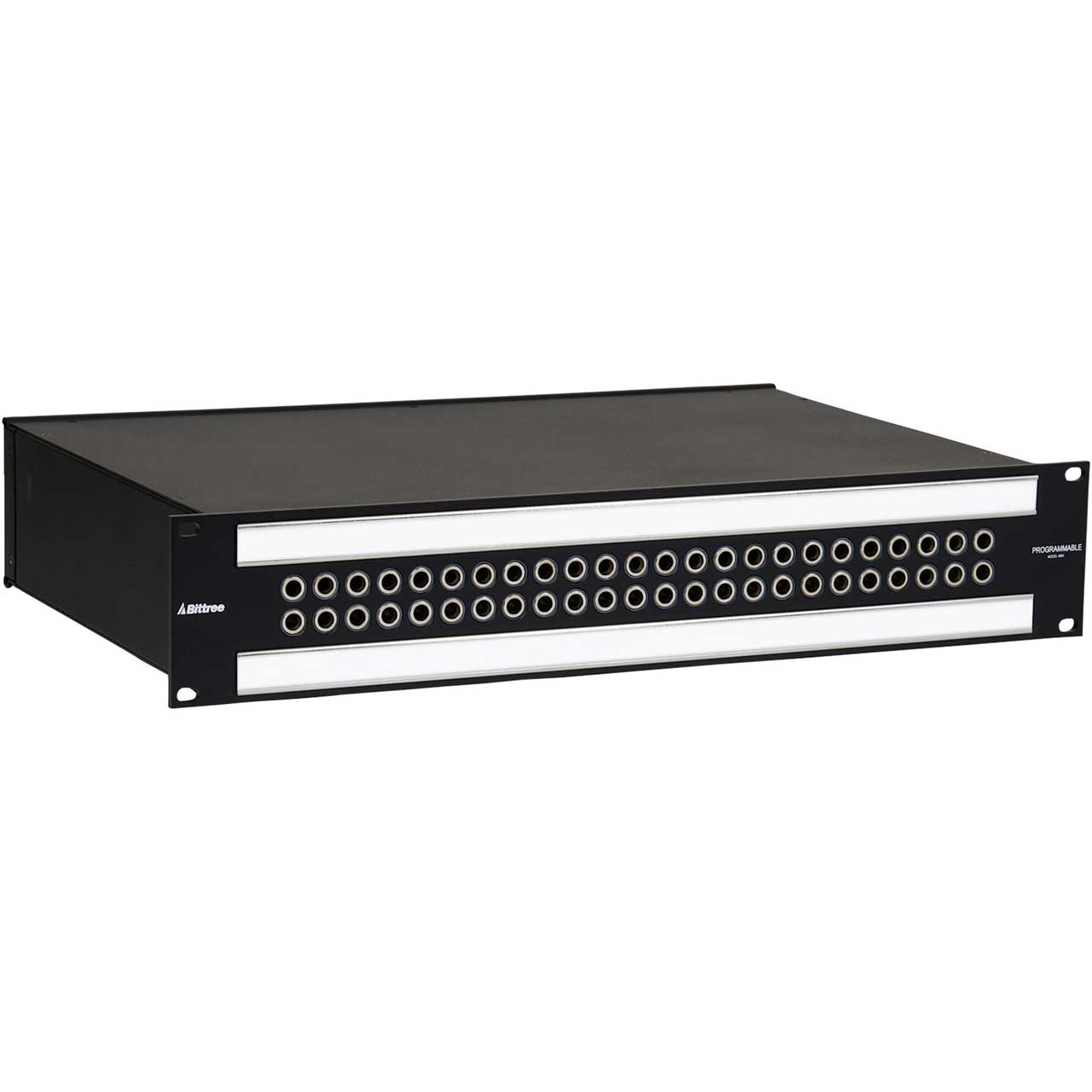

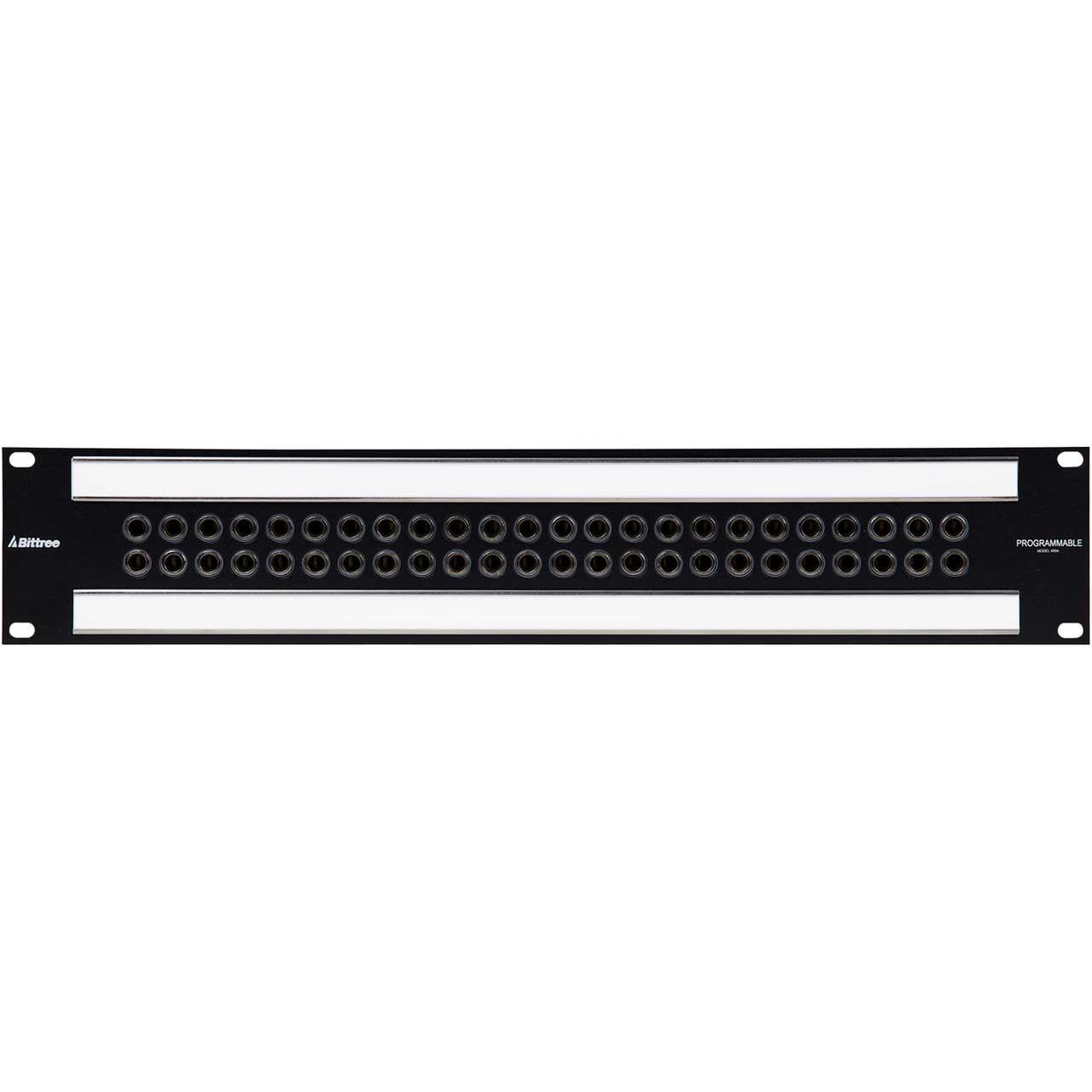

    Bittree B48DC-NNPBT/E3 M2OU12L is a 2x24 2RU 1/4In Long-Frame Patchbay with front select TRS audio non-normal and bussed grounds.

    • Features:

      • Spacious 2x24 jack configuration with mono (even) jack spacing
      • Selectable normalling and grounding: Circuits can be easily changed via shunts under both designation strips
      • Digital AES wire used for internal wiring
      • 2x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation
      • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
      • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces: Alternative 3" (7.62 cm) deep lacing bar available


    • Specifications:

      • Panel Height: 2RU 3.47" (88.13mm)
      • Designation: DS800-10-ASSY
      • Finish: Black Powder Coat
      • Panel Material: 3/16" (4.76mm) Aluminum
      • Jack Screws: 6-32x3/8FLPH
      • Compliance: RoHS Compliance
