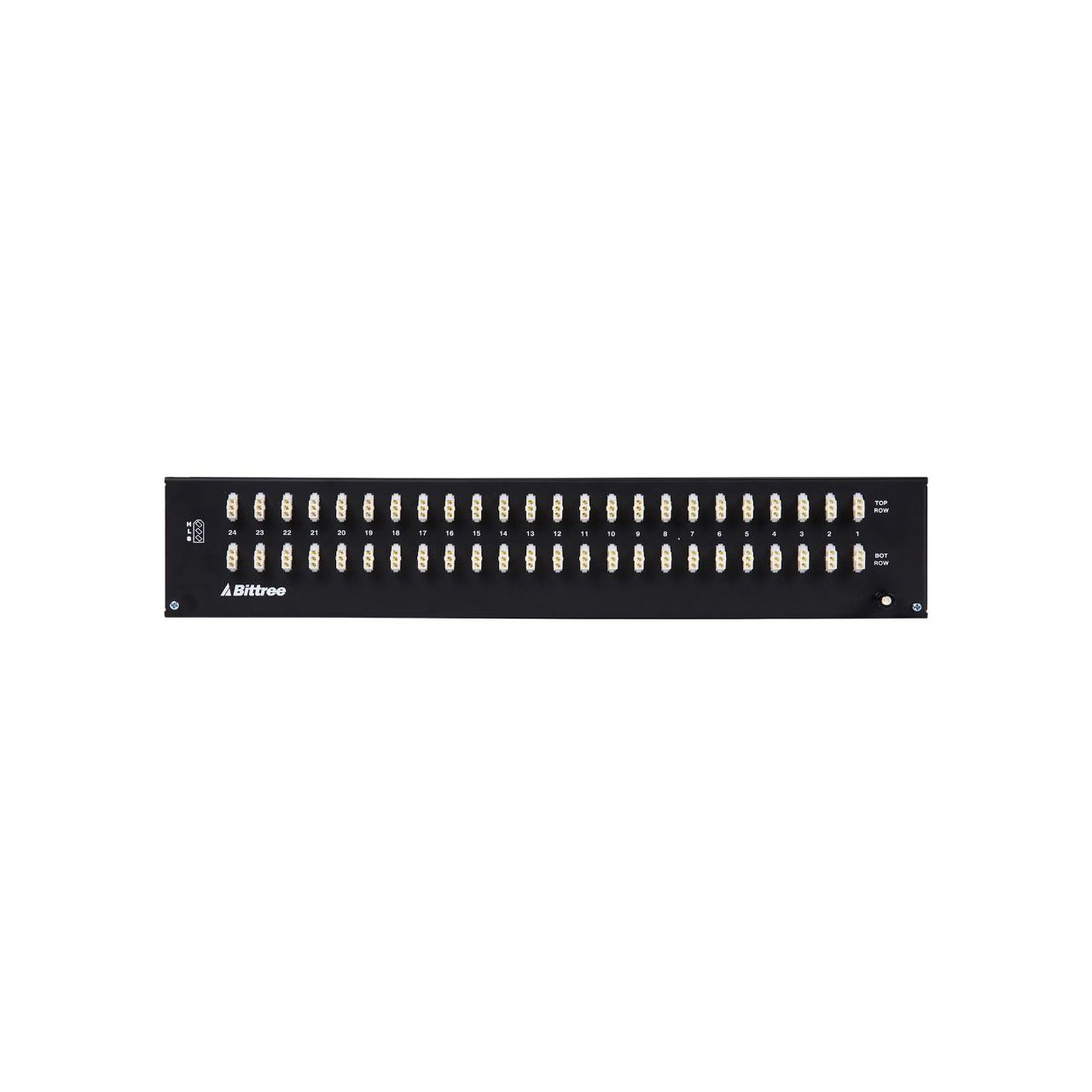

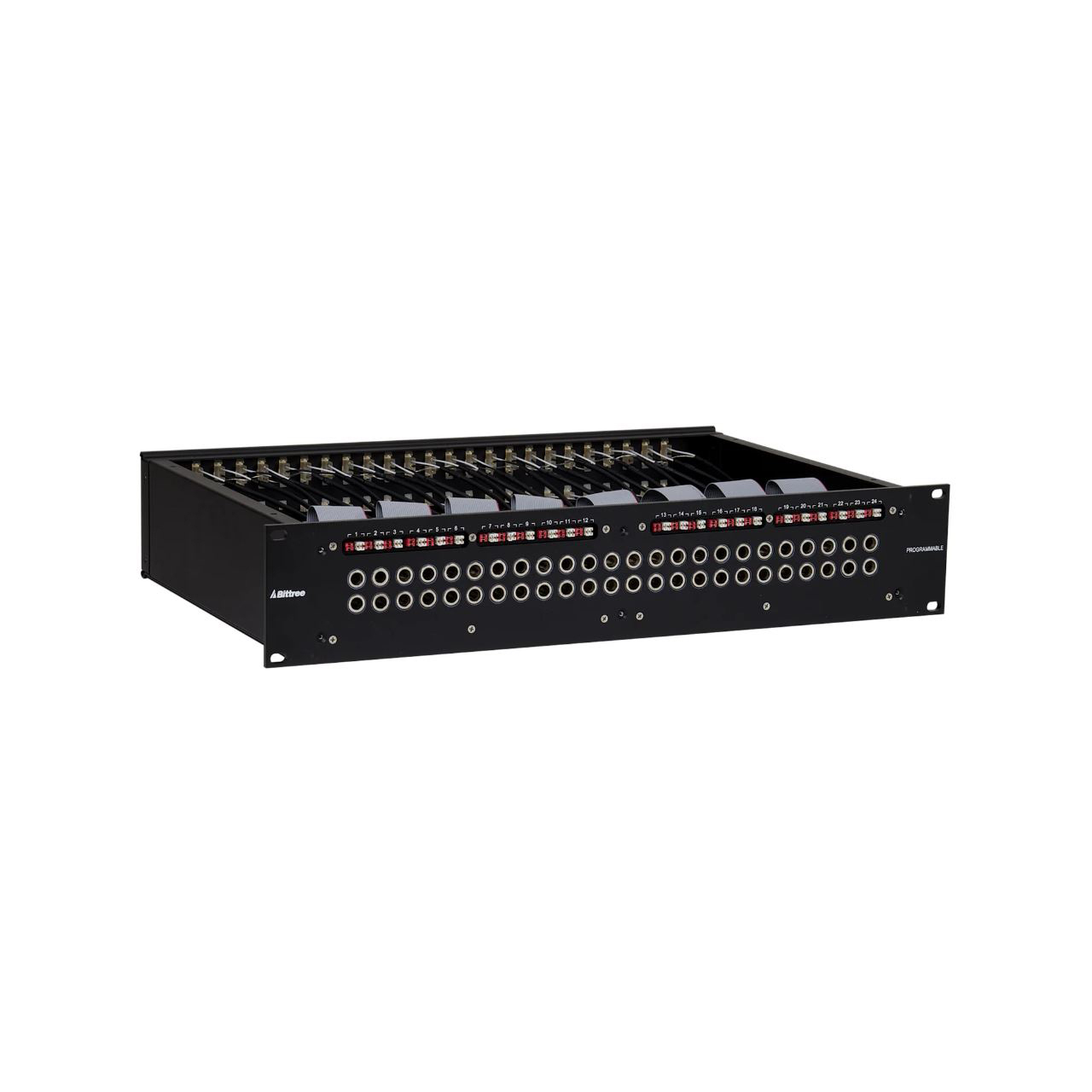

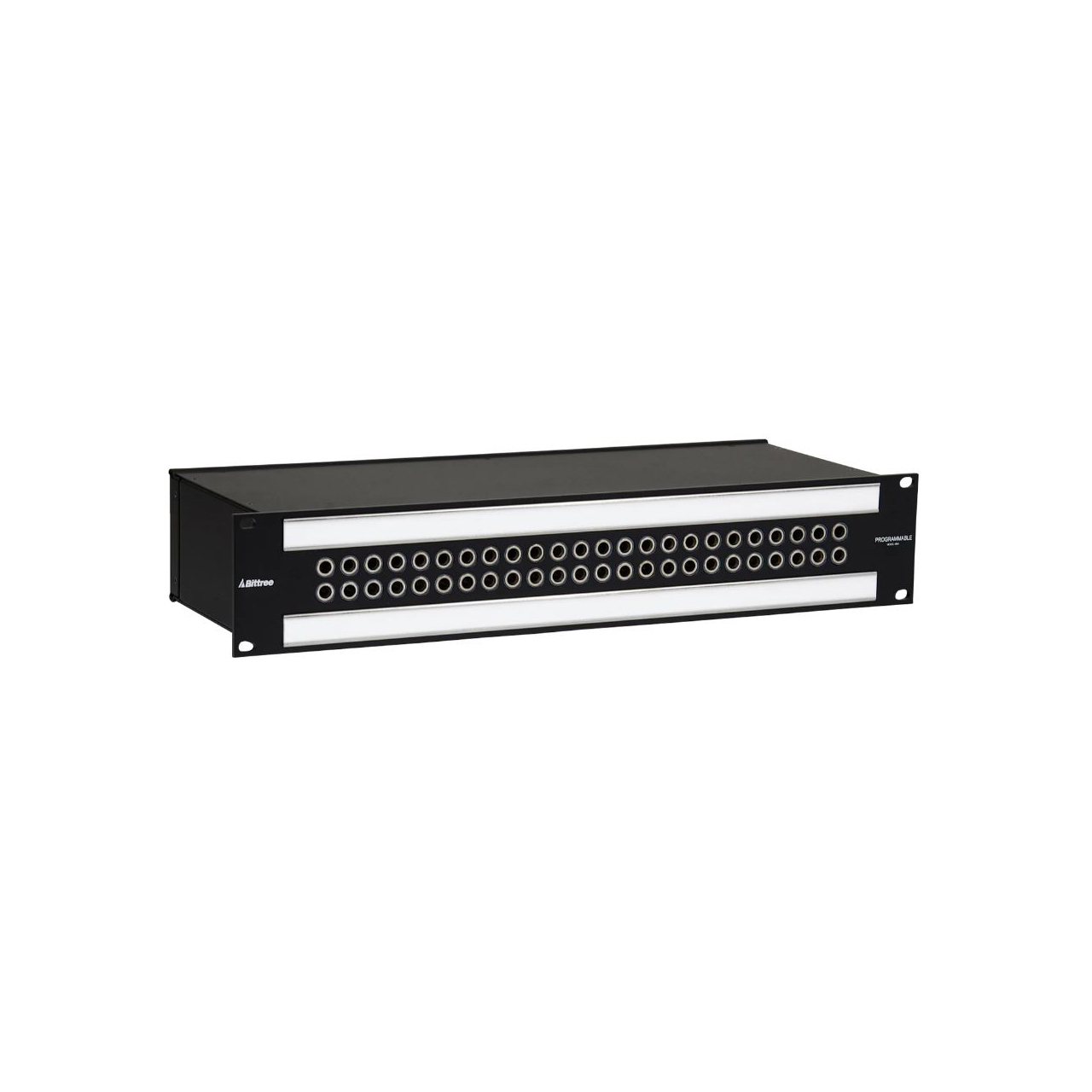

Bittree B48DC-NNSST/E3 M2OU12L 2RU 2x24 Long-Frame Audio Patchbay Front Select TRS Audio -3-Pin ELCO Rear - Non-Normal

489S008 - Overview

• Features:

  • Spacious 2x24 jack configuration with mono (even) jack spacing
  • Selectable normalling and grounding: Circuits can be easily changed via shunts under both designation strips
  • Digital AES wire used for internal wiring
  • 2x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation
  • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
  • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces: Alternative 3" (7.62 cm) deep lacing bar available


• Specifications:

  • Front Selectable TRS Audio
  • 2x24 2RU
  • 1/4" Long Frame
  • E3 (3 pin ELCO Connector) Rear Interface
  • Non-Normal - Switched Grounds
  • Chassis Depth: 12"


• Item Includes:

  • 1x Bittree B48DC-NNSST/E3 M2OU12L 2RU 2x24 Long-Frame Audio Patchbay with Front Selectable TRS/3-Pin ELCO - Non-Normal


• Warranty:

  • Five years
