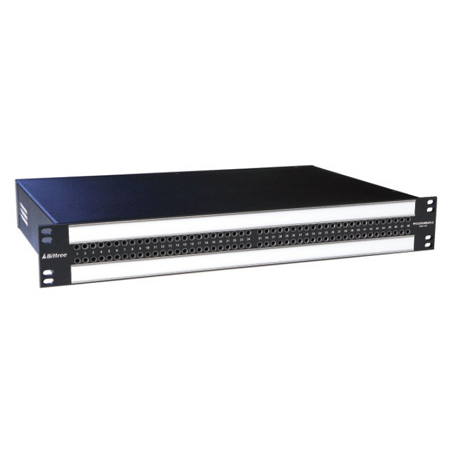

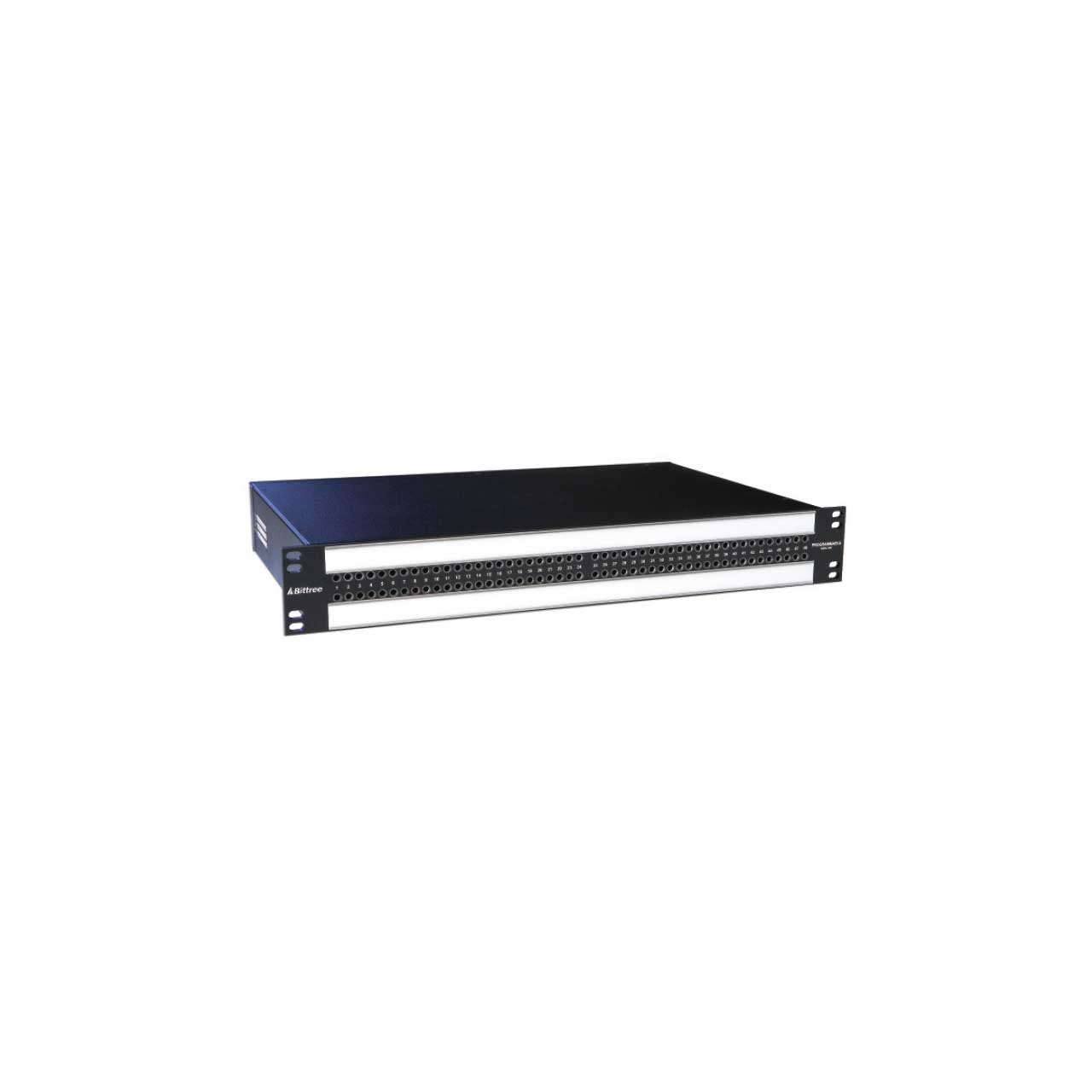

Bittree B96DC-FNSST/E3 M2OU12B 2x48 2RU E3 Full Norm Switched Ground TT Patchbay 12-Inch


free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    B96DC-FNSST/E3 M2OU - Overview

    M2OU 969-S Series 2x48 2RU Full-Normal Patchbay 12 inch version. Our 969-S Series of Programmable audio patchbays allow you to program switched grounds - in addition to bussed, isolated and looped grounds as with the original 969 series.

    • Features:

      • Jacks rated to 30,000 minimum insertion cycles
      • Copper-nickel-silver alloy leaf springs with gold-plated cross bar switching contacts and nickel-plated sleeve bushings
      • Precision-stamped reinforced steel jack frame
      • Gold-plated contacts used in E3 and E90 rear interface
      • Wired with low-capacitance, AES/EBU-rated shielded, twisted pair
      • Large user-friendly designation strips
      • Panels made from 3/16" solid aluminum with a durable powder-coat finish
      • Mating connectors, contacts and normals (where applicable) are included with all standard rear interfaces
      • Normals and grounding for individual circuits can be easily changed by the end-user
      • Programming shunts located under designation strips
      • Normaling shunts are placed vertically and Grounding shunts are placed horizontally
