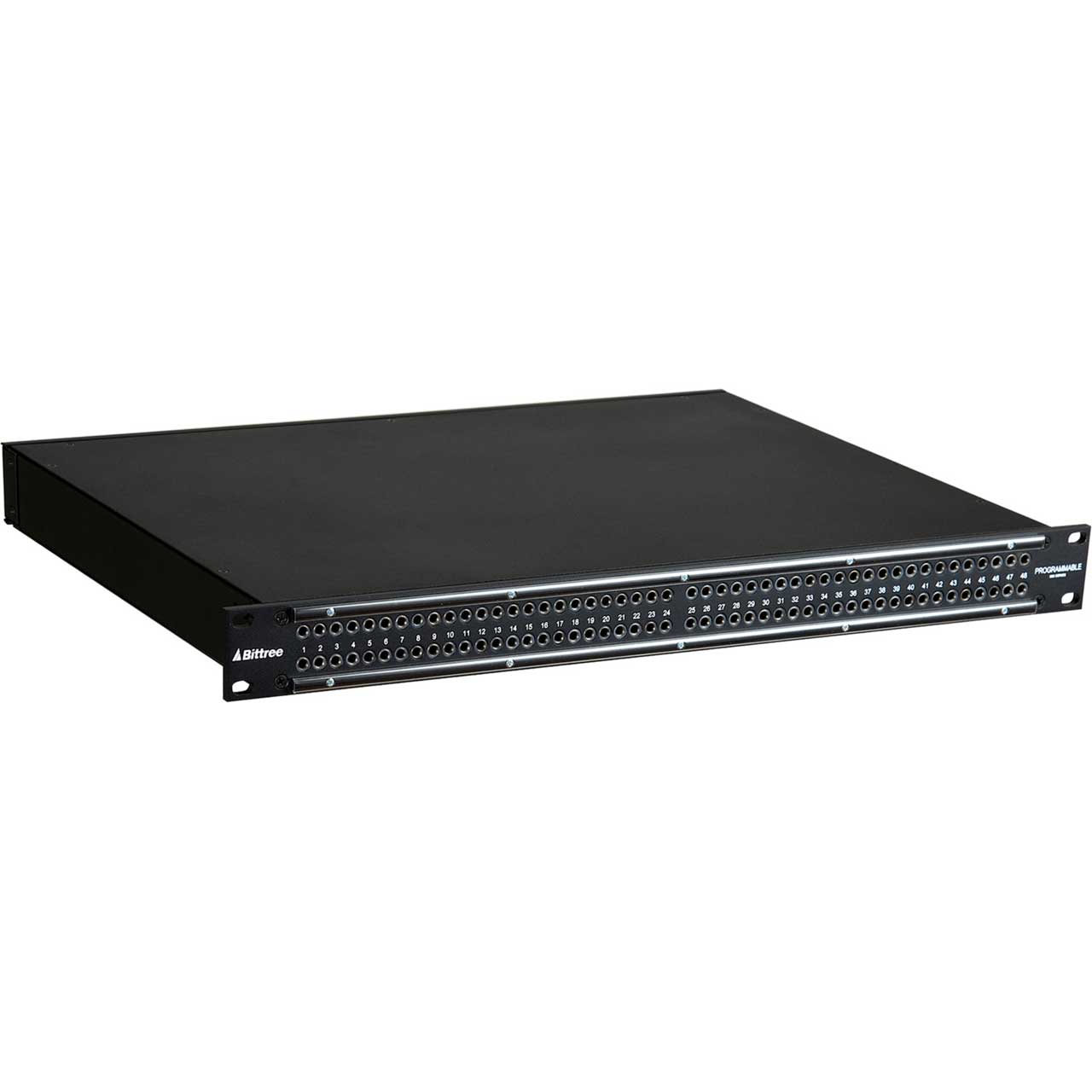

Bittree B96DC-FNRSS/E3 M2OU12B 1 RU 2x48 Patchbay Full Normal Switched Grounds E3 Rear Interface 12 Inch Deep Chasis

B96DC-FNRSS/E3 M2OU12B - Overview

• Features:

  • High-density 2x48 jack configuration with mono (even) jack spacing
  • Selectable normalling and grounding:
  • Circuits can be easily changed via shunts under both top and bottom dust covers
  • Digital AES wire used for internal wiring

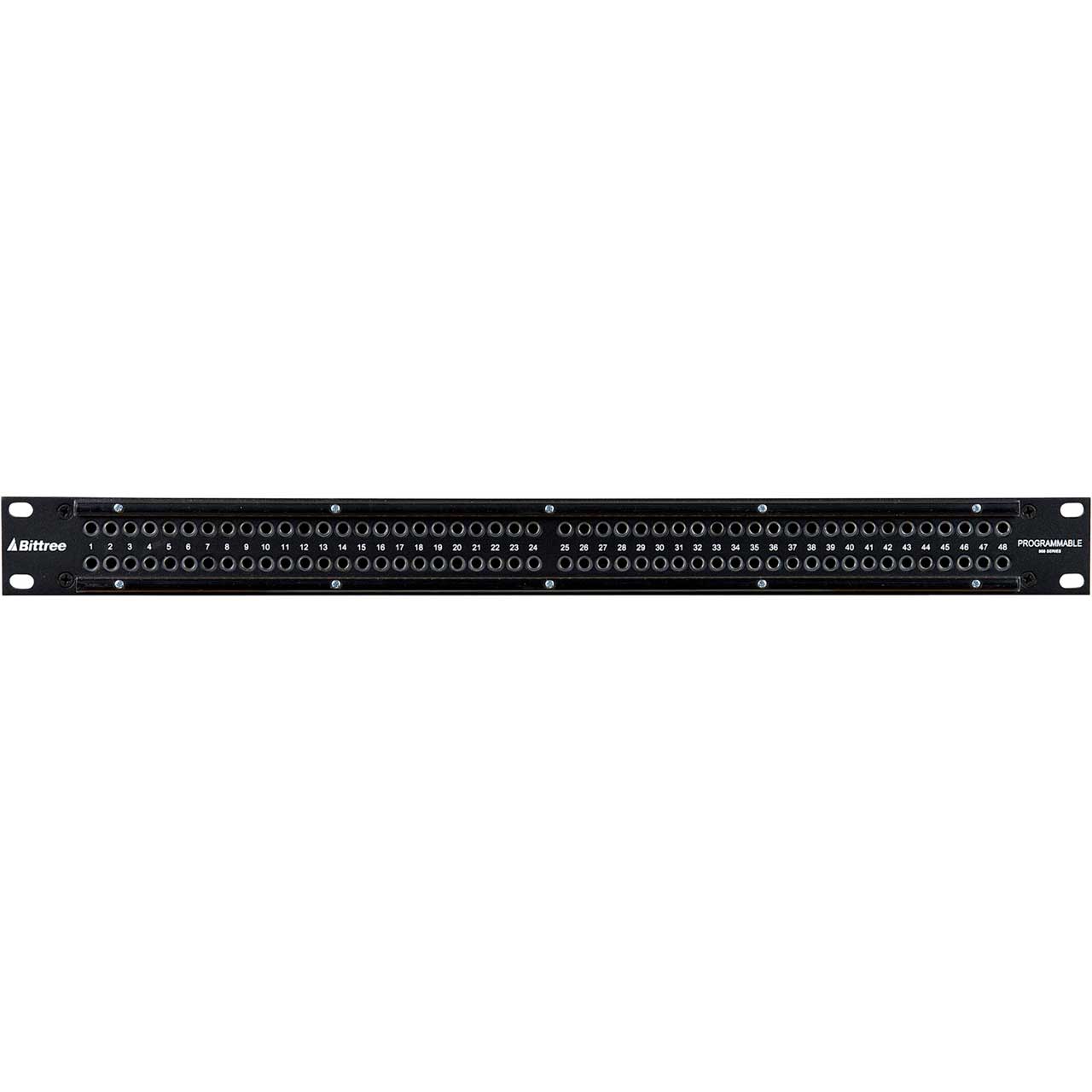

  • 1-48 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS250-10-ASSY designation strip assemblies, "Over/Under" orientation:
  • Designation strips can be reconfigured to "Over/Over" orientation
  • Front panel will accommodate an optional third designation strip
  • Mating hardware included with E3 and E90 rear interfaces
  • 6" (15.24 cm) deep rear lacing bar included with E3 rear interface:
  • Alternative 3" (7.62 cm) deep lacing bar available


• Specifications:

  • Rear Interface - choose from four standard rear interfaces:
  • - E3 (3 pin ELCO connectors)
  • - DB25
  • - E90 (90 pin ELCO connectors)

    Normalling & Grounding - choose from three standard configurations or specify your own at checkout:
  • - Normalling - circuits can be programmed to full normal, half normal or non- normal
  • - Grounding - patchbays are supplied with switched grounds by default; circuits
  • can be reprogrammed for bussed, isolated, or looped grounds

    Chassis Depth:
  • - 12" (30.48 cm) deep, fully enclosed
  • - 7" (17.78 cm) deep, fully enclosed
