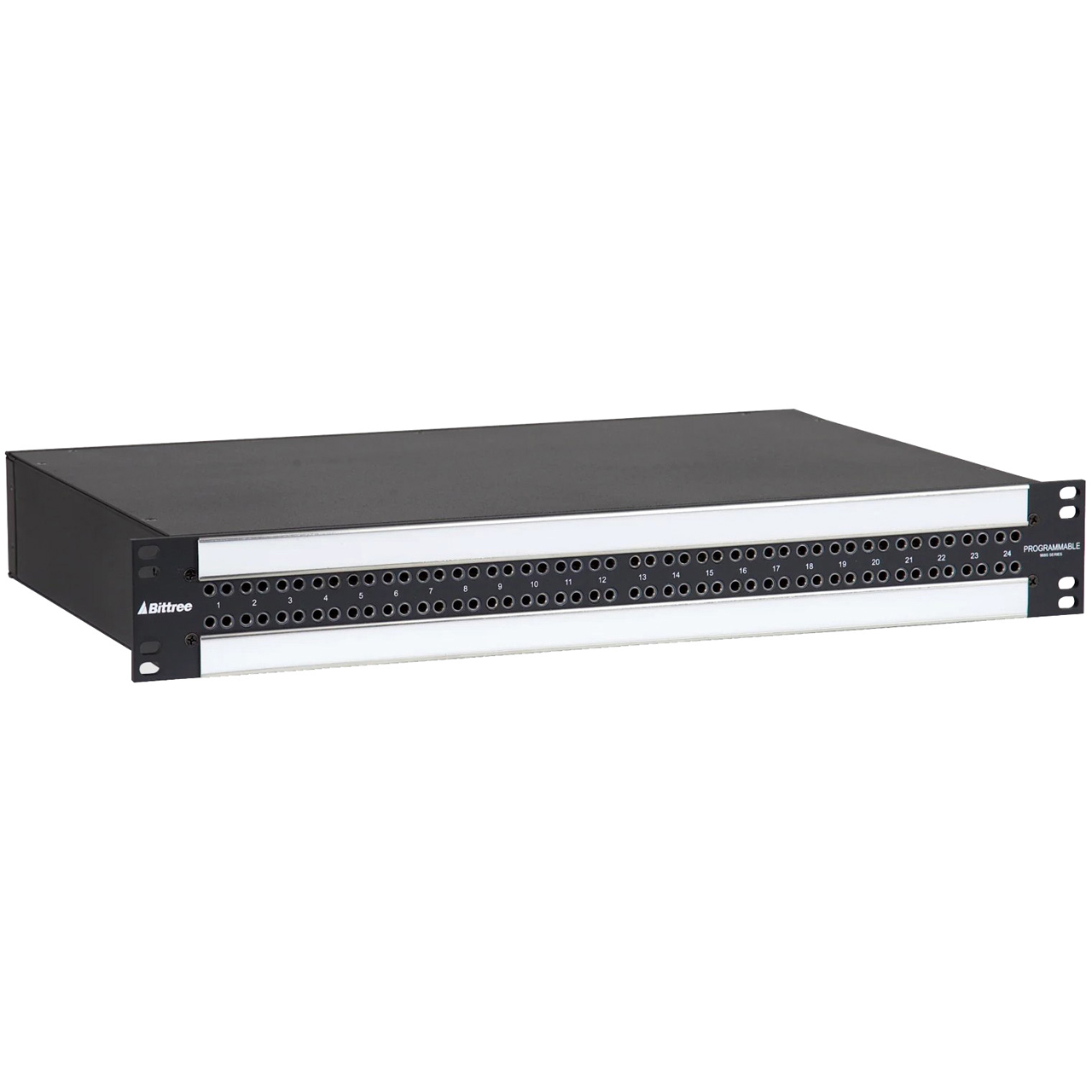

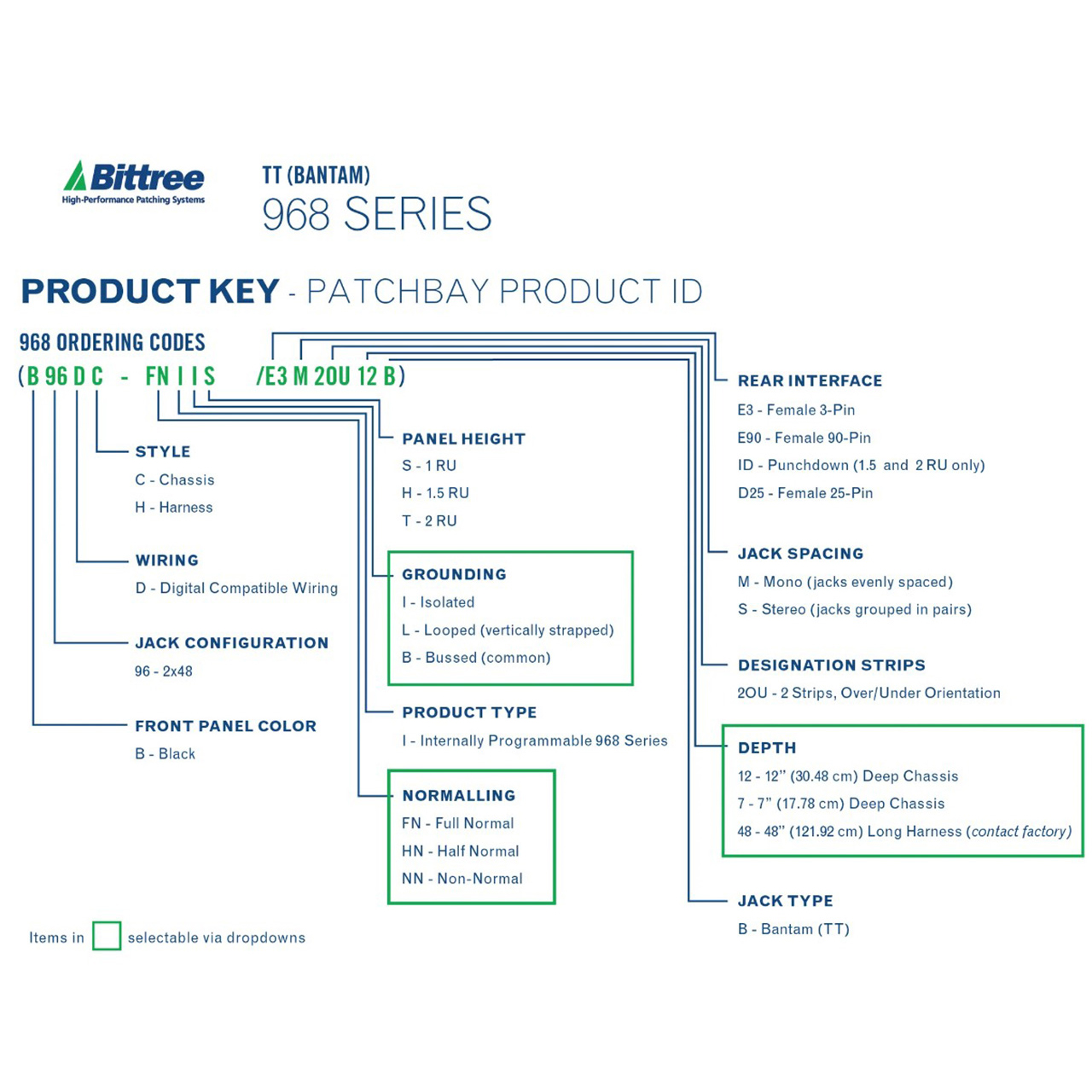

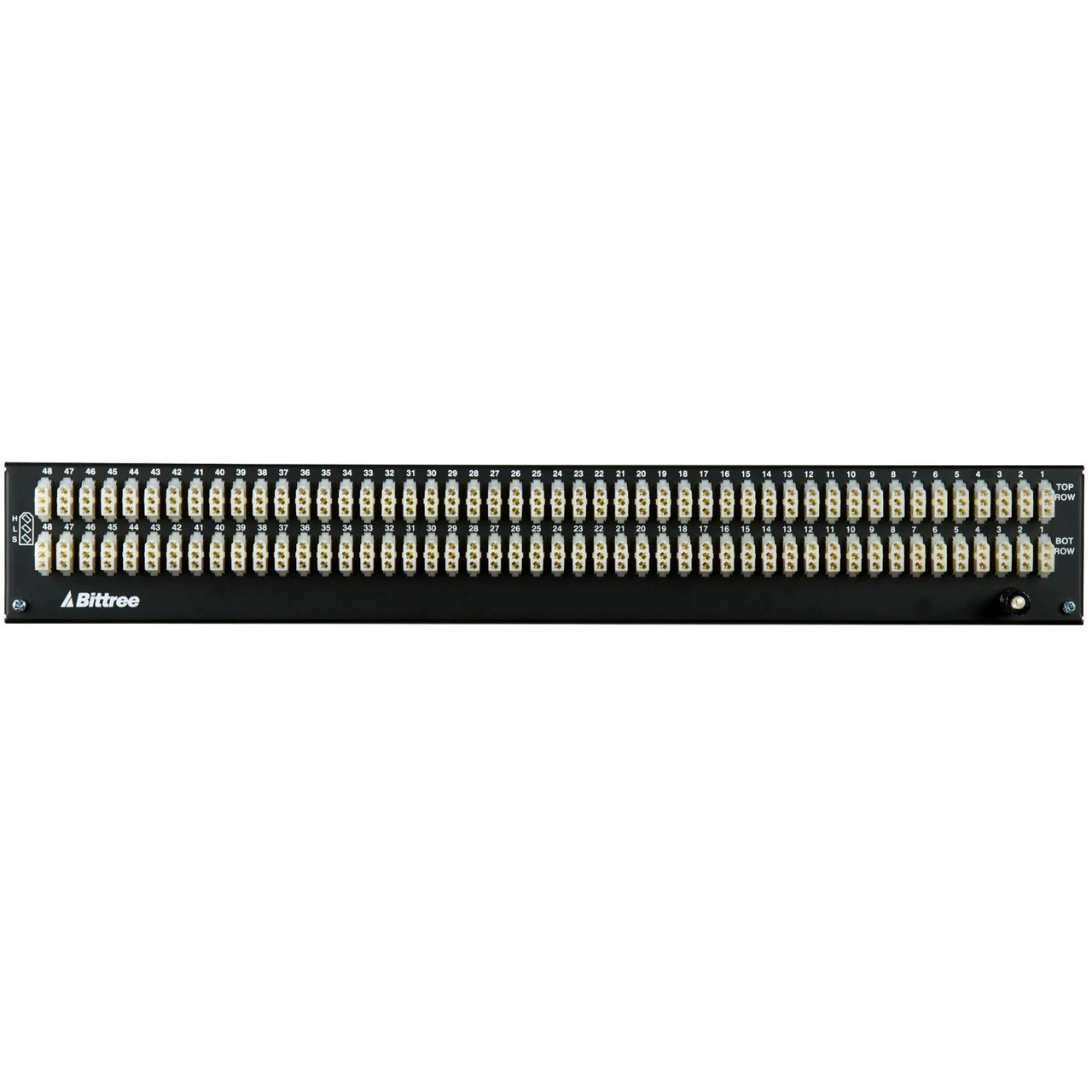

The Bittree B96DC-HNIBH/E3 S2OU12B is a 968 series, 2x48 1.5RU TT Patchbay, with internally selectable TRS Audio. It features a Rear Interface with E3 ( 3 pin ELCO Connectors) configured as Half Normal, bussed grounds with a 12" chassis depth, and 2 Designation strips in over/under orientation.

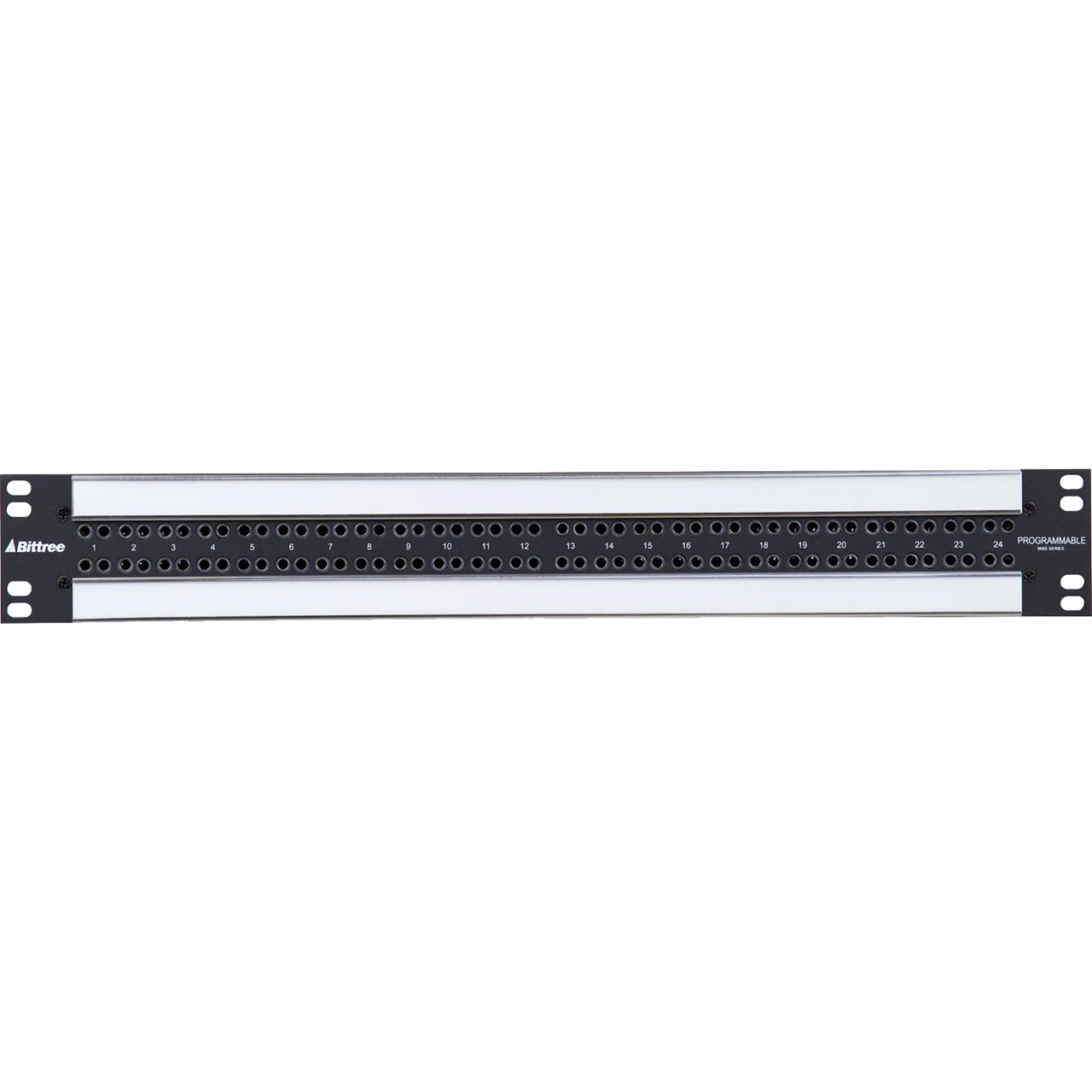

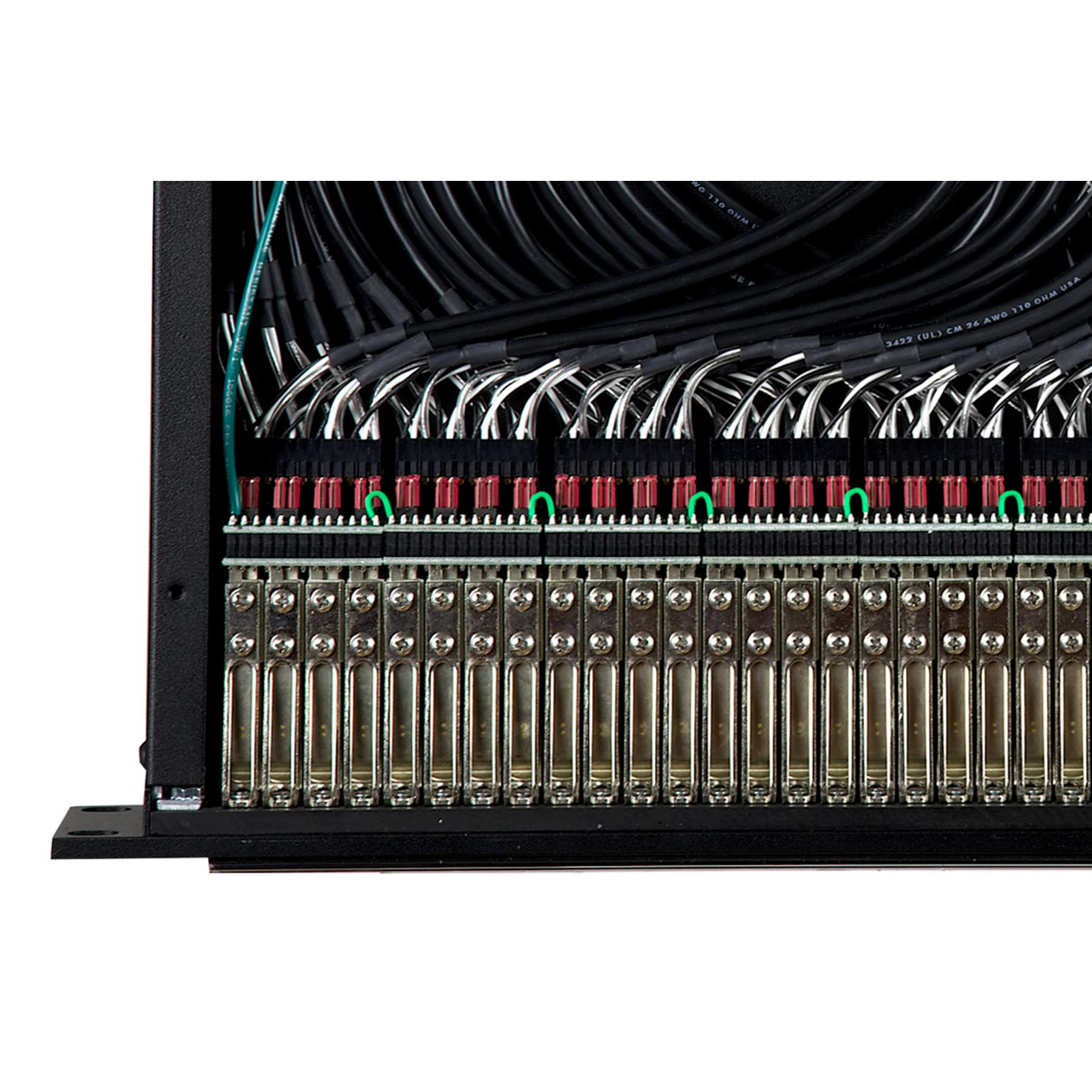

Bittree Internally Selectable TT (Bantam) 968 Series Audio Patchbay in 1RU. High-density 2x48 jack configuration with mono (even) jack spacing. Selectable normalling and grounding: Circuits can be easily changed via shunts under both top and bottom dust covers. Digital AES wire used for internal wiring, 1-48 left-to-right numbering on front panel for easy circuit identification. Two DS250-10-ASSY designation strip assemblies, "Over/Under" orientation. Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces. 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces.
