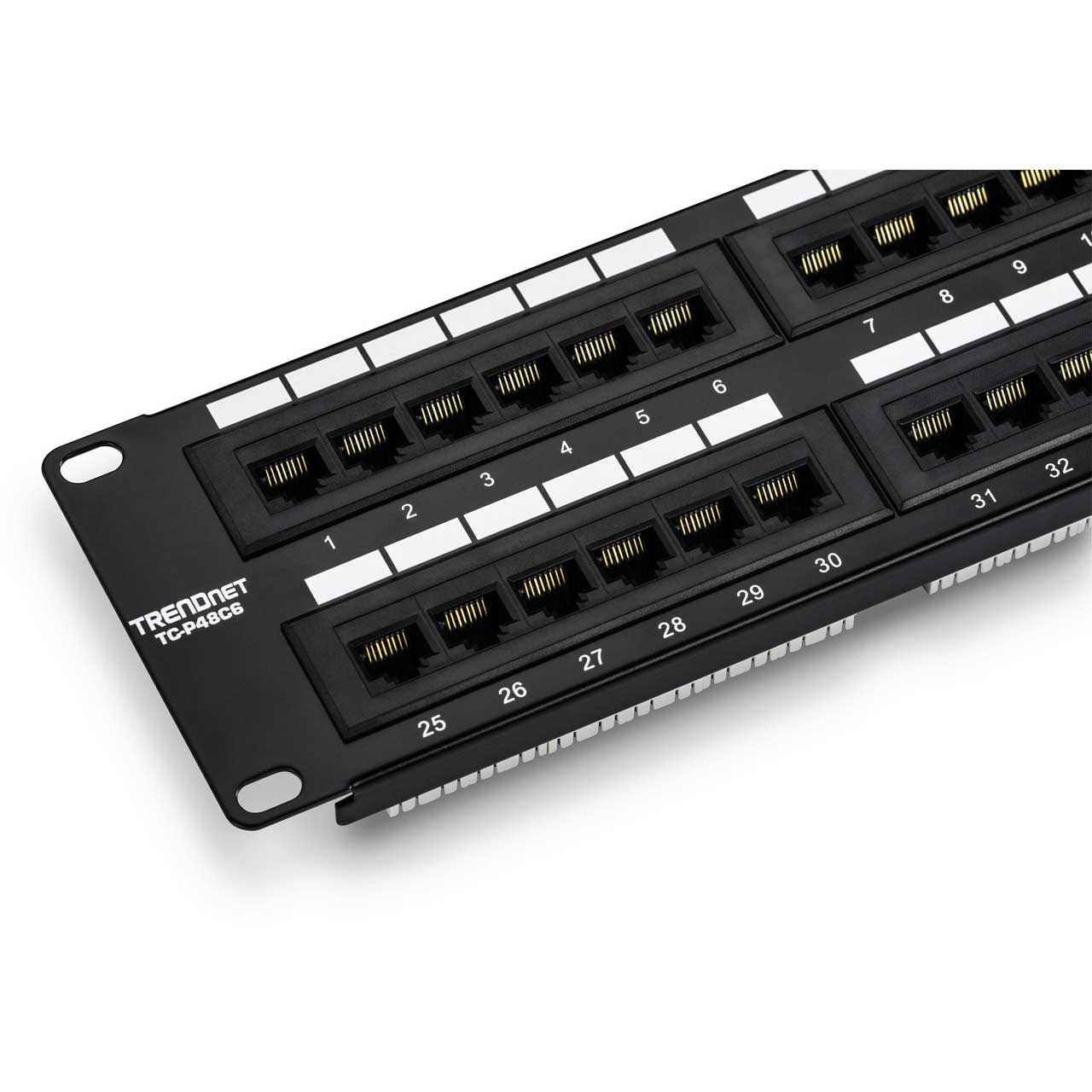

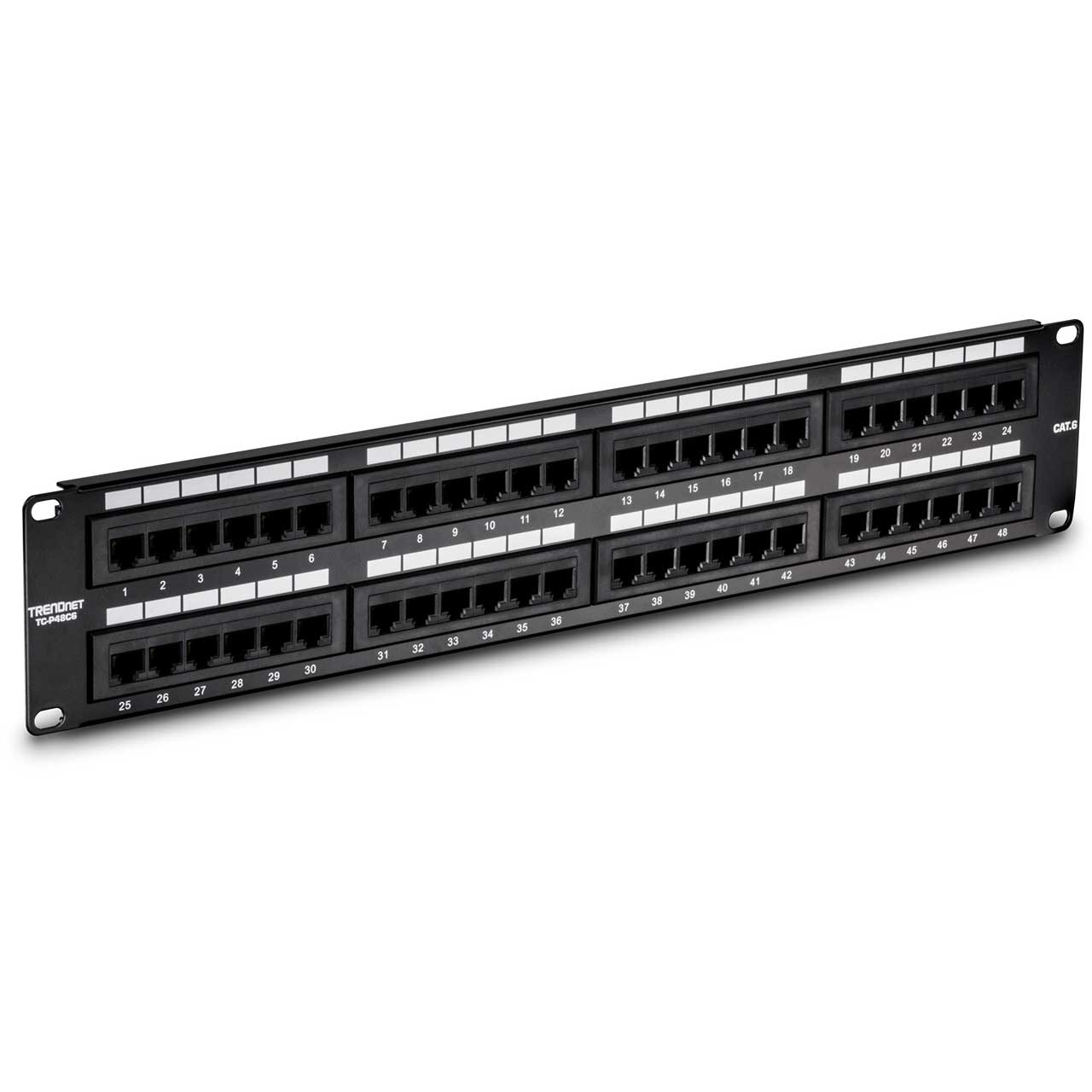

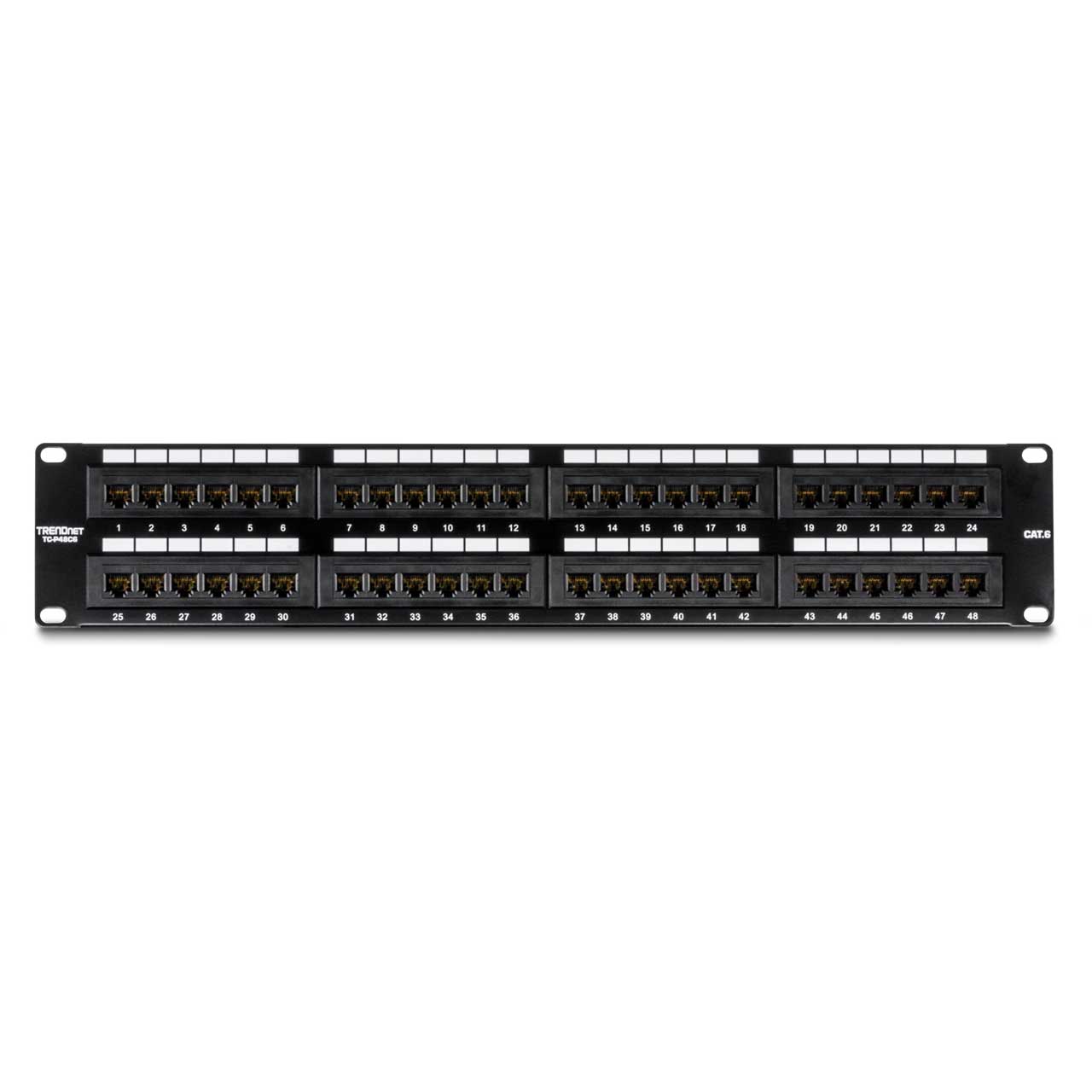

TRENDnet TC-P48C6 48-port Network Patch Panel - 48 x RJ-45 PANEL RJ45

TC-P48C6 - Overview

• Features:

  • Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 Standards

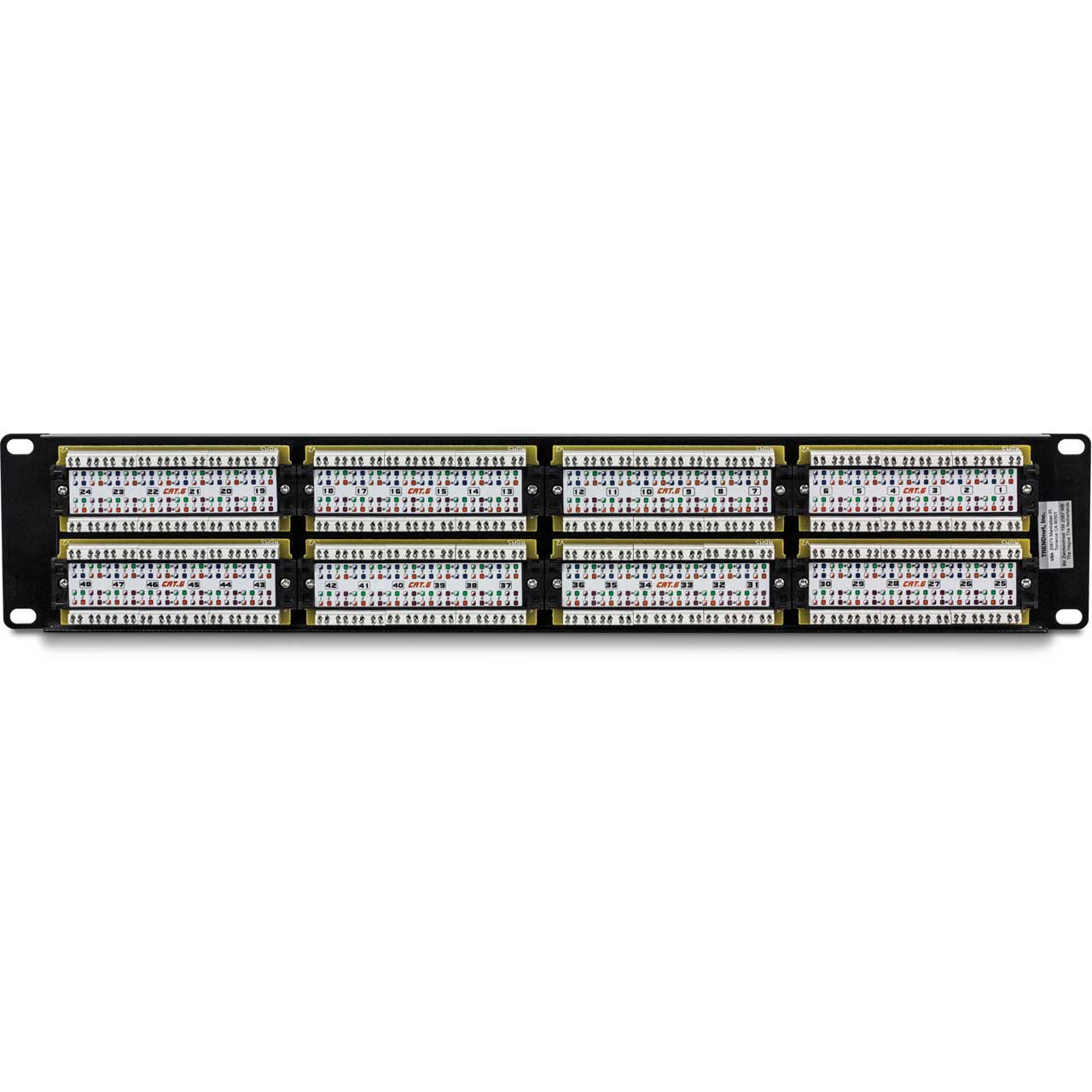

  • New version 110D IDC type terminal blocks (use 110 or Krone type tool)

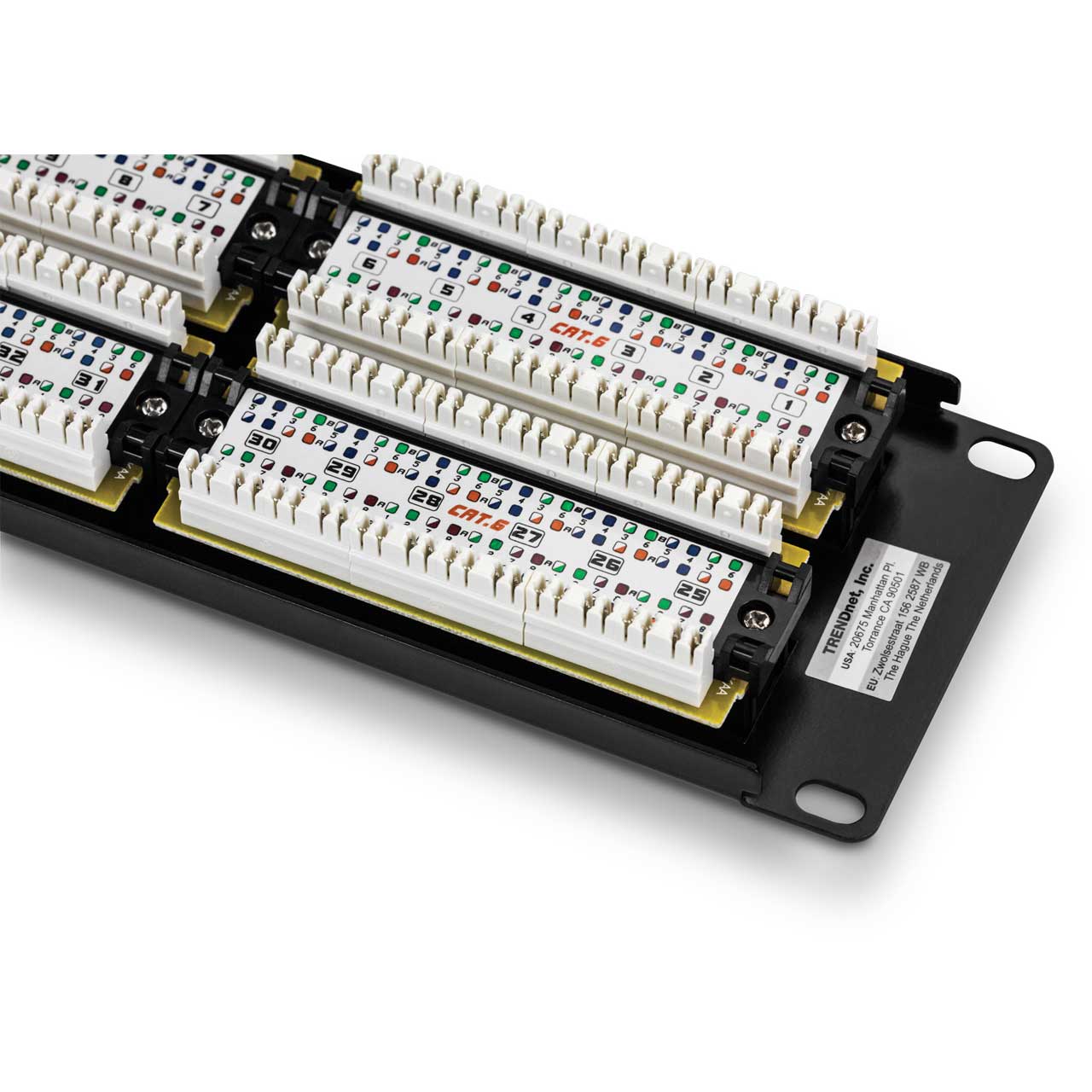

  • Color-coded labeling for T568A and T568B wiring schemes
  • 180° angle type (horizontal)
  • 1000Base-T Copper Gigabit Ethernet ready
  • Compatible with Cat. 3, 4, 5, 5e, and 6 cabling
  • Works perfectly with TC-PDT Punch Down Tool
  • Operating temperature: -40° ~ 80° C (-40° ~ 176° F)
  • UL E157358 listed
  • 1-year limited warranty


• Specifications:

  • Standards & Certifications: ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, UL E157358 Listed
  • Operating Temperature: -40 to 176°F / -40 to 80°C
  • Package Weight: 2.4 lb
  • Box Dimensions (LxWxH): 19.7 x 4.1 x 2.3"


• Warranty:

  • 1-year limited warranty


• GTIN:

  0710931401219
