    AC1056A-2 - Overview

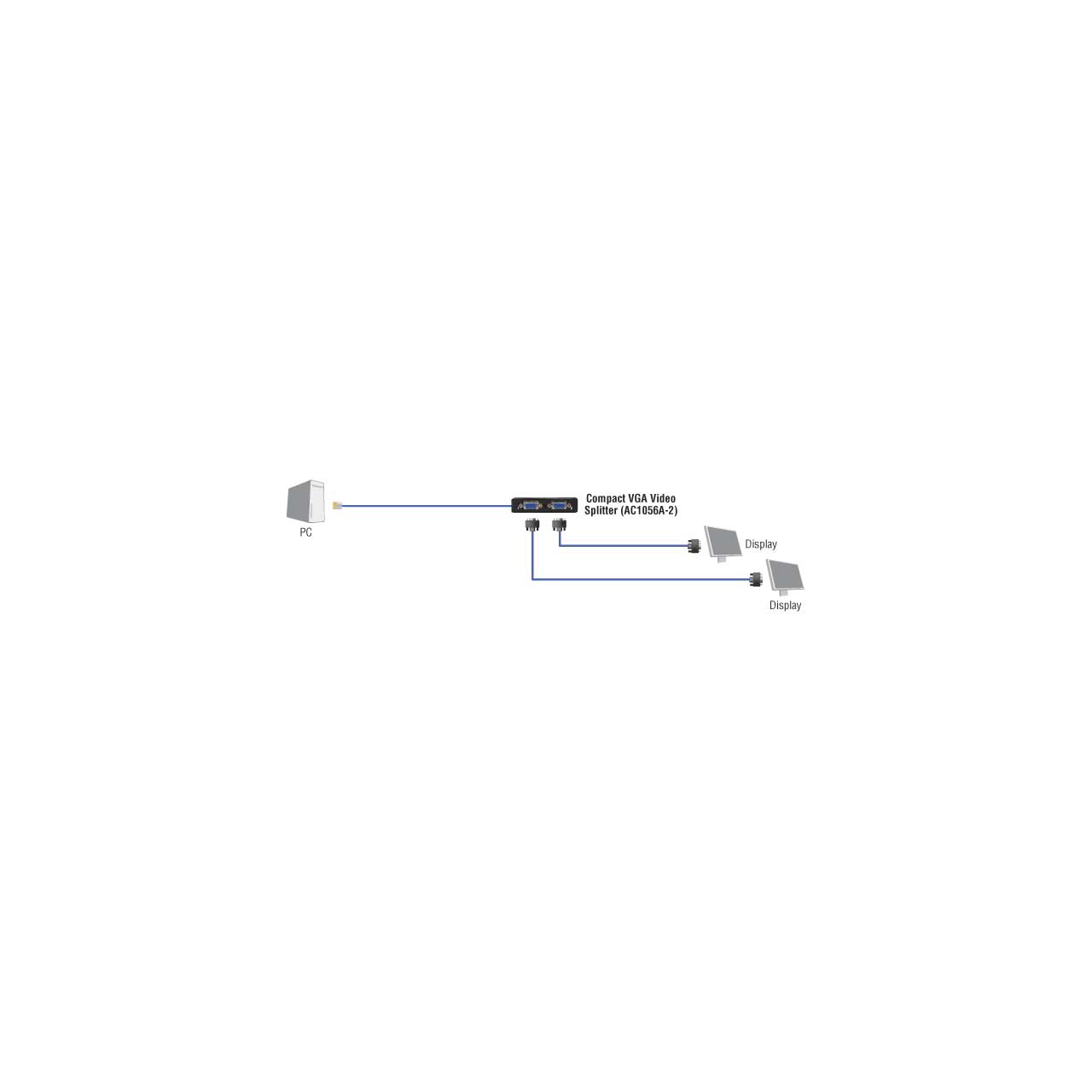

    Black Box AC1056A-2 is a 2-channel compact VGA video splitter. You can use it for a wide range of applications, such as presentations, exhibits, demonstrations, trade shows, monitor testing, or business meetings. There's no software or interface card to install. Simply connect the cables, power on the splitter, and you're ready to transmit one VGA image to multiple monitors with excellent quality. A high-bandwidth circuit enables a high-resolution, 350-MHz VGA signal to display on 2 monitors. With this 2-channel compact VGA video splitter from Black Box, you can broadcast your PC monitor displays on two monitors up to 210 feet (64 m) away. (For distances longer than 10 feet (3 m) you must supply the output cables.) The splitter works with VGA, SVGA, and multisync monitors to provide crisp, clear VGA images. Cascade splitters for more VGA outputs. If the VGA input is lost, the splitter automatically saves power.

    • Features:

      • Send crisp, clear images from your PC to mulitple displays for trade shows, training, even public information systems.
      • Broadcast your PC monitor displays on two monitors up to 210 feet (64 m) away.

    • Specifications:

      • CE Approval: Yes
      • Distance (Maximum): 210 ft. (64 m)
      • Pixel Frequency: 350 MHz
      • Power Input: 100-240 VAC, 50-60 Hz; Output: 5 VDC, 2 A
      • Resolution: 1920 x 1440 at 70 Hz
      • Connectors Input: 1x HD15 female, Output: 4x HD15 female
      • Dimensions (H x W x D): 0.9 x 3.3 x 2.7" (2.3 x 8.4 x 6.9 cm)
      • Weight: 3 lbs. (1.4 kg)
      • Package Weight 6.1 lb
      • Box Dimensions (LxWxH): 11.73 x 10.86 x 4.33" (29.79 x 27.58 x 10.99 cm)

    • Item Includes:

      • 1x Black Box AC1056A-4 Compact 4-Channel VGA Video Splitter
      • 1x 5 Foot HD15 Male/HD15 Male VGA Input Cable
      • 3x 10 Foot HD15 Male/HD15 Female VGA Output Cable
      • 1x Power Supply
      • 1x Power Cord
      • 4x Rubber Feet
