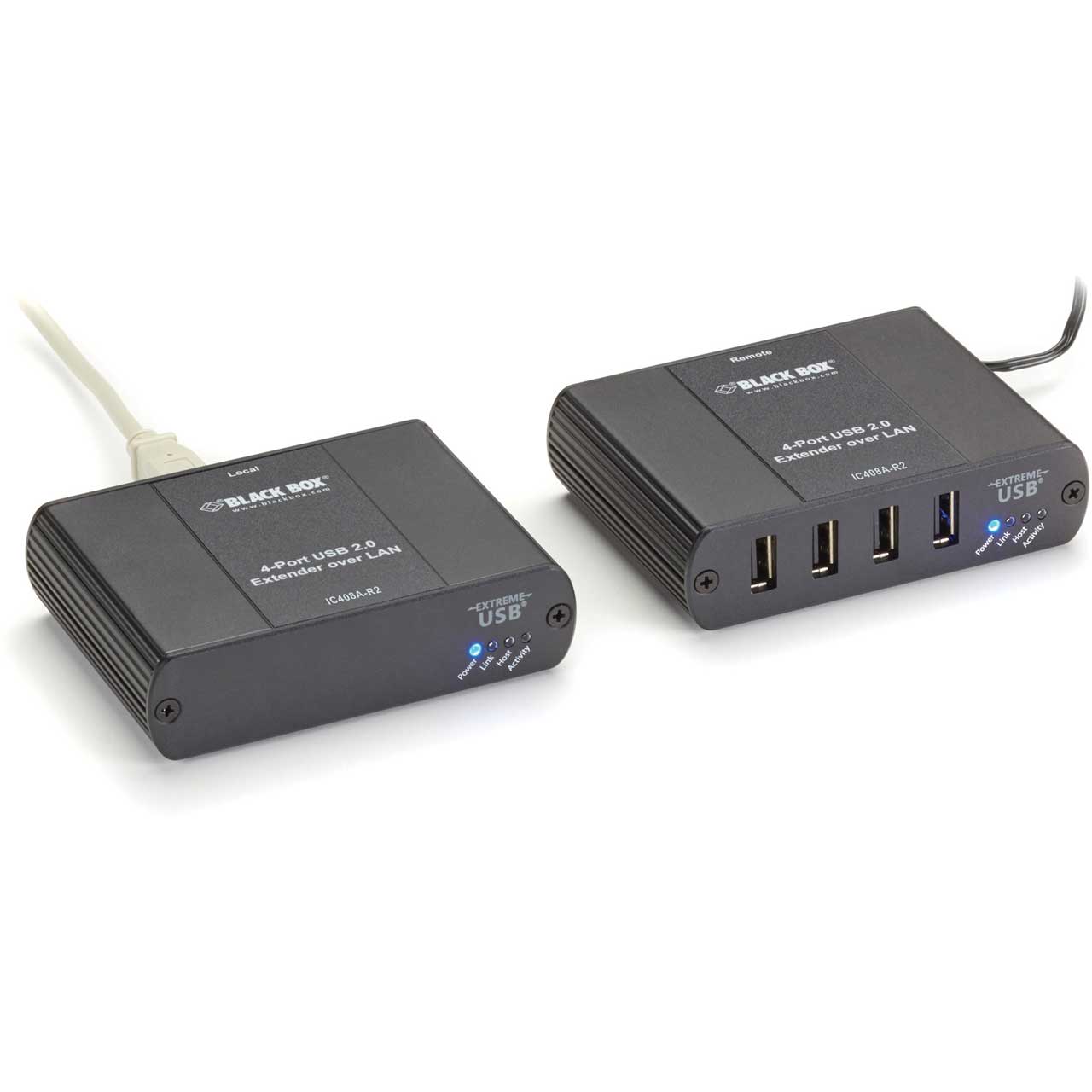

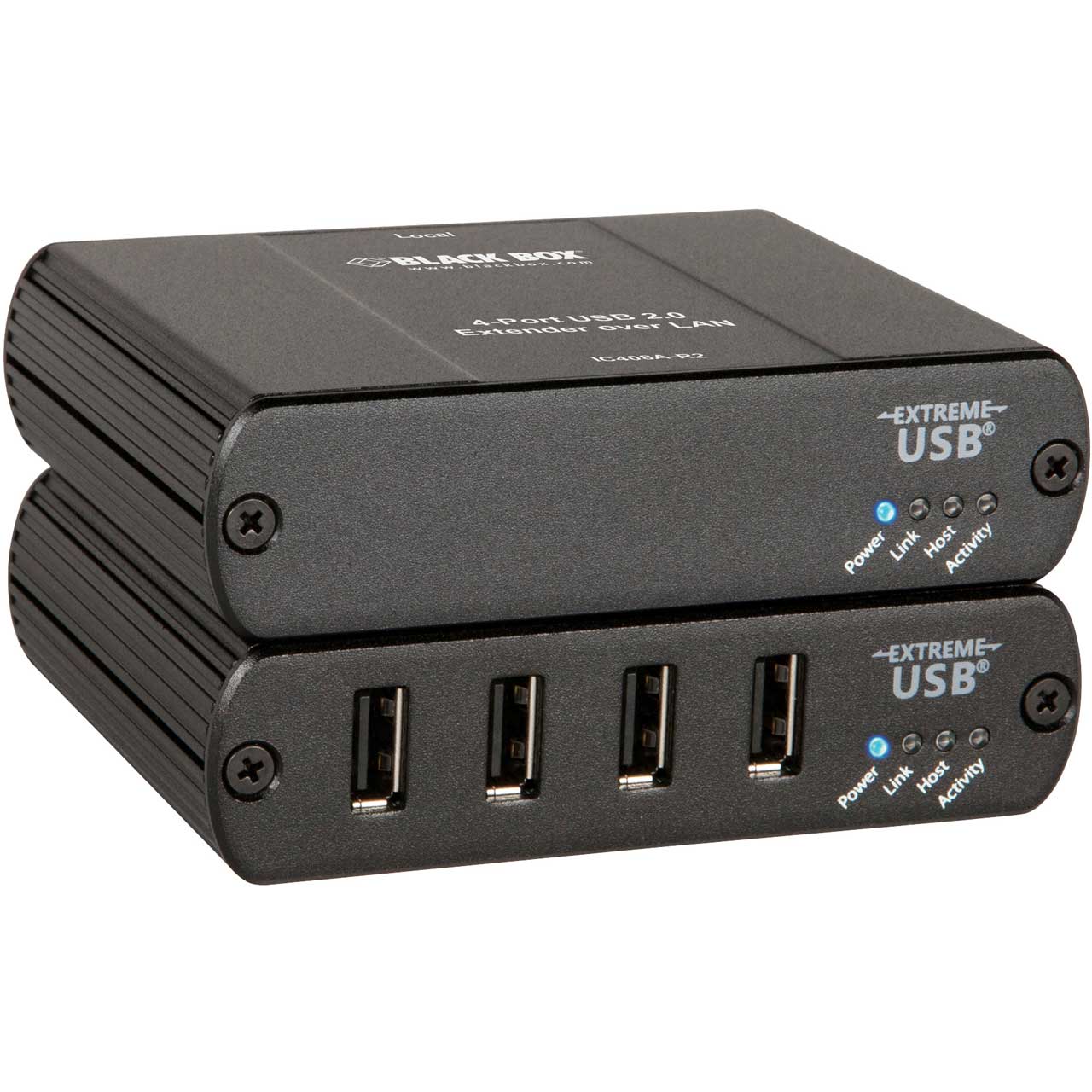

Black Box IC408A-R2 USB 2.0 Extender 4 Port CATx

ITEM #: BBX-IC408A-R2 MFG #: IC408A-R2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    IC408A-R2 - Overview

    The Black Box IC408A-R2 Allows you to extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control, KVM extension, Digital Sinage, Remote Desktop USB connections, Security web cameras and access control, Medical device connectivity, USB Web device sharing: printing scanning , storage. The extender can be used in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.

    NOTE: The maximum throughput depends on network traffic and distances, and the maximum distance depends on the number of switches you use between extenders.

    • Features:

      • Transmits up to 328 feet (100 m) over CATx or over a LAN
      • Includes a local unit and remote unit with four USB 2.0 ports
      • Supplies 1A max power to the USB devices
      • Extends USB signals at speeds up to 480 Mbps
      • Plug and play. No drivers to install on your computer
      • Works with Windows®, Mac® OS X®, and Linux® systems
    • Specifications:

      • Connectors: Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
      • Dimensions(H x W x D): 1 inch x 3.9 inch x 3 inch (2.6 x 10 x 7.6 cm)
      • Distance: Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
      • Indicators: On each unit: (4) LEDs (Power, Link, Host, Activity)
      • Network Operation: When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
      • Operating Humidity: 20 to 80%, noncondensing
      • Operating Temperature: 32 to 122° F (0 to 50°C)
      • Power Input: From 100-240 VAC, 50-60 Hz adapter (included)
      • Power Output: 24 VDC
      • Speeds: Up to 480 Mbps
      • Standards: FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
      • Storage Humidity: 10 to 90%, noncondensing
      • Weight: 3.1 lb (1.4 kg)
    • Item Includes:

      • Local extender unit
      • Remote extender unit
      • USB cable
      • Power adapter
      • US Power cord
      • Quick start guide
    • GTIN:
