Thor F-4USB-TxRx USB Fiber Optic Transmission System

ITEM #: THR-F-4USB-TXRX MFG #: F-4USB-TXRX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$1,195.20

Our Price:

$996.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    F-4USB-TXRX - Overview

    THR-F-4USB-TXRX
    Thor F-4USB-TXRX 4 Port USB (3.0, 2.0, 1.1) Fiber Optic Extender over 1 fiber, the kit includes a transmitter and a receiver, which can extend USB devices to a remote location over 1 fiber cable, max distance 10Km (SM or MM fiber cable). An integrated four-port hub allows for the extension of up to four USB devices without the need for an additional hub.
    The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

    Easy to use plug and play device, no setup required. Compact and comes standard with power supplies.

    • Features:

      • Max extension distance, 10KM over SM, and 250m over MM
      • Single/Duplex fiber transmission, pure hardware design, no drivers needed, compatible with all operating systems, supports plug and play
      • Auto-recognition of High-speed, 25Mbps, 480Mbps, Full-speed:500Kbp,12Mbps, Low-speed 10Kbps 1.5Mbps USB devise.
      • Supports USB1.1 and USB 2.0 and 3.0 devices, cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse, and keyboard, etc.
      • Works great with high speed camera's with USB output to relay back to your desktop or headend for live video feeds


    • Specifications:

      • Optical
      • Connector: SM/MM LC/PC
      • Wavelength: 1310nm/1550nm

        Physical
      • Dimensions (LxWxH): 4.09 x 4.09 x 1.10" (104 x 104 x 28mm)
      • Case: Aluminum
      • Color: Black
      • N.W.: 0.75Kg

        Power
      • Voltage: 5~12V DC
      • Sender Power Consumption: <20W
      • Receiver Power Consumption: <5W , Powered by USB cable, no external power adapter required

        Environment
      • Working Temperature: -4° to 167°F (-20° to 75°C)
      • Storage Temperature: -40° to 185°F (-40° to 85°C)
      • Humidity: 0-95% (non-condensing)

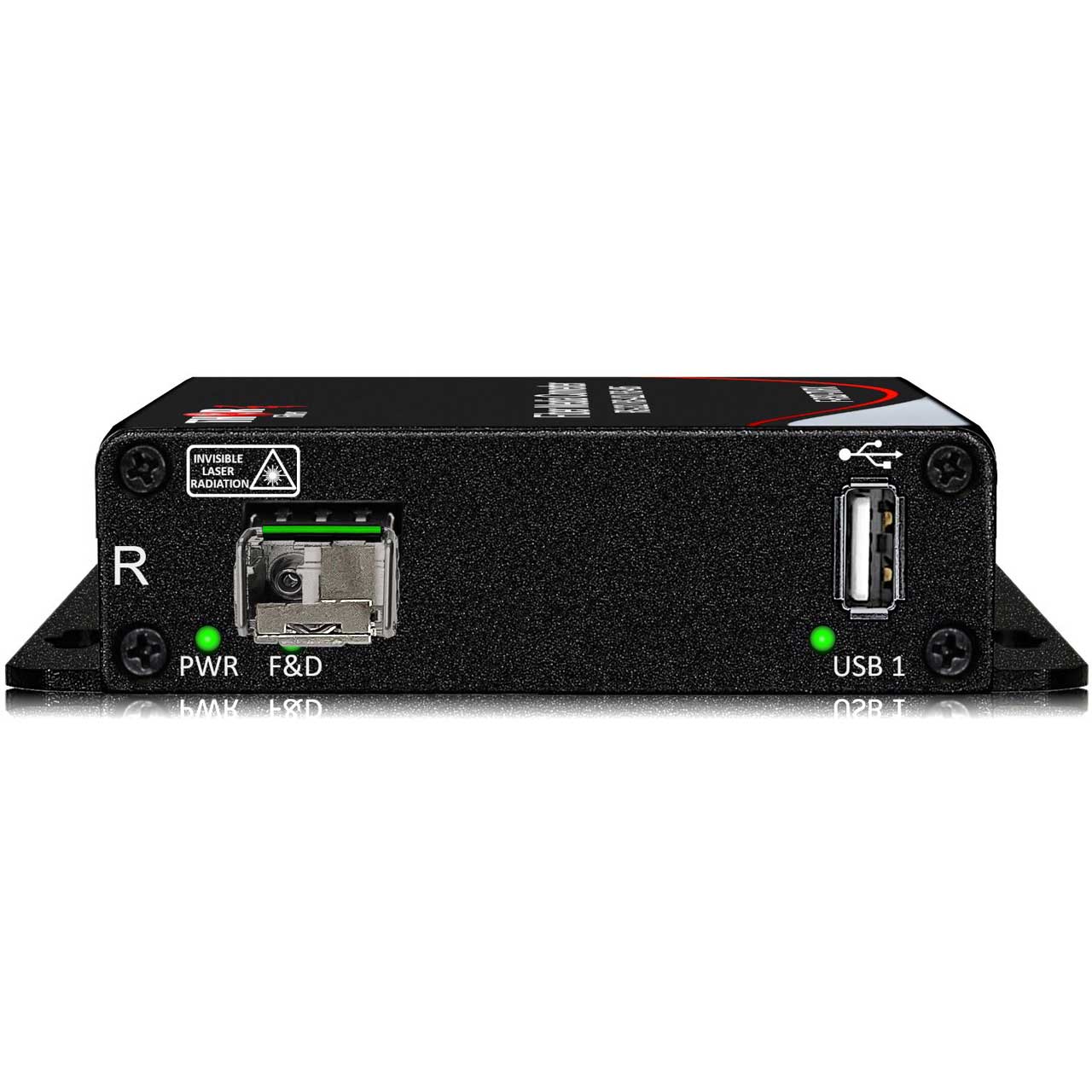

        RX
      • 1 - connect to PC

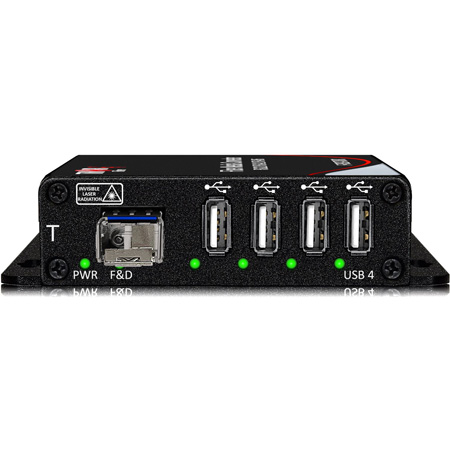

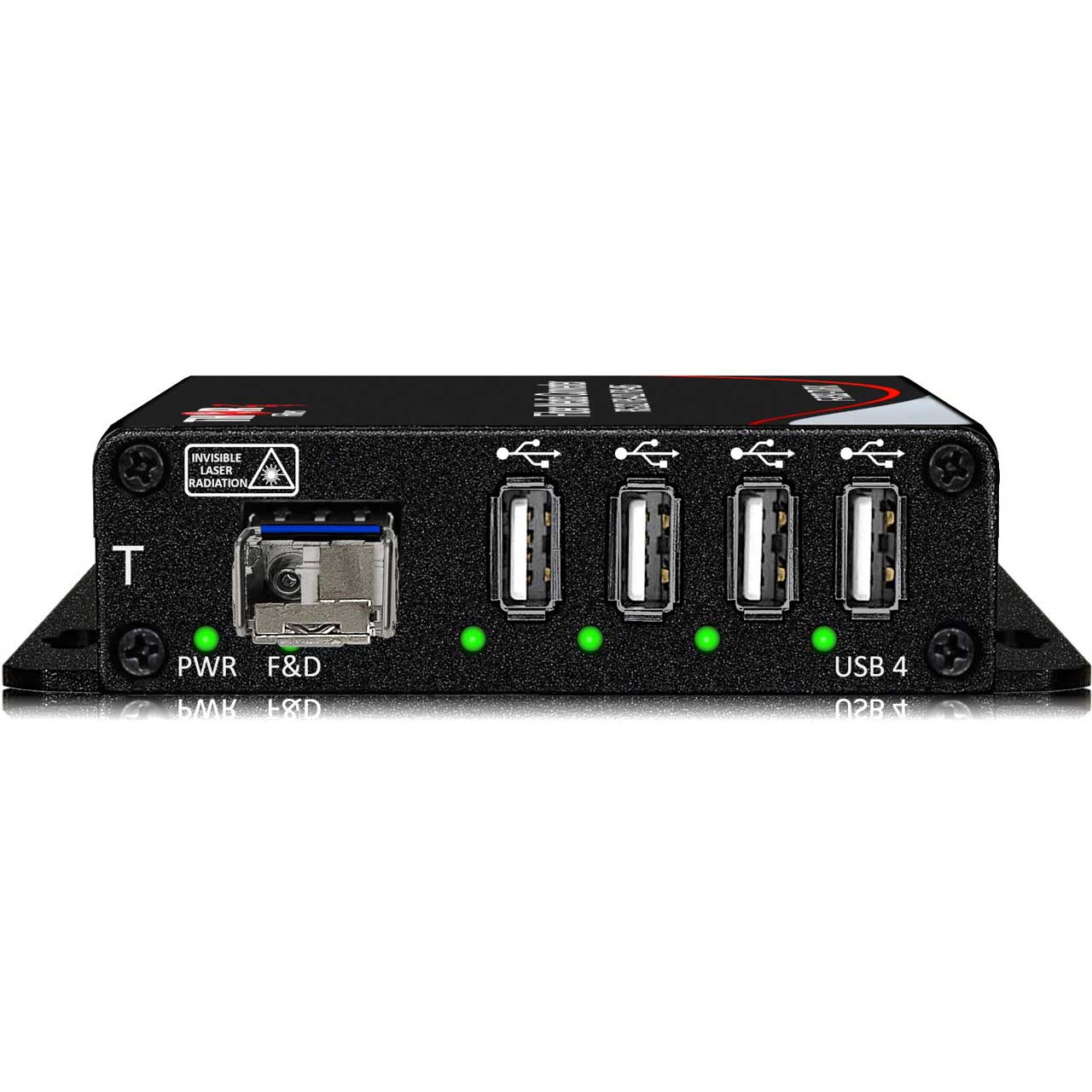

        TX
      • 4 - connect to USB devices, max 500mA
