KVXLCHF-100 - Overview

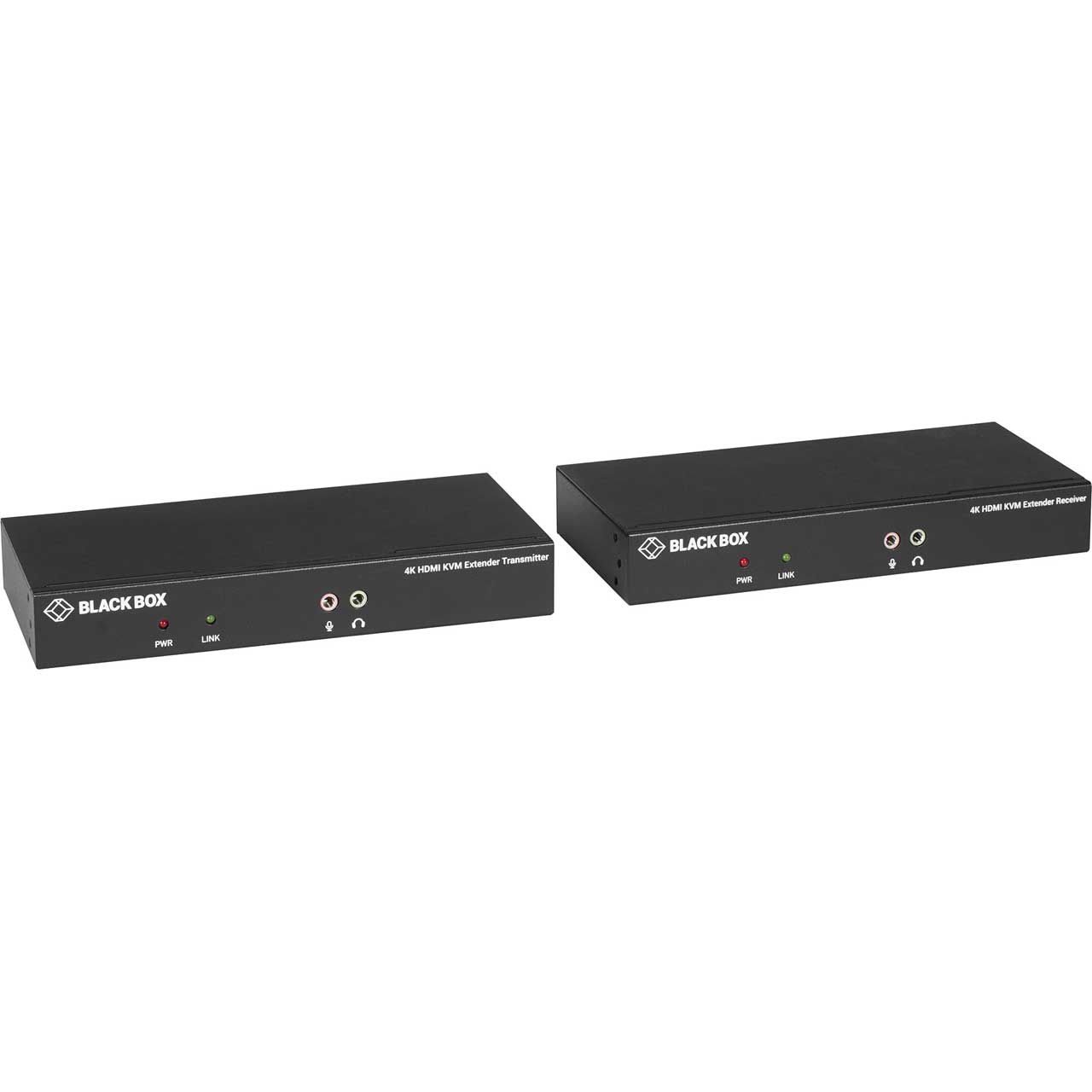

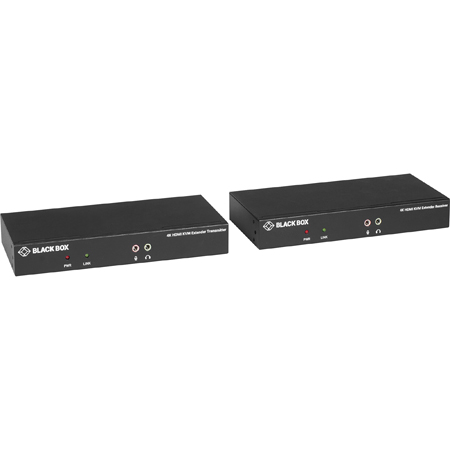

The KVX HDMI/DisplayPort Single Head Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Please Note! SFP's Not Include and must be ordered separately.! Other SFPs may work but have not been validated by Black Box, they recommend you use the suggested SFPs to avoid technical incompatibilities.

  • Features:

    • HDMI video resolution up to UHD 4K
    • Remote access up to 100 meter
    • Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz over Fiber optic
    • Transparent USB 2.0 extension supports HID devices, mass storage devices
    • Supports RS-232 peripheral (serial) devices
    • Bi-directional audio via speaker/mic connection
    • Local video port loopback for monitoring on transmitter (TX) unit
    • Supports EDID pass-through

  • Specifications:

    • Housing
    • Material: Metal Chassis
    • DDC Support: DDC, DDC2, DDC2B
    • Distance: Fiber Optic Cable: Up to 33,000ft (10km/6.2mi)
    • Indicators: 1x Power LED

      MTBF
    • Transmitter (TX): 137,540 Hours
    • Receiver (RX:): 165,620 Hours

      System
    • Operating Humidity: 0 to 80%, noncondensing
    • Operating System: OS Independent
    • Operating Temperature: 32°F to 122°F (0°C to 50°C)
    • Storage Temperature: -4°F to +140°F (-20°C to +60°C)
    • Power: External 5-VDC, 2-A Power Supply
    • Resolution: 3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz,1680x1050@60Hz,1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz

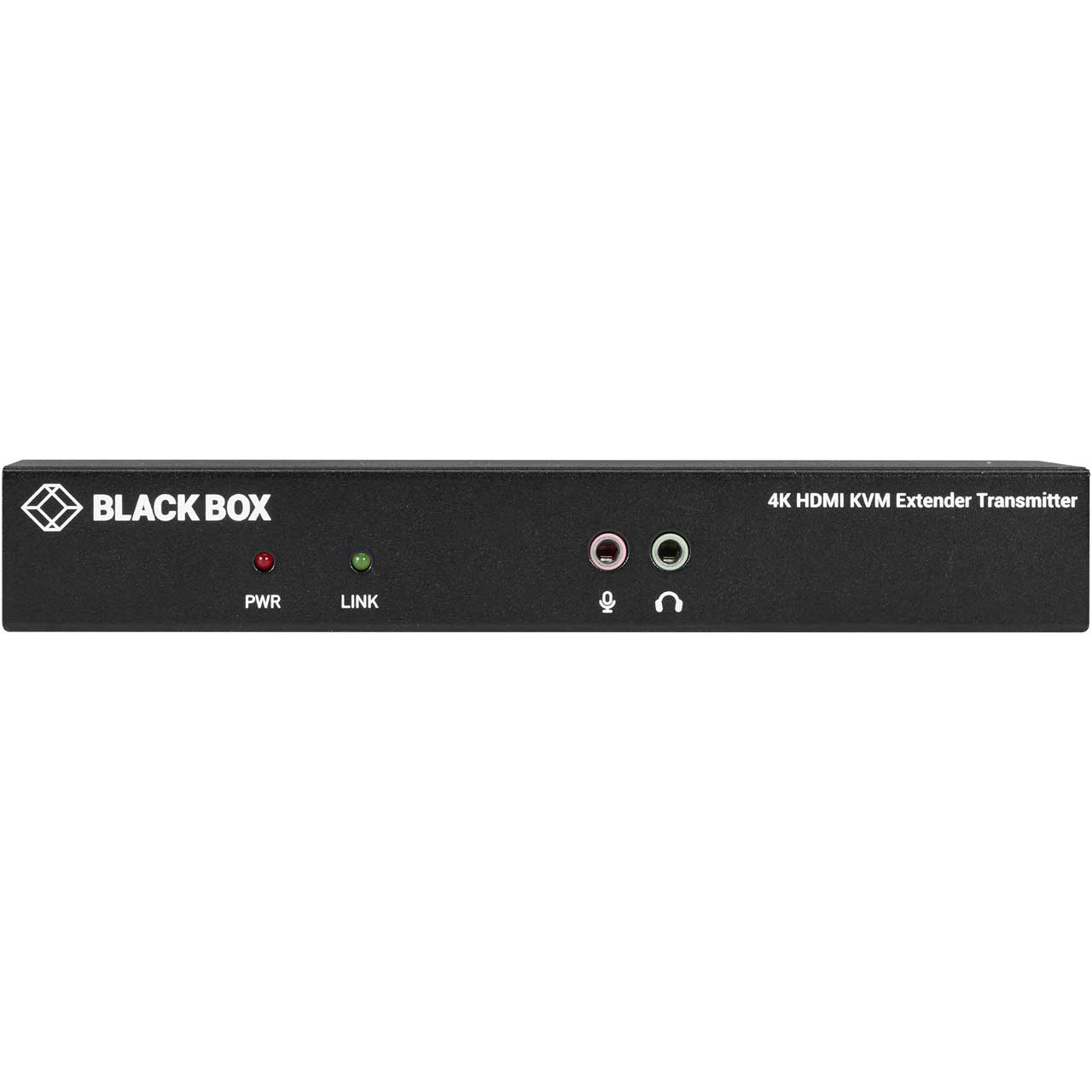

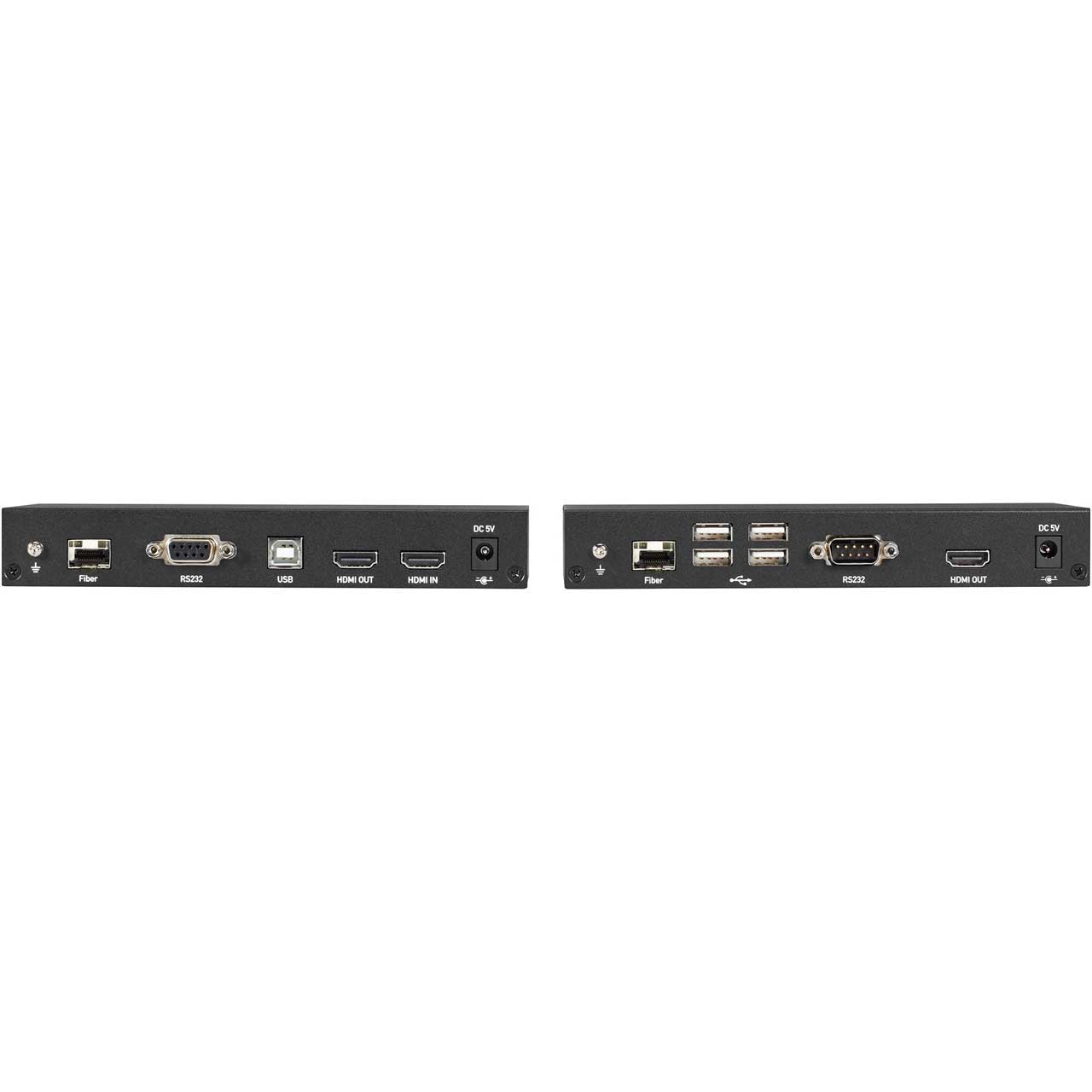

      Fiber Transmitter
    • Video Input: 1x HDMI (Female)
    • Serial Control Port: 1x DB9 (Female)
    • Link Port: 1x SFP Cage
    • USB: 1x USB Type-B (Female)
    • Audio: 1x Line in; 1x Line out
    • Local Video Output: 1x HDMI (Female)

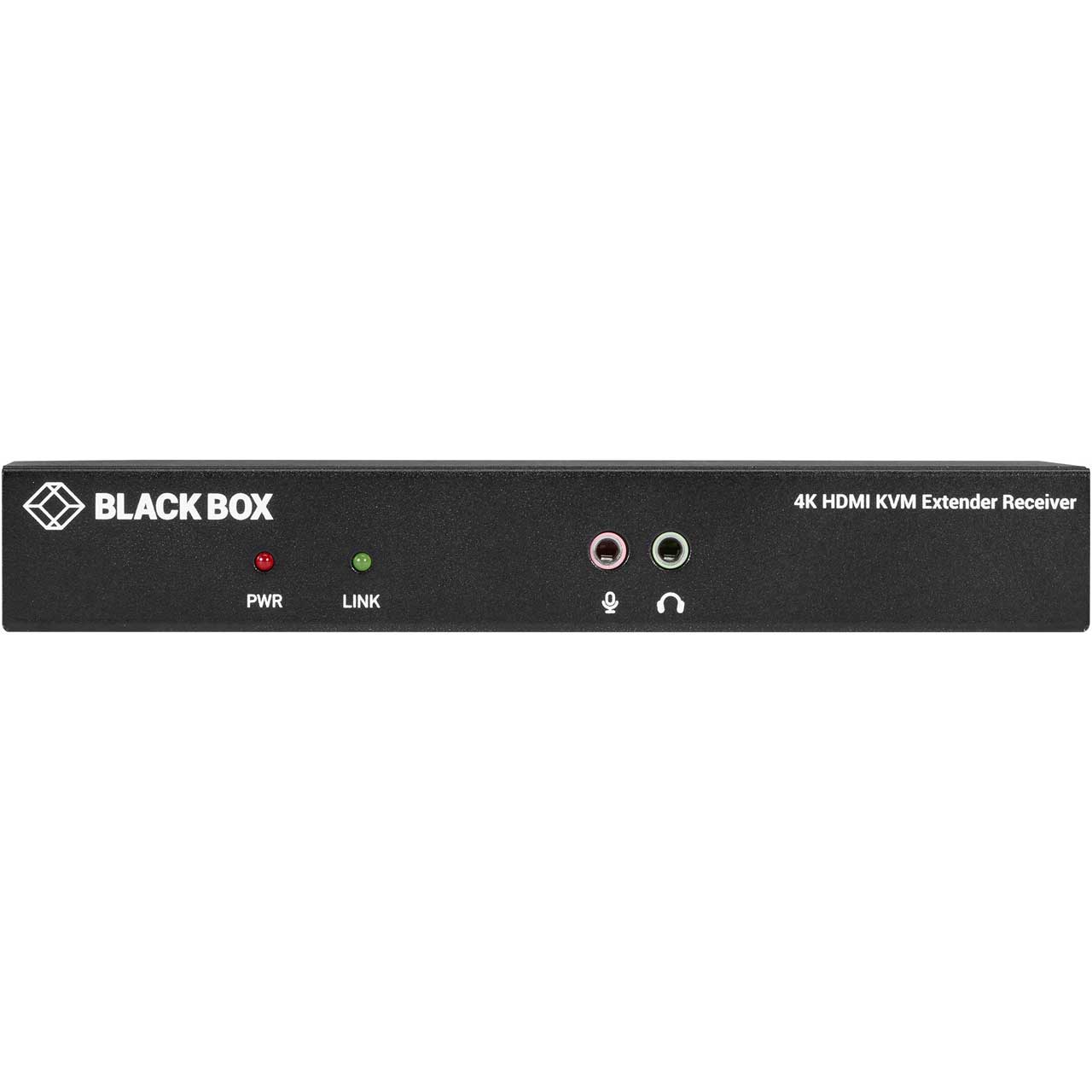

      Fiber Receiver
    • Video Output: 1x HDMI (Female)
    • Serial Control Port: 1x DB9 (Male)
    • Link Port: 1x SFP Cage
    • USB: USB Type-A (Female)
    • Audio: 1x Mic In; 1x Speaker Out

      Dimensions - Transmitter/Receiver (HxWxD): 0.83" x 3.27" x 7.09" (2.1cm x 8.3cm x 18cm)
    • Weight - Transmitter/Receiver: 0.83lbs (0.378kg)

  • Item Includes:

    • 1x Transmitter
    • 1x Receiver
    • 2x 5V, 2A Power Supplies (Includes US, EU, AU & UK Plug types)
    • 1x HDMI Cable, Male/Male 1.2m (4 ft.)
    • 1x USB Type A to B Cable, Male/Male 1.8m (6 ft.)
    • 1x 3.5mm Dual Audio / Mic Cable, Male/Male 1.8m (6 ft.)

  • Warranty:

    • 2-Year Warranty

  • GTIN:

    0822088133681
