Black Box TS029A-R5 Tone and Probe Two-Piece 10/100/1000BASE-T Cable Test Kit

ITEM #: BBX-TS029A-R5 MFG #: TS029A-R5

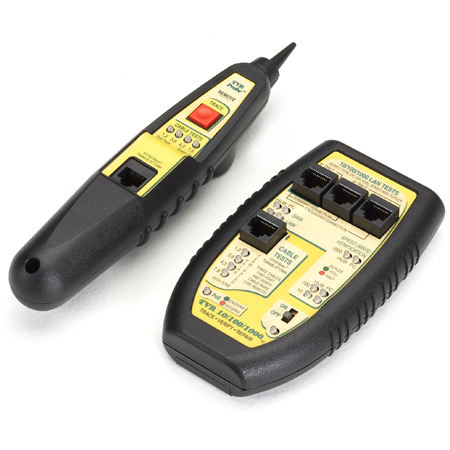

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BBX-TS029A-R5

TS029A-R5 - Overview

Black Box TS029A-R5 TVR 10/100/1000 Tester provides everything you need to verify and repair 10-, 100-, and 1000-Mbps copper Ethernet. The main unit that performs most tests such as LAN device type, LAN speed, duplex, and PoE. An additional probe enables you to locate cables or switch ports by detecting a tone generated by the handheld tester.

The tester enables you to locate faulty switches, PCs, or cable connections that may be interfering with the performance of your 10/100/1000BASE-T network. You can even go inline between two devices to determine the final negotiated speed and duplex of the link. The TVR 10/100/1000 is designed for use by installers and repair people who are documenting legacy LANs, installing and repairing LANs, or expanding existing LANs.

  • Features:

    • Detects whether a device is a hub, switch, or PC.
    • Verifies the speed and duplex of a link, enabling you to spot network bottlenecks.
    • Includes a tone probe and tone generator for tracing cable and port locations.
    • Shows how cable pairs are wired and identifies straight-pinned and crossover configurations.
    • Determines the number of cable pairs required by a connected device.
    • Indicates the presence of Power over Ethernet and whether the power is endspan or midspan.

  • Specifications:

    • CE Approval: Yes
    • Power: (2) 9-V alkaline batteries (included)
    • Connectors: (4) RJ-45 jacks on tester
    • Dimensions: Tester: 5.5"H x 3.3"W x 1"D (14 x 8.4 x 2.5 cm); Remote: 7"H x 1"W x 0.8"D (17.8 x 2.5 x 2 cm)
    • Indicators: Tester: (15) LEDs; Remote: (4) LEDs
    • Weight: 0.5 lb. (0.2 kg)

  • Item Includes:

    • 1x Main unit
    • 1x Remote probe unit
    • 2x 9-V batteries
    • 2x RJ-45-to-RJ-45 jumpers
    • 1x Protective carrying pouch
    • 1x User's manual
