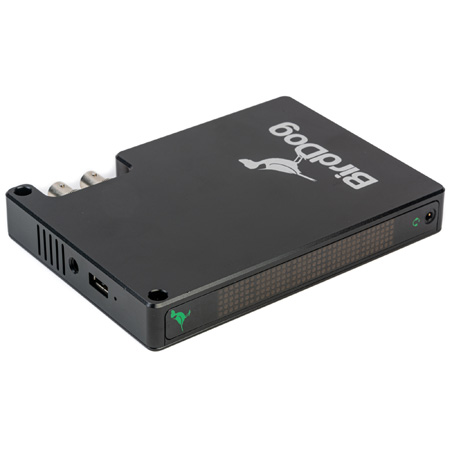

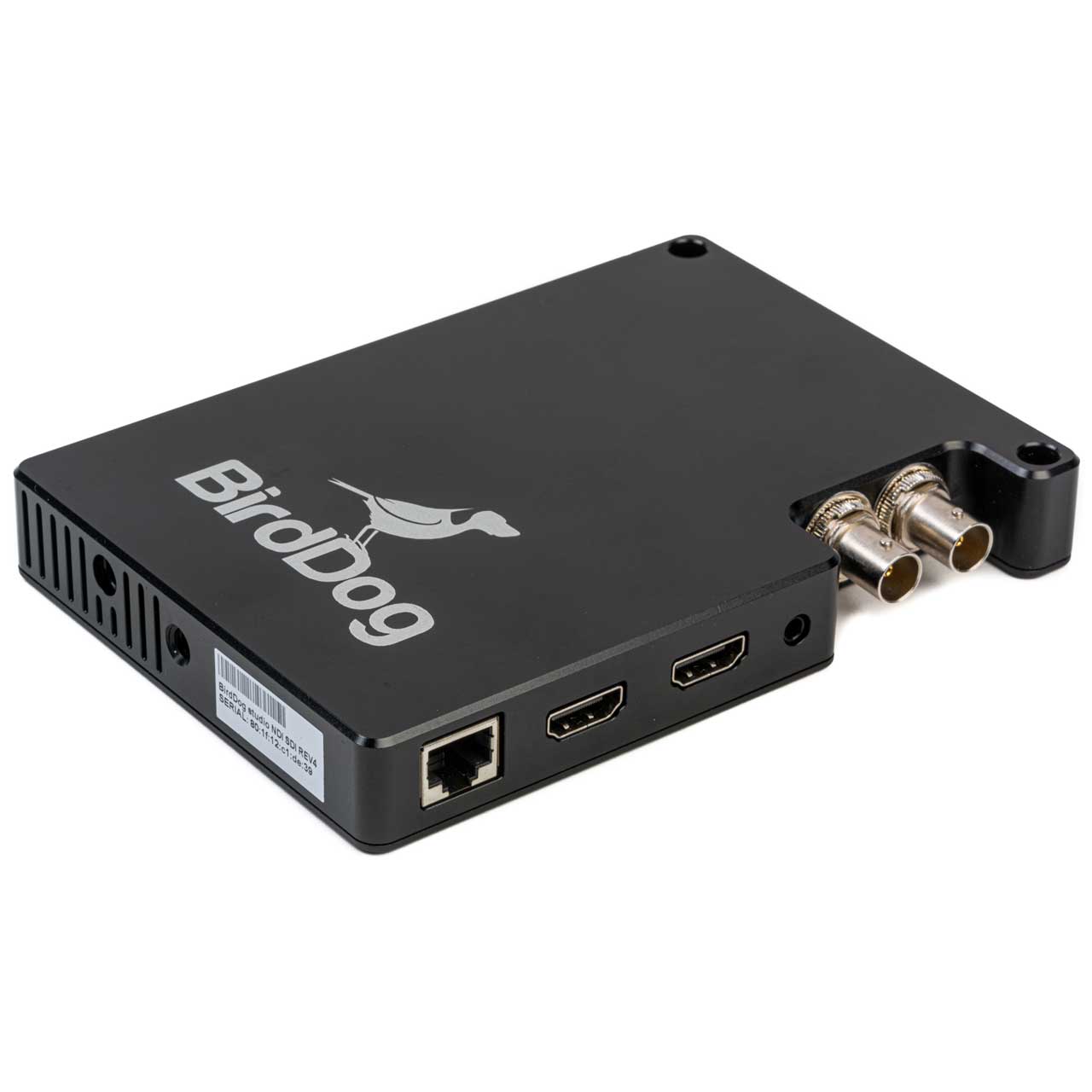

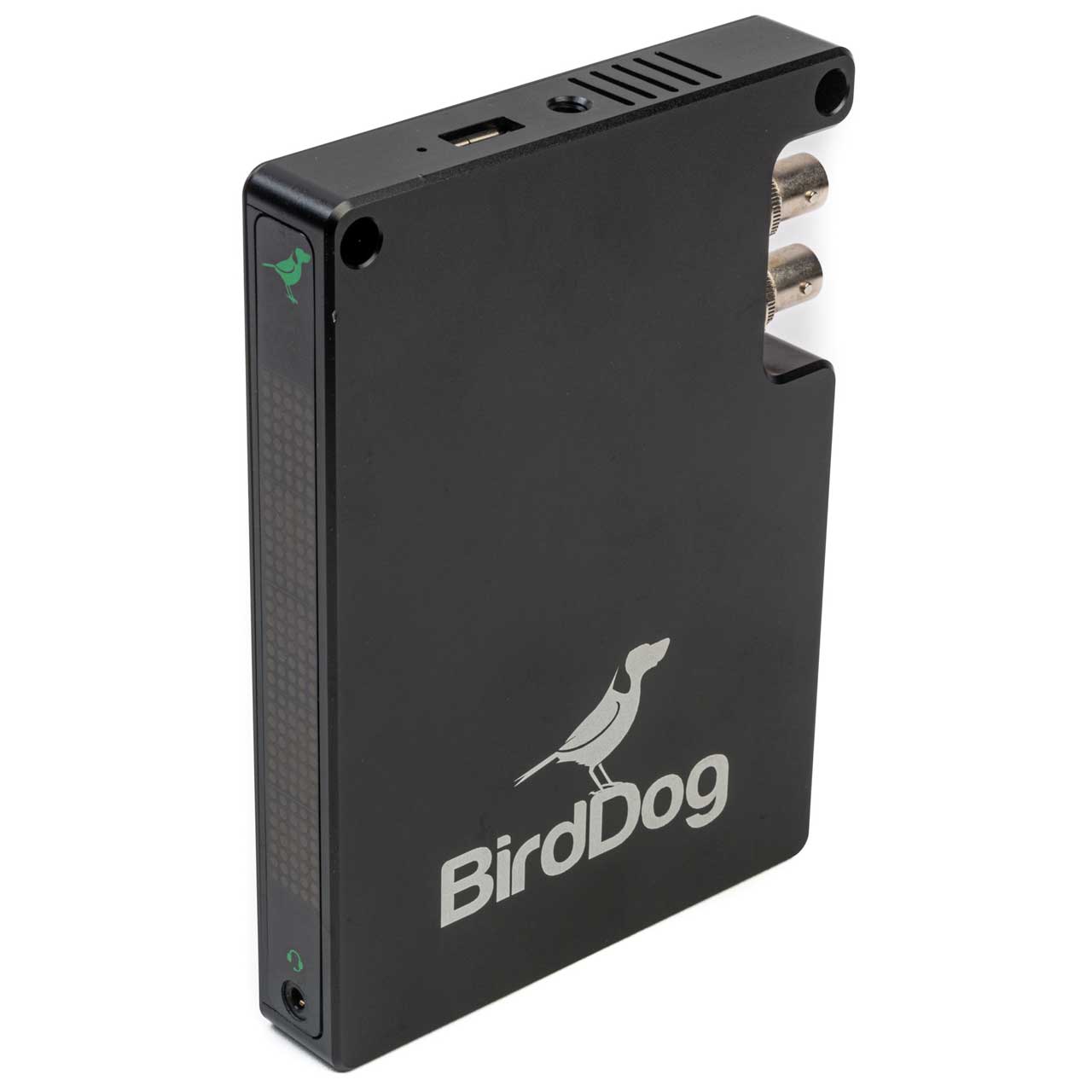

BirdDog Studio BDSTUM01 NDI 3G-SDI/HDMI to NDI Encoder/Decoder - B-Stock Repaired by Vendor - Used with few scratches

ITEM #: BDS-BDSTUM01BSTK MFG #: BDSTUM01

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BDS-BDSTUM01BSTK

BDSTUM01 - Overview

The Most Complete NDI Encoder & Decoder On The Planet !

BirdDog Studio enables your existing cameras to be included into a new IP workflow for your live productions. Once you convert your HDMI or SDI signal to IP the possibilities of live productions are magnified. Any network connection becomes a live video input into your switcher. Convert your baseband SDI or HDMI to NDI and take full advantage of flexible IP networks. No need to run long SDI cables or purchase expensive video routers, simply access your live video in real time anywhere on your network.

BirdDog Studio can accept industry-standard HD-SDI or consumer grade HDMI inputs making it universally compatible with video equipment presented to a production. Configurable Displays allow either the director or cameraman to quickly and easily identify the camera or on-screen talent to be aware of which camera is currently live to air via the bright multi-color LED display.

BirdDog Studio can display Tally onbaord and externally via Tally out. Due to the superior NDI integration it can provide both Program and Preview tally indicators. Simply set the display to be full screen Tally or split screen to show both program and preview. It has your bases covered when it comes to power. BirdDog Studio can accept power input form the Ethernet cable via PoE technology. Don't have a PoE network infrastructure? No worries, simply power via DC or V/Gold-mount battery plate optional accessories with power pass-through (coming soon).

Control and configure multiple BirdDog Studio devices through our admin panel which is accessible via a web browser on both mobile devices and desktop. SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa. Connect a monitor to BirdDog Studio or simply use to loop out to other gear.

Studio NDI includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director.

Please Note: Bstock Repaired by Vendor - Unit is used and has a few scratches

  • Features:

    • Please Note: Bstock Repaired by Vendor - Unit is used and has a few scratches
    • SDI to NDI with loop out
    • HDMI to NDI with loop out
    • Cross convert SDI and HDMI
    • Bi-colour tally. Program and preview
    • DC and Power over Ethernet (PoE)
    • Web and Mobile based fleet management
    • V-Mount and Anton Bauer mounting options with power pass through

  • Specifications:

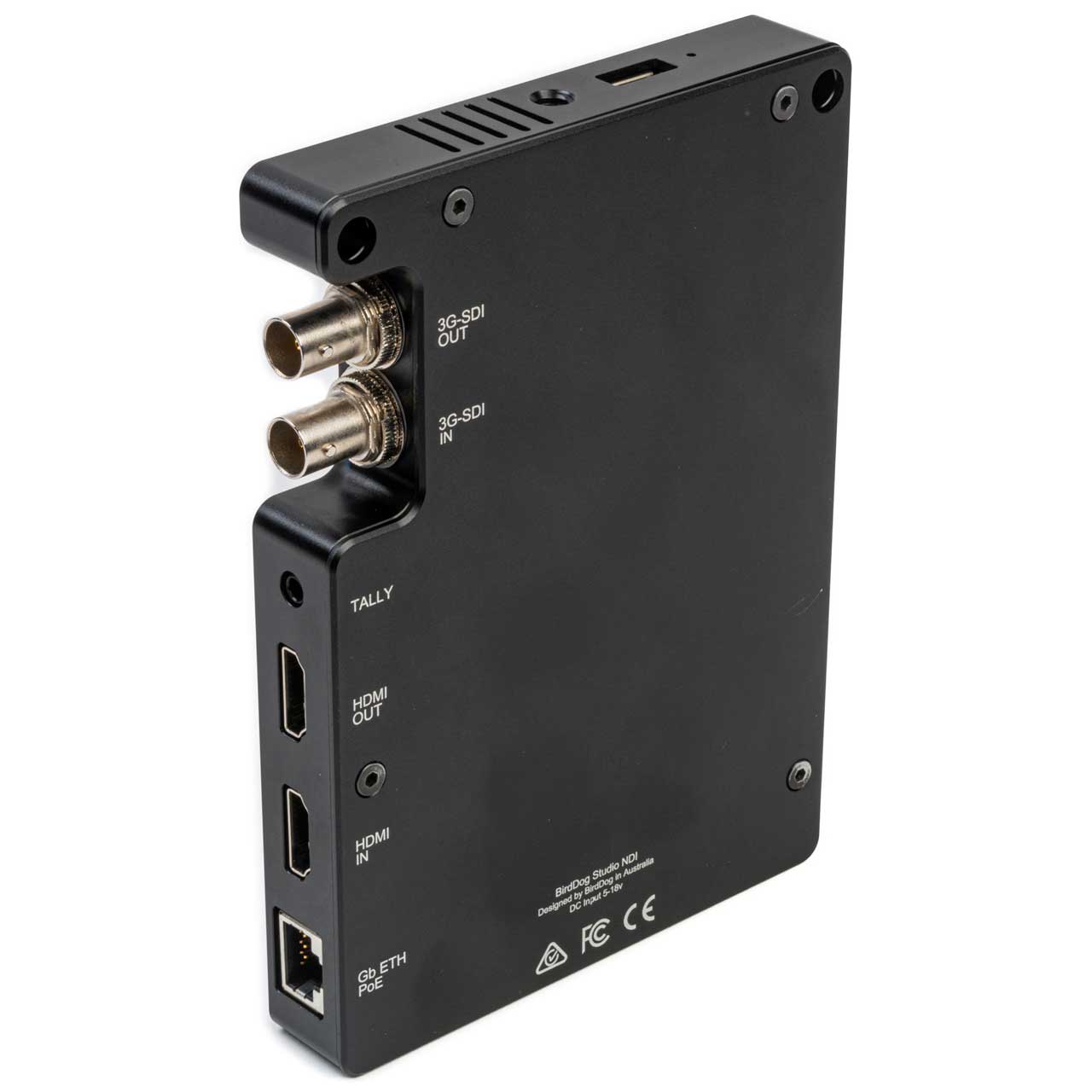

    • Video Inputs: HDMI, HD-SDI
    • Video Outputs: HDMI, HD-SDI
    • Supported Resolutions: 1080p 29.97/25, 1080i 59.94/50, 720p 59.94/50, SD PAL/NTSC
    • Video Protocol Support: NDI Realtime Encoding
    • Audio: Embedded via SDI/HDMI
    • Network: 1000baseT
    • Power: 802.3 PoE Compliant, 2-pin 8-24v DC with D-Tap adapter
    • External Tally: 3.5mm GPIO 2 position (Program/Preview)
    • Display: 5x35 LED Display, 3 Selectable modes (Info, Tally, Multi-Tally)
    • Configuration: Web Based (Mobile and Desktop compatible)
    • Physical Dimensions: 105mm (W) x 150mm (H) x 19.5mm (D)

  • Item Includes:

    • BirdDog Studio

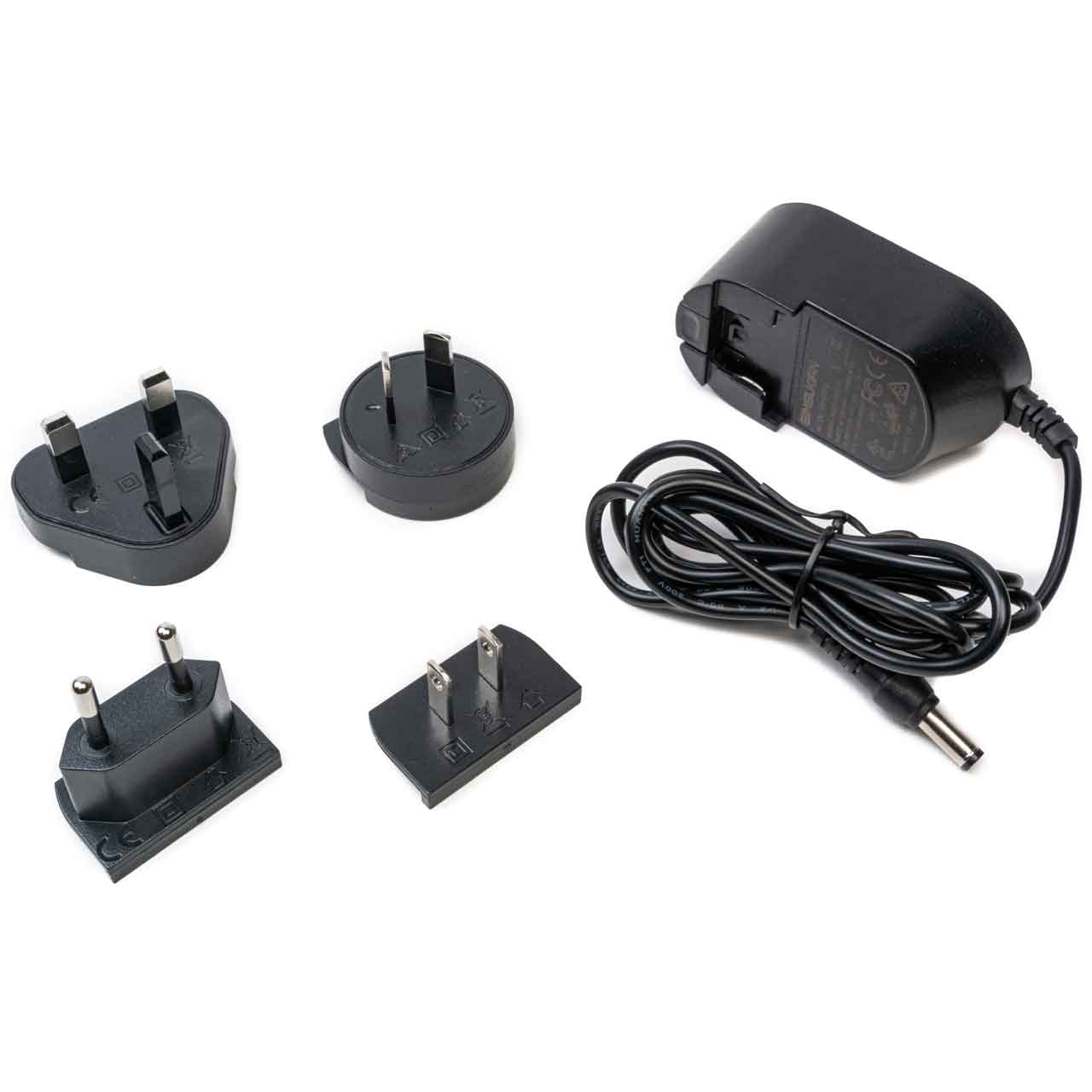

    • Universal AC adapter
    • D-Tap to 6mm DC cable
    • quickstart guide

  • GTIN:

    9369999071578
