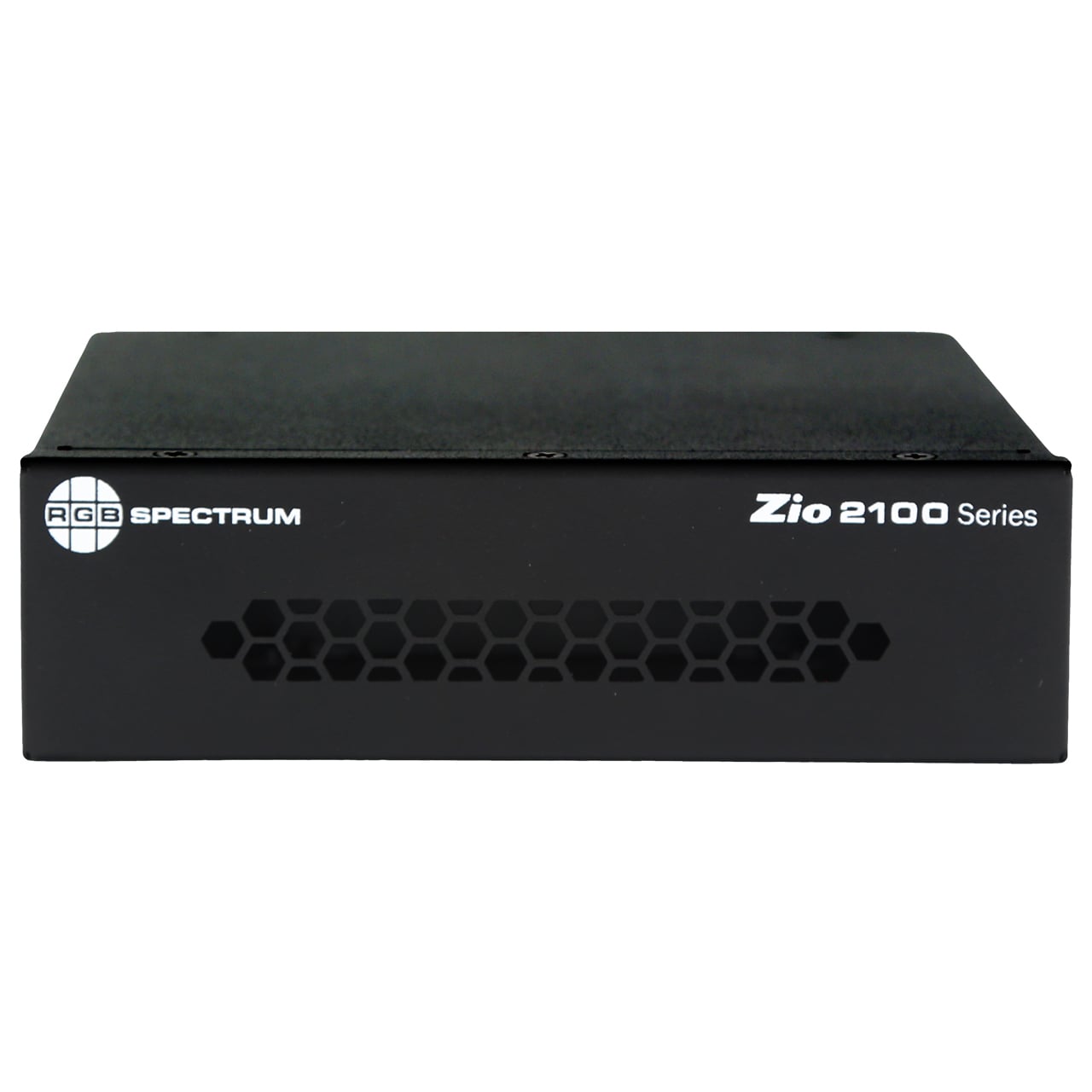

RGB Spectrum Zio S2112 Encoder Endpoint with One IP Stream up to 2K Resolution & One HDMI Output

ITEM #: RGB-ZIO-S2112 MFG #: ZIO S2112

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,005.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ZIO S2112 - Overview

When picture quality and latency matter, there is no alternative to the RGB Spectrum Zio S2112 H.264/H.265 video encoder. Delivering up to 4K video resolution and low latency, the S2100 series enables audio and video content distribution for mission-critical operations 24/7.

The new encoders offer high performance with an embedded architecture to secure and enhance reliability. Part of RGB Spectrum's Zio AV-over IP platform, they provide real-time audio and video distribution across packet-based networks, including local area (LANs), wide-area (WANs), virtual private (VPNs), and mobile networks.

Part of an open standards-based platform, all Zio components are compatible with third-party equipment as well as RGB's own full line of video streaming offerings: encoders, decoders, media servers, multiviewers, and video walls.

  • Features:

    • Streaming resolution - Up to 4K
    • Compatible with Zio and many third-party devices
    • DisplayPort and HDMI monitor outputs
    • Embedded architecture to maximize security and reliability
    • Compact chassis
    • Controlled via a browser-based Zio GUI or third-party controllers (via CLI)
    • Made in the U.S.A., and fully TAA and BAA-compliant

  • Specifications:

      Inputs
    • Type: HDMI
    • Connector: HDMI 2.0
    • Resolution: Up to 4096 x 2160 @ 60 Hz
    • Audio Support: Digital (embedded HDMI), Analog

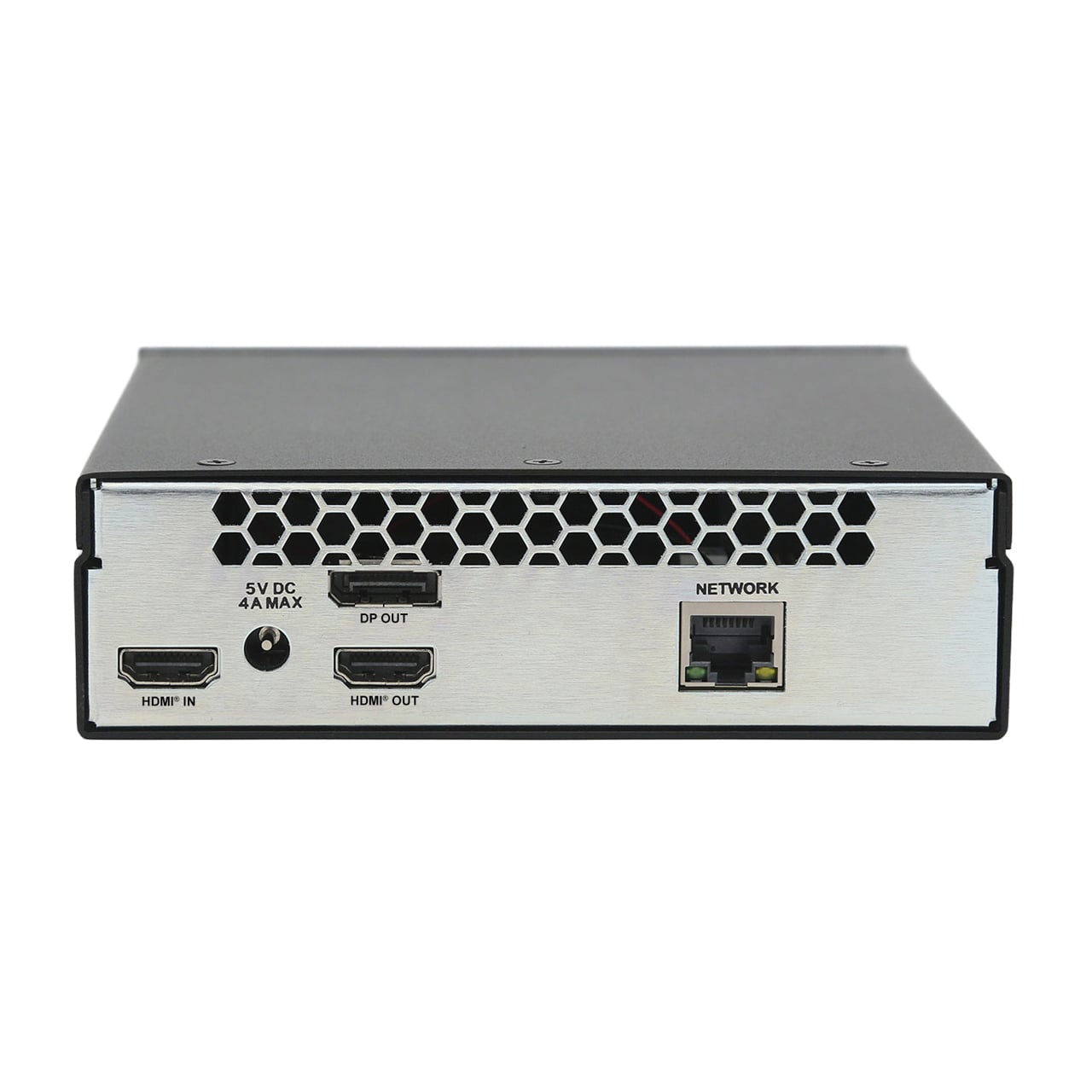

      Outputs
    • Connectors:
      - 1x HDMI 2.0
      - 1x DisplayPort 1.4
    • Streaming Resolution: Up to 4096 x 2160 @ 60Hz

      Streaming
    • Compression Format: H.264, H.265
    • Streaming Protocol: RTSP, Unicast/Multicast

      Control
    • Application: Browser-based HTML5: Windows, macOS, iOS, iPadOS, Android
    • Network: Ethernet TCP/IP 10/100/1000BaseT

      Physical
    • Dimensions (HxWxD): 1.83" x 5.61" x 6.27" (46.6mm x 142.37mm x 159.2mm)
    • Weight: 1.75lbs (0.8kg)
    • Power: 5 VDC, 27 W max; PoE+

  • Item Includes:

    • 1x Zio S2112 Encoder

  • Warranty:

    • 1 Year Limited Warranty
