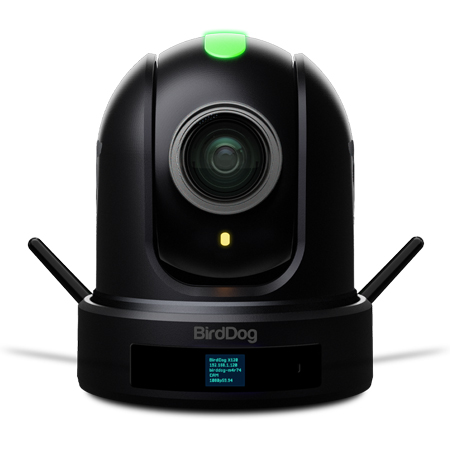

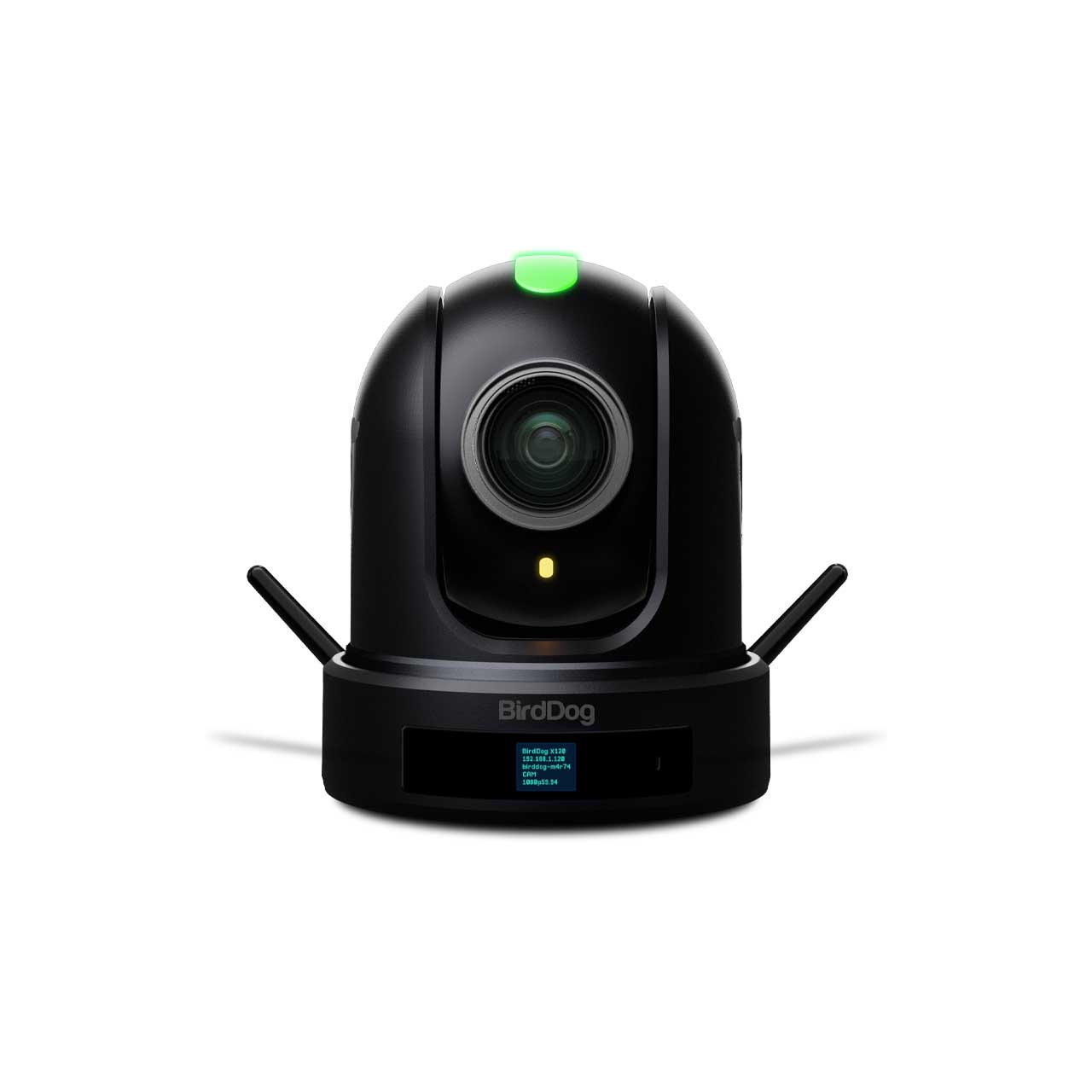

BirdDog X120 NDI HX3 Enabled Wi-Fi Production 1080P 20x PTZ Camera - Black

ITEM #: BDS-X120 MFG #: BDX120B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Preorder
iAvailability Description Popup
  • Preorder; estimated delivery in January.

BDX120B - Overview

The future of live production and live streaming is here.
The World's First NDI HX3 Wi-Fi Production PTZ is here, delivering unprecedented flexibility and freedom like never before. No video cables needed. The BirdDog X120 packs an amazing Sony Exmor R image broadcast sensor to deliver fantastic low light capabilities and incredible picture performance. In true BirdDog style, there is an OLED display to show the IP address, 360° mohawk tally, filter thread, and free auto-tracking and color shading via Cam Control. X120 also offers four hardwired connection options along with Wi-Fi making it the most connected PTZ camera on the planet, Additional connection options include NDIr over Ethernet, SDI, HDMI for live production work, and UVC USB for connecting to Zoom & Teams.

NDI HX3 certified.

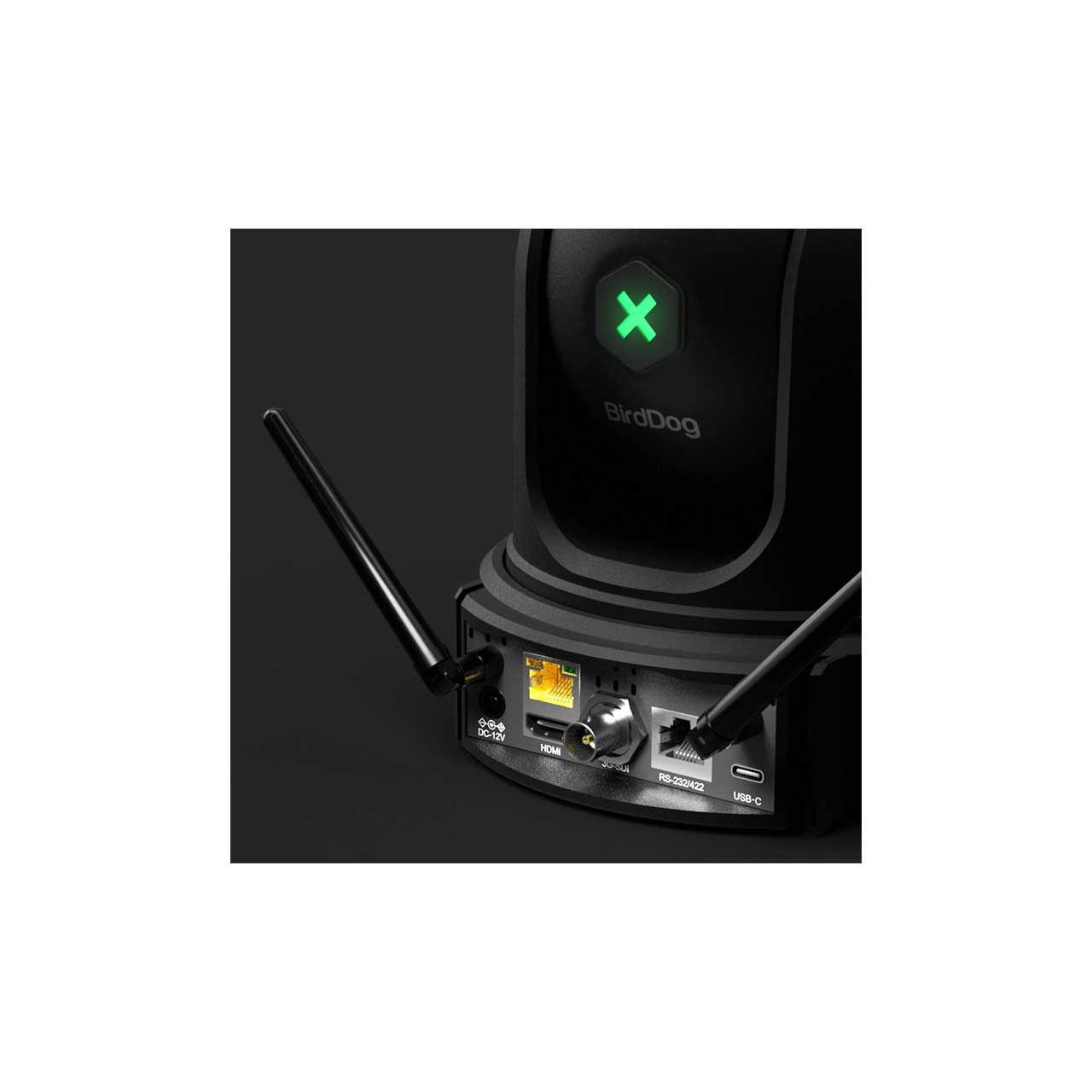

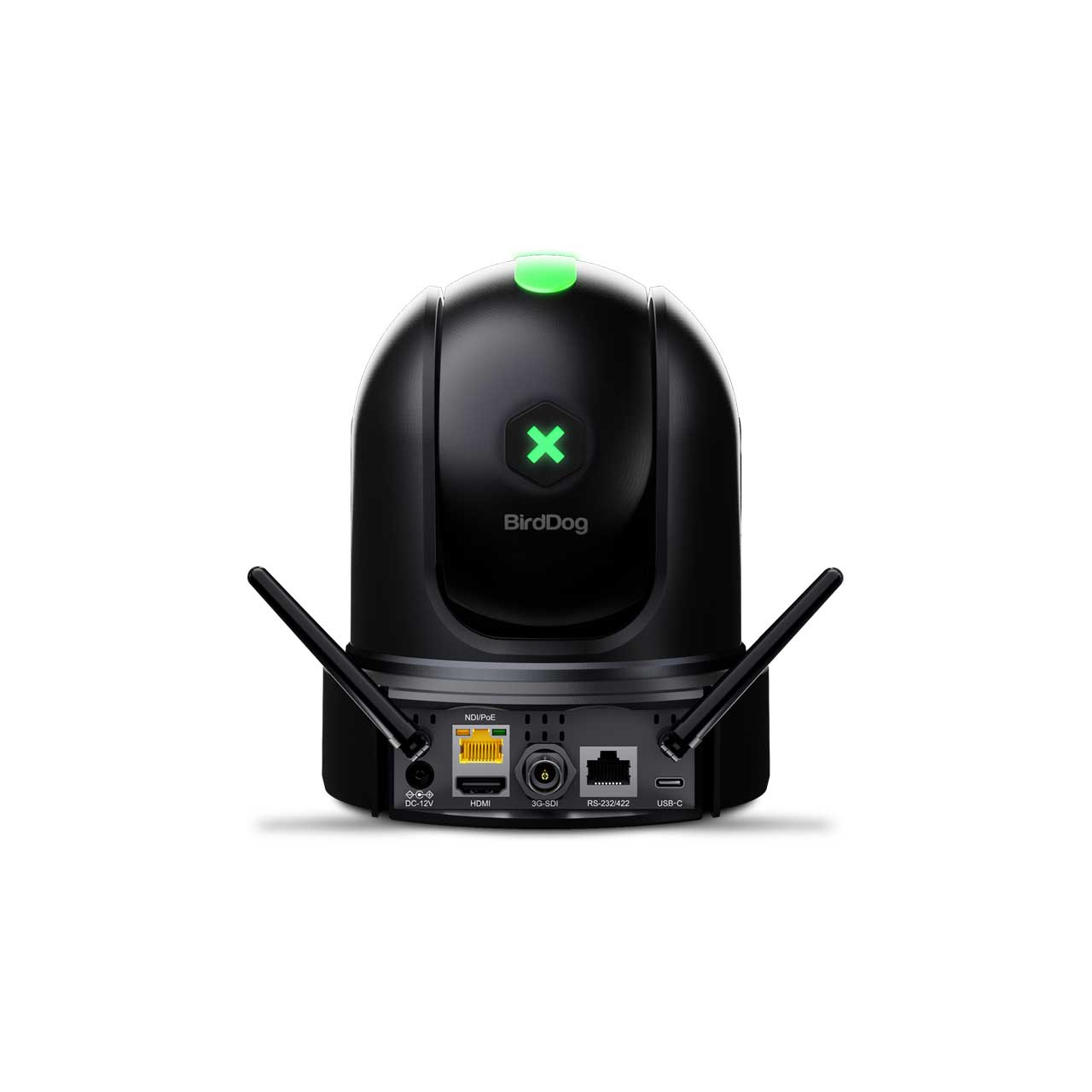

With 5 connection options, X120 is the most connected PTZ on the planet. Featuring Wi-Fi for wireless connectivity, SDI and HDMI for hardwired baseband video workflows, NDI over Ethernet with PoE for hardwired IP, and USB UVC to connect to your favourite conferencing app. Certified and fully compatible with NDI HX3 so you can rest easy.

Wi-Fi. Connected but not connected.
BirdDog has gained a reputation for world firsts and X120 is no exception. With Wi-Fi, the X120 sets a new benchmark for total production freedom and is the first production PTZ with Wi-Fi. Simply connect X120 to your Wi-Fi network and you have total access to the X120 without it being connected by expensive video cables.

Control from your iPad or iPhone.
With the optional NDI PTZ Control iOS app, you have total control for your X120 cameras. There is a live and full screen viewing monitor, a live joystick to move cameras around, and the ability to save and recall pre-set PTZ positions.

Sony Exmor R Sensor. Lowlight is a highlight.
With a Sony Exmor R™ back-illuminated CMOS image sensor, P110 and P120 deliver beautiful images with significantly enhanced imaging characteristics including enhanced low noise sensitivity.

Stream. Stream. Stream.
With X120, streaming to all the major platforms including Facebook, YouTube, Twitch, LinkedIn, Instagram, Twitter, and Vimeo, is a piece of cake.

So many color options.
X120 comes in black so you can choose any color you like, as long as it's black.

  • Features:

    • NDI HX3 certified
    • 5 connection options including Wi-Fi, Ethernet (with PoE) SDI, HDMI, and USB-C
    • Sony Exmor R image sensor
    • 1080p60
    • 20x Optical Zoom

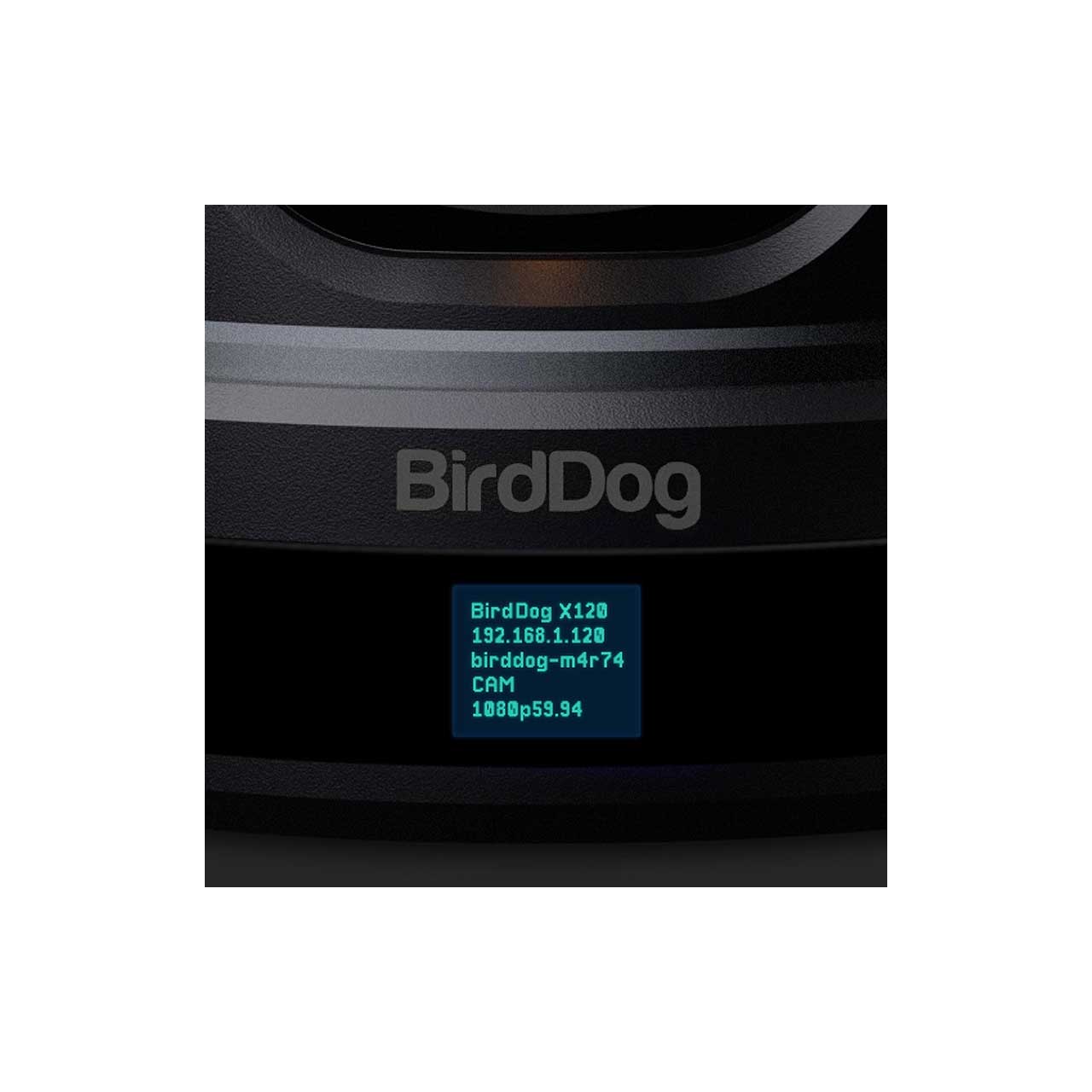

    • OLED screen to display IP address, resolution, frame rate, and stream name
    • Full Colour Matrix and Kelvin control
    • 360-degree viewable mohawk tally
    • BirdDog's unique PTZ numbering system
    • Compatible with all BirdDog software including NDI PTZ Control, Cam Control, BirdUI, BirdDog Cloud, Central 2.0, Multiview Pro, DYNO, and more.
  • Specifications:

    • Camera
    • Image Sensor: 1 / 2.8 inch CMOS 2.2MP
    • Lens: 5.2-104mm - (TBC)
    • Optical Zoom: 20x
    • Angle Of View: Horizontal: 55.8° (W) - 3.2°(T) - Verrtical: 32.2° (W) - 1.8°(T)
    • Aperture: F1. (W) - F3.0 (T) - (TBC)
    • Focus: Auto, Push, Manual
    • White Balance: Auto, Indoor, Outdoor, Manual, OPW, ATW, Temp. (Kelvin)
    • Exposure: Auto, Manual, Shutter/Iris Priority

    • Filter Ring: 49mm
    • Tally: Bi-Color Full overhead and rear (w/included 0-9 number silicon plugs)
    • Onboard OLED Display: 5-line, RGB Color, Graphical
    • Pan Movement: Horizontal: 350° (±175°) continuous pan (Zoom Adaptive Speed Range: 0.05°-100°/s)
    • Tilt Movement: Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.05°-72°/s)
    • Environmental: Indoor
    • Operating Temperature: -10 - +50 (°C)
    • Operating Humidity: =80%

      Video Interface
    • Video Output: NDI HX2, NDI HX3/SDI/HDMI/USB-C (UVC/UAC)
    • Video Formats:
      1080p: 60, 59.94, 50, 29.97, 25
      720p: 60, 59.94, 50, 29.97, 25
    • Video Compression: h.264

      Control Interface
    • IP PTZ Control: NDI HX, VISCA IP, Serial
    • Serial PTZ Control: 1x RJ45: RS232/RS422
    • Serial Control Protocol: VISCA / PELCO D

      Power & Dimensions
    • Power Input: 12v DC, PoE+ (IEEE 802.3at)
    • Dimensions: 145x152x171mm (without antennas)
    • Weight: 2.2lb

    • Network Interface: Wi-Fi IEEE 802.11ac, 1GbE
    • Web Control Interface: Full control via Web/Mobile UI including Scene presets
  • Item Includes:

    • 1x BirdDog X120 NDI HX3 Enabled Wi-Fi Production 1080P 20x PTZ Camera - Black
