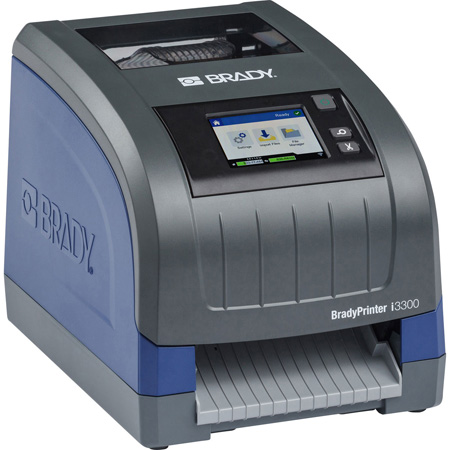

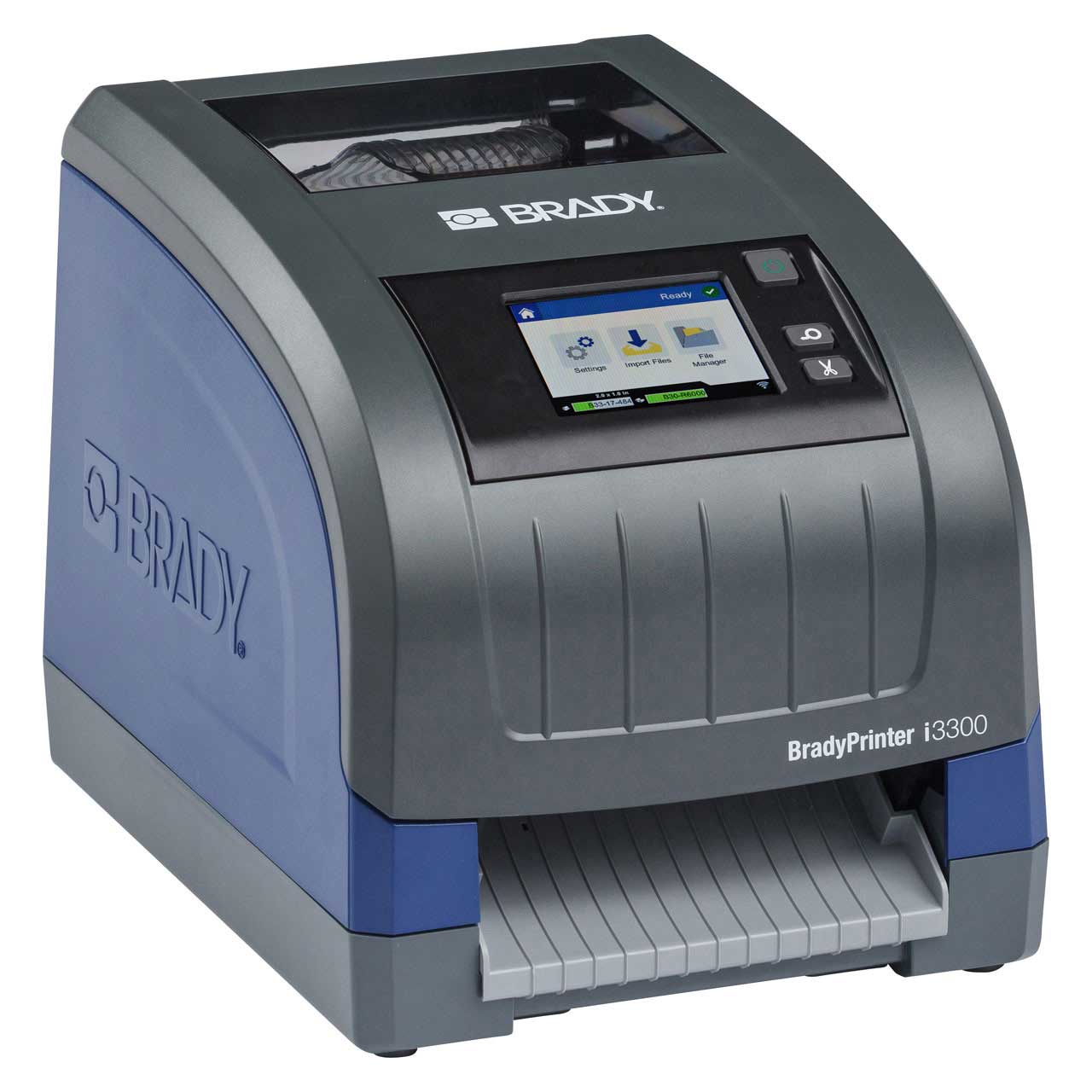

Brady 149552 Printer i3300 Industrial Label Printer with Wi-Fi

149552 - Overview

• Features:

  • Mid-volume industrial label printer ideal for identification throughout your facility, including everything from wires and panels to safety and facility labels
  • Print smart technology allows the printer to print on the first label - even sleeves and small labels

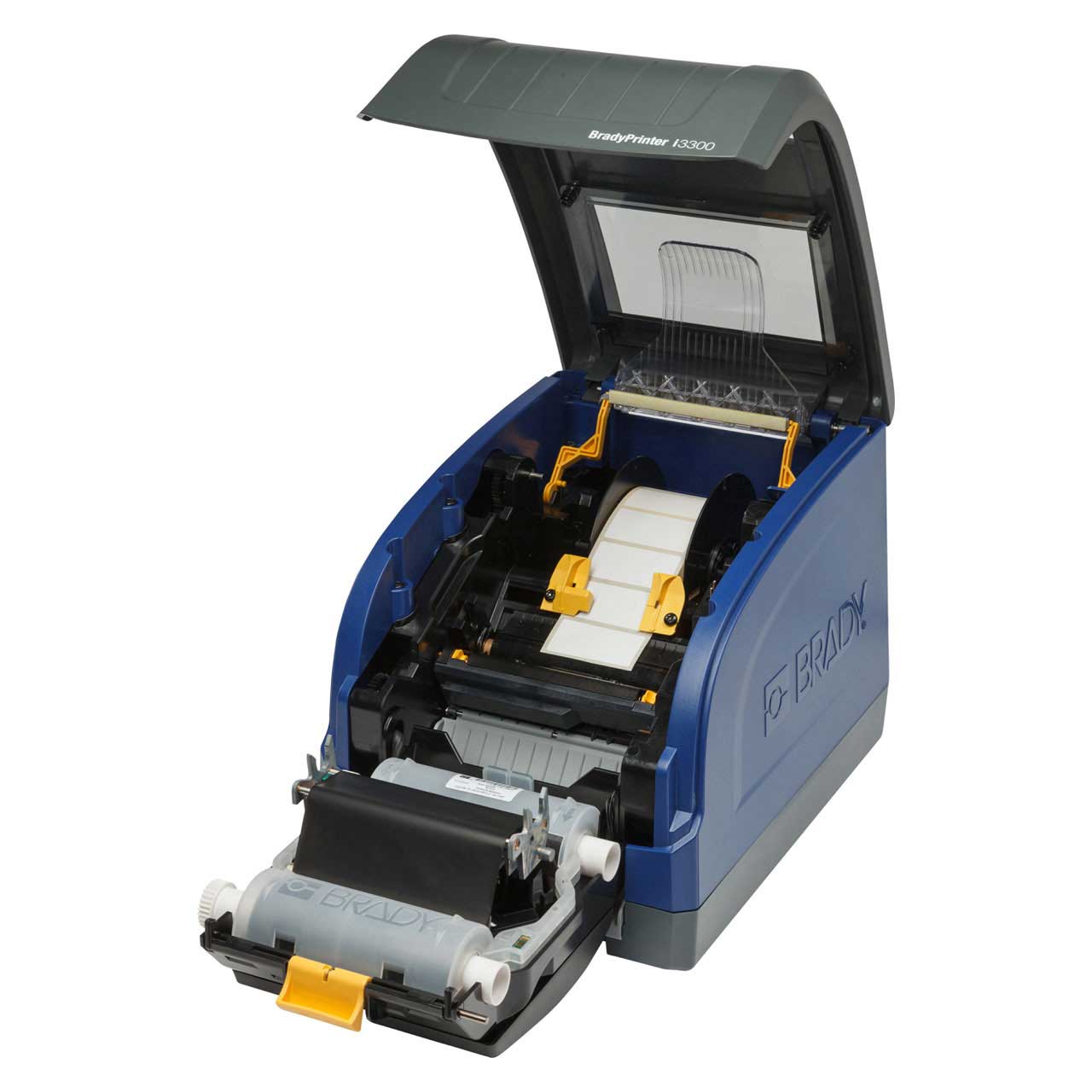

  • Changeovers in a flash - foolproof drop-in label rolls and ribbons snap into place in 20 seconds
  • Talk about options, this printer prints on more than 825 parts and 70 material options for facility-wide identification
  • Add one of the Brady Workstation Software Suites to your solution and make label creation even easier
  • Setup is stress free - Contact our Brady Technical Support Team and we will schedule a free phone setup appointment


• Specifications:

  • Dimensions
  • Sign Size (HxW): 9.5" x 9"
  • Dimensions(HxWxD): 9.5 x 9 x 12"
  • Display Size: 3.5"
  • Weight: 11.5Lbs

    General
  • Built-In Label Wizards: No
  • Connectivity Options: Ethernet, USB, USB 2.0, Wi-Fi
  • Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut
  • Cutter Type: Auto Cutter
  • Display Type: Color LCD Touch Screen
  • Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon
  • Keyboard Type: None
  • Memory: 512 MB RAM
  • Mode of Operation: PC Connect
  • Stand Alone Printing: PC Connect
  • Number of Symbols: See Brady Workstation Software
  • Plug Type: US
  • Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
  • Auto Shut-Off / Power Conserve: Yes
  • Print Preview Feature: No
  • Units: Inches, mm, Points
  • User Interface Type: PC, Touch Screen
  • Label/Media Format: Media and Ribbon in Cartridge, supplied separately
  • Operating System: Windows 10, Windows 7, Windows 8, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
  • Supply Remaining Gauge : Yes

    Printing Specifications
  • Automatic Label Set Up : Yes
  • Barcode Capability: Yes
  • Barcode Symbologies - 2D: Aztec, Data Matrix, Micro PDF 417, PDF 417, QR Code
  • Barcode Symbologies - Linear: Codabar;Codabar A,F;Code 128 Auto;Code 128 Subsets A,B,C;Code 39;Code 93;EAN 8,13;HIBC;Interleave 2 of 5;JAN 8,13;MSI;Plessey;UPC A
  • Calibration Required? : No
  • Color Printing Capability: Single Color
  • Font Sizes: 4 pt to 250 pt Text
  • Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trechuchet MS, Verdana
  • Maximum Labels per Day : 3000
  • Maximum Print Speed: 4 in/s
  • Print Resolution: 300 dpi
  • Print Technology: Thermal Transfer
  • Media Sensor Adjustment: Automatic Adjustment

    Compatibility
  • Compatible Media : B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
  • Label Material Types: Vinyl, Polyester, Magnetic, Glow, Reflective, Metal Detectable, Repositionable, Paper
  • Continuous & Die-Cut Materials Supported: Continuous and Die-cut
  • Custom Media Parts Available: Yes
  • Maximum Label/Tape Width: 4.25"
  • Maximum Print Width: 4.015"
  • Maximum Printed Label Length: 5'
  • Minimum Label Length: 0.25"
  • Minimum Liner Width: 0.71"
  • Maximum Liner Width: 4.25"
  • Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
  • Languages Available: Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Spanish (Mexico), Spanish (Spain), Swedish, Thai, Turkish

  • Compliance: UNSPSC : 45101519
  • RoHS Compliance Status: Compliant with 2011/65/EU and 2015/863 with exemptions

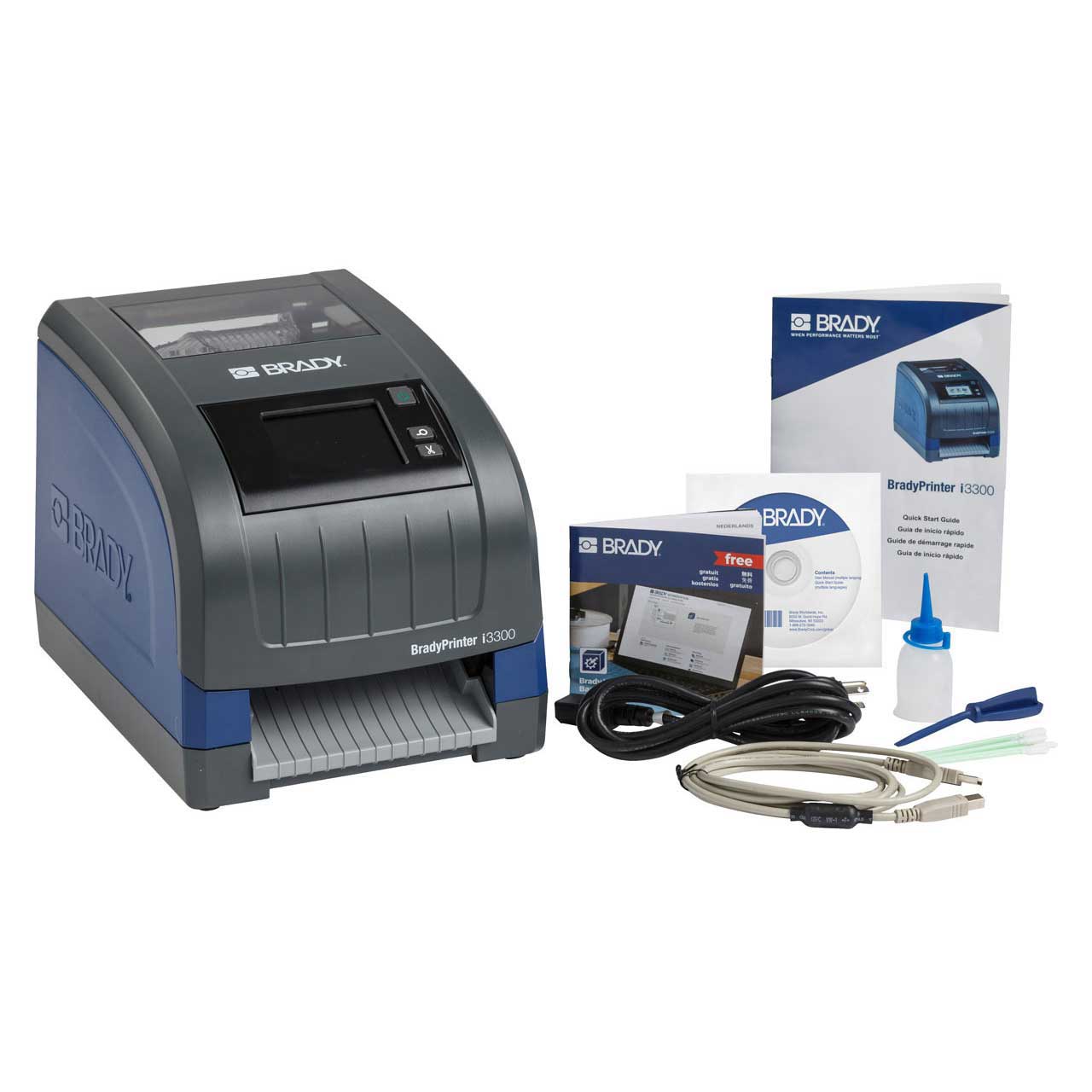

• Item Includes:

  • 1x BradyPrinter i3300 Printer with Wi-Fi (149552)
  • 1x Cleaning Kit (PCK-6)
  • 1x Cutter Cleaning Tool
  • 1x Free Brady WorkStation Basic Design Suite Download
  • 1x Power Cord
  • 1x Product CD with User Manual
  • 1x Quick Start Guide
  • 1x USB Cable


• Warranty:

  • 5 Year


• GTIN:

  0754473607227
