BZBGEAR BG-COMMANDER-G2 Universal POE Advanced Serial & IP PTZ Joystick Controller with 5-Inch Touch LCD - NDI & RS-232

ITEM #: BG-COMMANDER-G2 MFG #: COMMANDER-G2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


COMMANDER-G2 - Overview

Delivers precise control for both IP and serial PTZ cameras!

The BZBGEAR BG-COMMANDER-G2 PTZ joystick controller has high-quality backlit buttons and offers a pleasing user experience - even in low-light conditions. The solid metal chassis provides a durable, stable platform and is designed to stand up to years of heavy use. This controller is a great choice for live events, houses of worship, and broadcast settings.

Capable of controlling over 250 cameras, the BG-Commander-G2 provides a clean and uncluttered platform with 7 camera hot keys for your favorite devices and the capability to select other cameras with a simple button press makes this unit ideally suited for small- to medium-scale productions.

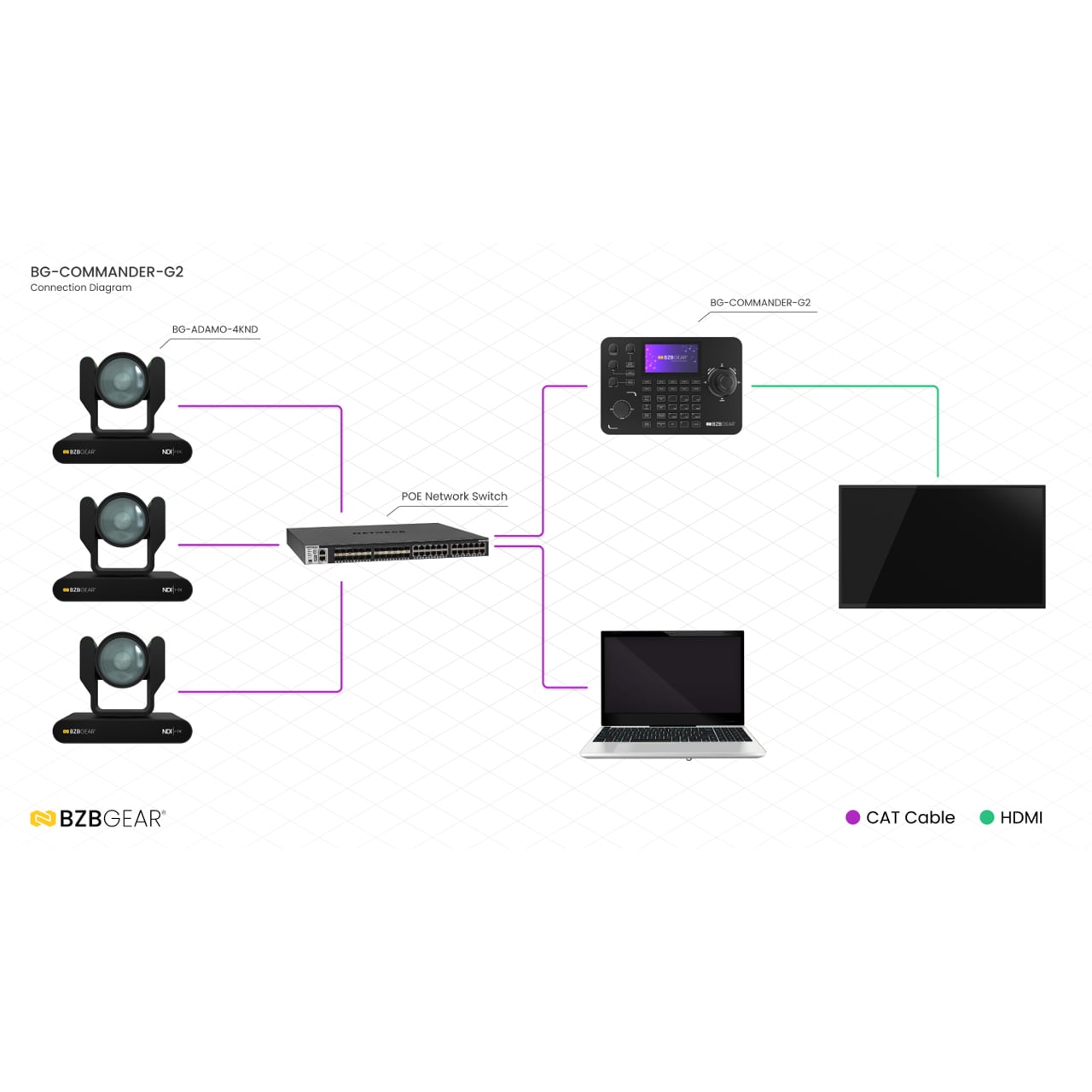

Control for either IP or serial based PTZ cameras is provided by a LAN port or RS232, RS422, and RS485 connections. The BG-Commander-G2 supports IP VISCA, ONVIF, VISCA, PELCO-D, and PELCO-P control protocols.

  • Features:

    • IP-Control: Easily control any compatible IP camera
    • POE Enabled: Single cable installation
    • 5" Touchscreen Display: The large touchscreen display makes management and monitoring simple
    • Variable Speed: Adjust PTZ speed to get the perfect shot every time
    • Four Control Modes: IP VISCA, ONVIF, RS422, and RS232
    • Integrated LCD Screen: Review settings at a glance

  • Specifications:

      Technical
    • Operating System: Linux
    • Supported Protocols: VISCA over IP (UDP/TCP), ONVIF, NDI, VISCA, PELCO-P, PELCO-D
    • Camera Search Protocols: ONVIF, NDI

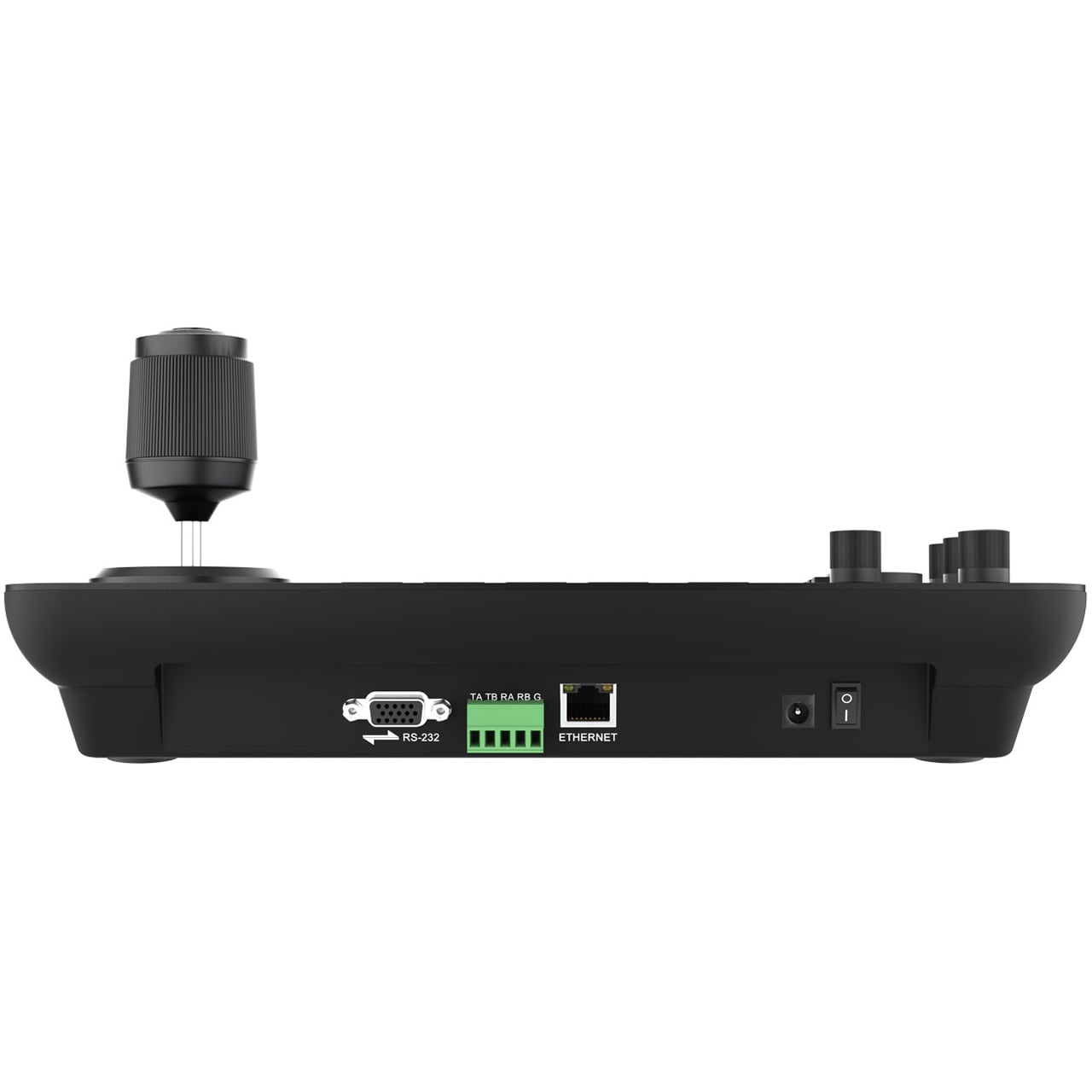

    • Communication Interfaces: RS-422, RS-232, RJ45
    • Display: HD touchscreen (720x1280)
    • Cue Tone: Button sound prompt (On/Off)

      Mechanical

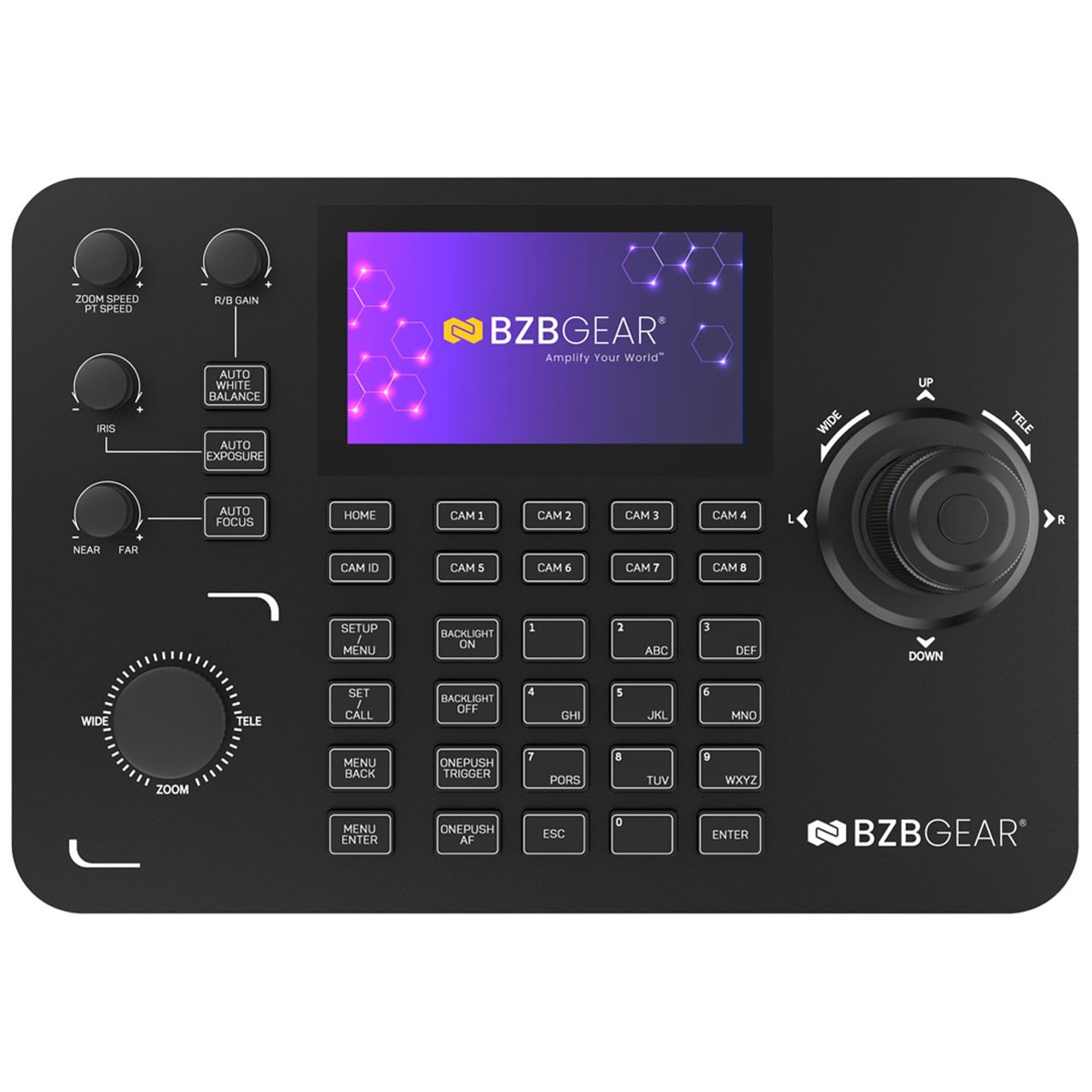

    • Key Physical Features: Self-resetting knob, stepless knob, backlit silicone buttons, 4D joystick
    • Power Consumption: ≤5W
    • PoE Standards: PoE 802.3af/802.3at/802.3bt standards
    • Power Supply: DC12V-2A (Center Positive, Outer Negative)
    • Operating Temperature: 14°F - 131°F (-10°C - 55°C)
    • Operating Humidity: 20% - 80% (non-condensing)
    • Storage Temperature: 14°F - 140°F (-10°C - 60°C)
    • Storage Humidity: 0% - 90% (non-condensing)

  • Item Includes:

    • 1x BG-Commander-G2
    • 1x DC12V-2A Adapter
    • 1x Product Manual
