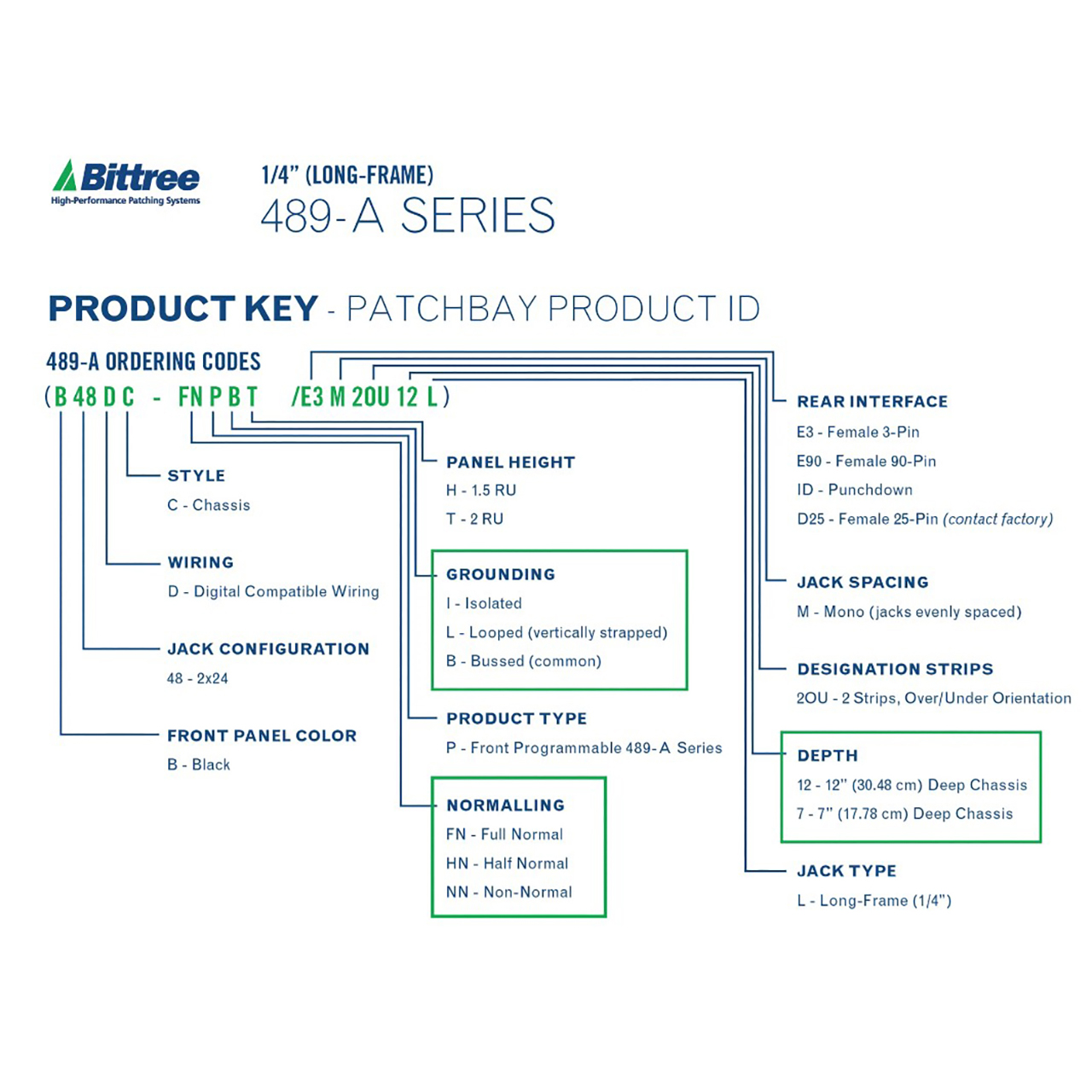

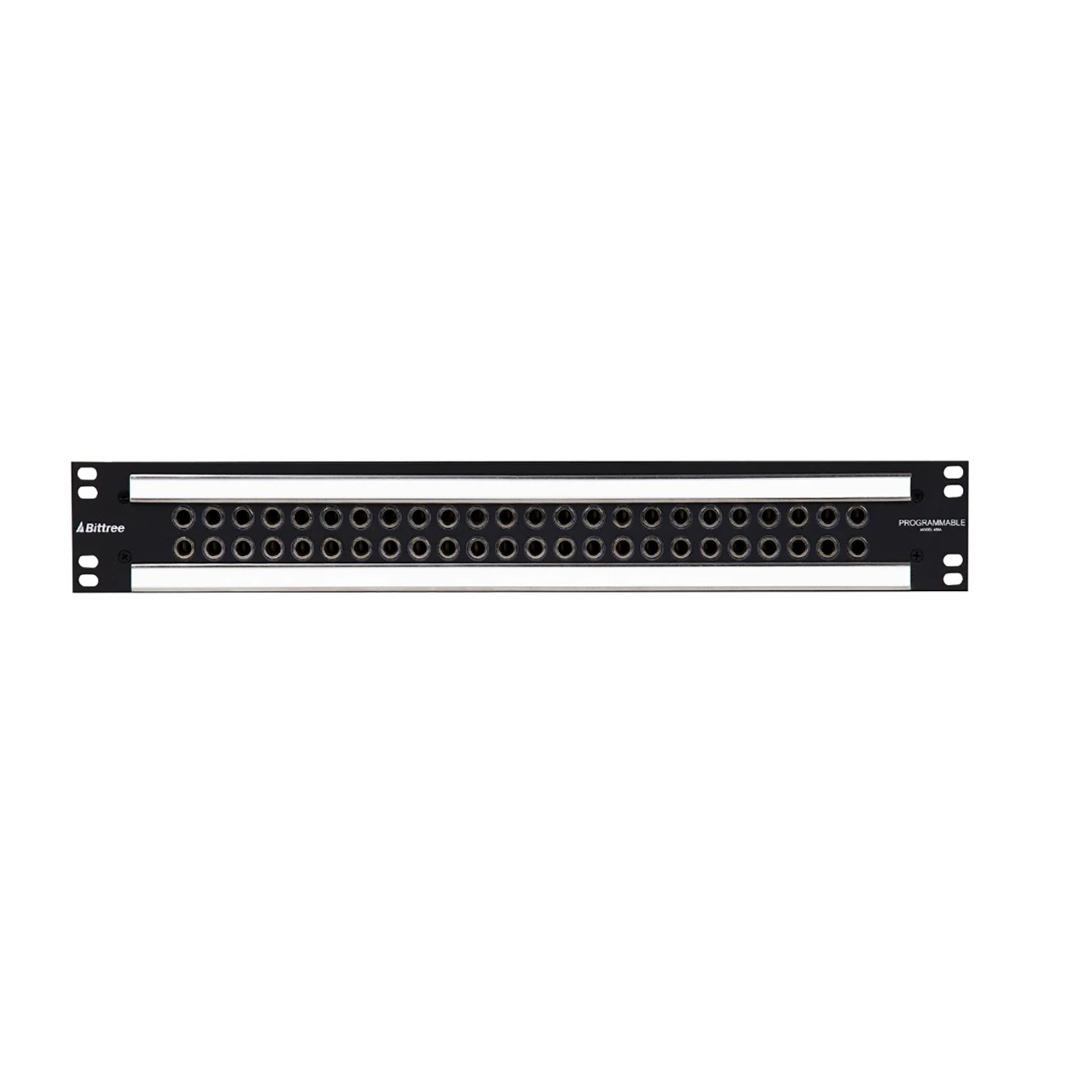

Bittree B48DC-FNPIH/E3 M2OU7L 2x24 1.5RU 1/4-Inch Long-Frame Patchbay Front Selectable TRS Audio

B48DC-FNPIH/E3 M2OU7L - Overview

• Features:

  • Spacious 2x24 jack configuration with mono (even) jack spacing
  • Selectable normalling and grounding: Circuits can be easily changed via shunts under both designation strips
  • Digital AES wire used for internal wiring
  • Two DS580-10SA-ASSY designation strip assemblies, "Over/Under" orientation
  • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
  • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces: Alternative 3" (7.62 cm) deep lacing bar available
