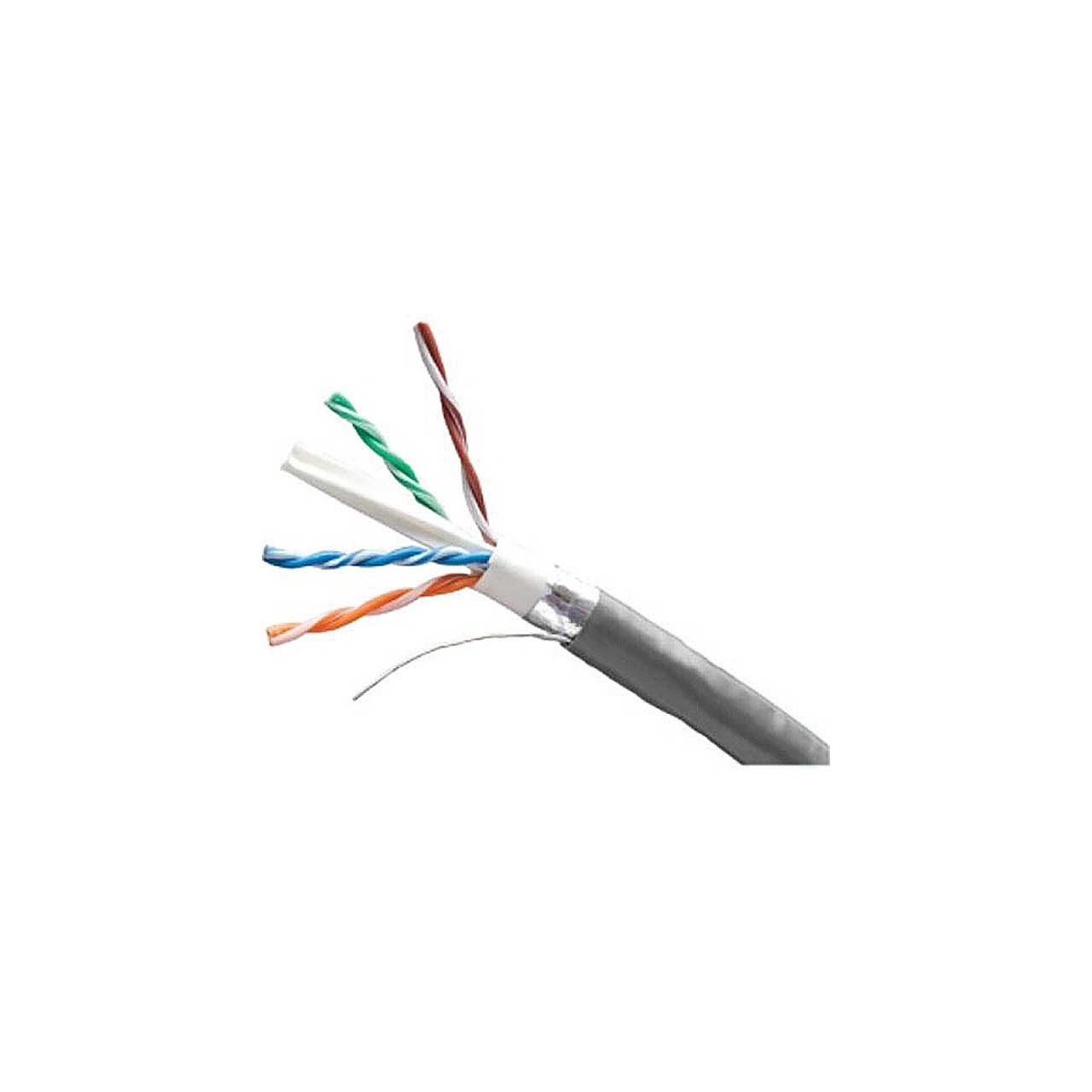

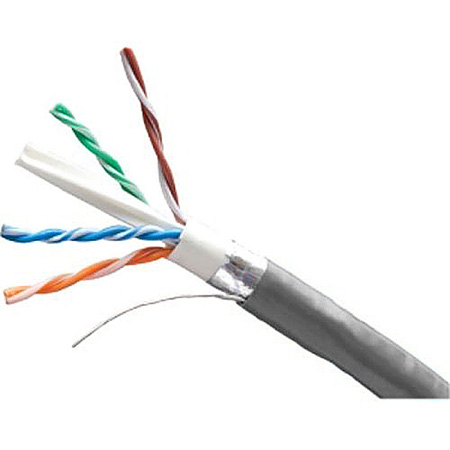

Belden 10GX62F is a 23 AWG 10GX Category 6A F/UTP Enhanced Premise Horizontal Cable (625MHz). It features 4 Bonded-Pairs, Solid Bare Copper Conductors and is Foil Shielded in a Riser-CMR rated PVC Jacket.
This 10GX shielded cable delivers performance that goes beyond the ANSI/TIA/EIA 568-C.2 Category 6A standard. When used as the horizontal cable within the Belden 10GX Shielded System, it provides 625 MHz of proven channel bandwidth and a data rate of 10 Gigabits per second. With a thick, 100% coverage foil shield, your 10 Gb/s of data is protected from harsh EMI environments. The Belden design utilizes an inner and outer jacket to sandwich the foil into having a smooth surface. This eliminates adverse PSNEXT and RL effects seen with most other 10G cable products.
Premise Horizontal Cable
Wi-Fi 6, Wi-Fi 5,
PoE++, PoE+, PoE
Ethernet up to 10GBASE-T, and any other Ethernet application in high noise environments (EMI)
10GBASE-T Full Power Implementation (IEEE 802.3an)
10GBASE-T Low Power Implementation (Short Reach Mode) (IEEE 802.3an)
1000BASE-T Applications (IEEE 802.3ab)
PoE PSE Type 1 (15 W), PSE Type 2 (30 W) PSE Type 3 (60 W), PSE Type 4 (100 W)
Broadband Video (CATV) and High Speed Internet (DOCSIS) over UTP up to 860 MHz
