Belden 1583A Riser/CMR U/UTP CAT5e Premise Horizontal 4 Non-Bonded Pair Cable 200MHz 24AWG - Blue - Per Foot

ITEM #: BL-1583A BE MFG #: BL-1583A BE

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    BL-1583A BE - Overview

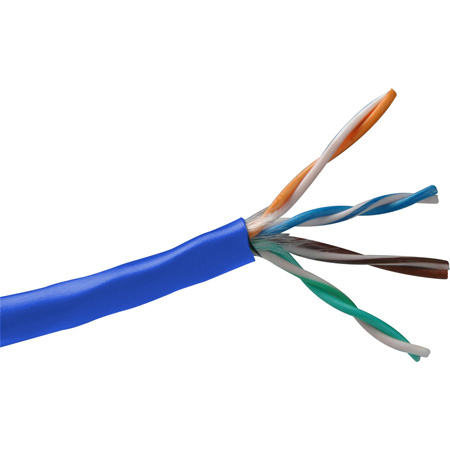

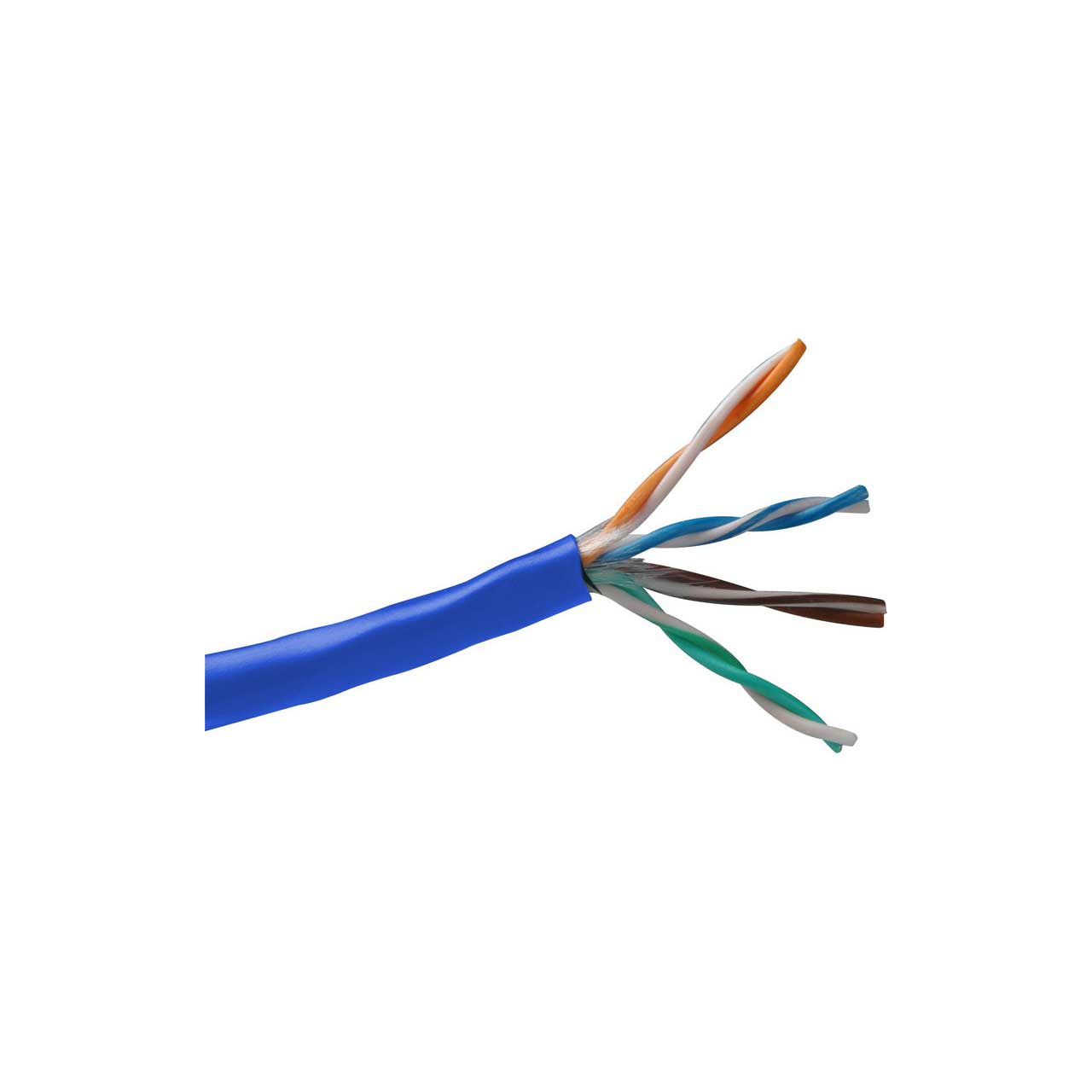

    Belden 1583A is a U/UTP Category 5e Premise Horizontal Cable (200MHz), with 4 Non-Bonded Pair, 24 AWG with Solid Bare Copper Conductors in a Riser/CMR rated PVC Jacket.

    Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels.

    Premise Horizontal Cable
    Ethernet 1000BASE-T
    Ethernet 100BASE-TX
    Ethernet 10BASE-T
    PoE++, PoE+, PoE

    Please Note: Our stock of Belden 1583A sold by the foot varies in length. The maximum continuous length on hand is never more than 400 feet. For full rolls, see model BL-1583A-1000.

    • Features:

      • Superior Electrical Performance: Exceeds Category 5e performance
      • Stable Electricals: Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
      • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
    • Specifications:

      • Conductor AWG: 24
      • Conductor Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Conductor Number of Pairs: 4
      • Insulation Material: PO - Polyolefin
      • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.190 in (4.83 mm)
      • Outer Jacket Ripcord: Yes
      • Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)
      • Max. Conductor DCR: 93.8 Ohm/km
      • Max. DCR Unbalance: 5%
      • Max. DCR Unbalanced Between Pairs [%]: 55%
      • Max. Capacitance Unbalance: 330 pF/100m
      • Nom. Mutual Capacitance: 15 pF/ft
      • Frequency Delay [MHz]: 100 MHz
      • Max. Delay: 537.6 ns/100m
      • Max. Delay Skew: 45 ns/100m
      • UL Voltage Rating: 300 V (CMR)
      • UL Rating Temp: 75°C
      • Operating Temp: -20°C To +75°C
      • Installation Temp: 0°C To +50°C
      • Storage Temp: -20°C To +75°C
      • Max. Pull Tension: 25 lbs
      • Bulk Cable Weight: 18 lbs/1000ft
      • Environmental Suitability: Riser, Indoor
      • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
      • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
      • NEC / UL Compliance: 800, CMR
      • CEC / C(UL) Compliance: CMR
      • ICEA Compliance: S-90-661-2012
      • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
      • NEMA Compliance: NEMA WC-63.1
      • Data Category: Category 5e
      • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
      • CPR Euroclass: Eca
    • Item Includes:

      • 1583A Riser/CMR U/UTP CAT5e Cable 200MHz 24AWG - Blue - Per Foot
    • Warranty:

      • Limited 10 Year Warranty
