Belden 3612 Riser/CMR Cat 6+ Premium Premise Horizontal Cable (400MHz) U/UTP 23AWG - Blue - 1000 Ft

Name: Belden 3612 Riser/CMR Cat 6+ Premium Premise Horizontal Cable (400MHz) U/UTP 23AWG - Blue - 1000 Ft
Brand: Belden
SKU: BL-3612-1000BE
Price: 404.51 USD
Availability: PreSale

ITEM #: BL-3612-1000BE MFG #: 3612 0061000

Belden

Colors:

Colors

List Price:

$498.50

Our Price:

$404.51

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

3612 0061000 - Overview

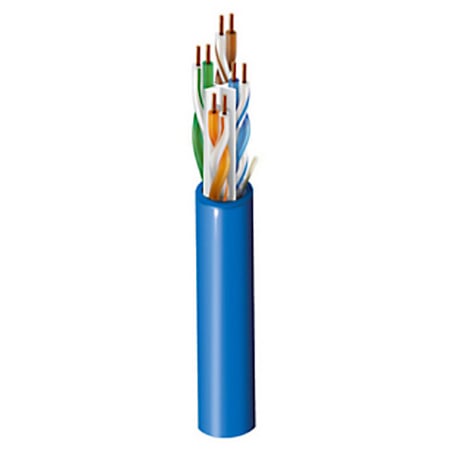

Belden 3612 is a U/UTP, Category 6+, Premium Premise Horizontal Cable (400MHz). It's 4 Pair, with 23 AWG Solid Bare Copper Conductors in a Riser-CMR rated PVC Jacket.

Belden offers several Category 6 performance levels, including the REVConnect 3600 System cable with premium performance offering significant headroom, and thier REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden's superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE

Features:
- Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
- Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
- Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
- Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
Specifications:
- Conductor AWG: 23
- Conductor Stranding: Solid
- Conductor Material: BC - Bare Copper
- Conductor No. of Pairs: 4
- Conductor Count: 8
- Total Number of Pairs: 4
- Insulation Material: PO - Polyolefin
- Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Outer Jacket Separator: Center Member (Patented X-Spline®)
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.231 in (5.87 mm)
- Outer Jacket Ripcord: Yes
- Max. Conductor DCR: 77 Ohm/km
- Max. DCR Unbalance: 3%
- Max. Capacitance Unbalance: 330 pF/100m
- Nom. Mutual Capacitance: 15.5 pF/ft
- Frequency Delay [MHz]: 100 MHz
- Max. Delay: 537.6 ns/100m
- Max. Delay Skew: 35 ns/100m
- Nom. Velocity of Propagation (VP) [%]: 70%
- Typical Delay Skew: 35 ns/100m
- UL Voltage Rating: 300 V (CMR)
- UL Rating: 75°C
- Operating Temp: -20°C To +75°C
- Installation Temp: 0°C To +50°C
- Storage Temp: -20°C To +75°C
- Max. Pull Tension: 25 lbs
- Bulk Cable Weight: 25 lbs/1000ft
- Environmental Suitability: Riser, Indoor
- Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
- Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
Item Includes:
- 3612 Riser/CMR Cat 6+ Cable (400MHz) U/UTP 23AWG - Blue - 1000 Ft
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825145585
