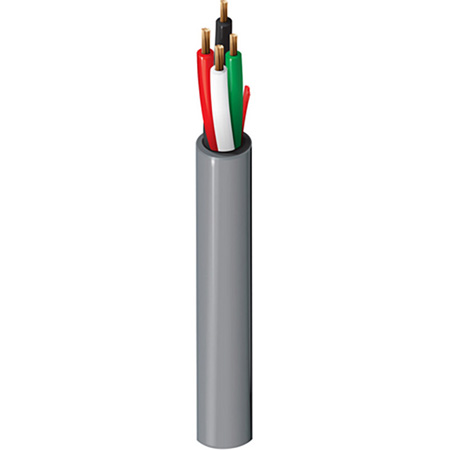

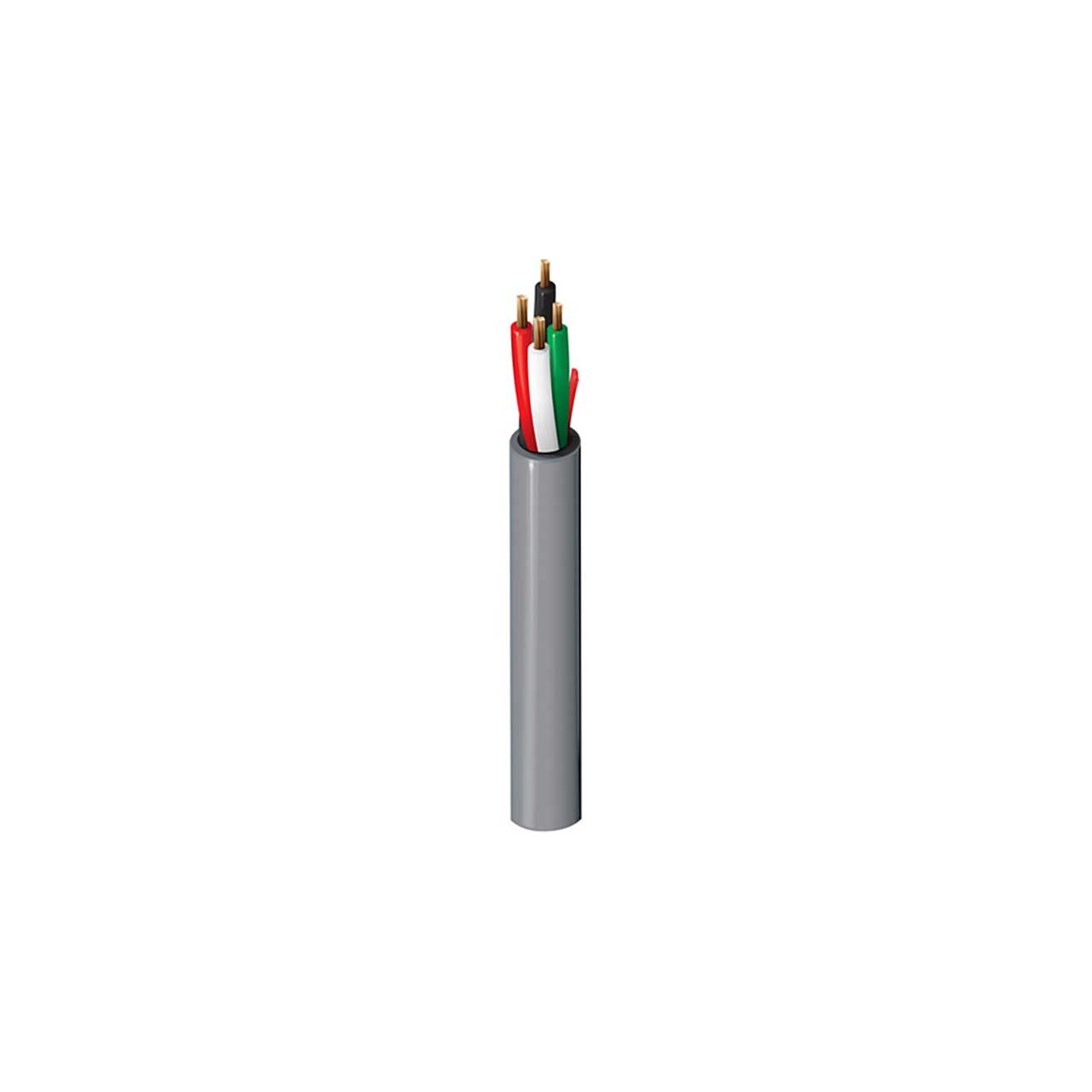

Belden 5102UE Security & Sound Cable - Riser-CL3R - 4-14 AWG Stranded Bare Copper Conductors - Gray - 500 Foot

ITEM #: BL-5102UE-500-GY MFG #: 5102UE 008500

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$471.75

Our Price:

$303.72

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    5102UE 008500 - Overview

    Belden 5102UE Security & Sound Cable, Riser-CL3R, 4-14 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord. Suitable for Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls applications.

    • Specifications:

      • Pairs: 4
      • AWG: 14
      • Stranding: 19x26
      • Material: Bare Copper
      • Nom. Conductor DCR: 2.53 Ohm/1000ft
      • Nom. Capacitance Cond-to-Cond: 22 pF/ft
      • Max. Current: 6.4 Amps per conductor @ 25°C
      • UL Voltage Rating: 300 V (CL3R)
      • UL Rating Temp: 75°C
      • Operating Temp: -20°C to +75°C
      • Max. Pull Tension: 190 lbs
      • Bulk Cable Weight: 62 lbs/1000ft
      • Environmental Suitability: Indoor - Riser, Indoor
      • Flammability / Fire Resistance: UL1666 Riser, IEC 60332-1-2
      • NEC / UL Compliance: Article 725, CL3R


    • Item Includes:

      • 1x Belden 5102UE Security & Sound Cable - Riser-CL3R - 4-14 AWG Stranded Bare Copper Conductors - Gray - 500 Foot
