Belden 5200FE Non-Paired Beldfoil Security / Alarm Cable - 1000 Foot

Name: Belden 5200FE Non-Paired Beldfoil Security / Alarm Cable - 1000 Foot
Brand: Belden
SKU: BL-5200FE-1000
Price: 449.00 USD
Availability: PreSale

ITEM #: BL-5200FE-1000 MFG #: 5200FE 0081000

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$591.70

Our Price:

$449.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

5200FE 0081000 - Overview

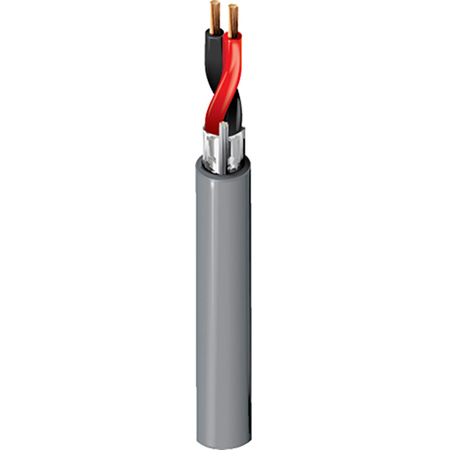

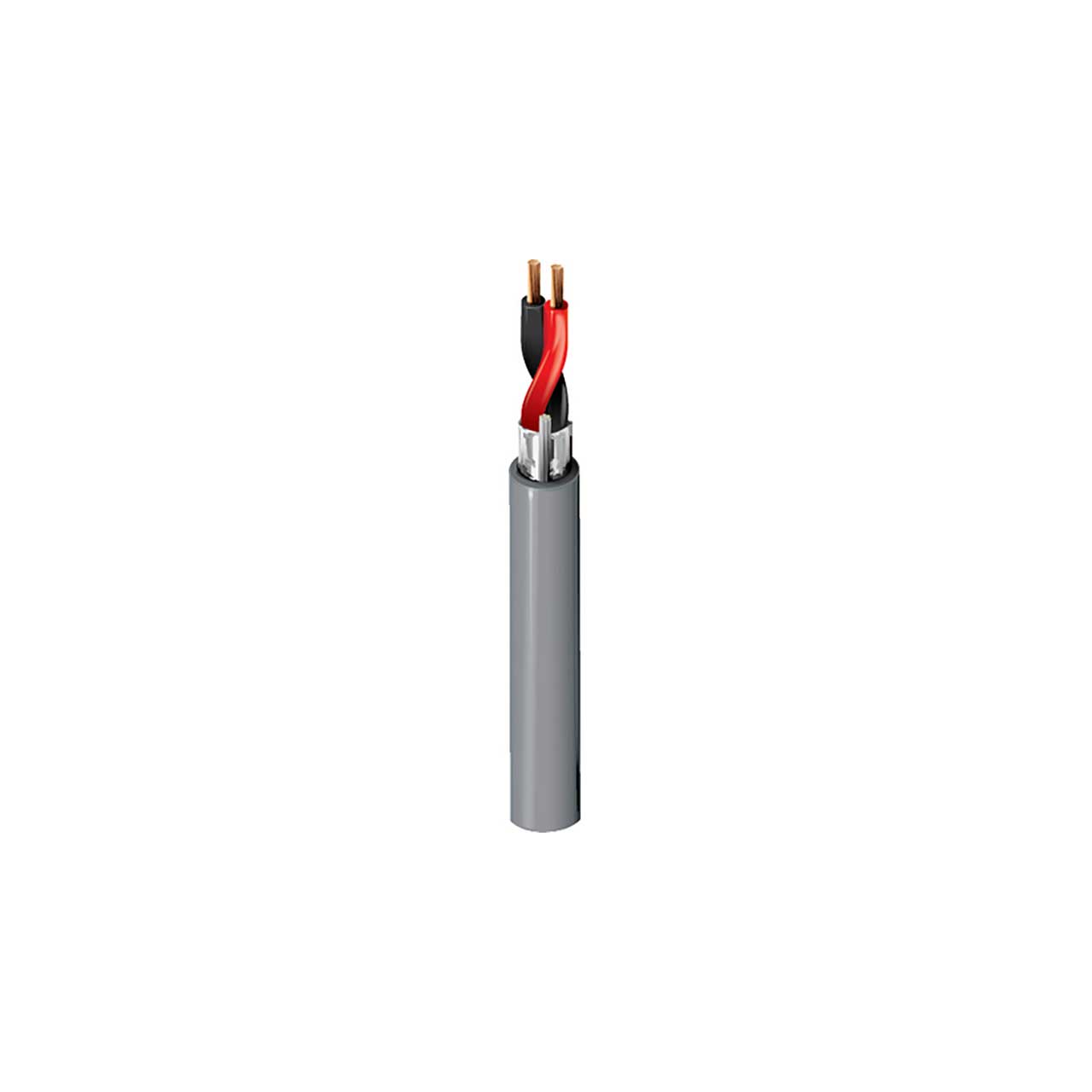

Belden 5200FE is a Riser-CMR Security & Commercial Audio Cable. It features 2-16 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield in a PVC jacket with ripcord.

Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers.

Applications
Security Systems
Intercom/PA
Audio/Speaker
Noisy Environment

Specifications:
- Number of Conductors: 2
- Total Number of Conductors: 2
- AWG: 16
- Stranding: 19
- Conductor Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Outer Shield Material Trade Name: Beldfoil
- Outer Shield Material: Aluminum Foil-Polyester Tape
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Plenum Number: BL-6200FE
- Operating Temperature Range: -20°C To +75°C
- UL Temperature Rating: 75°C
- Bulk Cable Weight: 24 lbs/1000 ft.
- Max. Recommended Pulling Tension: 85.500 lbs.
- Min. Bend Radius/Minor Axis: 1.800 in
- UL Flame Test: UL1666 Vertical Shaft
- C(UL) Flame Test: FT4
- DCR @ 20°C (Ohm/1000 ft): 4.0
- DCR @ 20°C (Ohm/1000 ft): 14.400
- Voltage: 300 V RMS
GTIN:
0612825157298

5200FE 0081000 - Recommended Accessories

Rolls MA1705 70v Mixer Amplifier 70w
MA1705
Our Price: $379.00
Tenma 72-6948 Audio Impedance Meter & Tester
TEN-72-6948
Our Price: $192.95
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19

5200FE 0081000 - Reviews

5200FE 0081000 - Attachments

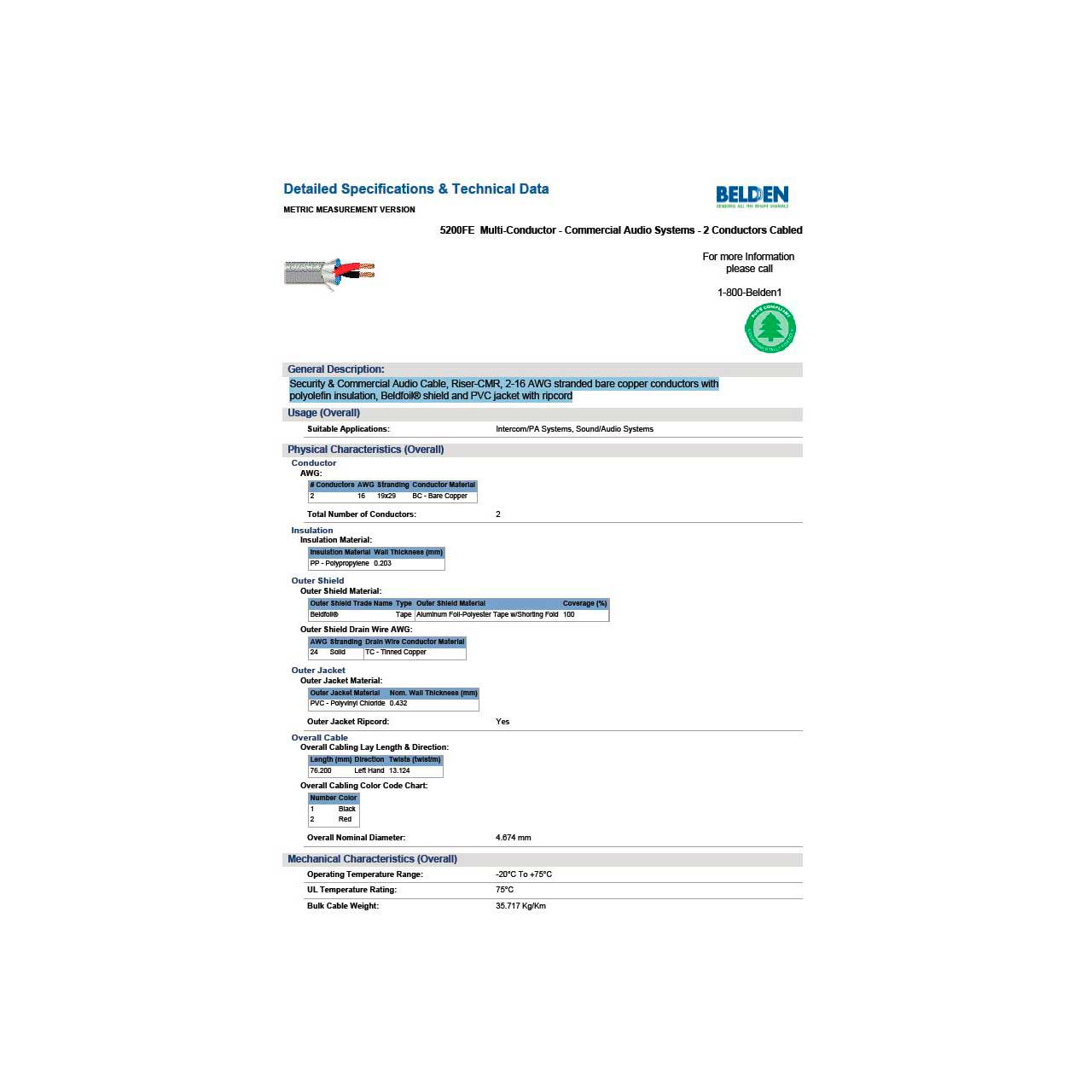

See Belden BL-5200FE-1000 Specifications (PDF)
